Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

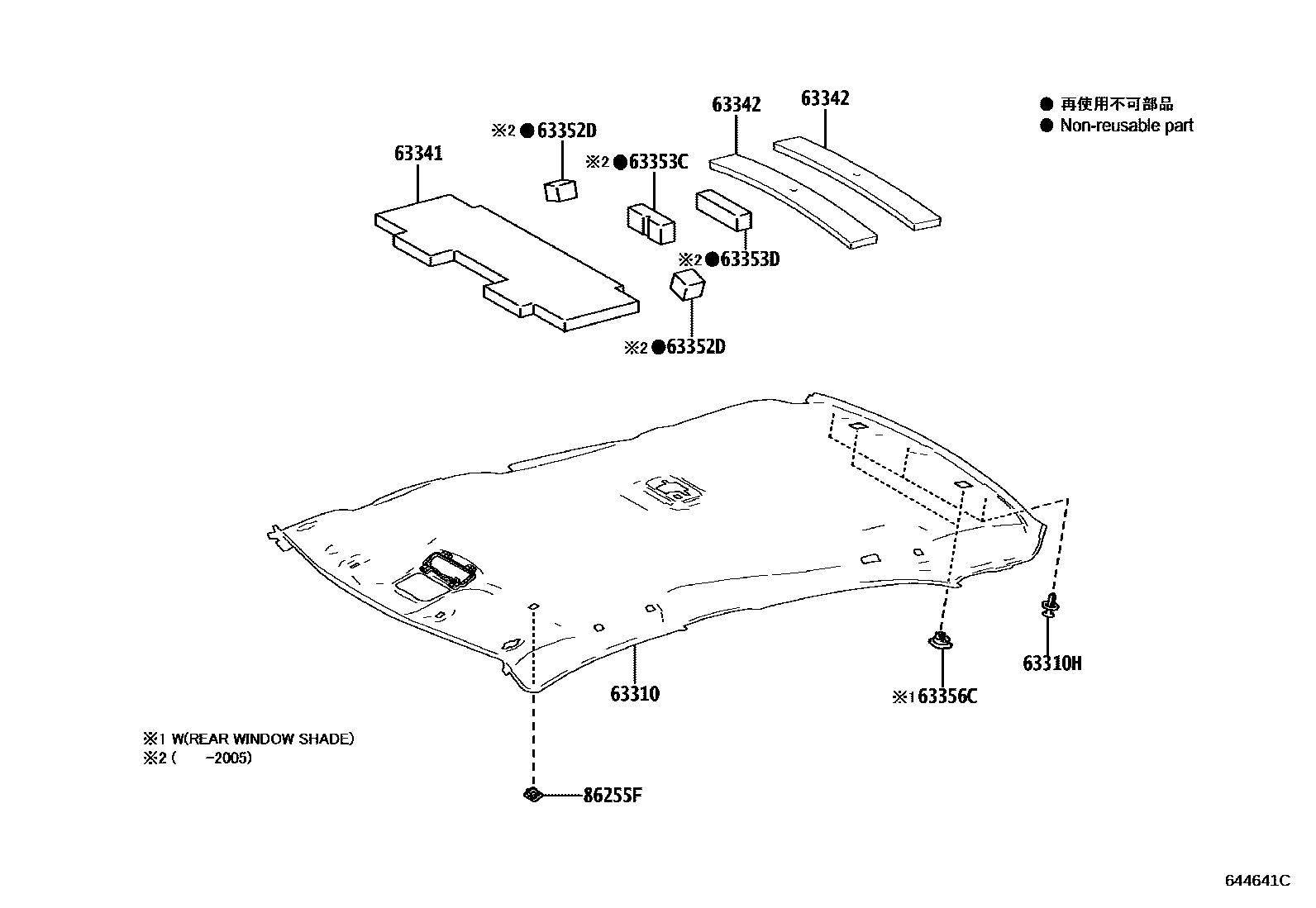

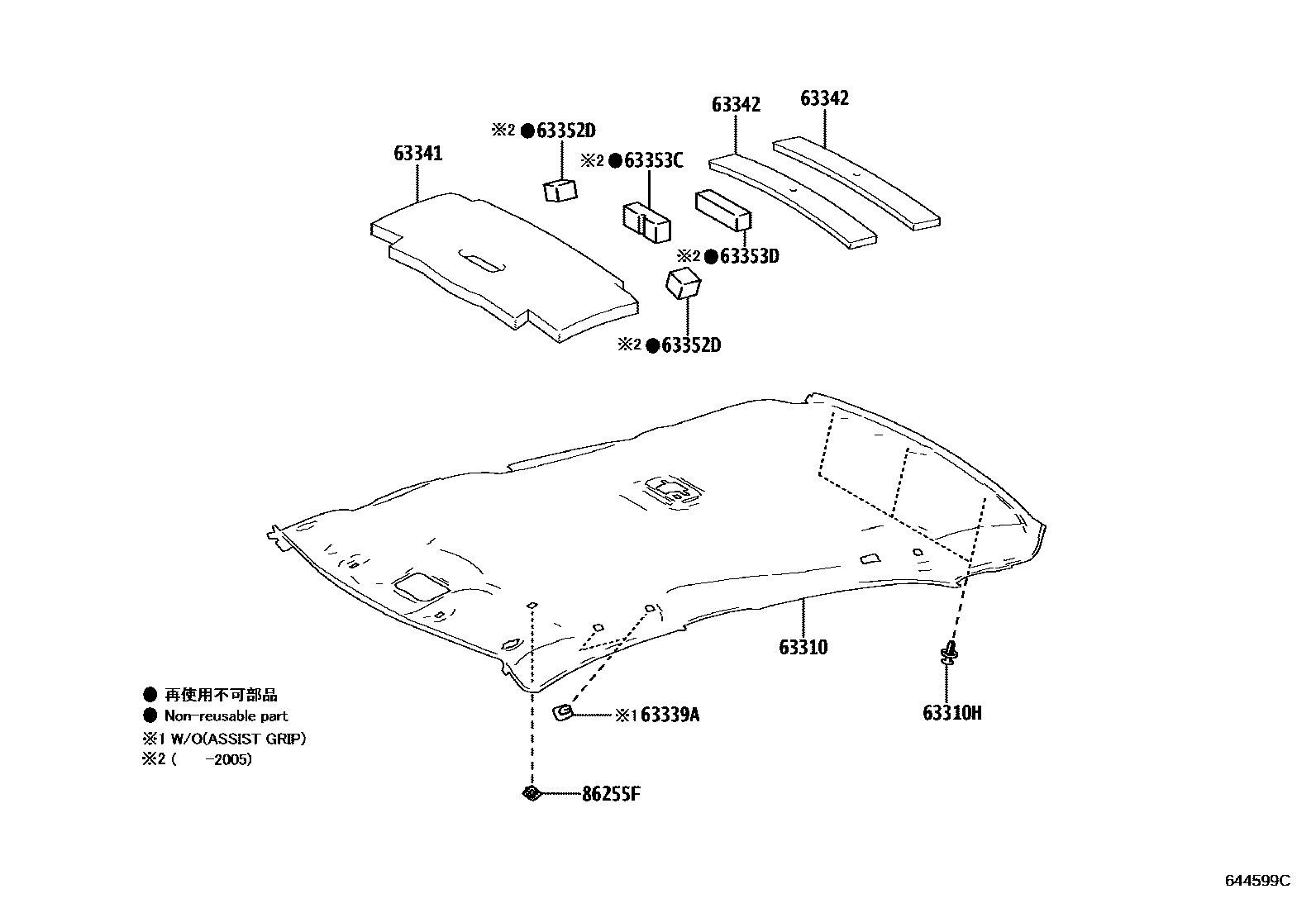

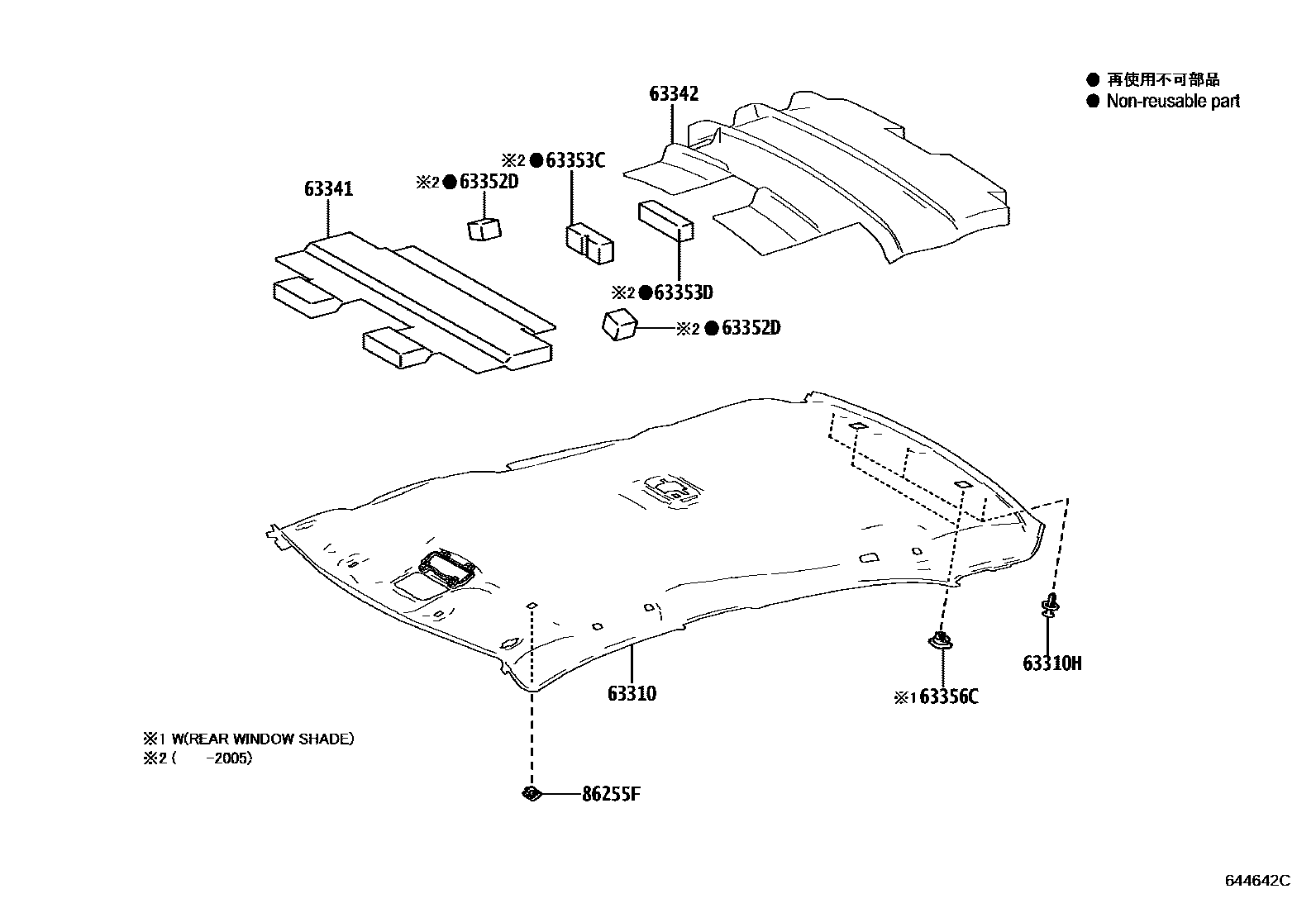

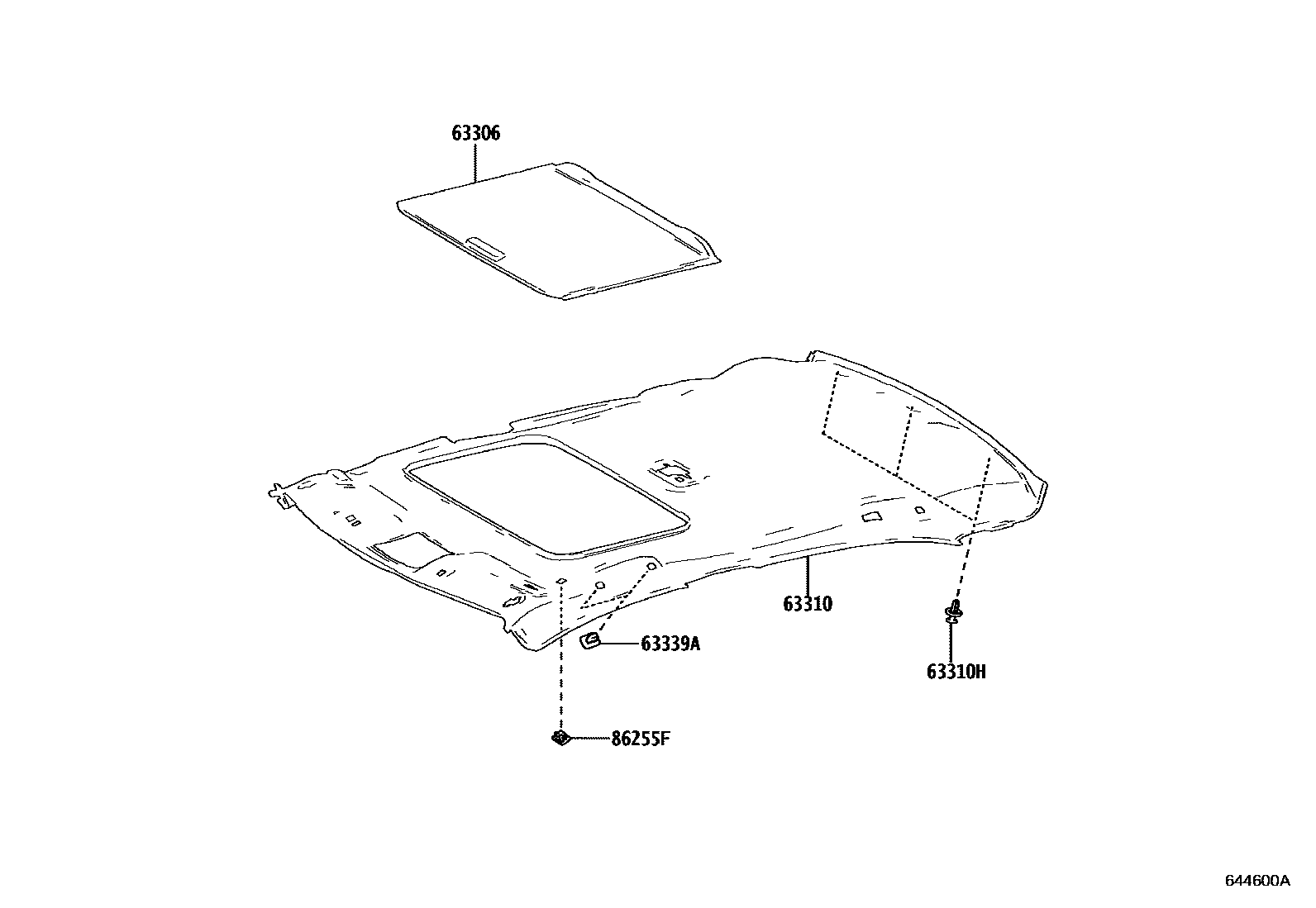

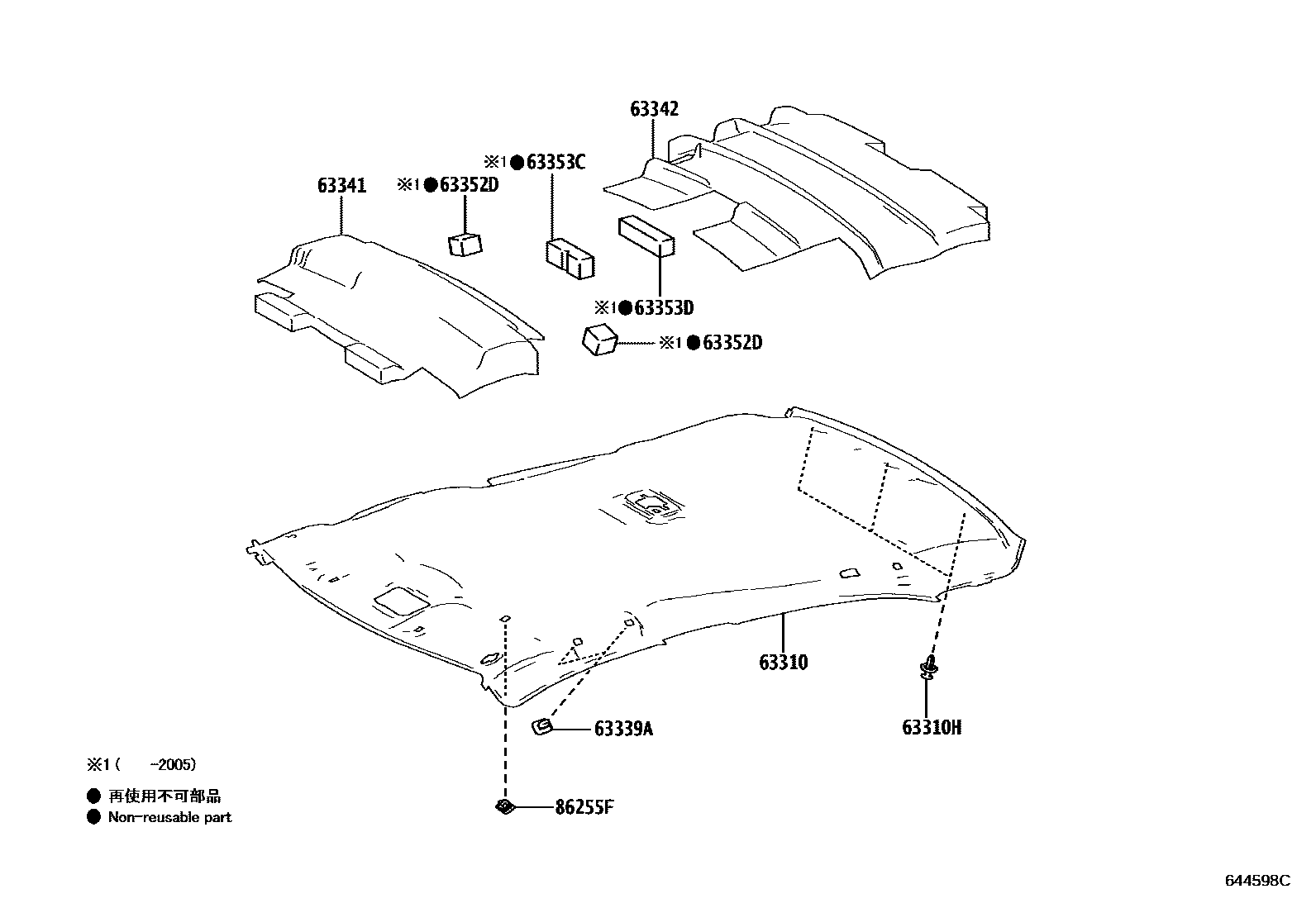

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 5 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-02670 · 63341-02680 · 63341-02690 · 63341-02700 |
| 63342 | No. 2 roof muffler pad | 63342-02860 · 63342-02870 · 63342-02880 · 63342-02890 |
| 63352D | No. 2 roof lining lining block | 63352-02110 · 63352-02120 |
| 63353C | Center roof lining lining | 63353-02010 · 63353-02030 |
| 63353D | Center roof lining lining | 63353-02020 · 63353-02040 |
