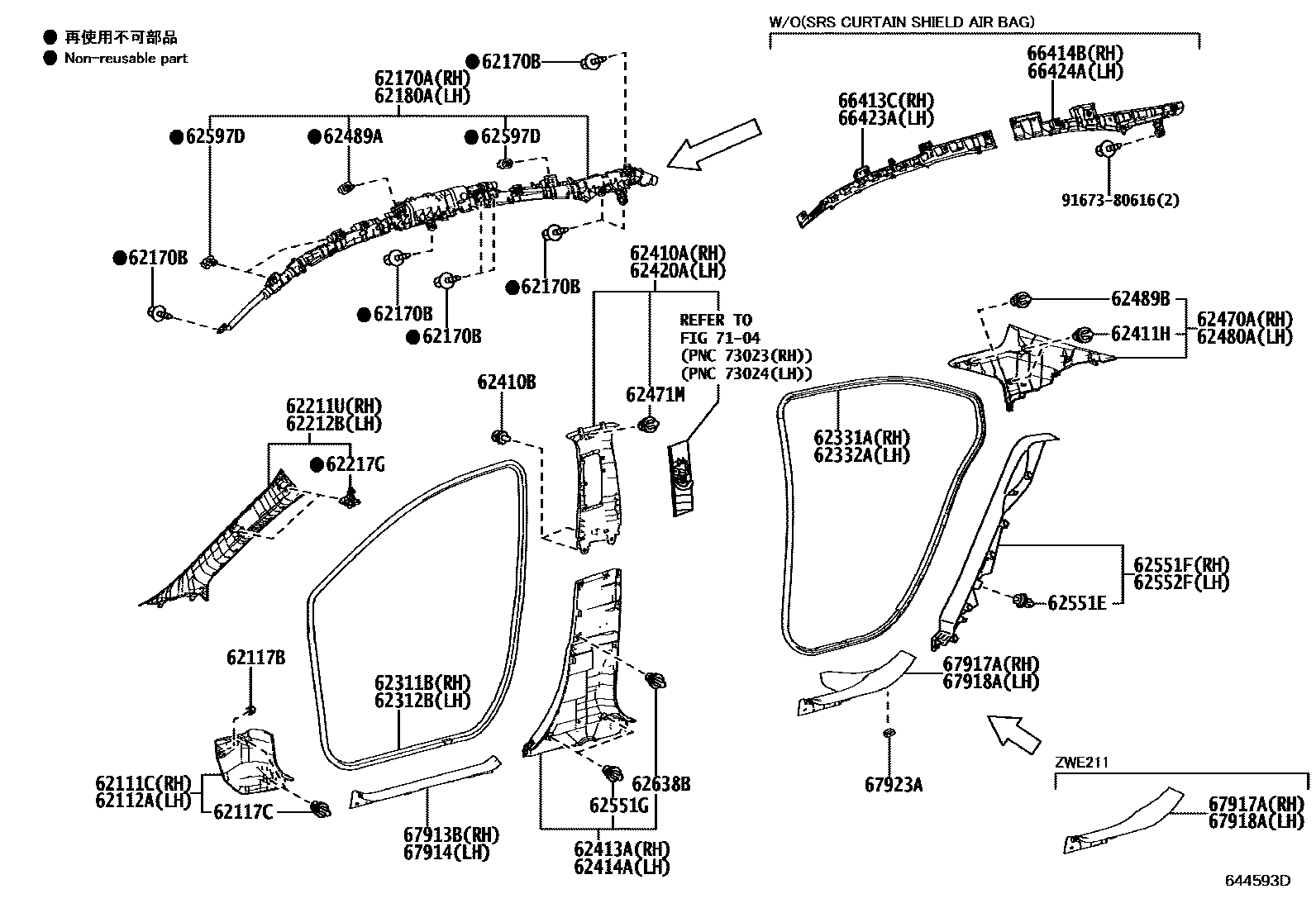

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-06147 |
| 62117C | No. 2 clip (for cowl side trim panel) | 90467-10167 |
| 62170A | Right curtain air bag assembly | 62170-02300 |
| 62170B | Bolts with washers | 91673-80616 |
| 62180A | Left curtain air bag assembly | 62180-02280 |
| 62217G | Front pillar decorative plate clip | 62217-42050 |
| 62311B | Right front door opening waterproof tape | 62311-02350 · 62311-02360 |
| 62312B | Left front door opening waterproof tape | 62312-02360 · 62312-02370 |
| 62331A | Right rear door opening waterproof tape | 62331-02390 · 62331-02400 |
| 62332A | Left rear door opening waterproof tape | 62332-02390 · 62332-02400 |
| 62410B | clip | 90467-10216 · 90467-T0049 |
| 62411H | clip | 90467-10161 · 90467-T0021 |
| 62471M | clip | 90467-10167 |
| 62489A | Roof side interior panel clips | 62489-28010 |
| 62489B | Roof side interior panel clips | 90467-10161 · 90467-10188 |
| 62551E | Clips (for rear seat side trim panels) | 62217-13010 |
| 62551G | clip | 90467-09236 |
| 62597D | clip | 90467-18017 |
| 62638B | clip | 90467-10161 · 90467-T0021 |
| 66413C | Right front longitudinal member spacer | 66413-02270 |
| 66414B | Right rear longitudinal member spacer | 66414-02340 |
| 66423A | Left front longitudinal member spacer | 66423-02270 |
| 66424A | Left rear longitudinal member spacer | 66424-02310 |
| 67923A | Car door No. 1 wear plate clip | 67923-20090 |
