Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105

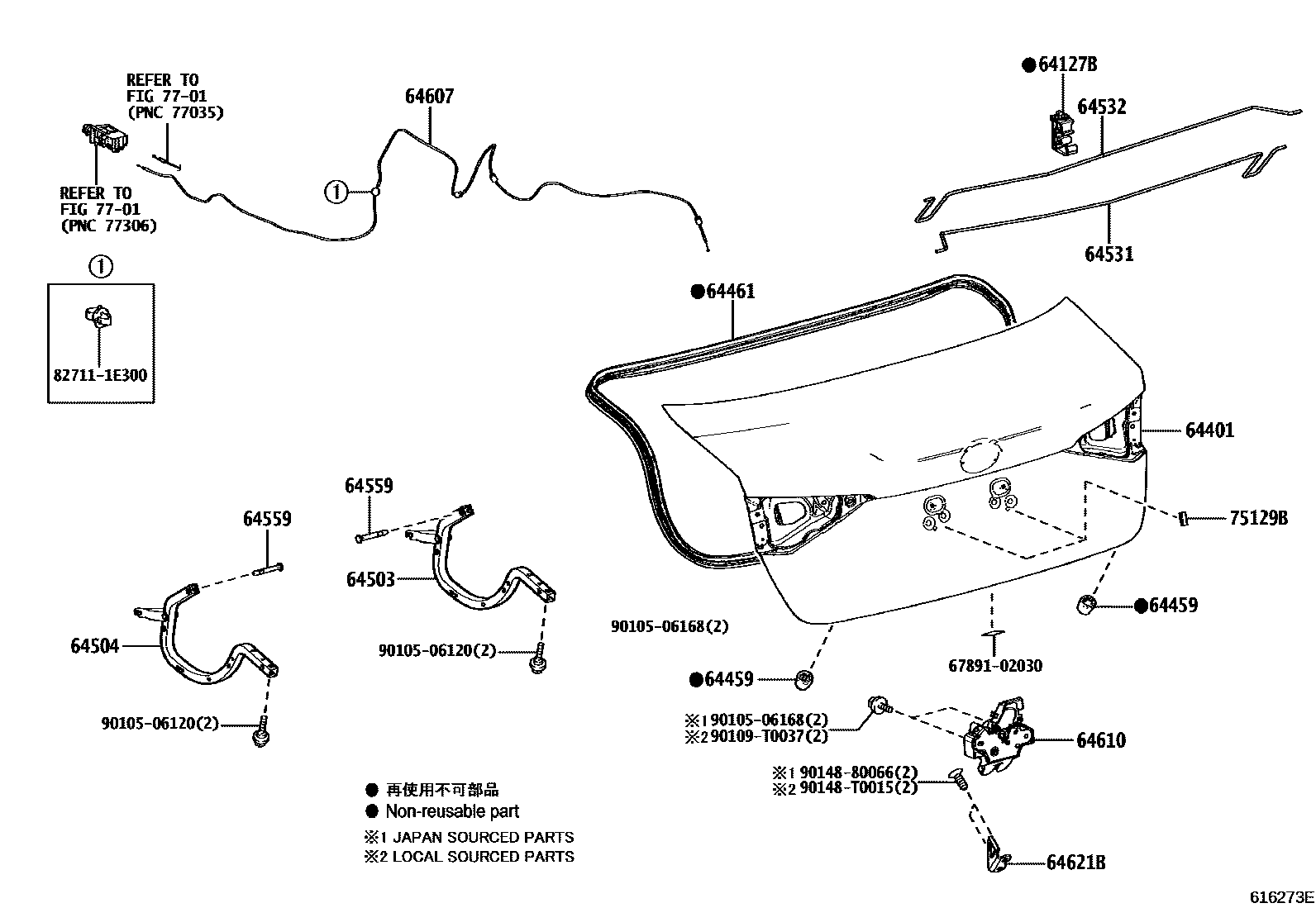

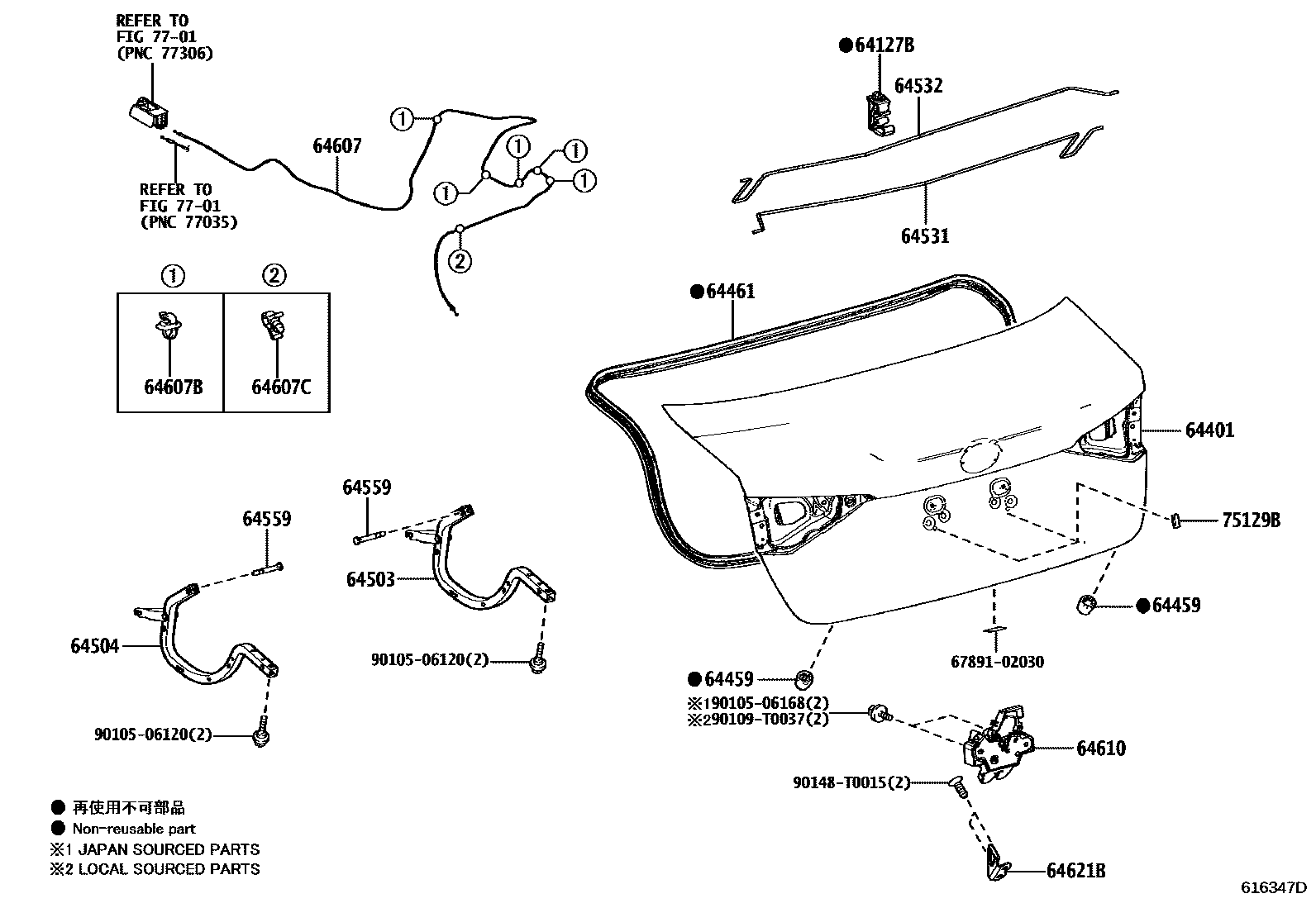

Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-02020 · 64127-33071 |
| 64401 | Trunk door panel sub-assembly | 64401-02F40 · 64401-02F50 · 64401-02F60 · 64401-02F70 · 64401-02F80 · 64401-02F90 · 64401-02G80 · 64401-02L20 · 64401-02L40 · 64401-02L50 · 64401-02L60 |
| 64459 | Trunk door cushion | 90541-09069 |
| 64461 | Trunk door seal | 64461-02310 · 64461-02320 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-02230 · 64503-02240 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-02230 · 64503-02240 |
| 64531 | Trunk door right hinge torsion bar | 64531-02590 · 64531-02610 · 64531-02710 · 64531-02720 |
| 64532 | Trunk door left hinge torsion bar | 64532-02590 · 64532-02610 · 64532-02710 · 64532-02720 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-02510 · 64607-02520 · 64607-02530 |
| 64607B | Clip No. 2 (for trunk door lock control cable) | 90469-T0003 |
| 64607C | Clip No. 3 (for trunk door lock control cable) | 90959-T1001 |
| 64610 | Trunk door lock assembly | 64600-02080 · 64600-33160 |
| 64621B | Trunk door latch | 64621-06080 · 64621-33030 |
| 75129B | rear license plate cushion | 75129-0D030 · 75129-21010 |
