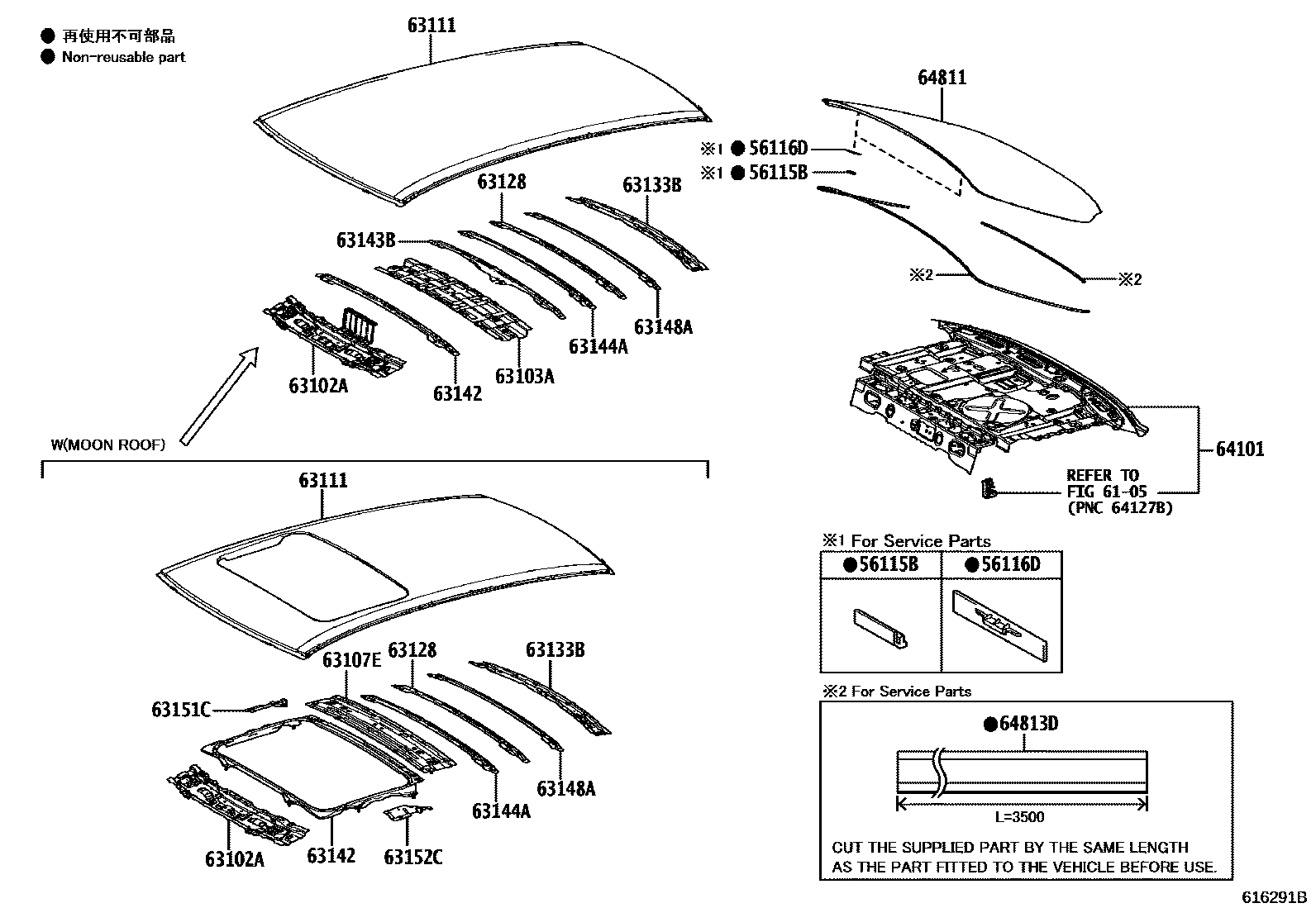

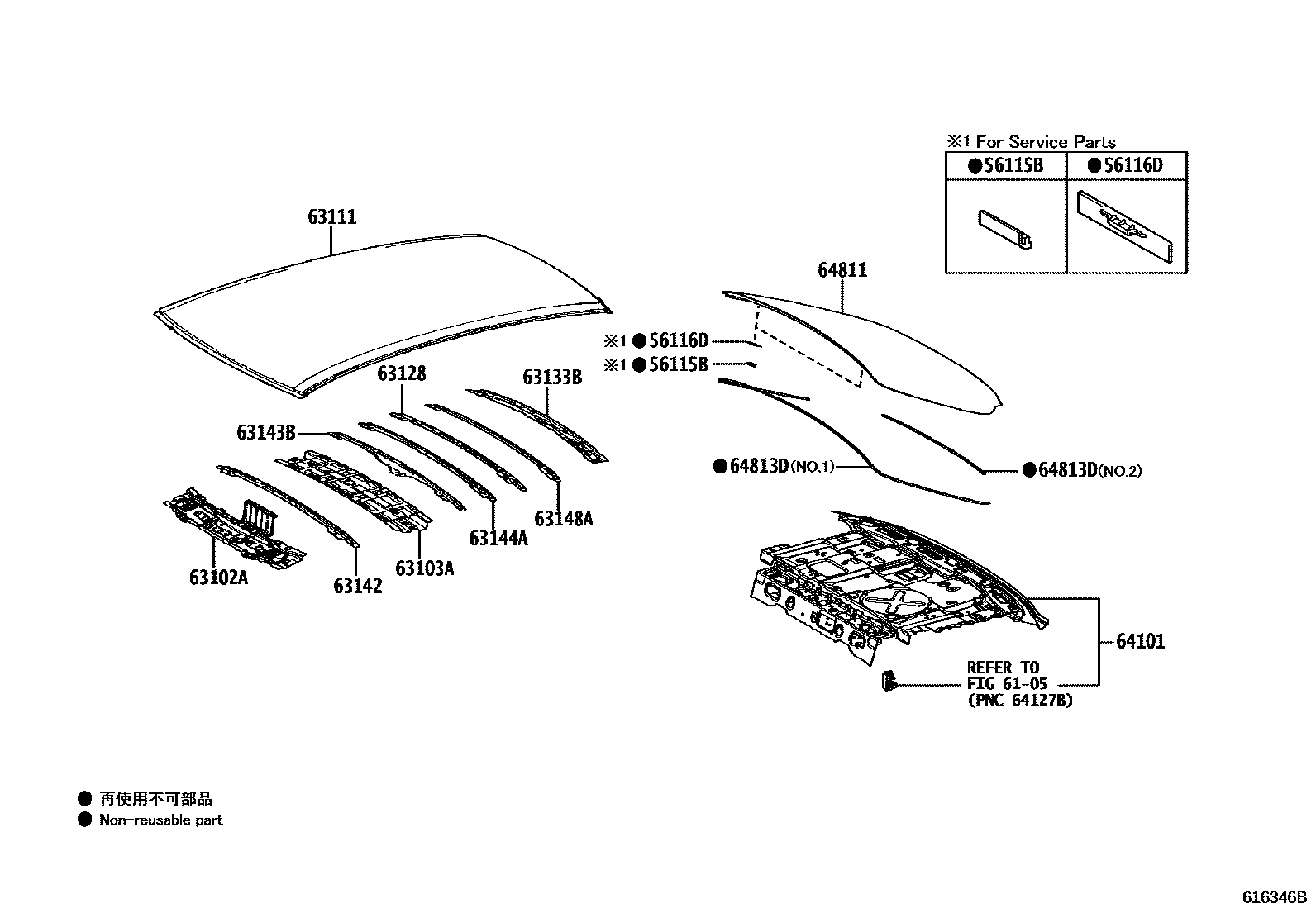

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 63102A | Windshield roof sub-assembly | 63102-02906 · 63102-02907 · 63102-02908 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-02150 · 63103-02160 |
| 63107E | No. 5 roof panel reinforcement sub-assembly | 63107-02030 |
| 63111 | roof panel | 63111-02750 · 63111-02770 · 63111-02780 · 63111-02A00 · 63111-02A10 |
| 63128 | No. 6 roof panel reinforcement | 63128-02090 · 63128-02100 |
| 63133B | back window frame | 63133-02230 · 63133-02240 |
| 63142 | No. 2 roof panel reinforcement | 63142-02190 · 63142-02200 · 63142-02210 |
| 63143B | No. 3 roof panel reinforcement | 63143-02250 · 63143-02260 |
| 63144A | No. 4 roof panel reinforcement | 63144-02260 · 63144-02270 |
| 63148A | No. 7 roof panel reinforcement | 63148-02140 · 63148-02150 |
| 63151C | Opening frame on the right side of the roof | 63151-02030 |
| 63152C | Opening frame on the left side of the roof | 63152-02030 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-02260 |
| 63203A | Sliding sunroof or removable roof rack sub-assembly | 63203-02160 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-02090 |
| 63209 | Roof deflector sub-assembly | 63209-02140 |
| 63217G | Right sliding sunroof trim | 63217-47020 |
| 63218G | Sliding sunroof trim, left | 63217-47020 |
| 63236 | Sliding sunroof or removable roof drain hose clip | 63236-33030 |
| 63236D | Sliding skylight drain hose clamp | 63236-30010 |
| 63236G | Sliding skylight drain hose clamp | 86147-30030 · 86147-30040 |
| 63236H | Sliding skylight drain hose clamp | 86147-50050 |
| 63236J | Sliding skylight drain hose clamp | 86147-30020 |
| 63247E | Right rear sliding sunroof drain hose | 63249-02460 |
| 63248E | Left rear sliding sunroof drain hose | 63249-02660 |
| 63249E | Sliding skylight drain hose | 63249-02450 |
| 63249F | Sliding skylight drain hose | 63249-02470 |
| 63251H | Sliding skylight seal | 63251-12200 |
| 63260J | Sliding sunroof driving gear assembly | 63260-12180 |
| 63669B | Sliding skylight drain seal | 63669-50010 |
| 64101 | Upper back panel sub-assembly | 64101-02610 · 64101-02620 · 64101-02630 · 64101-02640 · 64101-02730 · 64101-02740 · 64101-02750 |
| 64811 | back window glass | 64801-02360 · 64801-02440 · 64801-02550 |
| 64813D | Back window glass adhesive seal | 56117-64010 · 64813-02250 · 64813-02270 |
