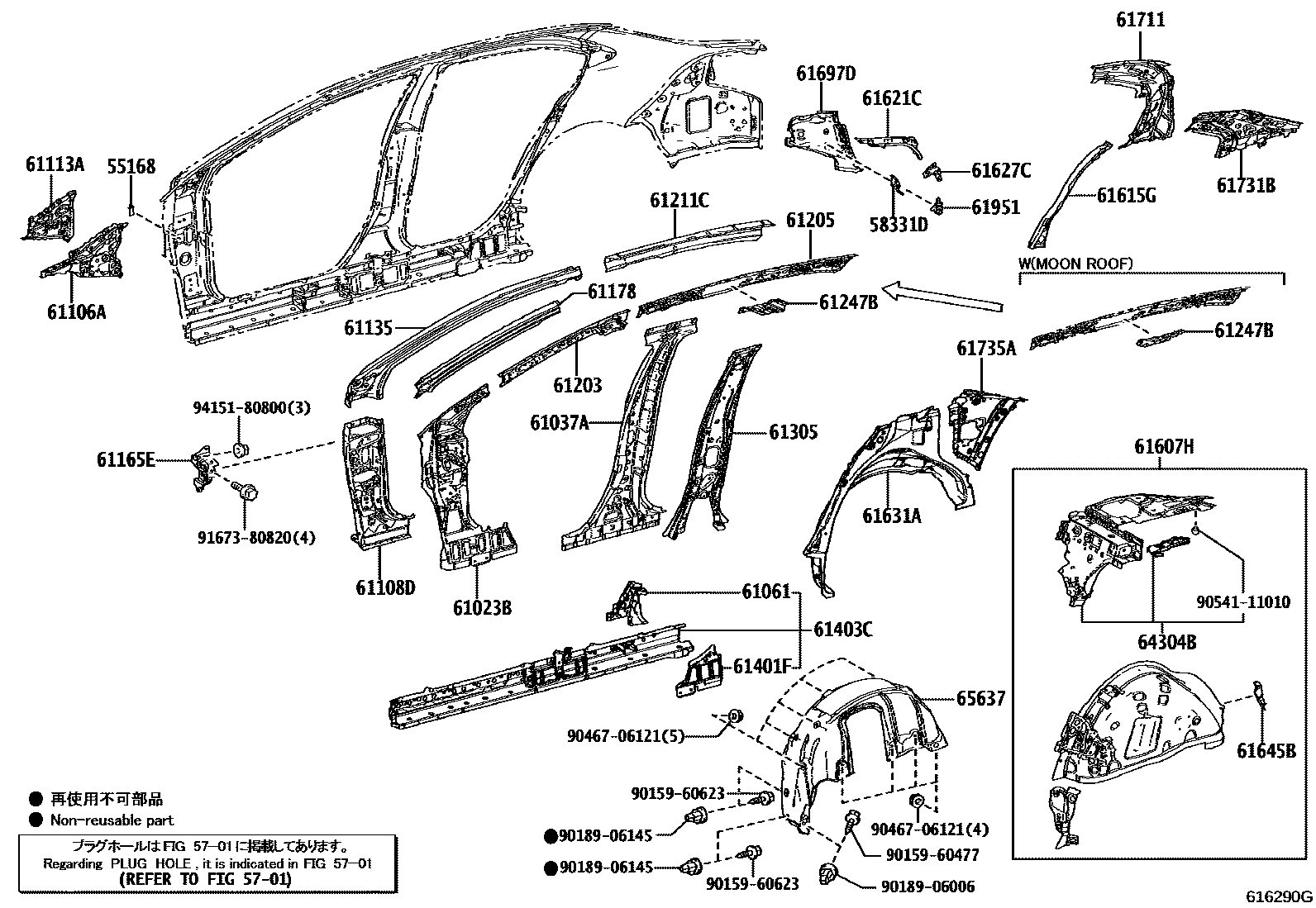

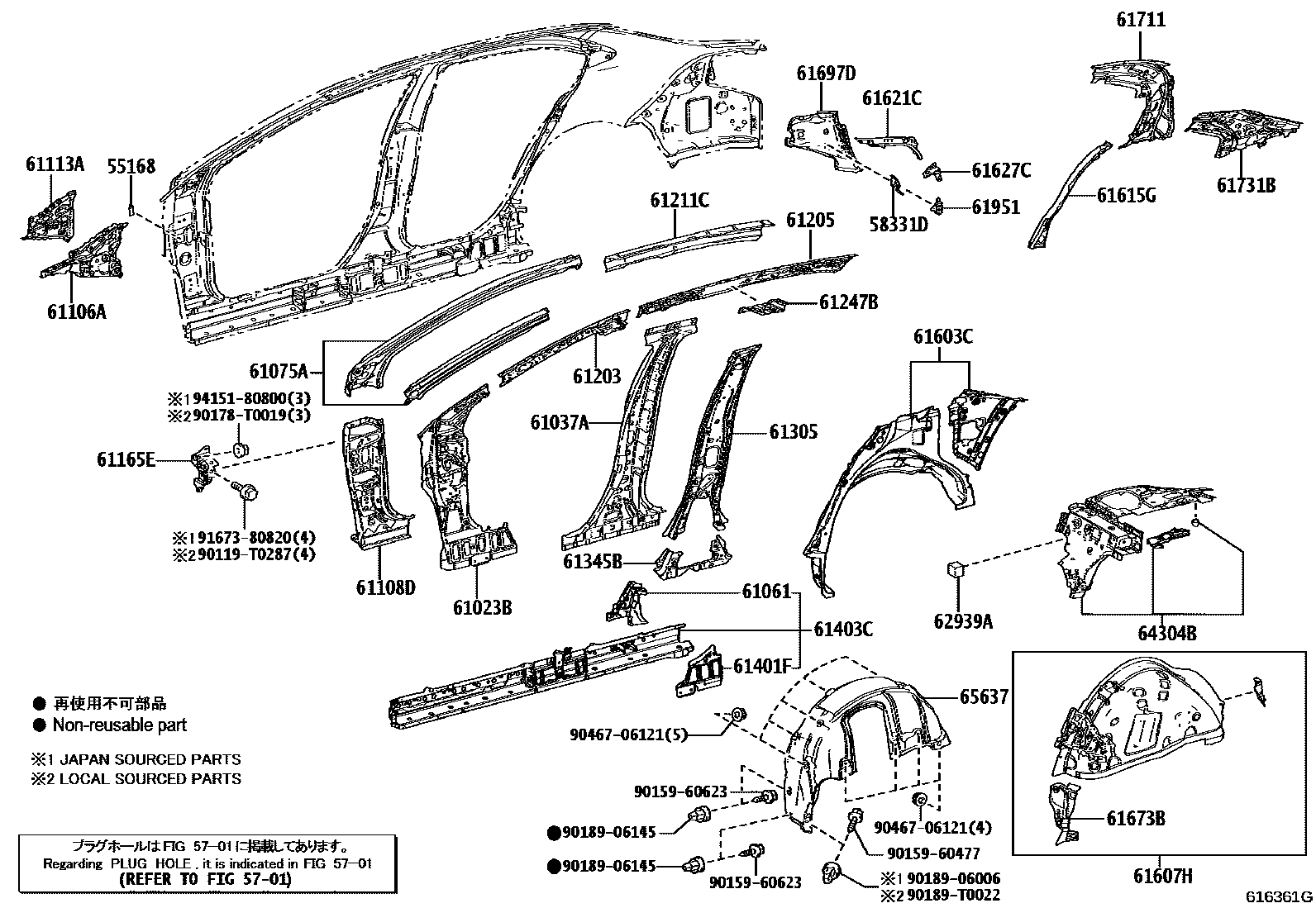

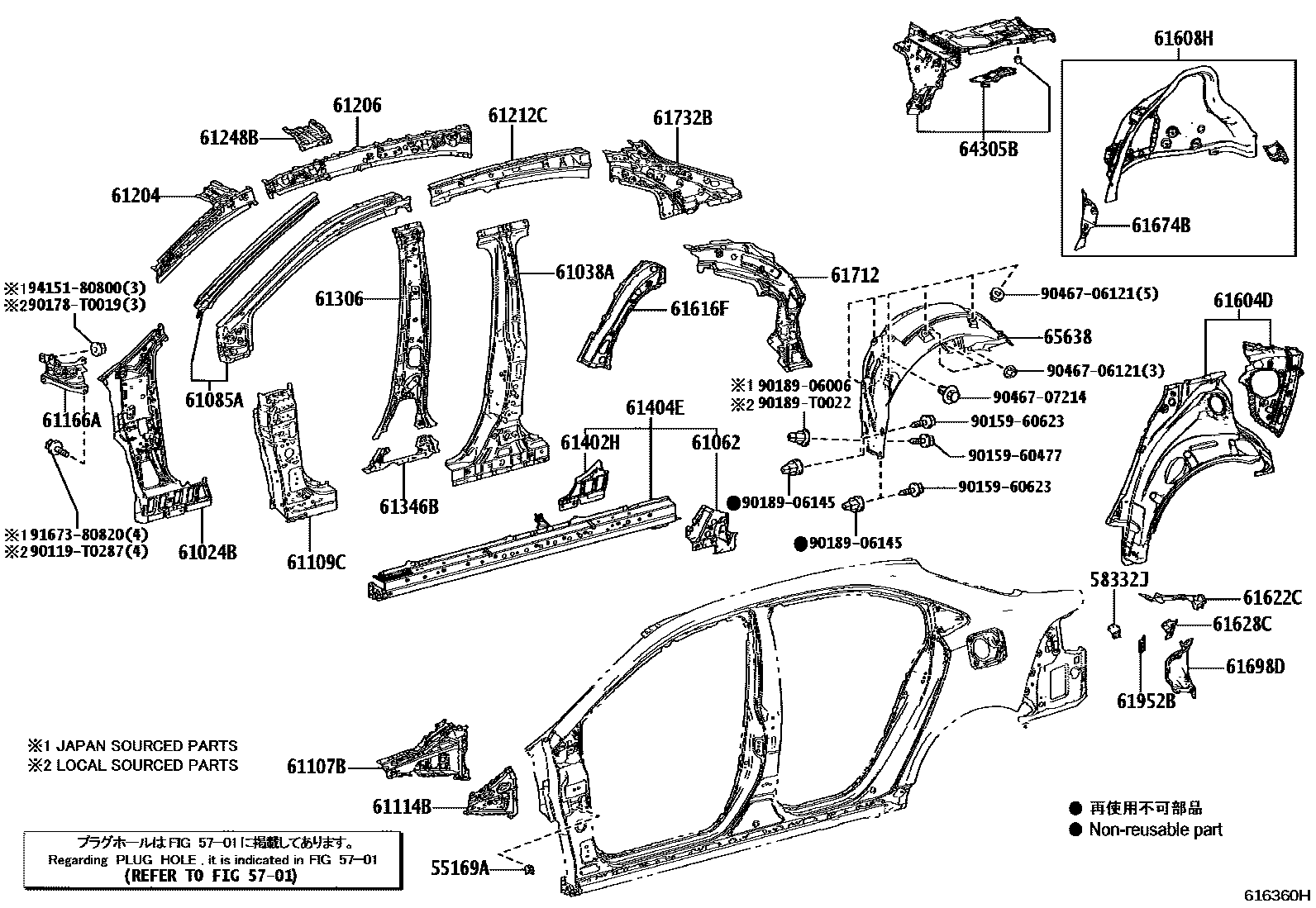

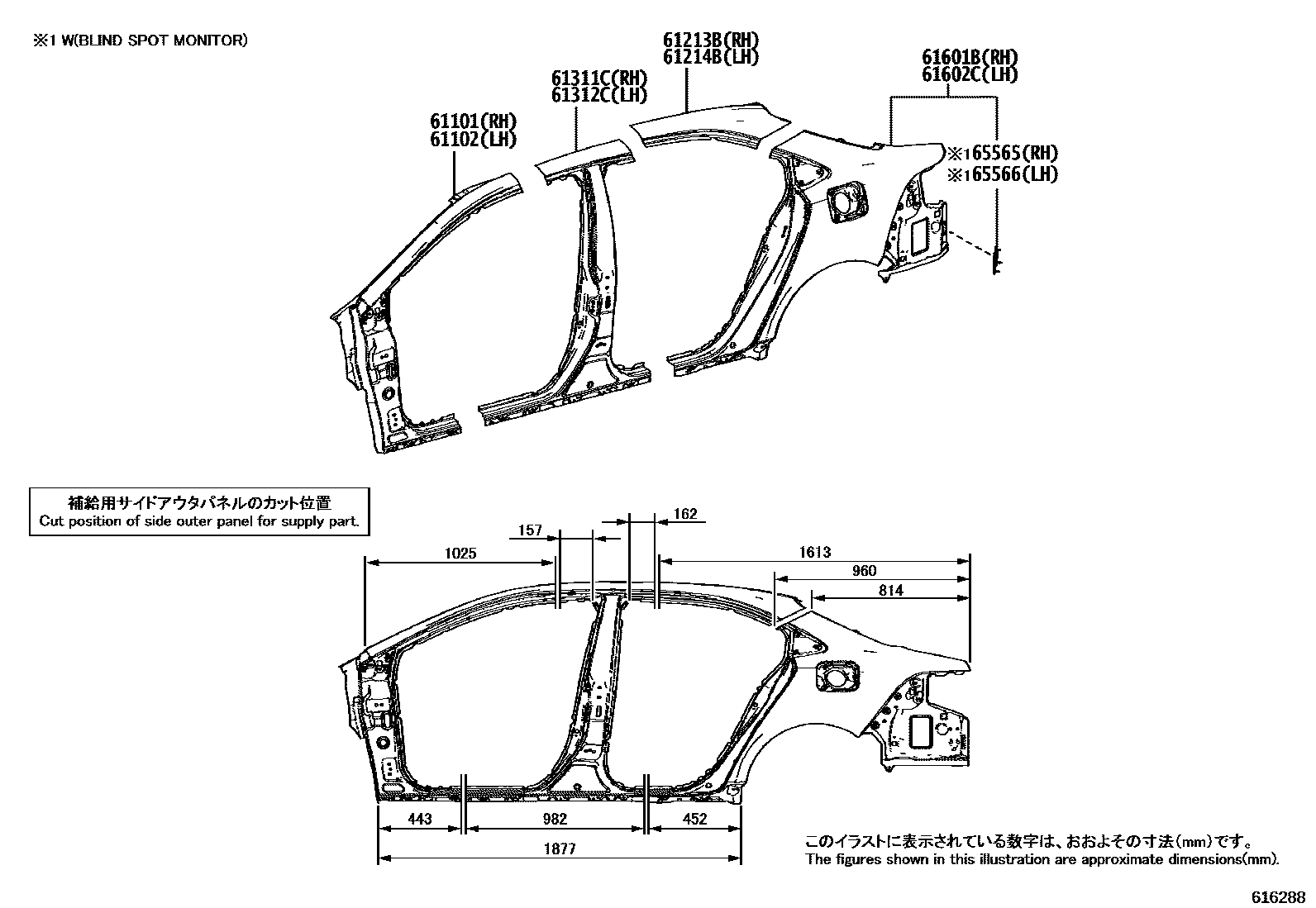

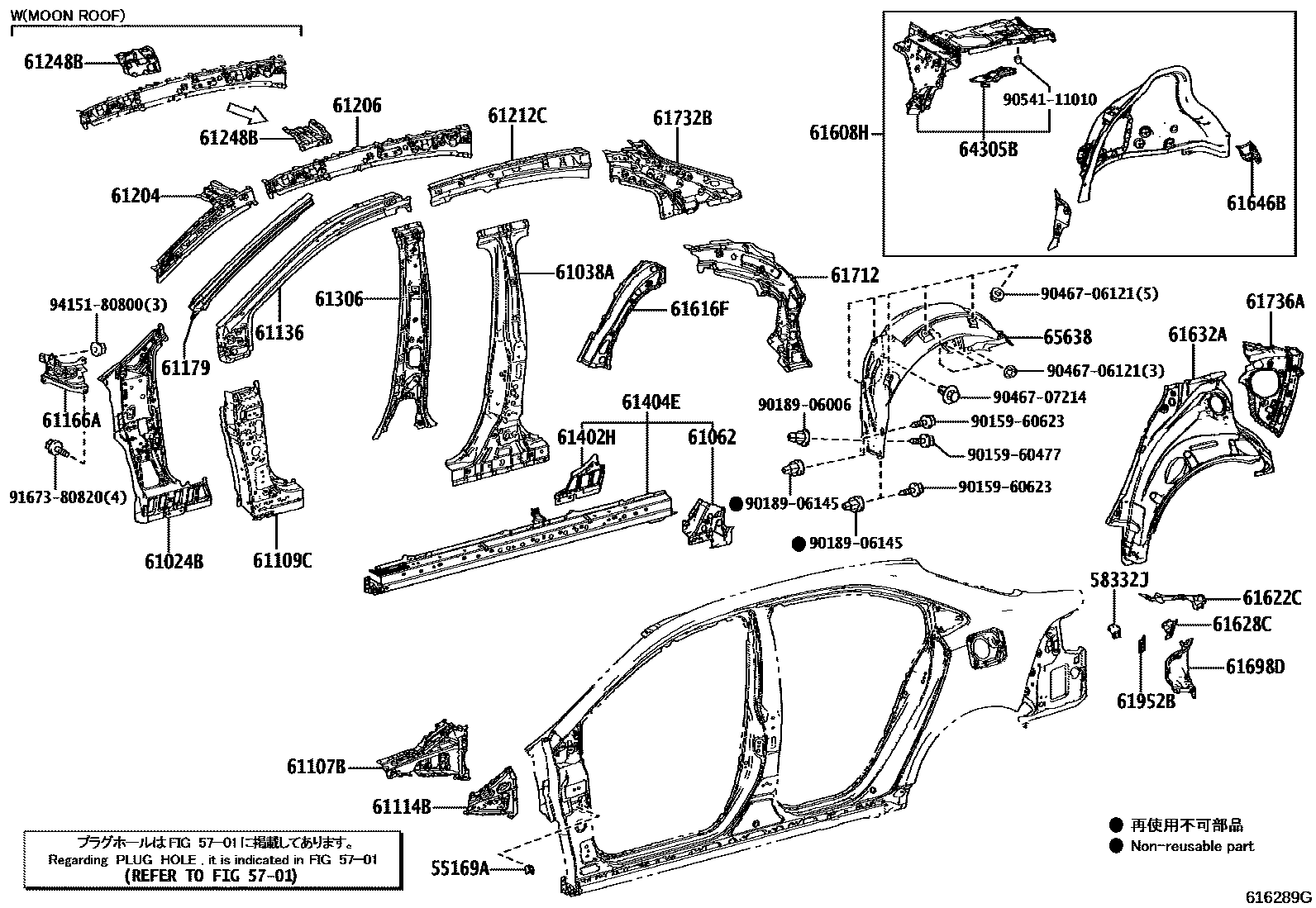

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 5 images and 81 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55168 | Right front fender mounting bracket | 53879-02170 · 53879-02180 |
| 55169A | Left front fender mounting bracket | 53879-02170 · 53879-02180 |
| 58331D | No. 1 suitcase decorative panel bracket | 58331-02210 · 58331-02220 |
| 58332J | No. 2 suitcase decorative panel bracket | 58332-02170 · 58332-02180 |
| 61023B | Right body inner front pillar sub-assembly | 61023-02390 · 61023-02400 |
| 61024B | Left body inner front pillar sub-assembly | 61024-02370 · 61024-02380 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-02290 · 61037-02350 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-02290 · 61038-02350 |
| 61061 | Right wheel cover reinforcement sub-assembly | 61061-02140 · 61061-02150 · 61061-02151 |
| 61062 | Left wheel cover reinforcement sub-assembly | 61062-02130 · 61062-02140 · 61062-02141 |
| 61075A | No. 3 right longitudinal beam sub-assembly on the outside | 61075-02900 |
| 61085A | No. 3 left longitudinal beam sub-assembly on the outside | 61085-02900 |
| 61101 | Right front wall side panel sub-assembly | 61101-02150 · 61131-02430 · 61131-02431 |
| 61102 | Left front wall side panel sub-assembly | 61102-02140 · 61132-02450 · 61132-02451 |
| 61106A | Right body front pillar reinforcement sub-assembly | 61106-02070 · 61106-02080 |
| 61107B | Left side body front pillar reinforcement sub-assembly | 61107-02070 · 61107-02080 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-02280 · 61108-02330 |
| 61109C | Front panel left lower reinforcement sub-assembly | 61109-02280 · 61109-02350 |
| 61113A | No. 2 right outer panel | 61113-02050 · 61113-02060 |
| 61114B | No. 2 left outer panel | 61114-02060 · 61114-02070 |
| 61135 | Reinforcement member on the right front body pillar | 61135-02290 |
| 61136 | Reinforcement member on left front body pillar | 61136-02290 |
| 61165E | Dashboard to right front wall side bracket | 61165-02040 · 61165-02050 |
| 61166A | Dashboard to left front wall side bracket | 61166-02040 · 61166-02050 |
| 61178 | Right body inner front pillar lower reinforcement | 61178-02080 |
| 61179 | Left body inner front pillar lower reinforcement | 61179-02060 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-02160 · 61203-02220 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-02160 · 61204-02240 |
| 61205 | Right rear roof inner longitudinal beam sub-assembly | 61205-02050 · 61205-02060 |
| 61206 | Left rear roof inner longitudinal beam sub-assembly | 61206-02050 · 61206-02060 |
| 61211C | Roof right side rail | 61211-02240 · 61211-02250 |
| 61212C | Roof left side rail | 61212-02240 · 61212-02250 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-02250 · 61213-02260 · 61213-02261 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-02260 · 61214-02270 · 61214-02271 |
| 61247B | Roof right inner longitudinal beam reinforcement | 61247-02250 · 61247-02260 · 61247-02270 |
| 61248B | Roof left inner longitudinal beam reinforcement | 61248-02110 · 61248-02120 · 61248-02130 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-02220 · 61305-02230 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-02220 · 61306-02230 |
| 61311C | Right rear body front outer panel | 61311-02360 · 61311-02370 |
| 61312C | Left rear body front outer panel | 61312-02360 · 61312-02370 |
| 61345B | Right body inner middle and lower pillar | 61345-02080 |
| 61346B | Left side inner middle and lower pillar | 61346-02090 |
| 61401F | Right side door sill panel reinforcement sub-assembly | 61401-02110 · 61401-02120 |
| 61402H | Left side rocker panel reinforcement sub-assembly | 61402-02110 · 61402-02120 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-02906 · 61403-02907 · 61403-02918 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-02908 · 61404-02909 · 61404-02920 |
| 61601B | Right side enclosure sub-assembly | 61601-02540 · 61601-02550 · 61601-02560 · 61601-02570 |
| 61602C | Left side enclosure sub-assembly | 61602-02570 · 61602-02580 · 61602-02590 · 61602-02600 |
| 61603C | Right wheel cover sub-assembly | 61605-02240 |
| 61604D | Left side wheel cover sub-assembly | 61606-02280 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-02850 · 61607-02970 · 61607-02A50 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-02770 · 61608-02860 · 61608-02971 |
| 61615G | Right rear body rear side panel reinforcement | 61615-02190 · 61615-02200 |
| 61616F | Left rear body rear side panel reinforcement | 61616-02200 · 61616-02210 |
| 61621C | Luggage right opening slot | 61621-02310 · 61621-02320 |
| 61622C | Luggage trunk left opening slot | 61622-02310 · 61622-02320 |
| 61627C | Right side enclosure inner panel reinforcement | 61627-02130 · 61627-02140 |
| 61628C | Left side enclosure inner panel reinforcement | 61628-02110 · 61628-02120 |
| 61631A | Right wheel cover outer panel | 61631-02290 |
| 61632A | Left side wheel cover outer panel | 61632-02320 |
| 61645B | Right rear side wheel housing corner panel | 61645-02150 |
| 61646B | Left rear side wheel housing corner panel | 61646-02130 |
| 61673B | Right wheel housing lining panel reinforcement | 61673-02180 |
| 61674B | Left side wheel housing lining plate reinforcement | 61674-02170 |
| 61697D | Right side enclosure end cover | 61697-02190 · 61697-02200 |
| 61698D | Left side enclosure end cover | 61698-02190 · 61698-02200 |
| 61711 | Roof right side outer panel | 61711-02200 · 61711-02210 |
| 61712 | Roof left outer panel | 61712-02200 · 61712-02210 |
| 61731B | Roof right inner panel | 61731-02380 · 61731-02390 |
| 61732B | Roof left inner panel | 61732-02380 · 61732-02390 |
| 61735A | Right rear roof inner panel | 61735-02290 |
| 61736A | Left rear roof inner panel | 61736-02290 |
| 61951 | Right trim part bracket | 61951-02140 · 61951-02150 |
| 61952B | Left trim part bracket | 61952-02100 · 61952-02110 |
| 62939A | Side ventilation silencers | 62939-06070 · 62939-33020 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-02300 · 64304-02310 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-02300 · 64305-02310 |
| 65565 | Right side panel rear end lining | 65565-02080 |
| 65566 | Left side panel rear end lining | 65565-02080 |
| 65637 | Right rear wheel house lining | 65637-02260 · 65637-02270 · 65637-02330 |
| 65638 | Left rear wheel house lining | 65638-02260 · 65638-02270 · 65638-02330 |
