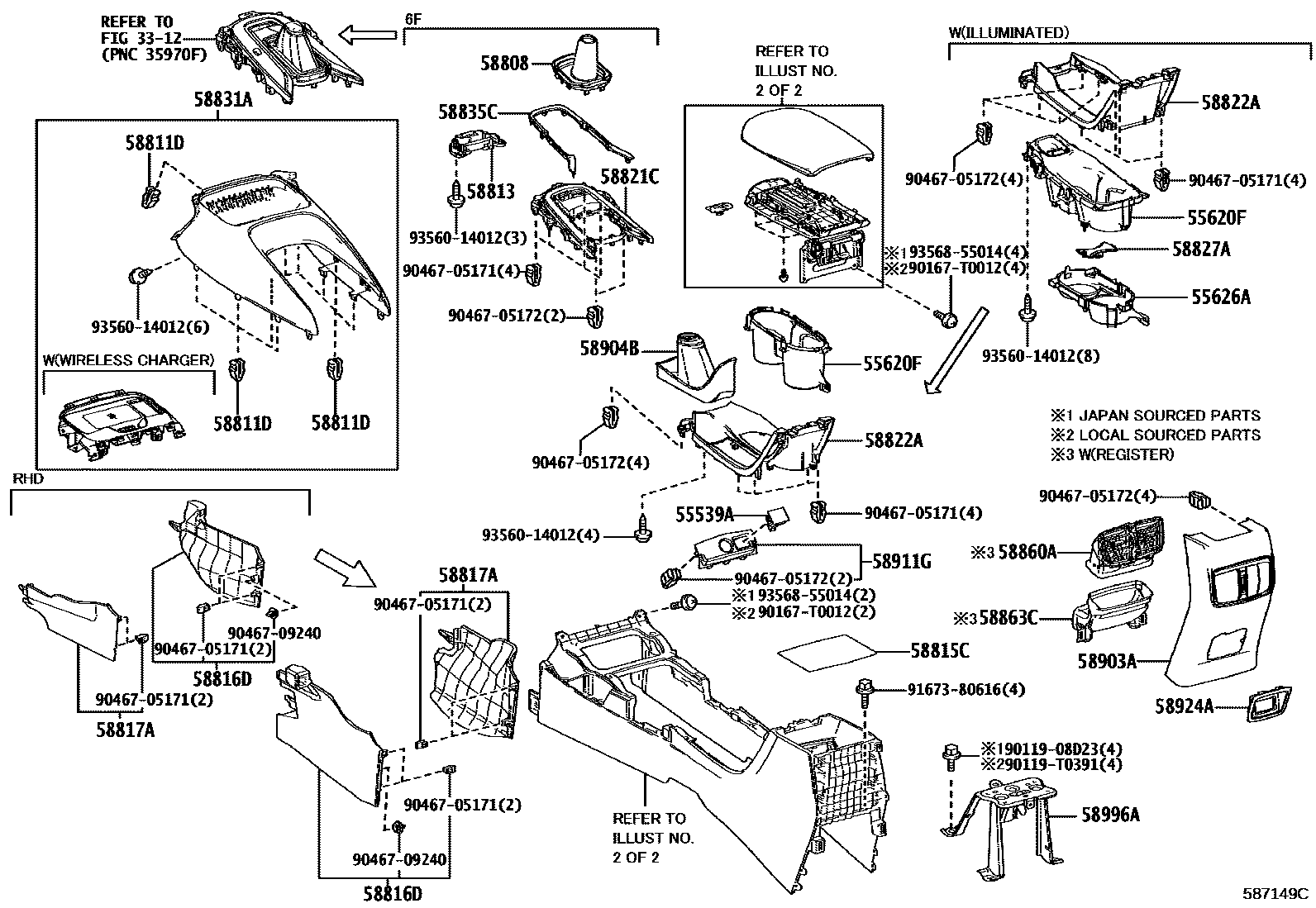

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55620F | Armrest box cup holder assembly | 55620-02260 · 55620-02270 · 55620-02280 · 55620-02460 · 55620-02590 · 55620-02600 |
| 55626A | Instrument panel bottom bracket partition fastener | 55626-02040 · 55626-02290 · 55626-02310 |
| 58811D | Clip (for armrest box) | 90467-05171 |
| 58813 | Upper armrest box | 58813-02220 |
| 58815C | Armrest box felt pad | 58815-02450 · 58815-02460 |
| 58821C | Armrest box upper panel | 58821-02A60 |
| 58822A | Rear armrest box upper panel | 58822-02290 · 58822-02330 · 58822-02340 · 58822-02350 · 58822-02360 |
| 58827A | Armrest box groove decorative parts | 58827-12020 |
| 58860A | Armrest box air regulator assembly | 58860-02030 · 58860-02040 |
| 58863C | Armrest box No. 3 air duct | 58863-02010 · 58863-02020 |
| 58907 | Armrest box lid hinge sub-assembly | 58907-02350 |
| 58908A | Armrest box lid lock assembly | 58908-33030 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58961A | Armrest box lid protruding hinge | 58961-02310 |
| 58962B | Armrest box lid recessed hinge | 58962-02290 · 58962-02300 |
| 58963 | Armrest box lid hinge shaft | 58963-02240 |
| 58968C | Armrest box lid stopper gasket | 58968-33010 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-02210 · 58996-02211 · 58996-02250 · 58996-02251 |
