Toyota COROLLA 地板垫和地毯 — Figure 5804

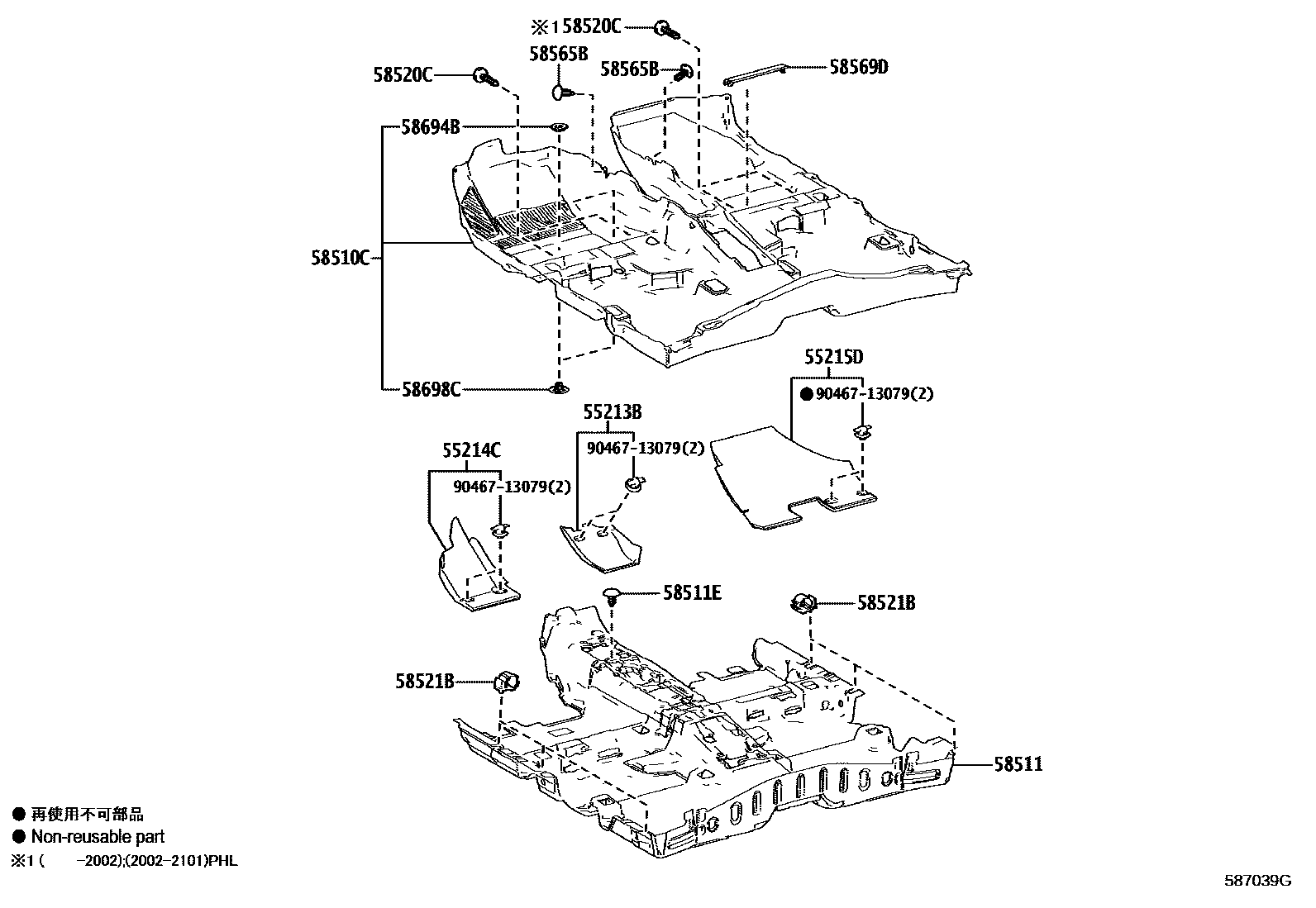

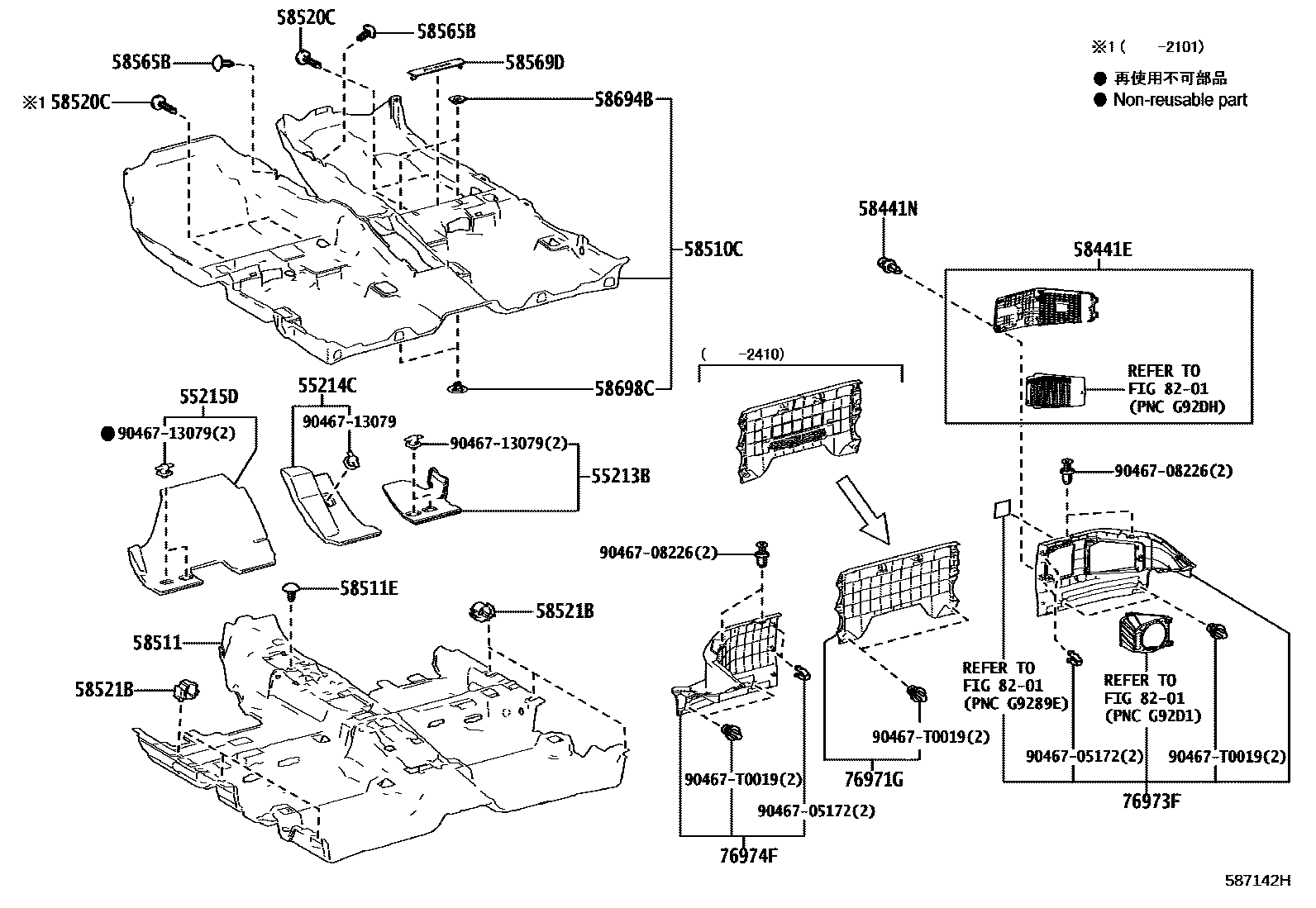

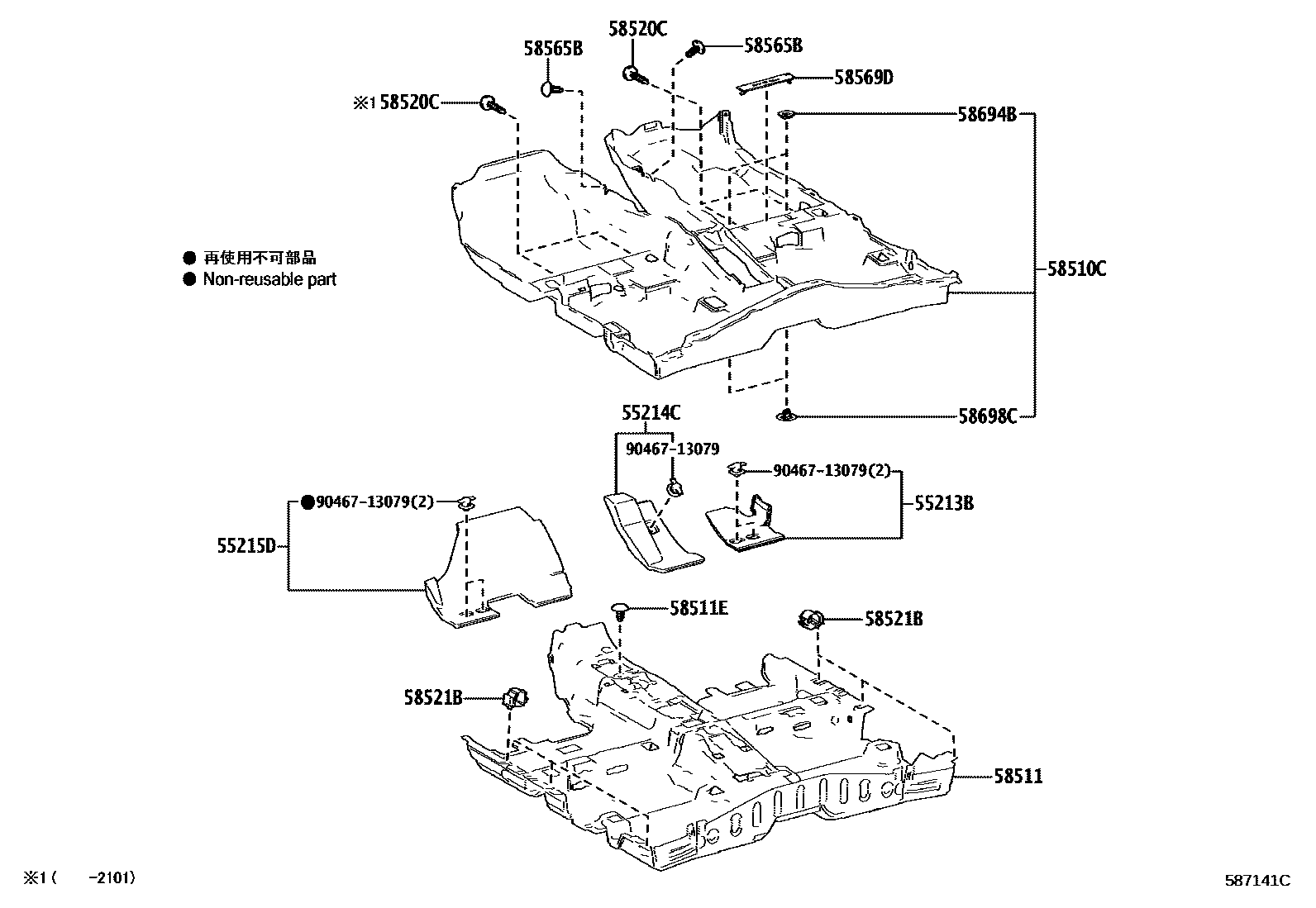

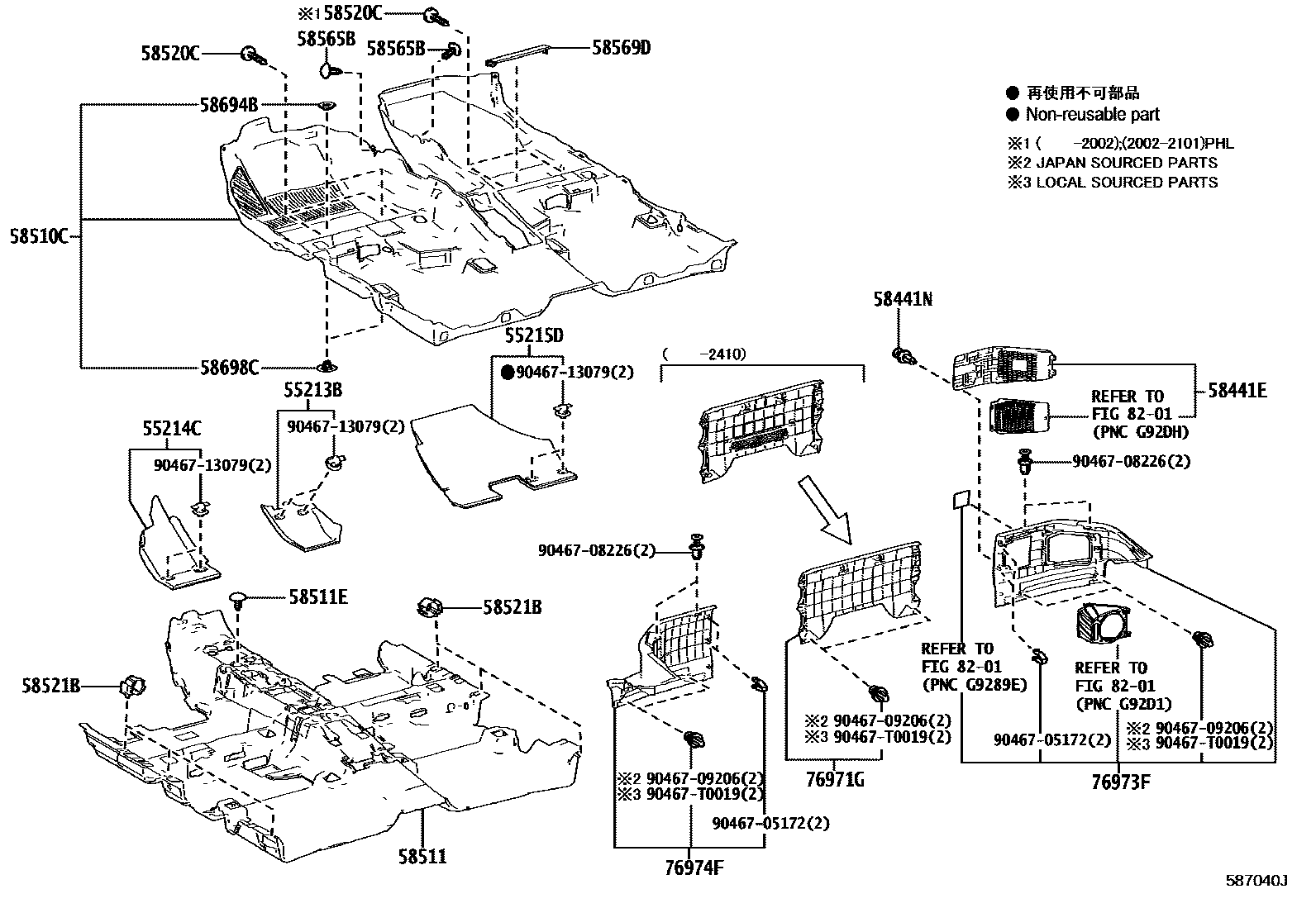

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55213B | No. 1 insulation pad for front wall panel | 55213-02330 · 55213-02340 · 55213-02350 |
| 55214C | No. 2 insulation pad for front wall panel | 55214-02280 · 55214-02290 · 55214-02310 |
| 55215D | No. 3 insulation pad for front wall panel | 55215-02190 · 55215-02200 · 55215-02210 |
| 58511 | front floor mat | 58511-02240 · 58511-02250 · 58511-02260 · 58511-02270 · 58511-02470 · 58511-02480 |
| 58521B | carpet hook | 58521-06170 |
| 58694B | Pad the fixing plate | 58694-0K010 · 58694-78010 |
| 58698C | Fixing plate under the pad | 58698-0K070 · 58698-78010 |
