Toyota COROLLA 地板隔热垫 — Figure 5802

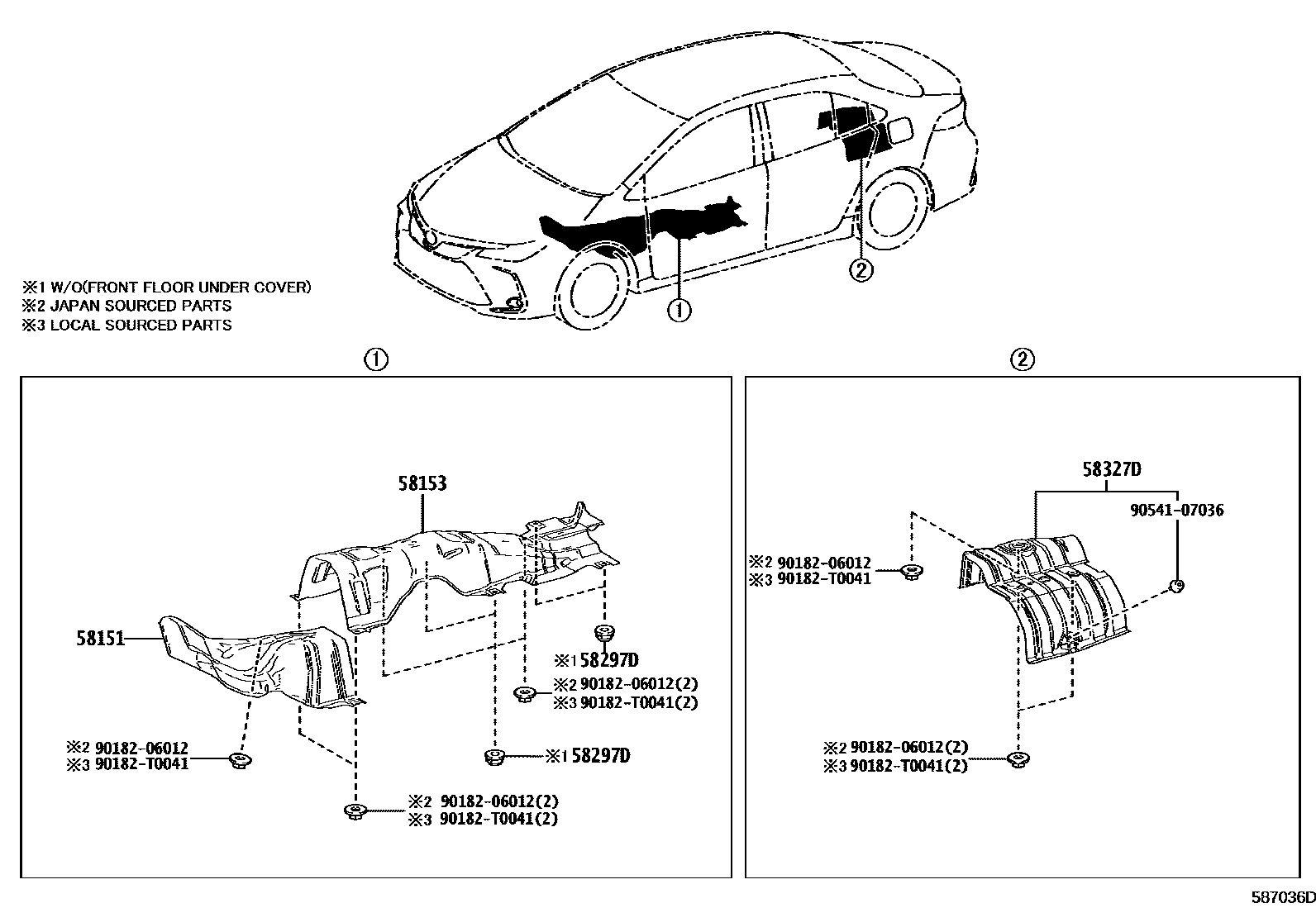

Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58151-02640 · 58151-02650 · 58151-02660 · 58151-02670 · 58151-02800 · 58151-F4060 |
| 58153 | Front floor insulation mat No. 2 | 58153-02400 · 58153-02410 |
| 58297D | Floor clip fasteners | 90467-06169 |
| 58327D | Heat insulation pad on main muffler | 58327-02280 · 58327-02290 |
