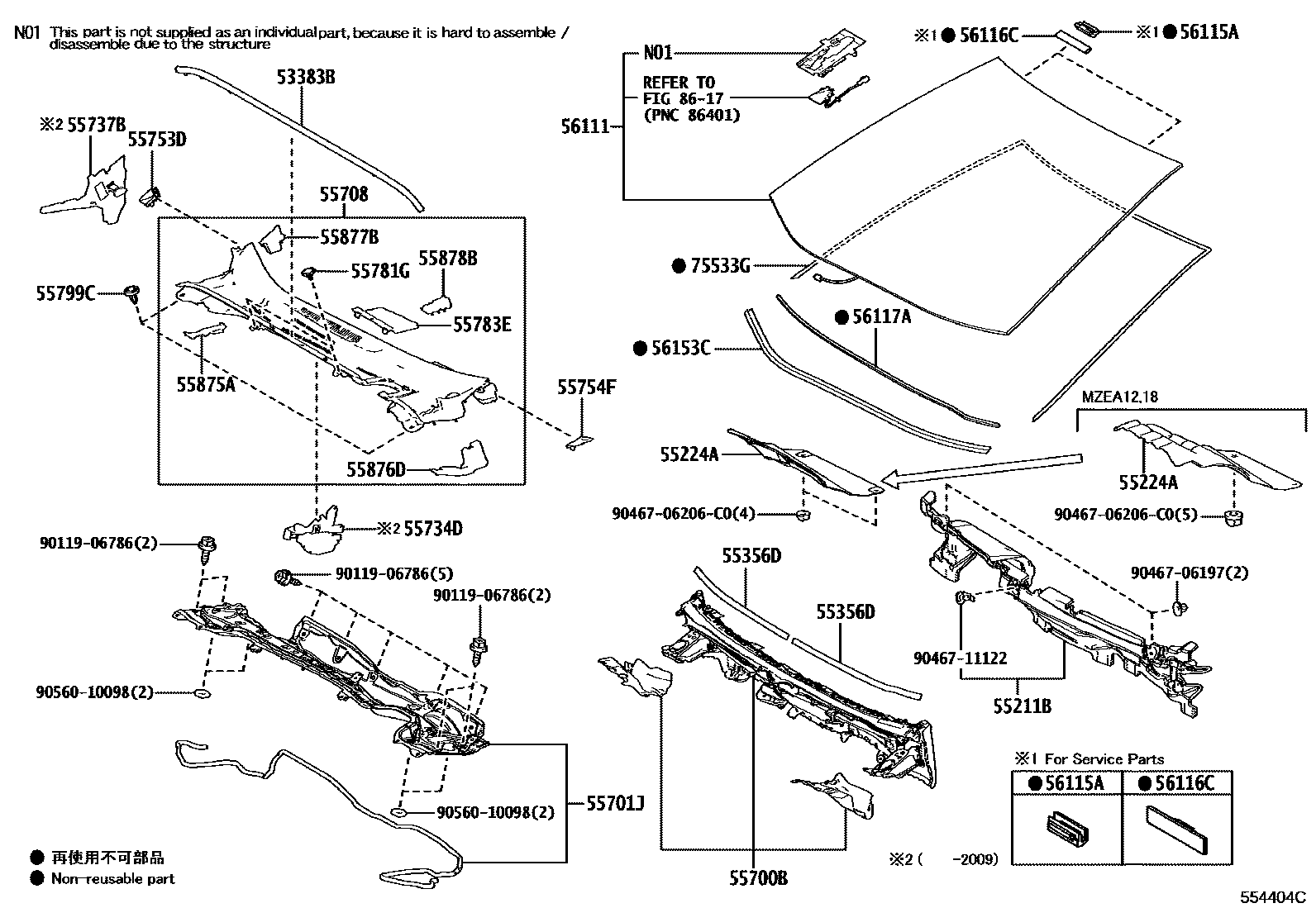

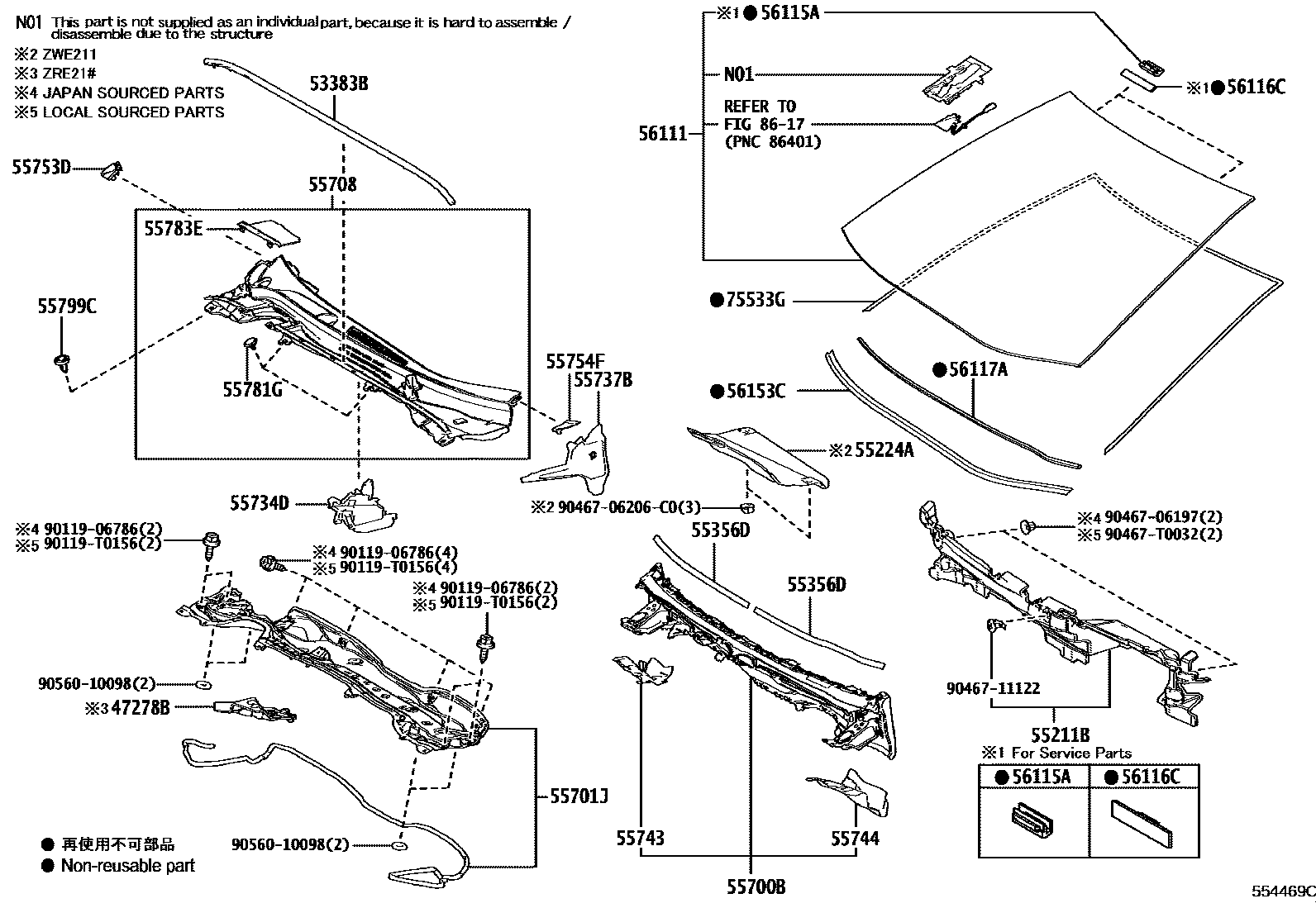

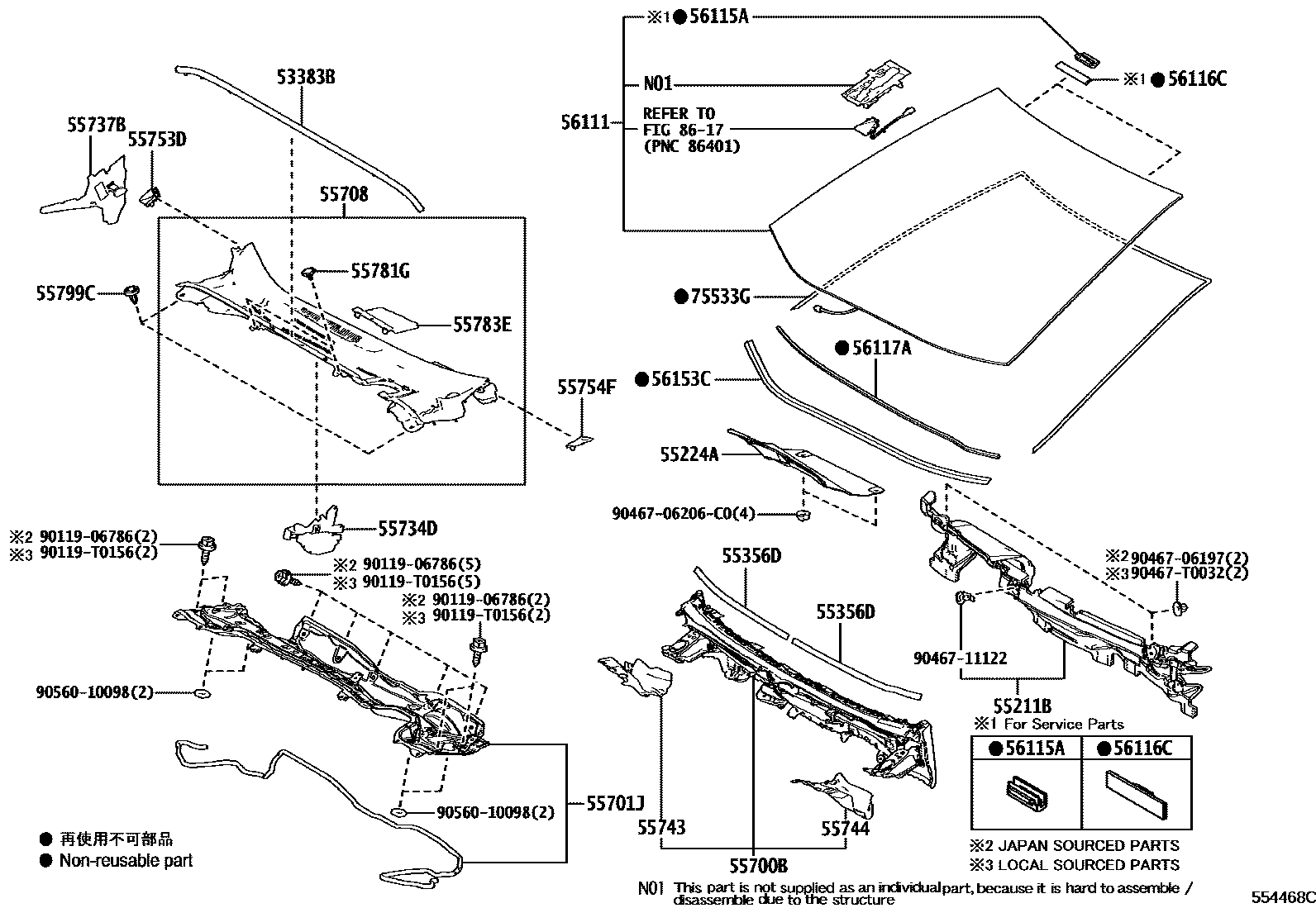

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47278B | brake master cylinder cover | 47278-02010 |
| 53383B | Engine cover to cowl upper cover seal | 53383-02280 · 53383-02290 |
| 55211B | Front panel silencer | 55211-02300 · 55211-02310 · 55211-02320 |
| 55224A | No. 2 outer insulation pad for front wall | 55224-02220 · 55224-02230 · 55224-02240 · 55738-02120 |
| 55356D | Dashboard No. 2 Cushion Pad | 55356-02530 · 55356-02540 |
| 55700B | Front apron assembly | 55700-02680 · 55700-02690 · 55700-02700 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-02610 · 55701-02620 · 55701-02630 |
| 55708 | Ventilation grille sub-assembly on front apron | 55708-02870 · 55708-02880 · 55708-02890 |
| 55734D | Waterproof cover panel | 55734-02430 · 55734-02440 · 55734-02450 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-02270 · 55737-02280 · 55737-02290 |
| 55743 | Right front upper outer corner panel | 55743-02200 · 55743-02210 |
| 55744 | Left front upper outer corner panel | 55744-02170 · 55744-02180 |
| 55753D | Right front water pumping device guard | 55753-02190 · 55753-02210 |
| 55754F | Left front water pumping device guard | 55754-02200 · 55754-02220 |
| 55781G | Ventilation grille clips on front apron | 90467-07224 |
| 55783E | Ventilation grille on center cowl | 55783-02330 · 55783-02340 · 55783-02350 |
| 55799C | Ventilation grille clips on front apron | 90467-09242 |
| 55875A | No. 5 air duct seal | 55875-02270 |
| 55876D | No. 6 air duct seal | 55876-02180 |
| 55877B | Right front panel vent cover | 55877-02300 |
| 55878B | Left front panel vent cover | 55878-02240 |
| 56111 | windshield | 56101-02997 · 56101-02998 · 56101-02999 · 56101-0Z901 · 56101-0Z902 · 56101-0Z905 · 56101-0Z907 · 56101-0Z908 · 56101-0Z909 · 56101-0Z910 · 56101-0Z911 · 56101-0Z912 · 56101-0Z913 · 56101-0Z920 · 56101-0Z921 · 56101-0Z922 · 56101-0Z923 · 56101-0Z924 · 56101-0Z925 · 56101-0Z926 · 56101-0Z927 · 56101-0Z928 · 56101-0Z929 · 56101-0Z930 · 56101-0Z931 · 56101-0Z932 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-02310 |
| 56153C | Front center window inner protective strip | 56153-02080 · 56153-12010 · 56153-12020 · 56153-12030 · 56153-12040 |
| 75533G | Windshield outer protective strip | 75533-02220 · 75533-02230 |
