Toyota COROLLA 仪表板和手套箱 — Figure 5501

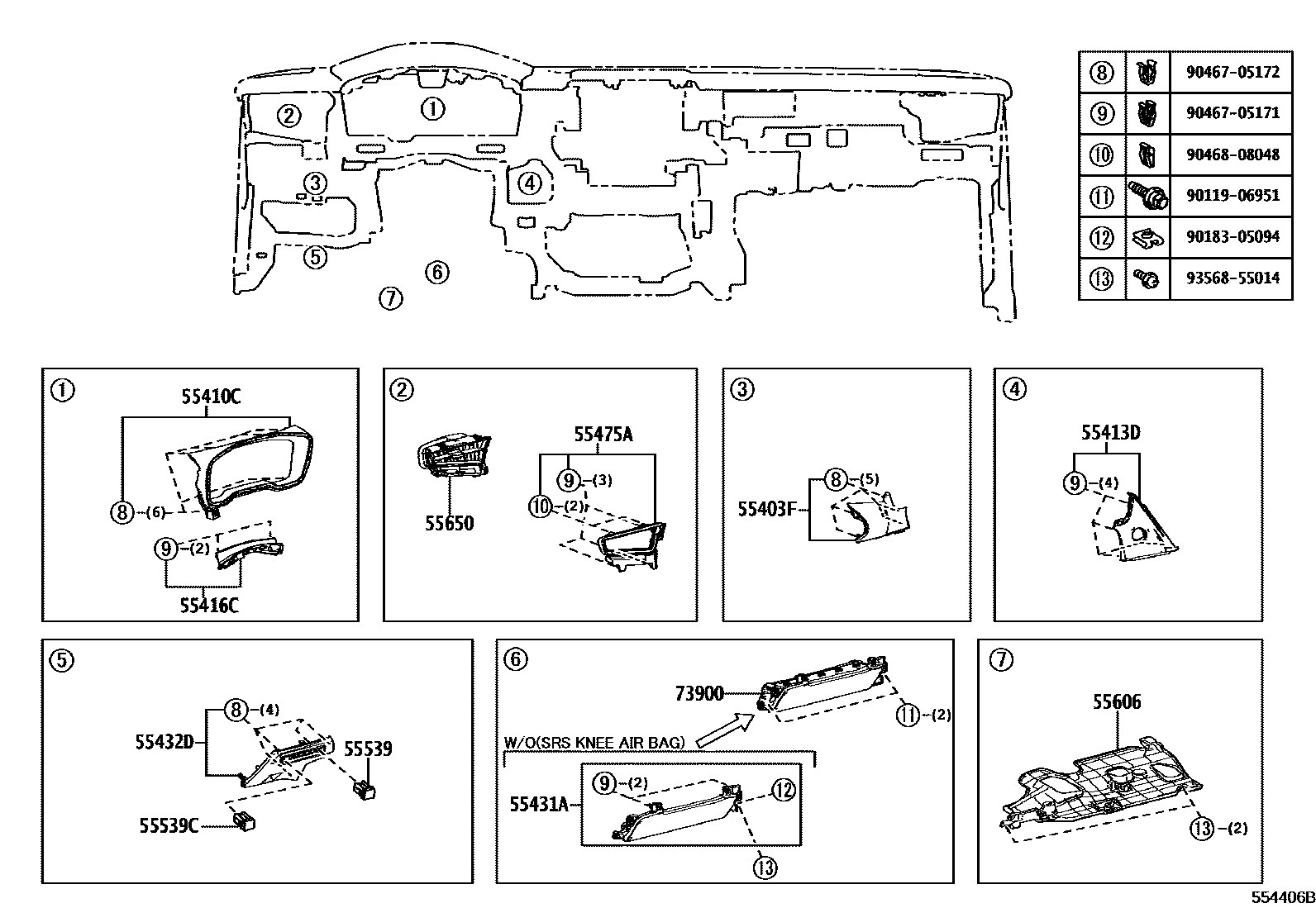

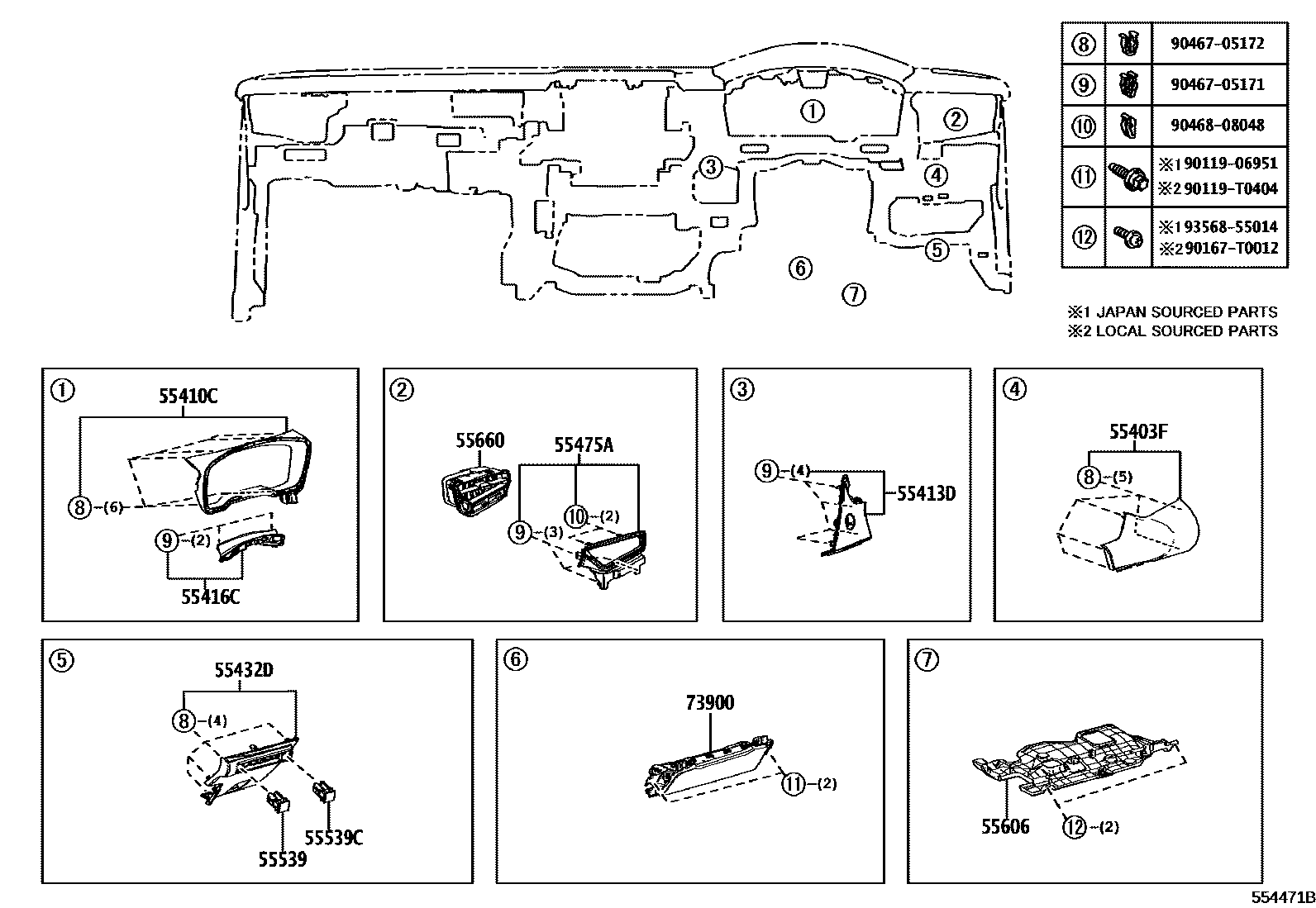

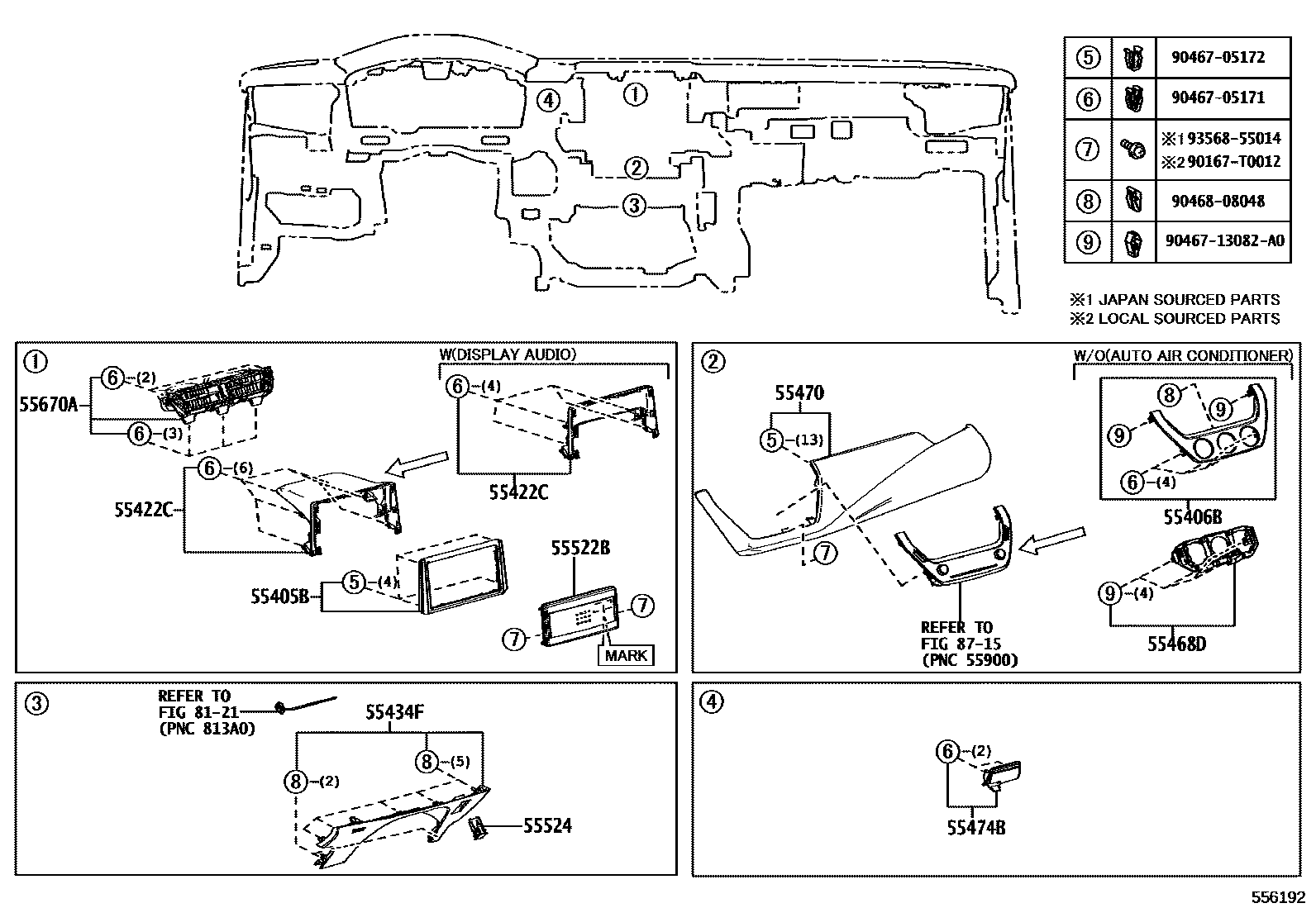

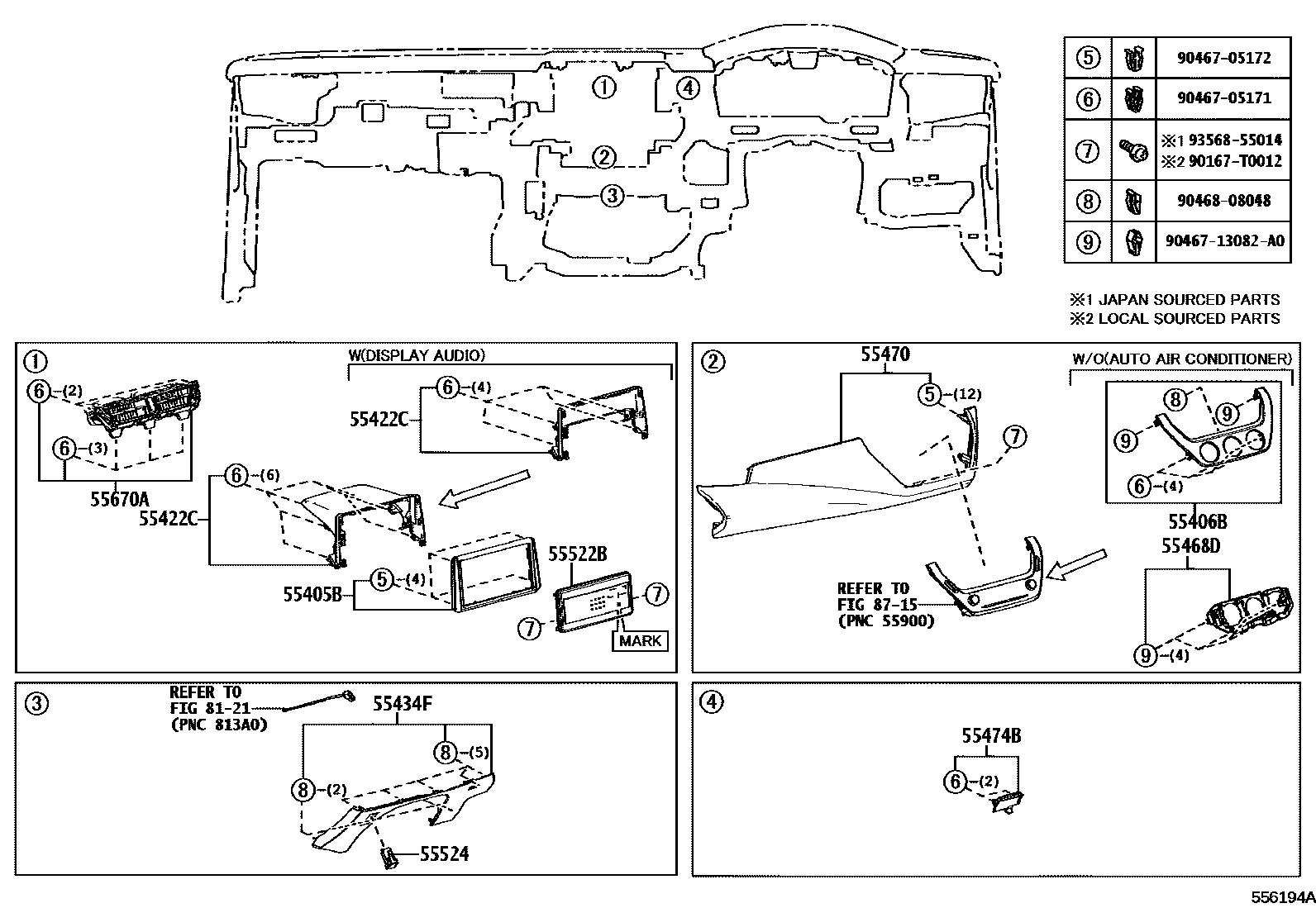

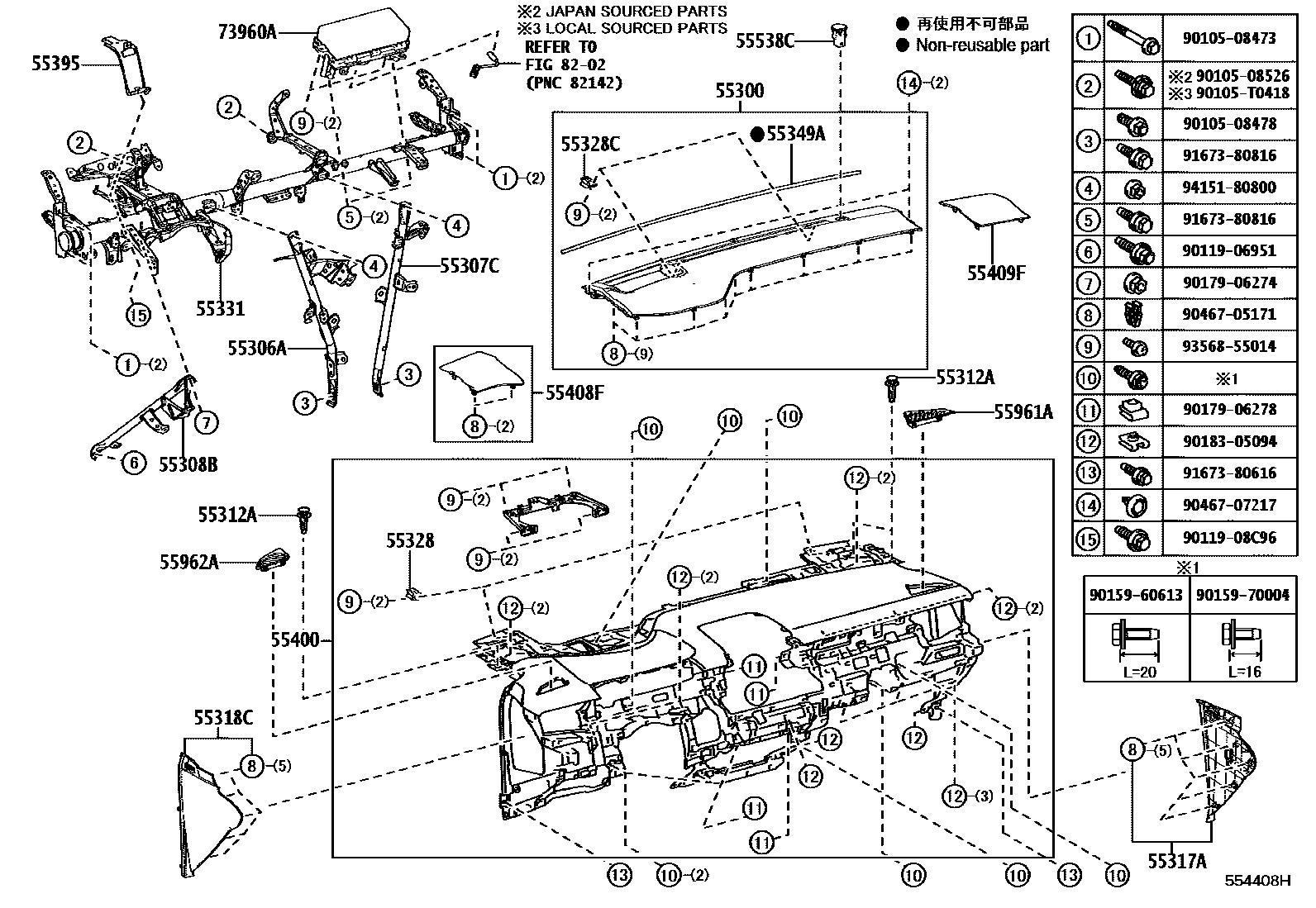

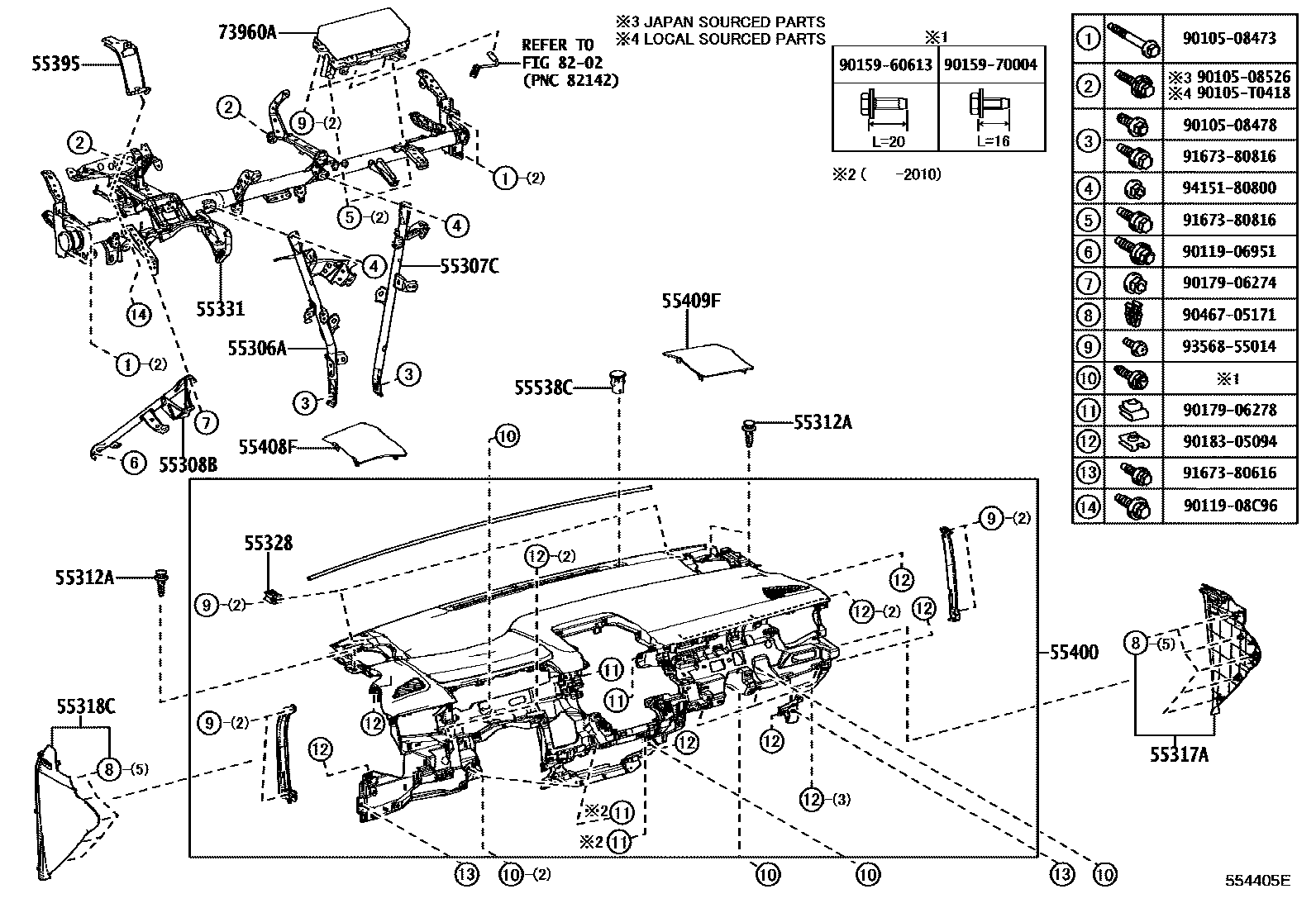

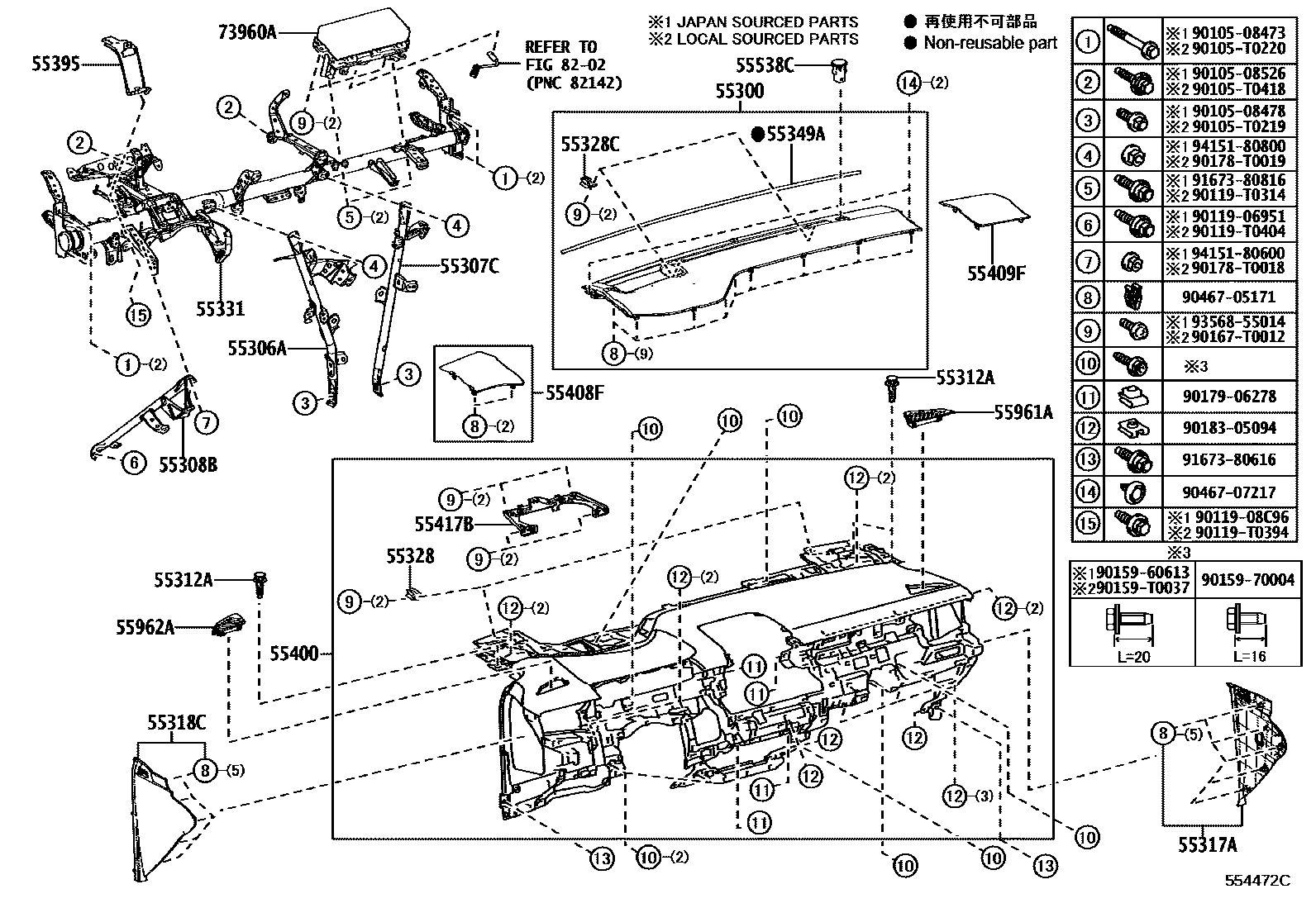

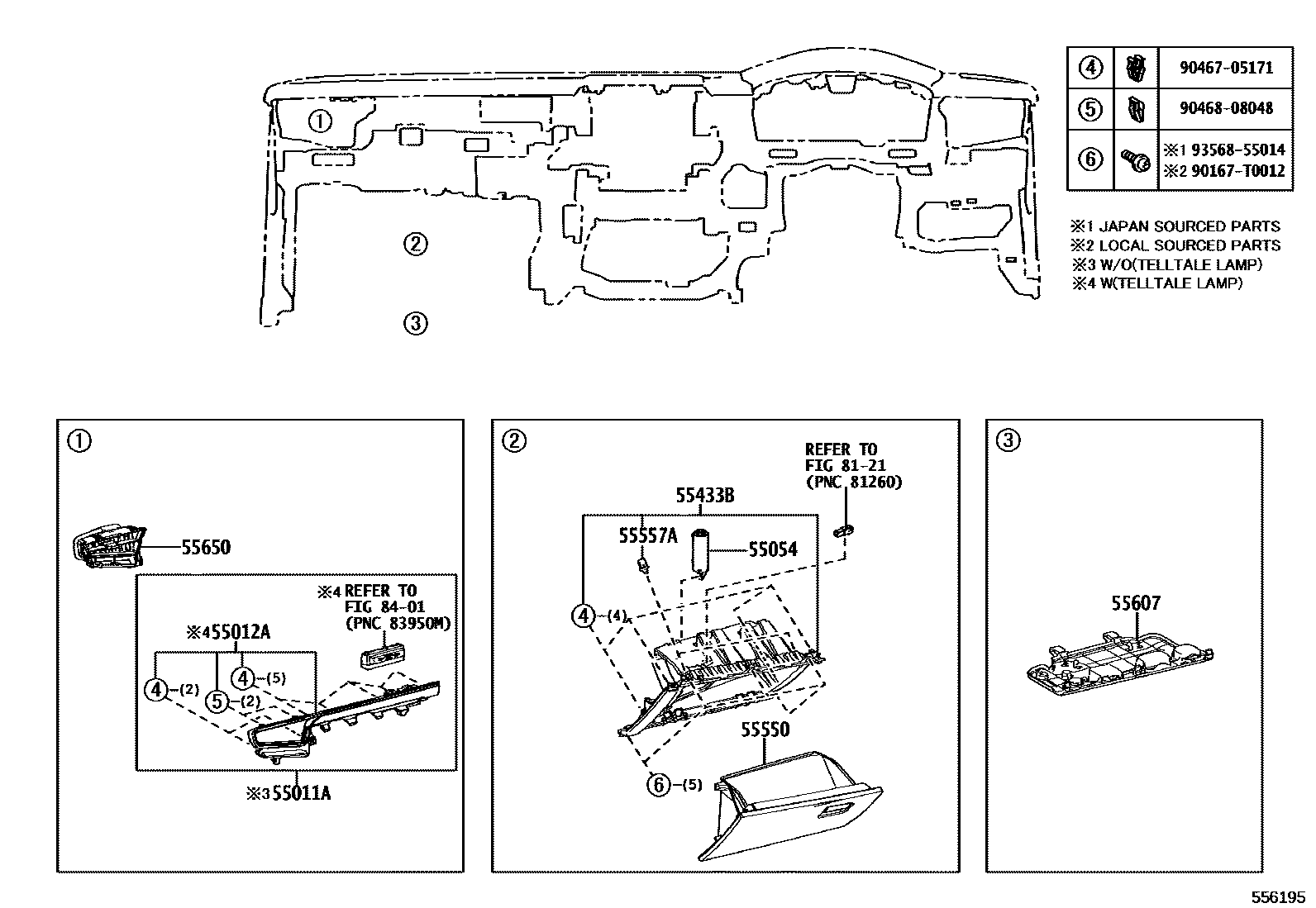

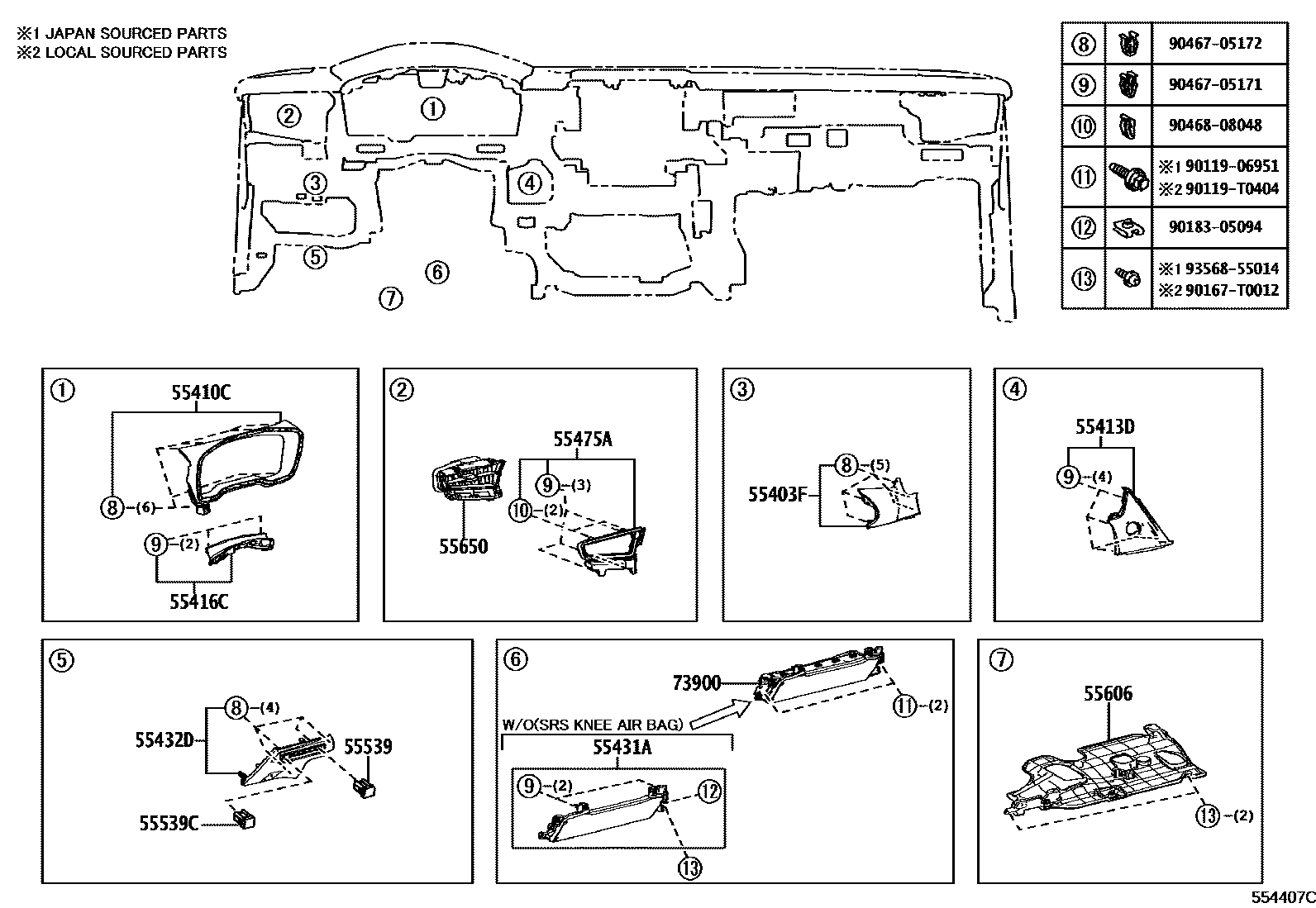

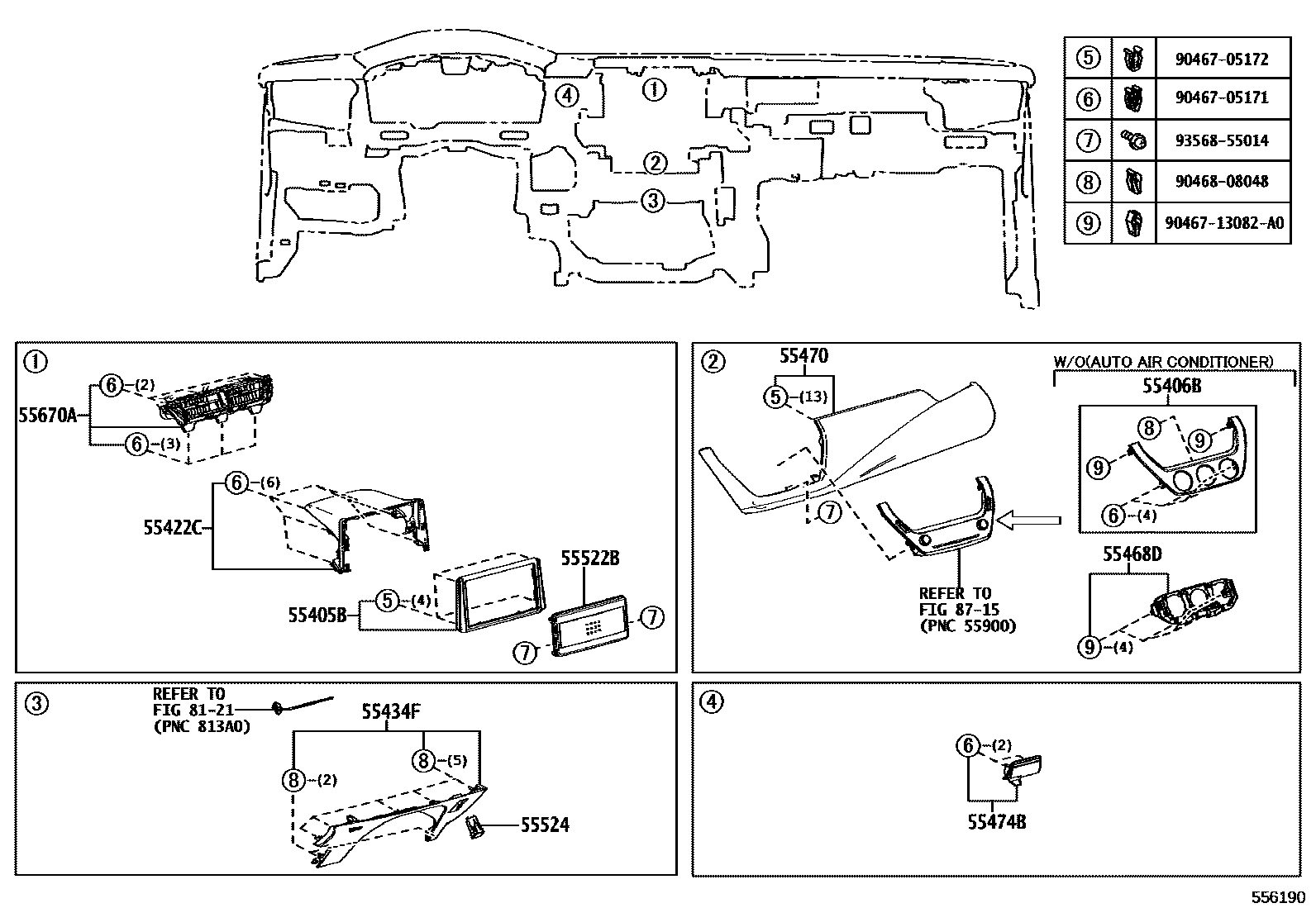

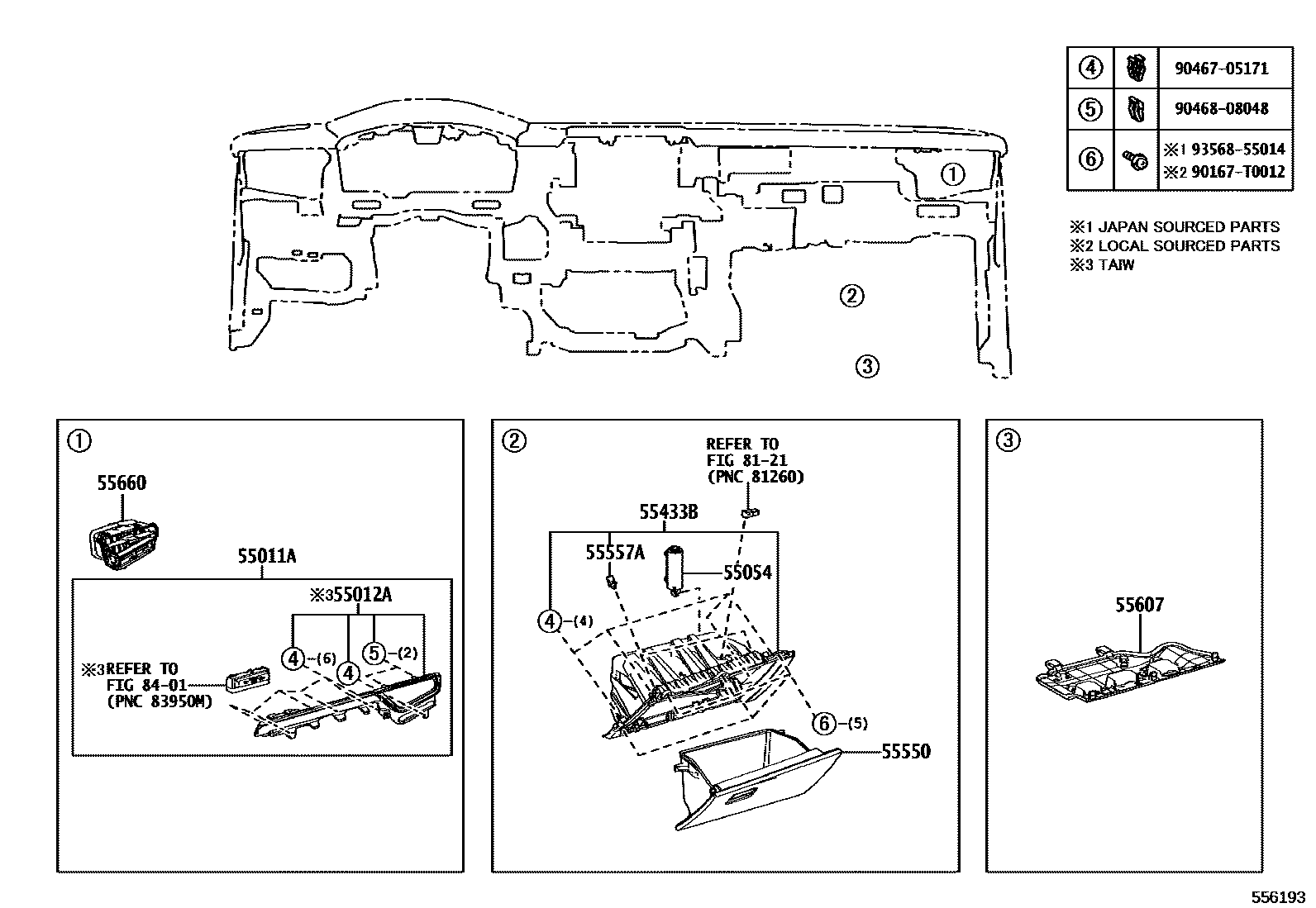

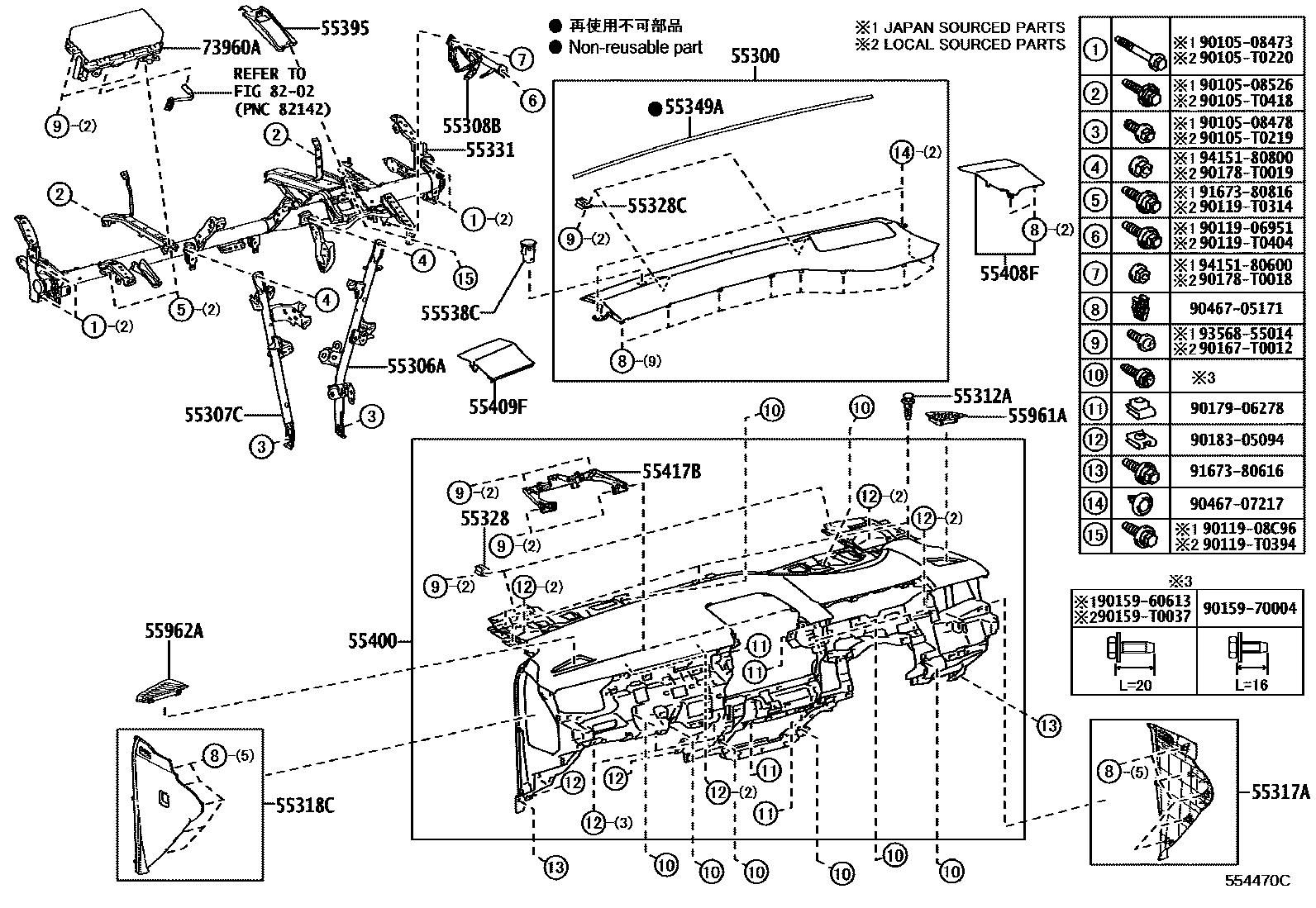

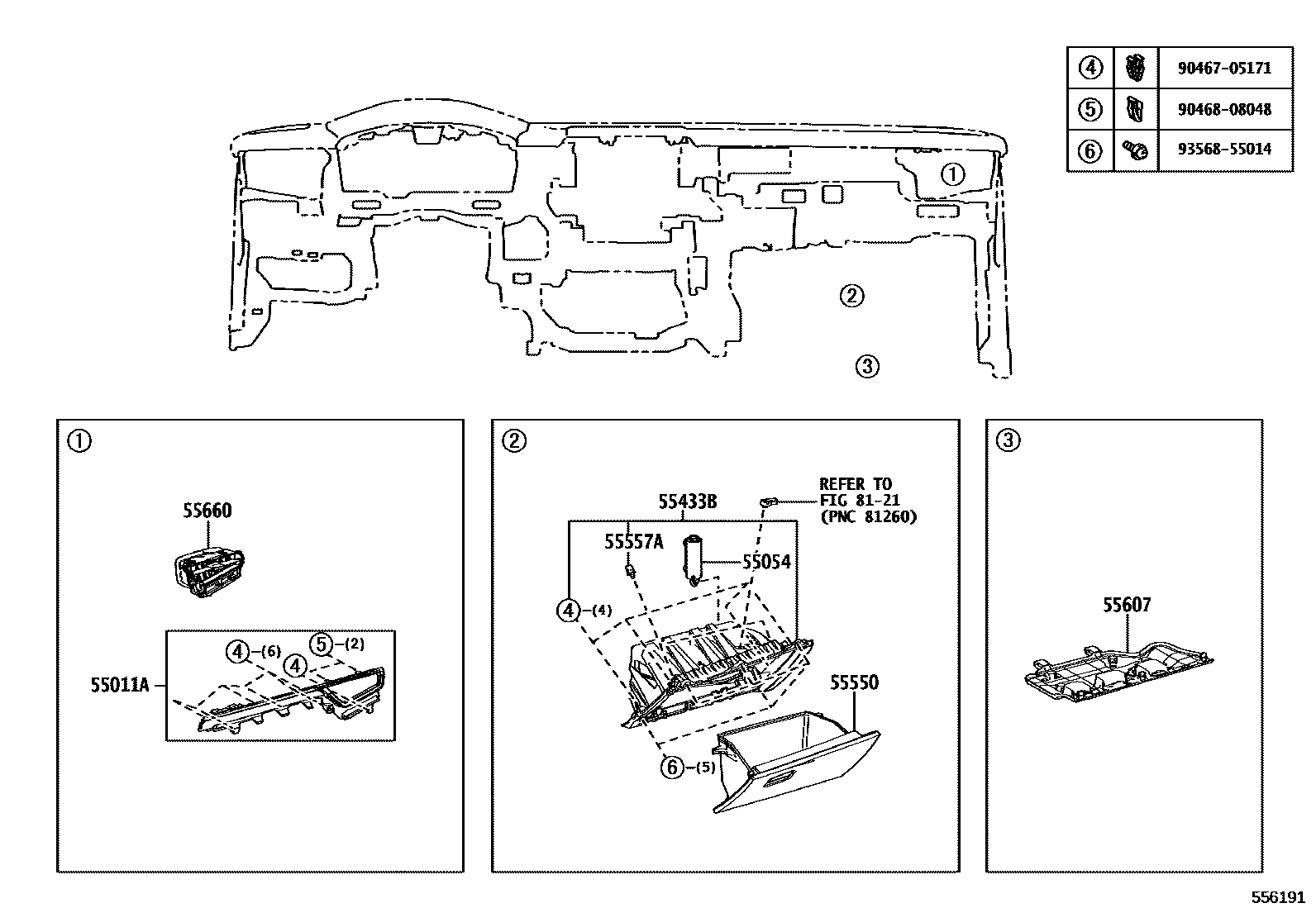

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 13 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-02700 · 55306-02710 · 55306-02720 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-02550 · 55307-02560 · 55307-02570 |
| 55308B | Dashboard to cowl No. 3 bracket sub-assembly | 55308-02200 · 55308-02210 · 55308-02220 |
| 55312A | Dashboard clip | 52161-0K040 · 52161-0K060 · 52161-16010 |
| 55328 | Instrument panel pin 1 | 55328-12430 · 55328-60090 |
| 55328C | Instrument panel pin 2 | 55328-12420 · 55328-12440 |
| 55331 | Dashboard reinforcement | 55330-02A70 · 55330-02A80 · 55330-02A90 · 55330-02B00 · 55330-02B10 · 55330-02C40 · 55330-02C50 |
| 55349A | Dashboard cushion | 55349-02260 · 55349-02270 |
| 55395 | Dashboard to pedal bracket | 55395-02090 · 55395-02100 · 55395-02110 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-02830 · 55405-02F80 · 55405-02G90 · 55405-02J10 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-02680 · 55406-02690 |
| 55410C | Instrument cluster decorative panel assembly | 55410-02680 · 55410-02700 · 55410-02720 |
| 55416C | Instrument cluster decorative panel fixings | 55416-02410 · 55416-02430 |
| 55417B | Radio tuner trim panel fixing | 55417-02070 |
| 55422C | Center instrument cluster upper decorative panel | 55422-02780 · 55422-02790 · 55422-02800 · 55422-02810 |
| 55468D | Dashboard safety mat central fixing | 55468-02440 · 55468-02450 · 55468-02470 |
| 55522B | Radio tuner opening cover | 55522-0K010 · 55522-52020 |
| 55539 | Spare switch hole cover | 55539-06130 |
| 55557A | Glove box cover limit pad | 55557-52030 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-02330 · 55606-02340 · 55606-02350 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-02340 · 55607-02350 · 55607-02360 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-02880 · 55650-02890 · 55650-02A00 · 55650-02A10 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-02550 · 55660-02560 · 55660-02570 · 55660-02580 |
| 55670A | Instrument panel central air register assembly | 55670-02870 · 55670-02880 · 55670-02890 · 55670-02A00 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-02410 · 73960-12320 · 73960-12360 |
