Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

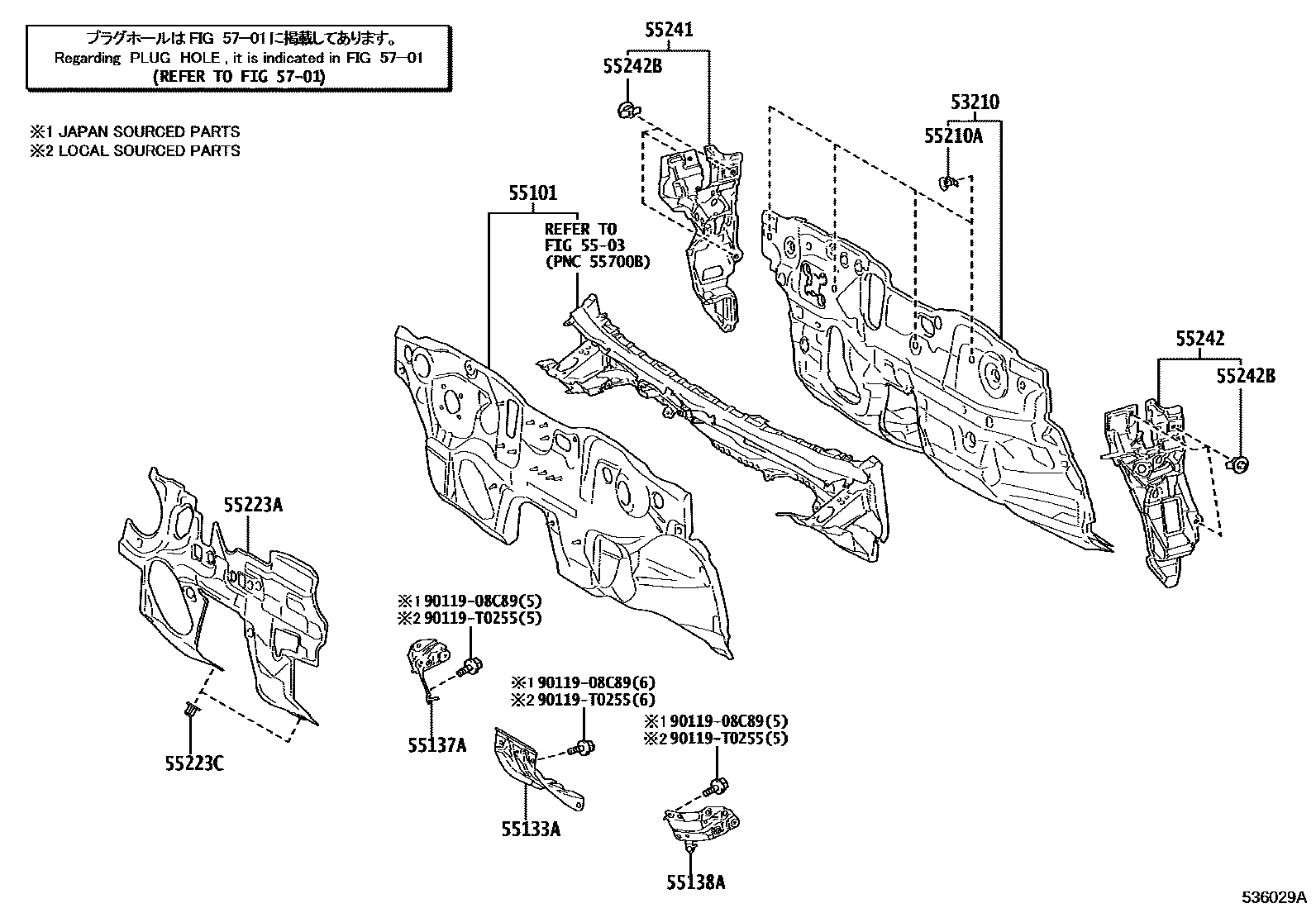

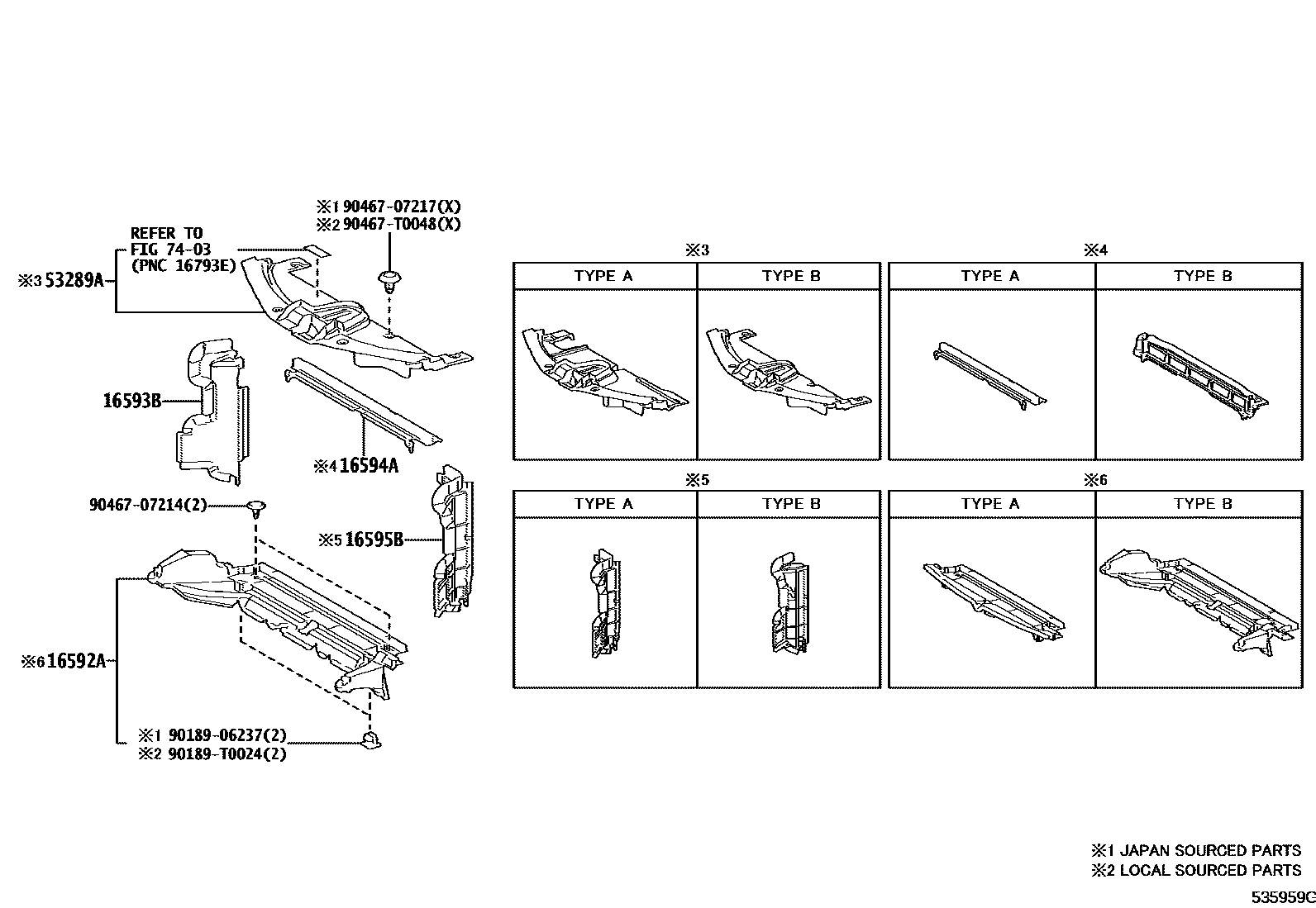

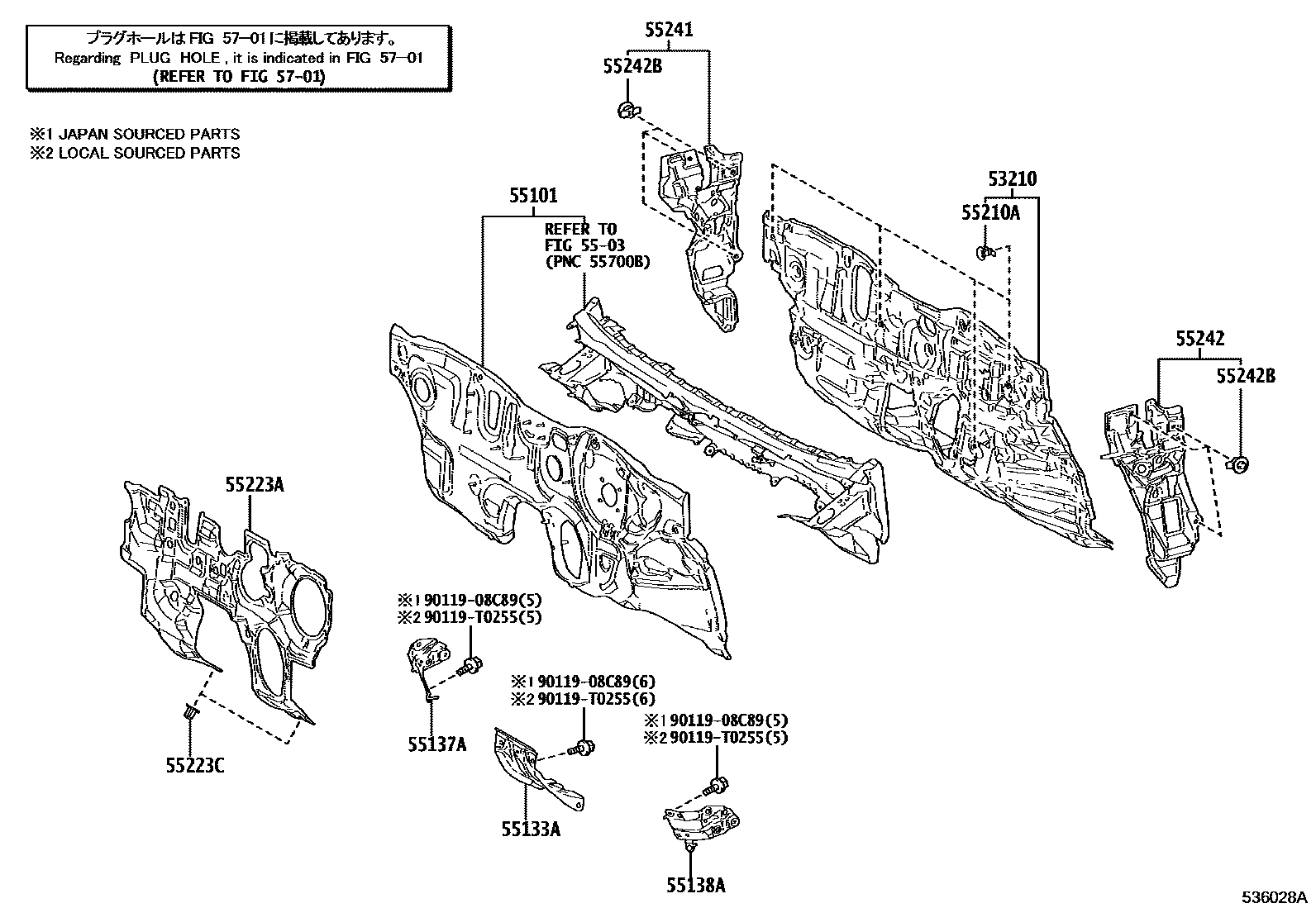

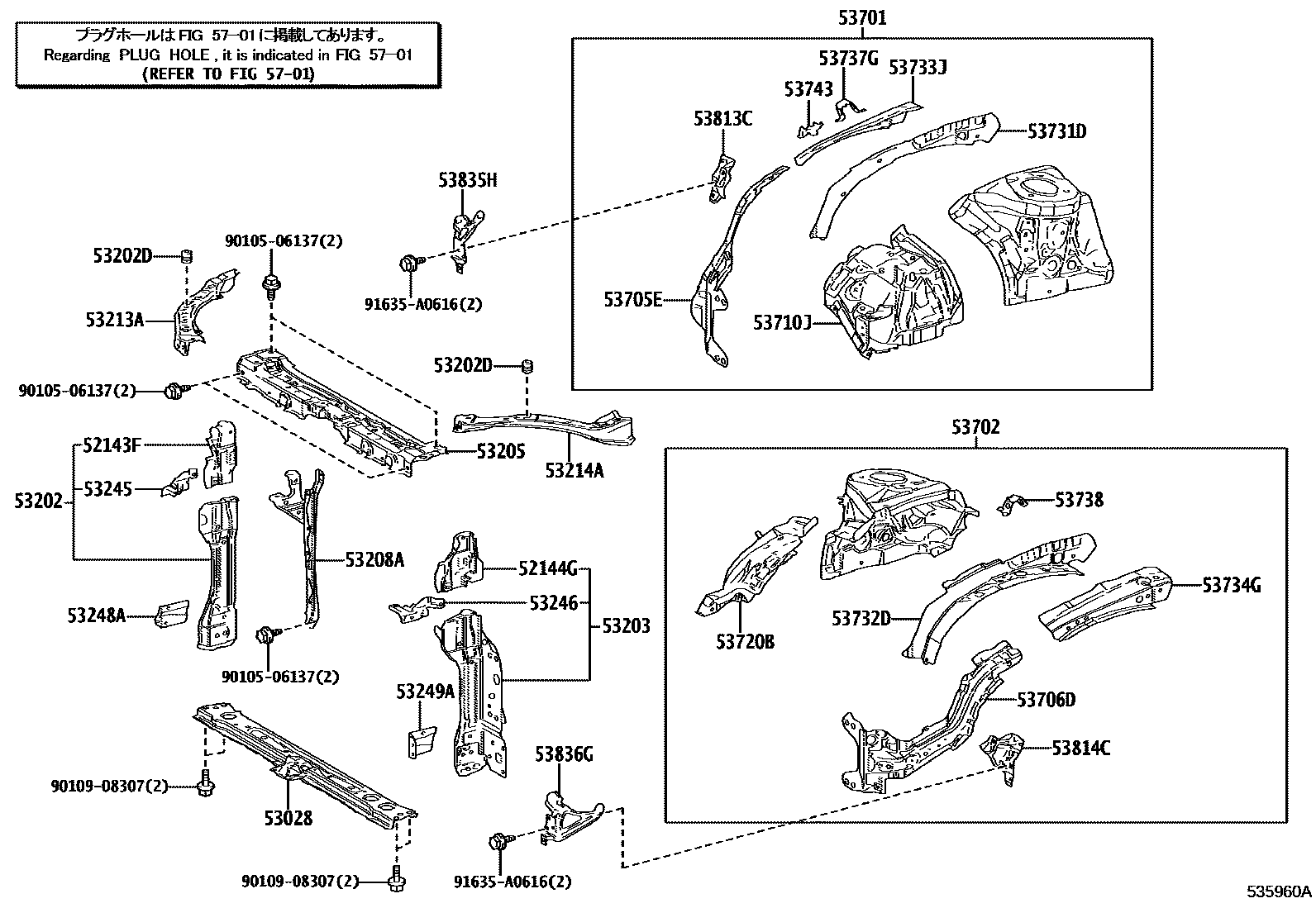

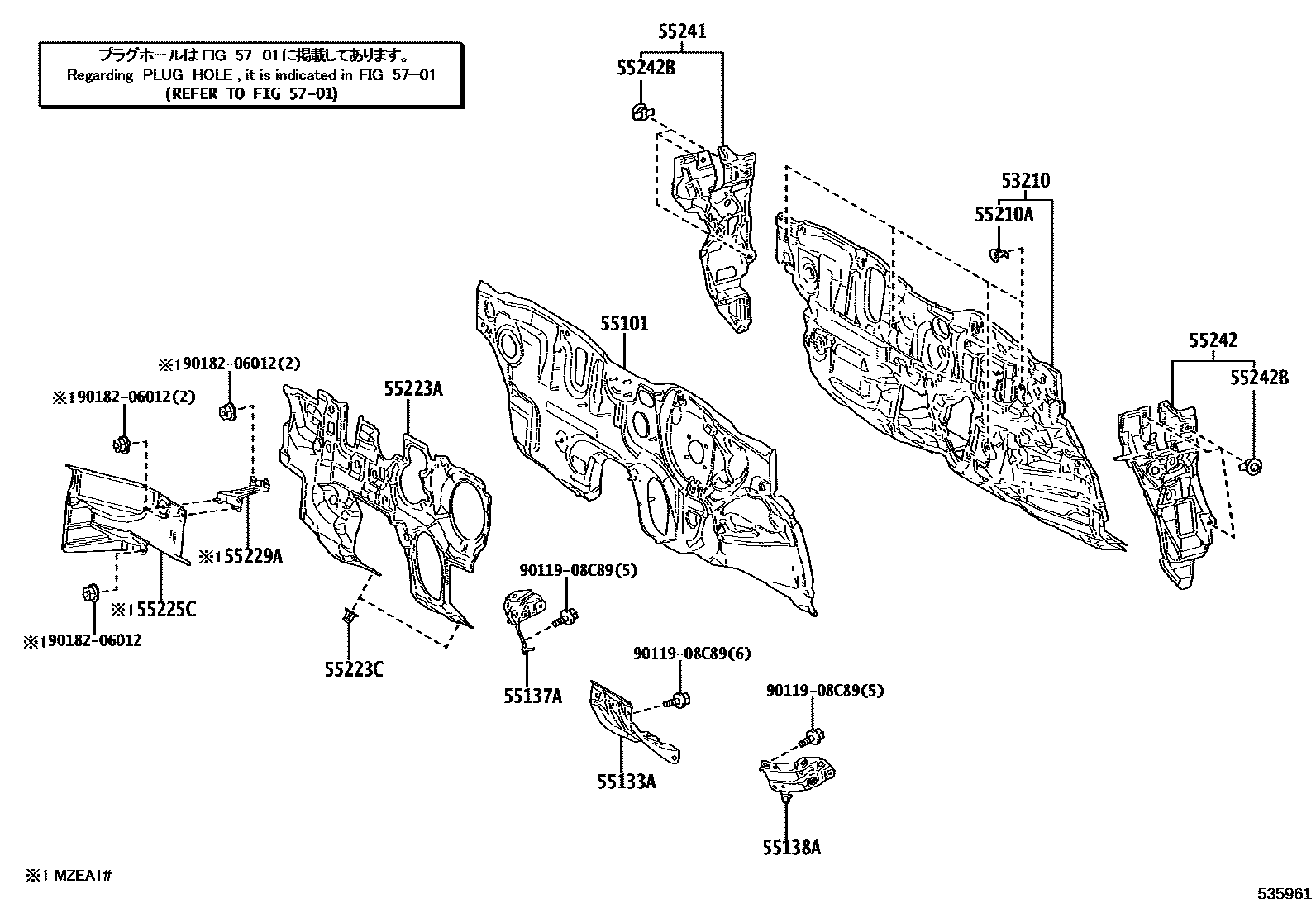

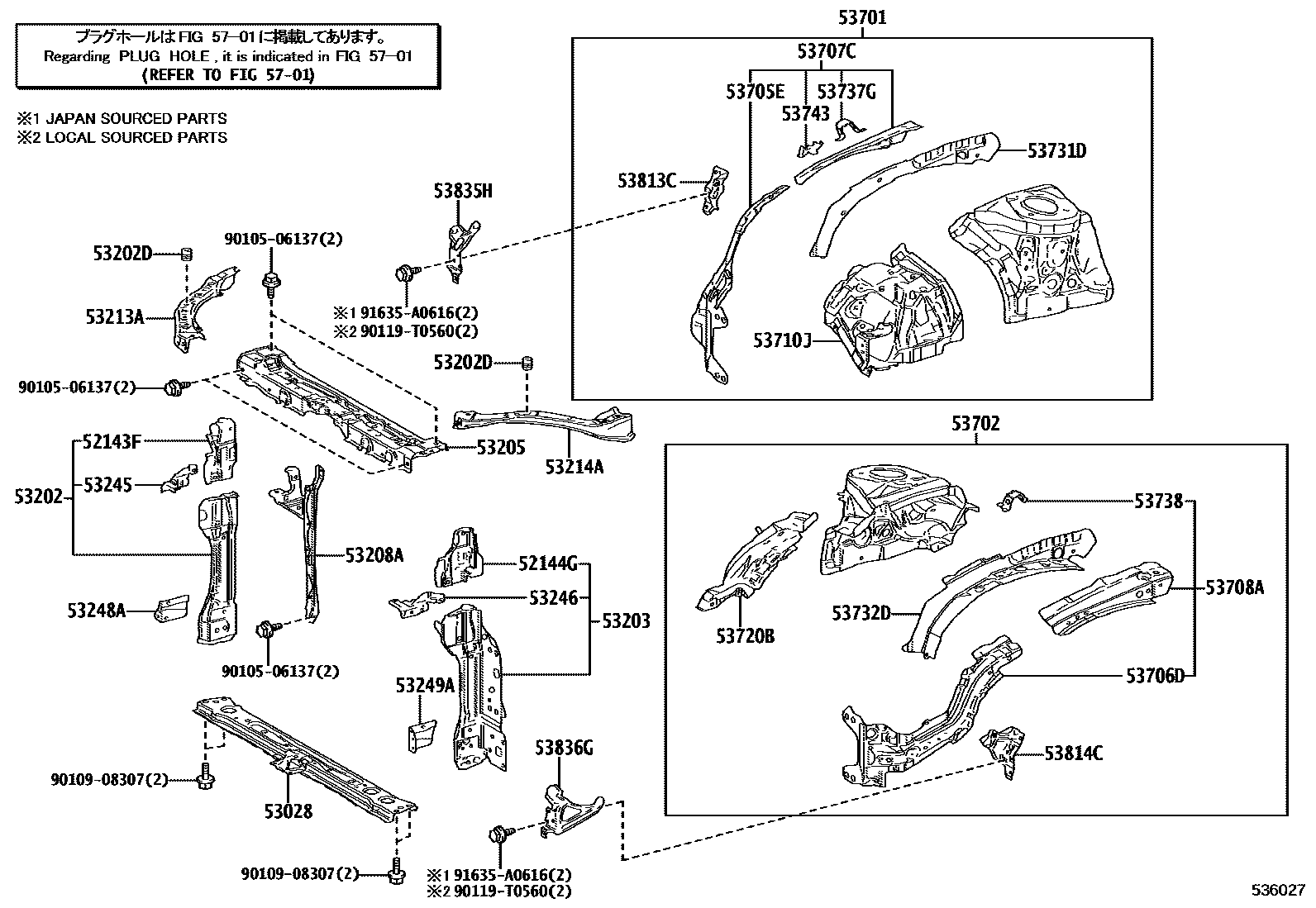

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 6 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16592A | Radiator deflector No. 3 | 16592-0T160 · 16592-0T170 · 16592-0T220 · 16592-0T230 · 16592-0T240 · 16592-0T260 · 16592-0T350 · 16592-0T360 |
| 16593B | No. 1 radiator right deflector | 16593-0T170 · 16593-0T180 · 16593-F2080 |
| 16594A | Radiator deflector No. 2 | 16594-0T070 · 16594-0T080 · 16594-0T110 · 16594-0T120 · 16594-F2060 |
| 16595B | No. 1 radiator left deflector | 16595-0T190 · 16595-0T200 · 16595-0T210 · 16595-0T220 · 16595-F2100 |
| 52143F | Front bumper right side bracket | 52143-02090 · 52143-02100 |
| 52144G | Front bumper left bracket | 52144-02080 · 52144-02090 |
| 53028 | Radiator lower bracket sub-assembly | 53028-02090 · 53028-02100 · 53028-02110 |
| 53202 | Radiator right side bracket sub-assembly | 53202-02909 · 53202-02910 · 53202-02914 |
| 53202D | Radiator bracket cushion | 90541-15037 |
| 53203 | Radiator left bracket sub-assembly | 53203-02904 · 53203-02905 · 53203-02909 |
| 53205 | Radiator upper bracket sub-assembly | 53205-02350 · 53205-02360 · 53205-02370 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-02290 · 53208-02300 |
| 53210 | Radiator bracket assembly | 55210-02710 · 55210-02720 · 55210-02730 · 55210-02800 · 55210-02810 |
| 53213A | Radiator upper right bracket | 53213-02230 · 53213-02240 |
| 53214A | Radiator upper left bracket | 53214-02230 · 53214-02240 |
| 53245 | Right headlight bracket | 53245-02070 · 53245-02080 |
| 53246 | Left headlight bracket | 53246-02070 · 53246-02080 |
| 53248A | Radiator shutter right bracket | 53248-47010 |
| 53249A | Radiator shutter left bracket | 53249-47010 |
| 53289A | Radiator bracket opening cover | 53289-02080 · 53289-02090 · 53289-02100 · 53289-02110 |
| 53701 | Right front fender fender sub-assembly | 53701-02430 · 53701-02440 |
| 53702 | Left front fender fender sub-assembly | 53702-02360 · 53702-02370 |
| 53705E | Front fender to front wall right side beam sub-assembly | 53705-02100 · 53705-02130 |
| 53706D | Front fender to front wall left side beam sub-assembly | 53706-02100 · 53706-02130 |
| 53707C | Right front fender fender front extension sub-assembly | 53707-02070 |
| 53708A | Left front fender, fender front extension sub-assembly | 53708-02070 |
| 53710J | Right front fender fender assembly | 53710-02150 · 53710-F4020 |
| 53720B | Left front fender fender assembly | 53720-02170 · 53720-F4020 |
| 53731D | Right front fender to cowl side upper beam | 53731-02140 · 53731-02170 |
| 53732D | Left front fender to cowl side upper beam | 53732-02140 · 53732-02170 |
| 53733J | Right front fender to front wall side outer beam | 53733-02100 |
| 53734G | Left front fender to front wall side outer beam | 53734-02100 |
| 53737G | Right front fender to front wall side sill | 53737-02230 · 53737-02240 |
| 53738 | Left front fender to front wall side sill | 53738-02200 · 53738-02210 |
| 53743 | Front fender fender extension reinforcement | 53743-02070 · 53743-F4020 |
| 53813C | Right front fender extension | 53813-02200 · 53813-F4020 |
| 53814C | Left front fender extension | 53814-02210 · 53814-F4020 |
| 53835H | Right front fender to extension stay | 53835-02060 · 53835-02070 |
| 53836G | Left front fender to extension stay | 53836-02060 · 53836-02070 |
| 55101 | Front apron sub-assembly | 55101-02901 · 55101-02902 · 55101-02903 · 55101-02F40 |
| 55133A | Right reinforcement (front wall to floor) | 55133-02080 · 55133-F4020 |
| 55137A | Right side bracket (front wall to frame) | 55137-02160 · 55137-02170 |
| 55138A | Left side bracket (front wall to frame) | 55138-02150 · 55138-02210 |
| 55210A | clip | 90467-11122 |
| 55223A | Front wall outer heat insulation pad | 55223-02440 · 55223-02460 · 55223-F4030 |
| 55223C | clip | 90467-06197 · 90467-T0032 |
| 55225C | Front wall insulation pad | 55225-02070 |
| 55229A | Footrest No. 1, front floor | 55229-02030 |
| 55241 | Front panel No. 1 right side silencer | 55241-02080 · 55241-02090 |
| 55242 | Front panel No. 1 left side silencer | 55242-02070 · 55242-02080 |
| 55242B | Front panel side muffler clip | 90467-13079 |
