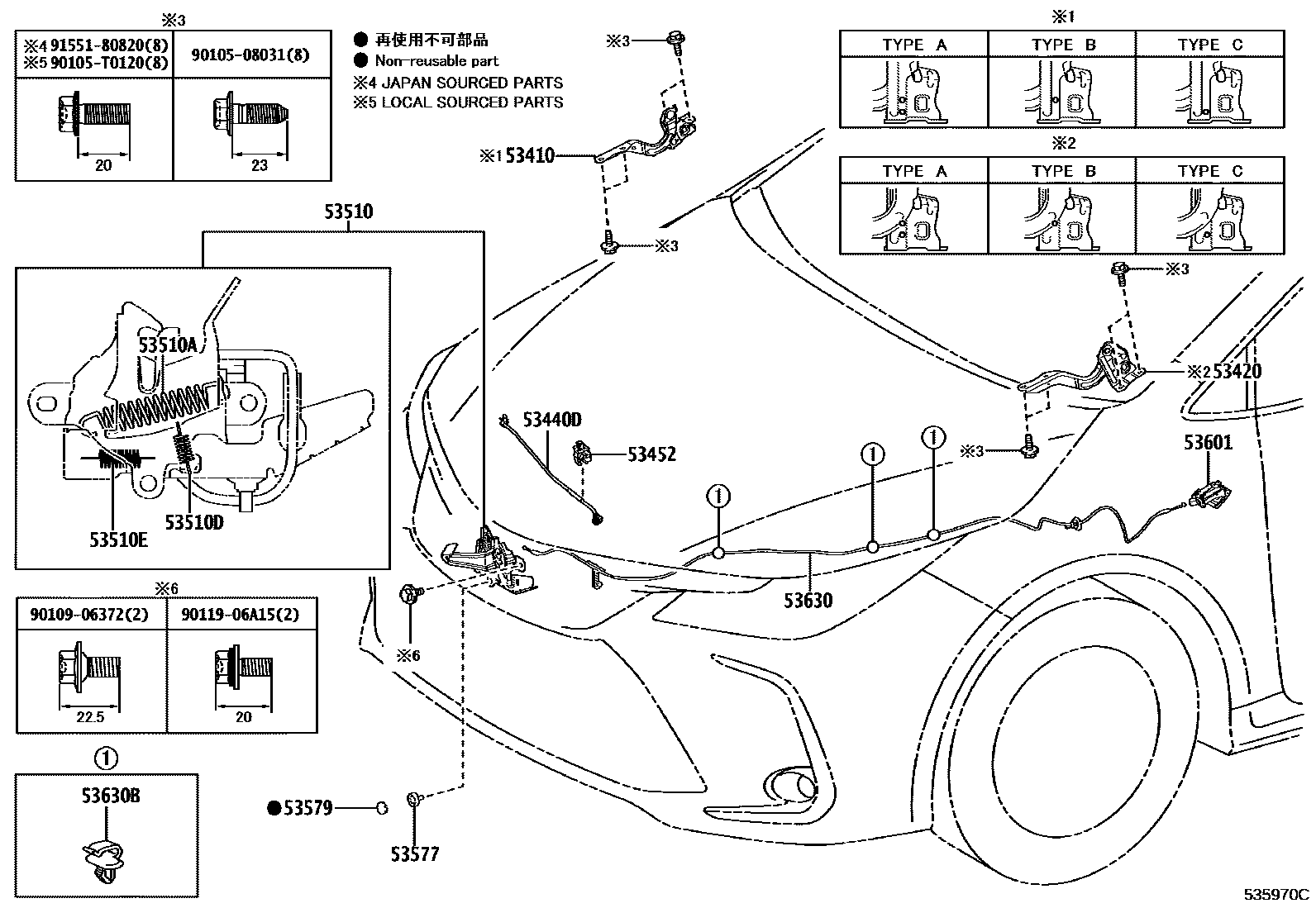

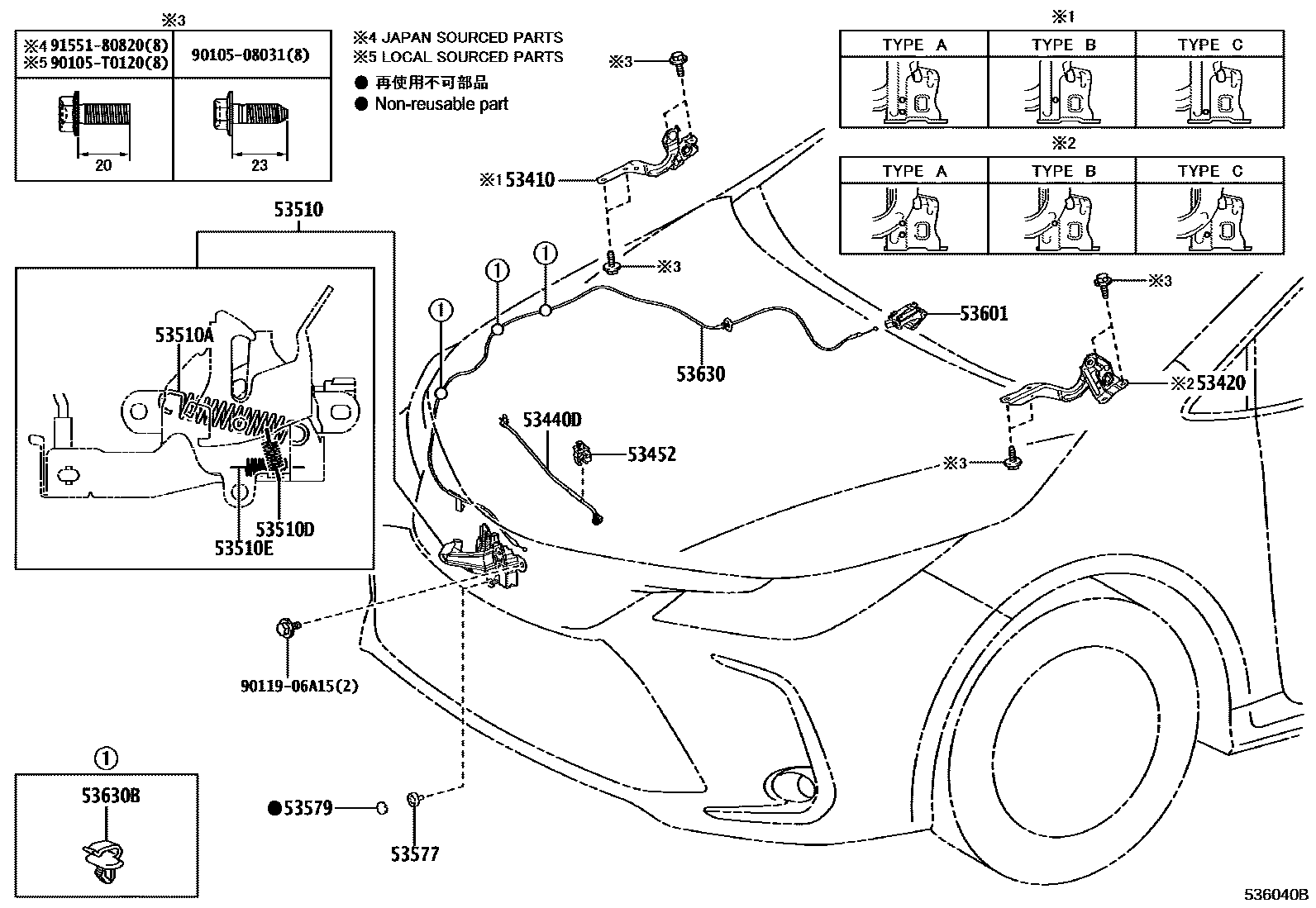

Toyota COROLLA 发动机盖锁和铰链 — Figure 5303
Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-02570 · 53410-02580 · 53410-02590 · 53410-02610 |
| 53420 | Engine cover left hinge assembly | 53420-02570 · 53420-02580 · 53420-02590 · 53420-02610 |
| 53440D | Engine cover support rod assembly | 53440-02310 · 53440-02320 |
| 53452 | Engine cover stay rod fixing | 53452-02360 · 53452-02380 · 53452-15020 |
| 53510 | Engine cover lock assembly | 53510-02A10 · 53510-02A20 · 53510-12C30 · 53510-12C40 · 53510-12C50 · 53510-12C90 |
| 53510A | Tension spring (for hood lock) | 90506-16077 |
| 53510D | Tension spring (for hood lock) | 90506-12063 · 90506-T0004 |
| 53510E | Tension spring (for hood lock) | 90506-09055 |
| 53577 | engine cover lock bolt | 53577-33010 |
| 53579 | Engine hood lock nut cover | 53579-50010 |
| 53630 | Engine hood lock control cable assembly | 53630-02460 · 53630-02470 · 53630-02480 |
| 53630B | Clip (for hood lock control cable) | 90469-06005 · 90469-T0003 |
