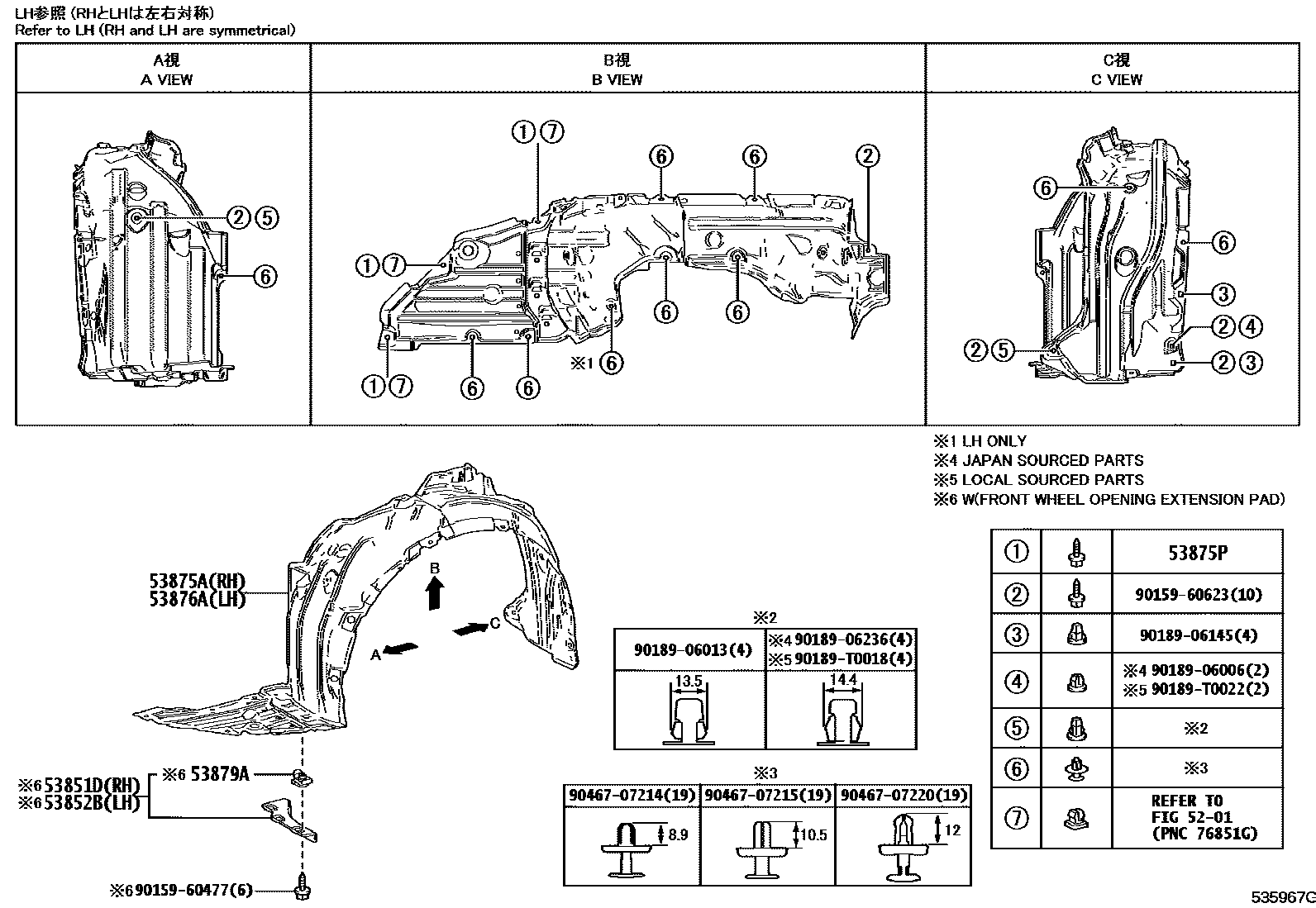

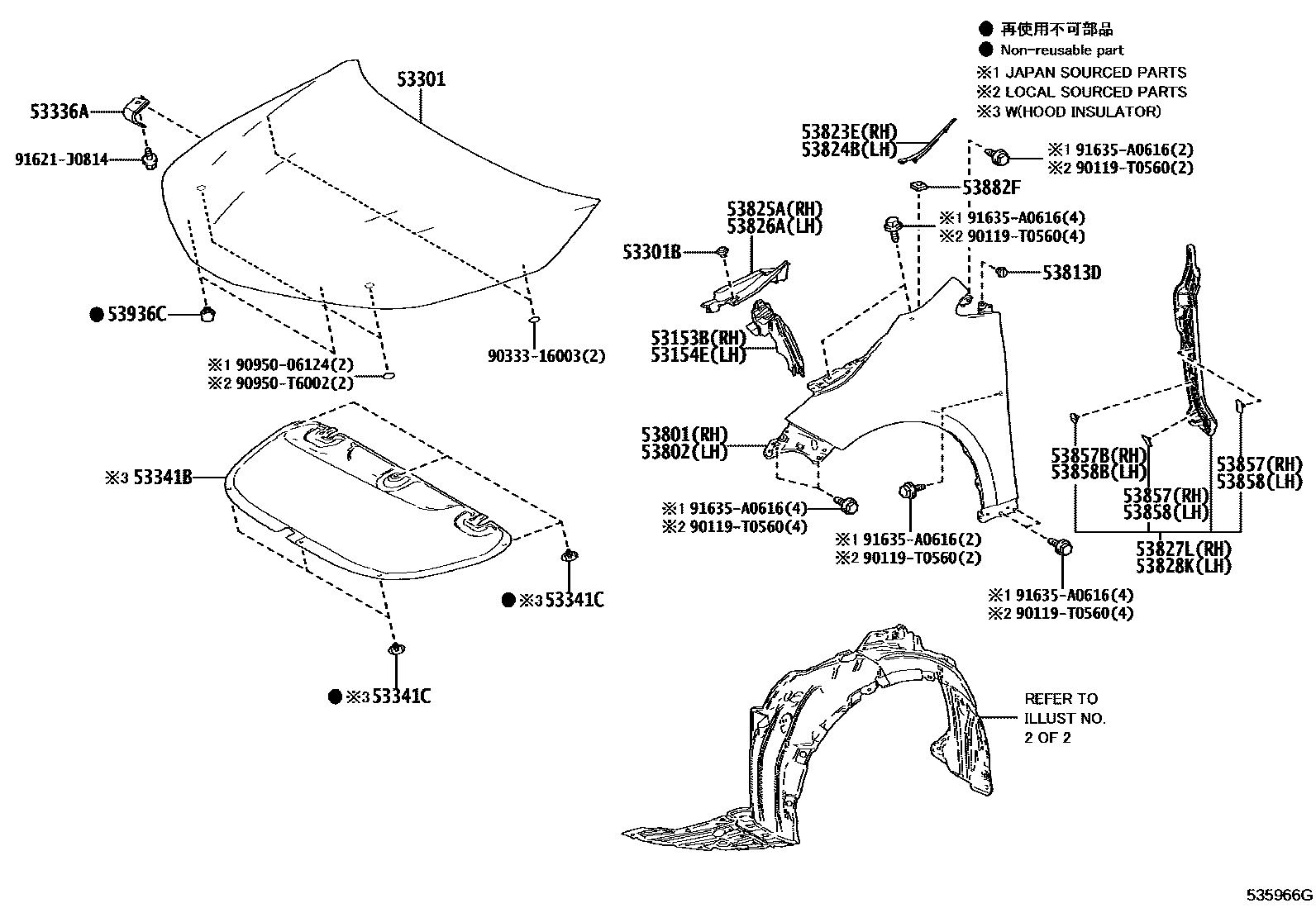

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53153B | front side deflector | 53153-02120 · 53153-02130 |
| 53154E | No. 2 front side deflector | 53154-02120 · 53154-02130 |
| 53301 | Engine cover sub-assembly | 53301-02400 · 53301-02410 |
| 53301B | engine cover cushion | 53384-02050 · 53384-78010 |
| 53336A | Engine cover strut bracket | 53336-02040 · 53336-02050 |
| 53341B | engine cover gasket | 53341-02410 · 53341-02420 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 · 90467-T0014 |
| 53801 | Right front fender sub-assembly | 53801-02270 · 53801-02300 |
| 53802 | Left front fender sub-assembly | 53802-02290 · 53802-02300 |
| 53813D | front fender extension | 53813-48011 |
| 53823E | No. 2 right front side panel protector | 53823-02211 · 53823-02221 |
| 53824B | No. 2 left front side panel protector | 53824-02211 · 53824-02221 |
| 53825A | Right front fender protection piece | 53825-02180 · 53825-02190 |
| 53826A | Protection piece on left front fender | 53826-02180 · 53826-02190 |
| 53827L | Right front fender side panel protector | 53827-02270 · 53827-02280 |
| 53828K | Left front fender side panel protector | 53828-02270 · 53828-02280 |
| 53851D | Right front fender outer panel pad | 53851-02240 · 53851-02250 |
| 53852B | Left front fender exterior panel pad | 53852-02220 · 53852-02230 |
| 53857 | Right front fender external panel fixing piece | 53857-12010 |
| 53857B | Right front fender external panel fixing piece | 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-12010 |
| 53858B | Left front fender external panel fixing piece | 53857-47011 |
| 53875A | Right front fender lining | 53875-02750 · 53875-02751 · 53875-02760 · 53875-02A20 · 53875-02A21 · 53875-02A30 |
| 53875P | Screw No. 1 | 90159-60477 |
| 53876A | Left front fender lining | 53876-02800 · 53876-02801 · 53876-02810 · 53876-02A60 · 53876-02A61 · 53876-02A70 |
| 53879A | Front fender lining fixing parts | 53879-47020 |
| 53882F | front fender seal | 53882-33060 |
| 53936C | Cushion pad | 90541-09117 |
