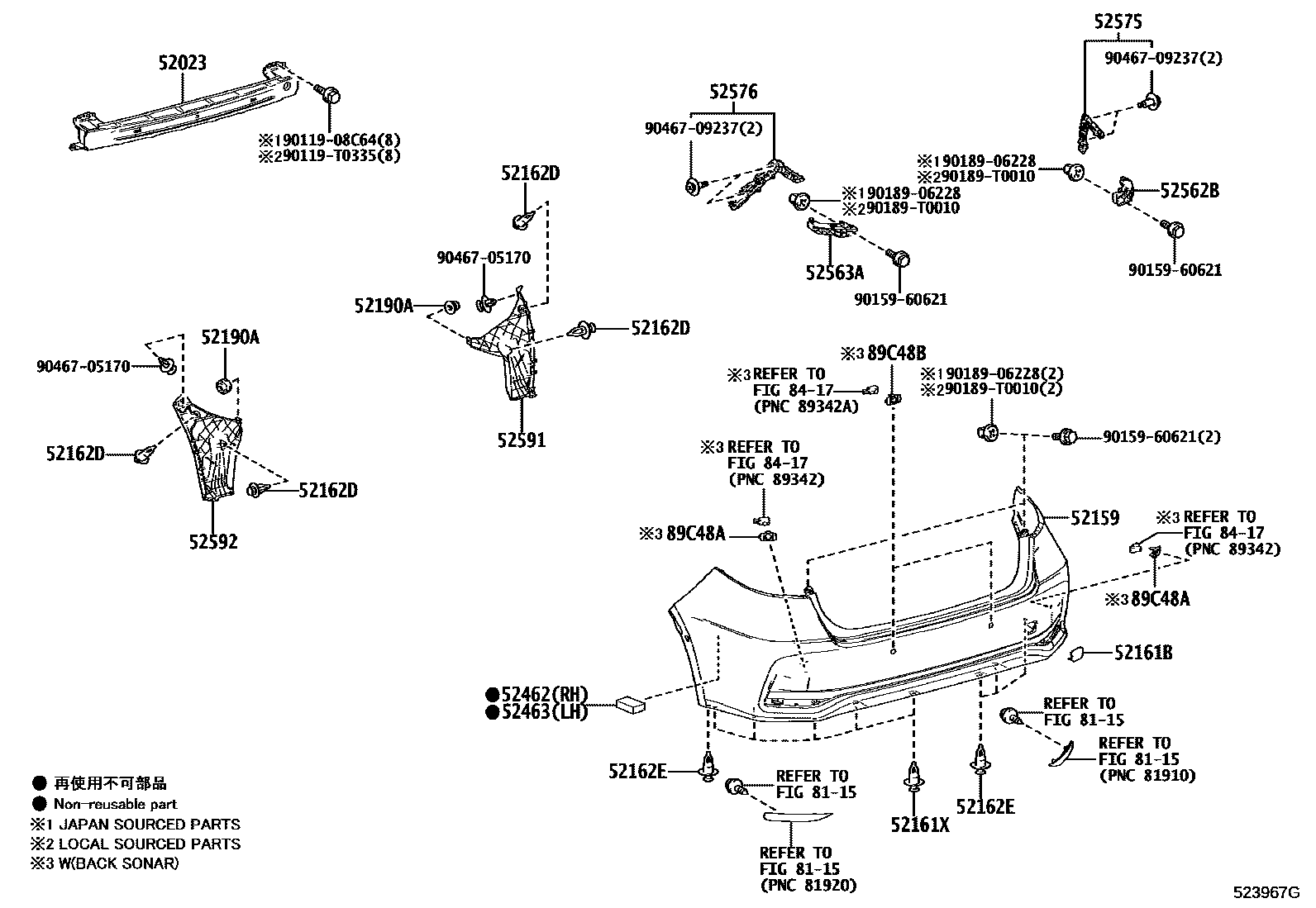

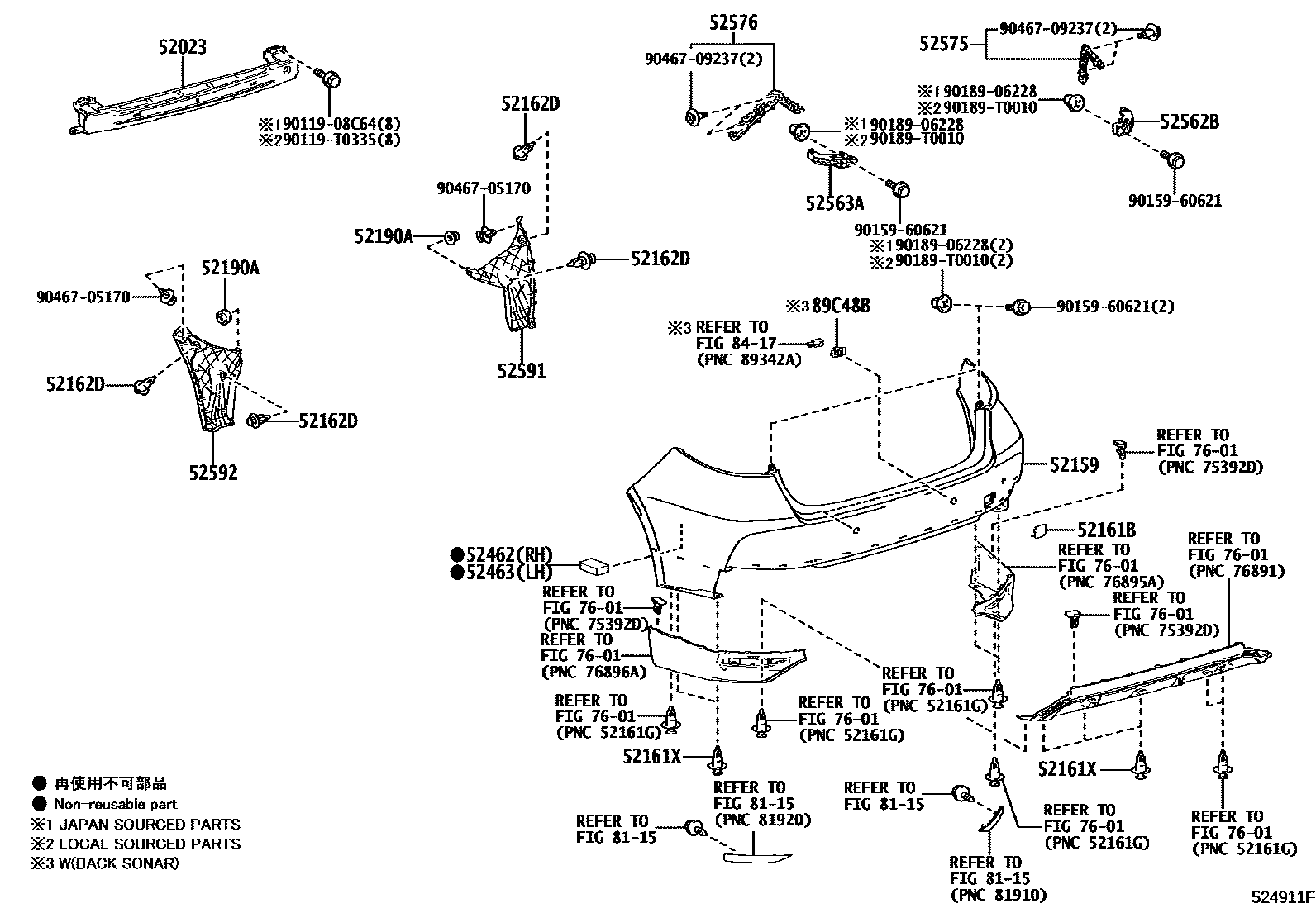

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-02240 · 52023-02250 |
| 52159 | rear bumper cover | 52159-0Z959 · 52159-0Z960 · 52159-0Z961 · 52159-0Z962 · 52159-0Z963 · 52159-0Z971 · 52159-0Z976 · 52159-0Z977 |
| 52161B | Rear bumper insert | 52161-02901 · 52161-02905 · 52161-02907 |
| 52161X | Rear bumper insert | 52161-0K040 · 52161-0K060 · 52161-16010 |
| 52162D | Rear bumper insert | 52161-0K040 · 52161-0K060 · 52161-16010 |
| 52162E | Rear bumper insert | 52161-0K040 · 52161-0K060 · 52161-16010 |
| 52462 | Rear bumper right side lining | 52462-02310 · 52462-02340 |
| 52463 | Rear bumper left lining | 52462-02310 · 52462-02340 |
| 52562B | Rear bumper upper right fixing bracket | 52562-02330 · 52562-02340 |
| 52563A | Rear bumper upper left fixing bracket | 52563-02300 · 52563-02310 |
| 52575 | Rear bumper right side fixing bracket | 52575-02220 · 52575-02230 |
| 52576 | Rear bumper left side fixing bracket | 52576-02220 · 52576-02230 |
| 52591 | Rear bumper right seal | 52591-02420 · 52591-02430 |
| 52592 | Rear bumper left seal | 52592-02390 · 52592-02400 |
| 89C48A | Ultrasonic sensor rear corner fixing bracket | 89348-02190 |
| 89C48B | Ultrasonic sensor rear central fixing bracket | 89348-02190 · 89348-02330 |
