Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

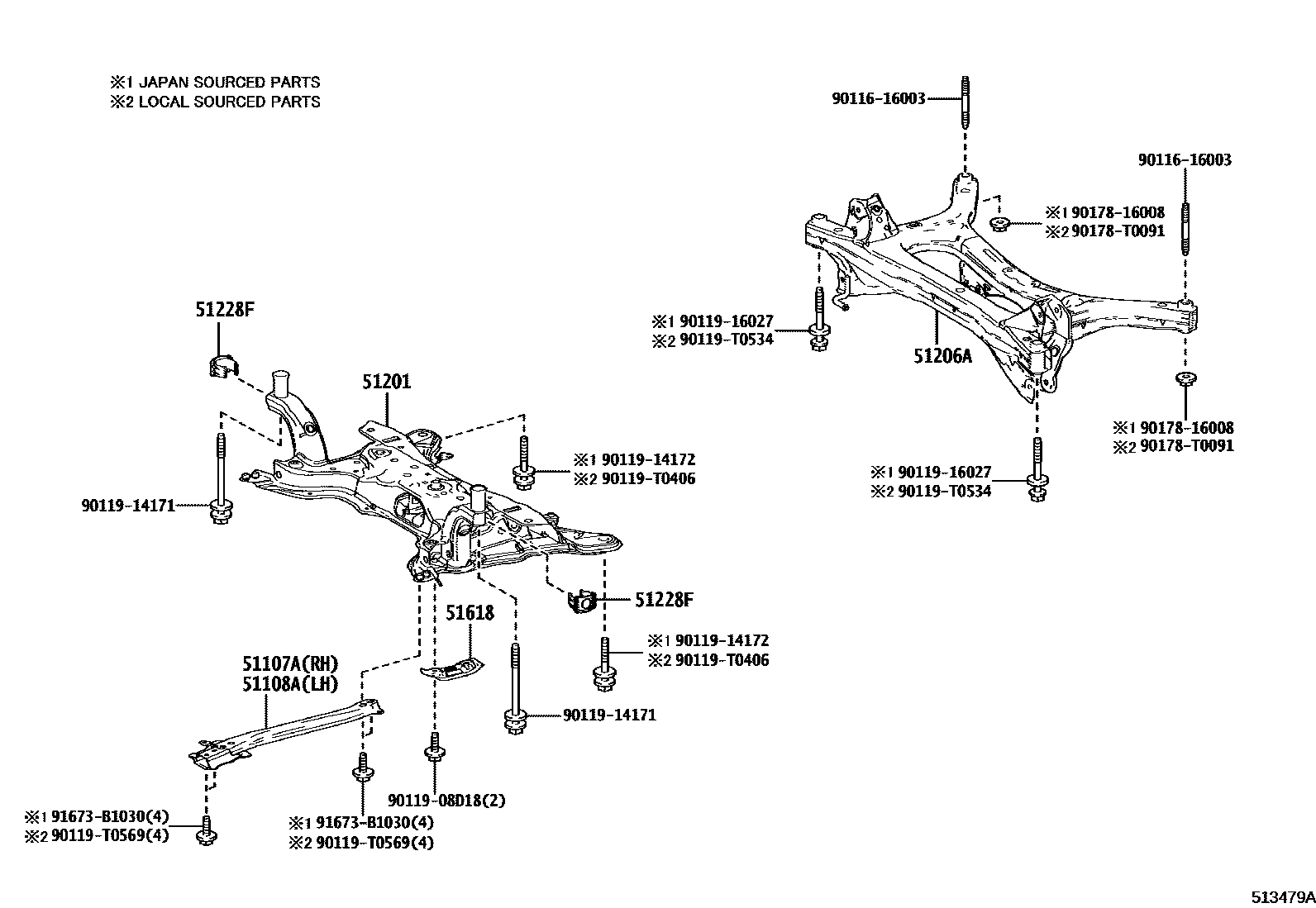

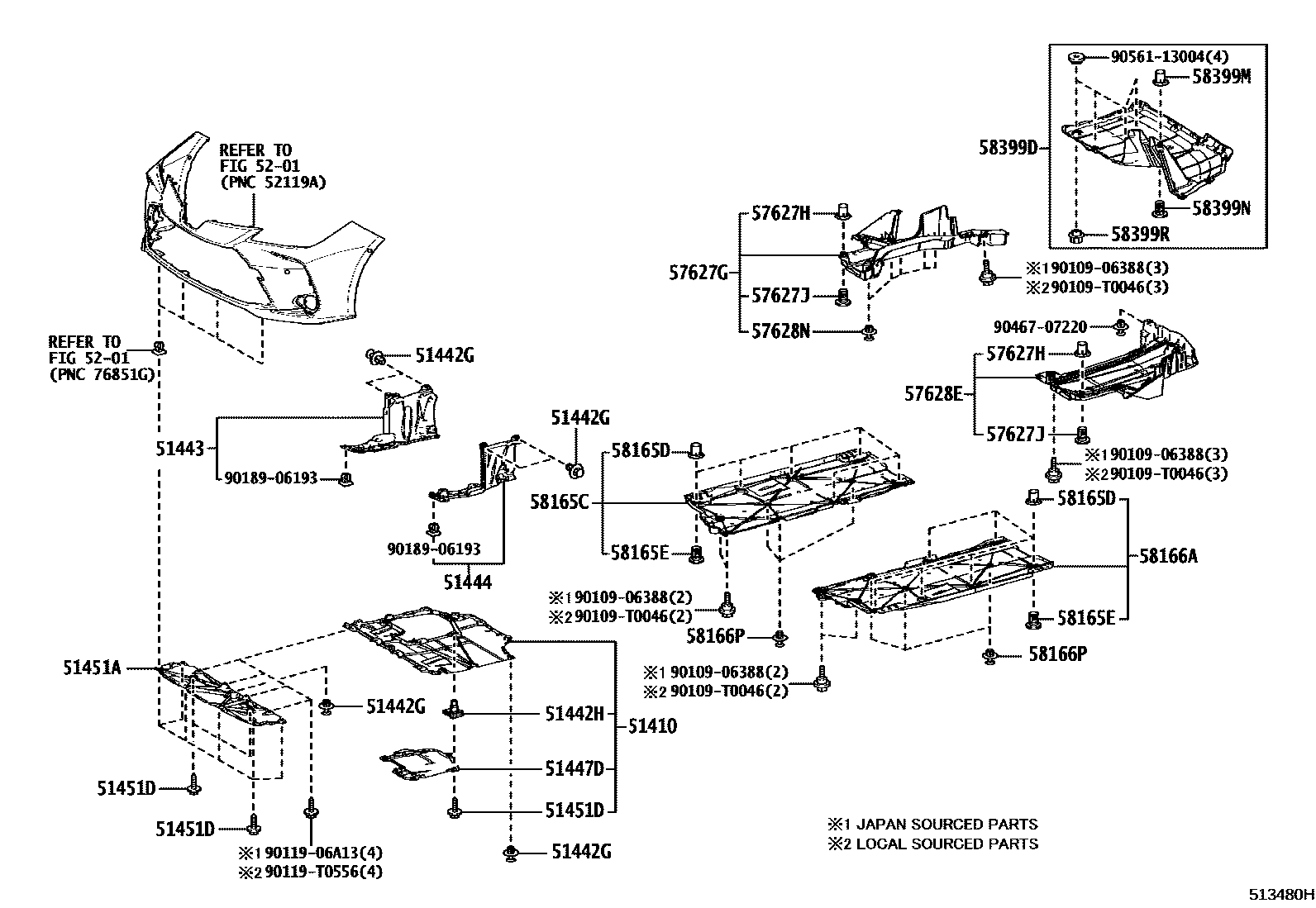

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51107A | Right rear longitudinal beam reinforcement sub-assembly | 51107-02170 · 51107-02180 · 51107-47010 · 51107-47020 |
| 51108A | Left rear longitudinal beam reinforcement sub-assembly | 51108-02170 · 51108-02180 · 51108-47010 · 51108-47020 |
| 51201 | Front suspension cross member sub-assembly | 51201-02251 · 51201-02261 |
| 51206A | Rear suspension cross member sub-assembly | 51206-02110 · 51206-02111 · 51206-02120 |
| 51228F | Front suspension cross member damper plate | 51228-02070 · 51228-F4020 |
| 51410 | Engine No. 1 bottom cover assembly | 51410-02370 · 51410-02380 |
| 51442G | No. 1 engine bottom cover clip | 90467-07220 |
| 51442H | No. 2 engine bottom cover clip | 90179-06104 · 90467-05176 |
| 51443 | Engine right rear bottom cover | 51443-02170 · 51443-02180 |
| 51444 | Engine left rear bottom cover | 51444-02210 · 51444-02220 · 51444-02230 |
| 51447D | No. 4 engine center bottom cover | 51447-02120 |
| 51451A | Engine center cover | 51451-02190 · 51451-02200 |
| 51451D | Screw No. 1 | 90159-60477 |
| 51618 | Left front differential bracket guard | 51618-02010 · 51618-02020 |
| 57627G | Rear floor right longitudinal member cover | 58390-02050 · 58390-02060 |
| 57628E | Rear floor left longitudinal member cover | 57628-02190 · 57628-02200 |
| 57628N | Rear floor longitudinal beam cover clip | 90467-07220 |
| 58165C | Front floor right cover | 58165-02230 · 58165-02240 · 58165-02350 · 58165-02390 |
| 58166A | Front floor left cover | 58166-02190 · 58166-02200 |
| 58166P | Front floor cover clip | 90467-07220 |
| 58399D | Floor No. 2 lower cover | 58399-02210 · 58399-02220 |
| 58399R | Lower floor cover clip No. 3 | 90467-14053 · 90467-14054 |
