Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804

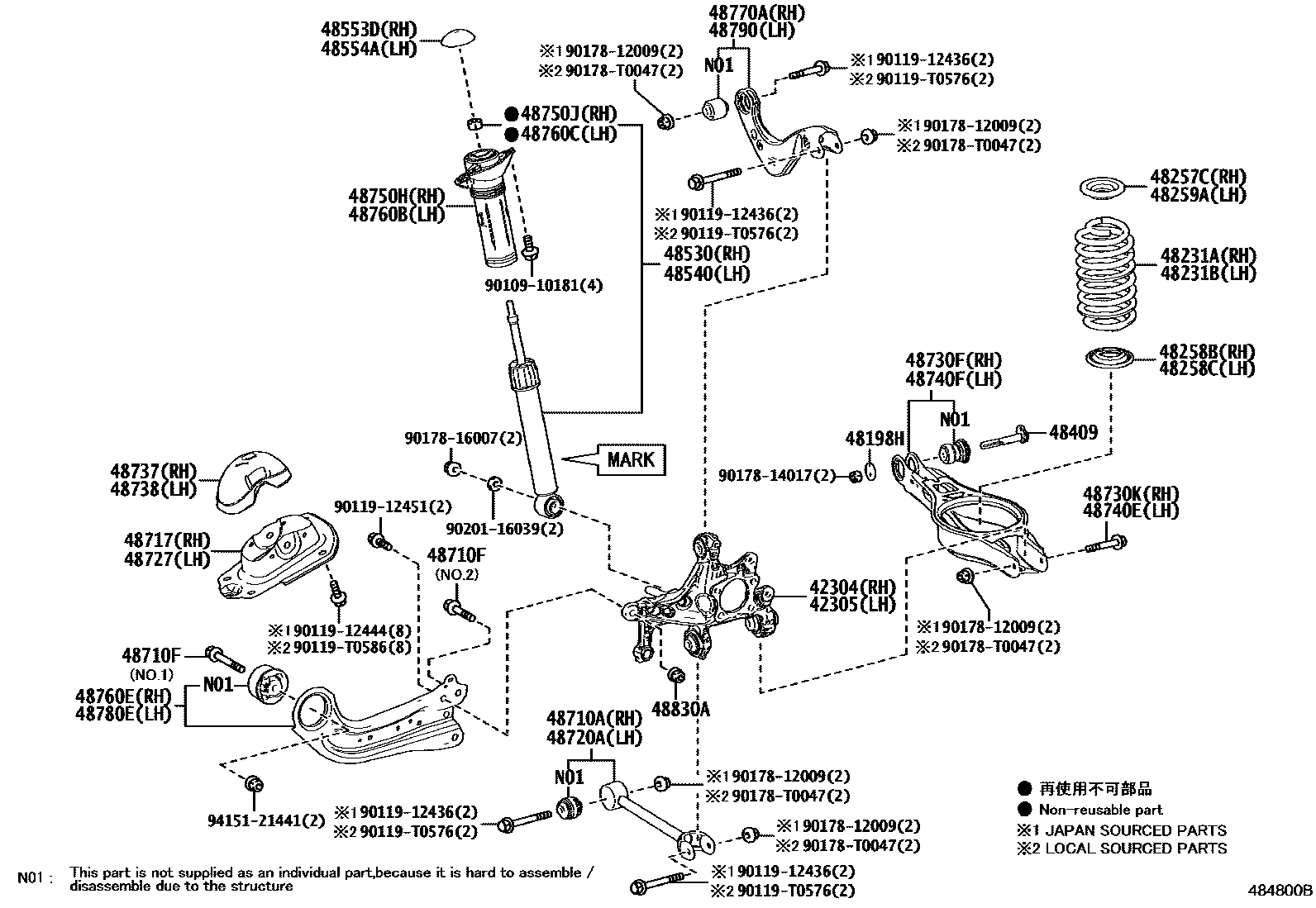

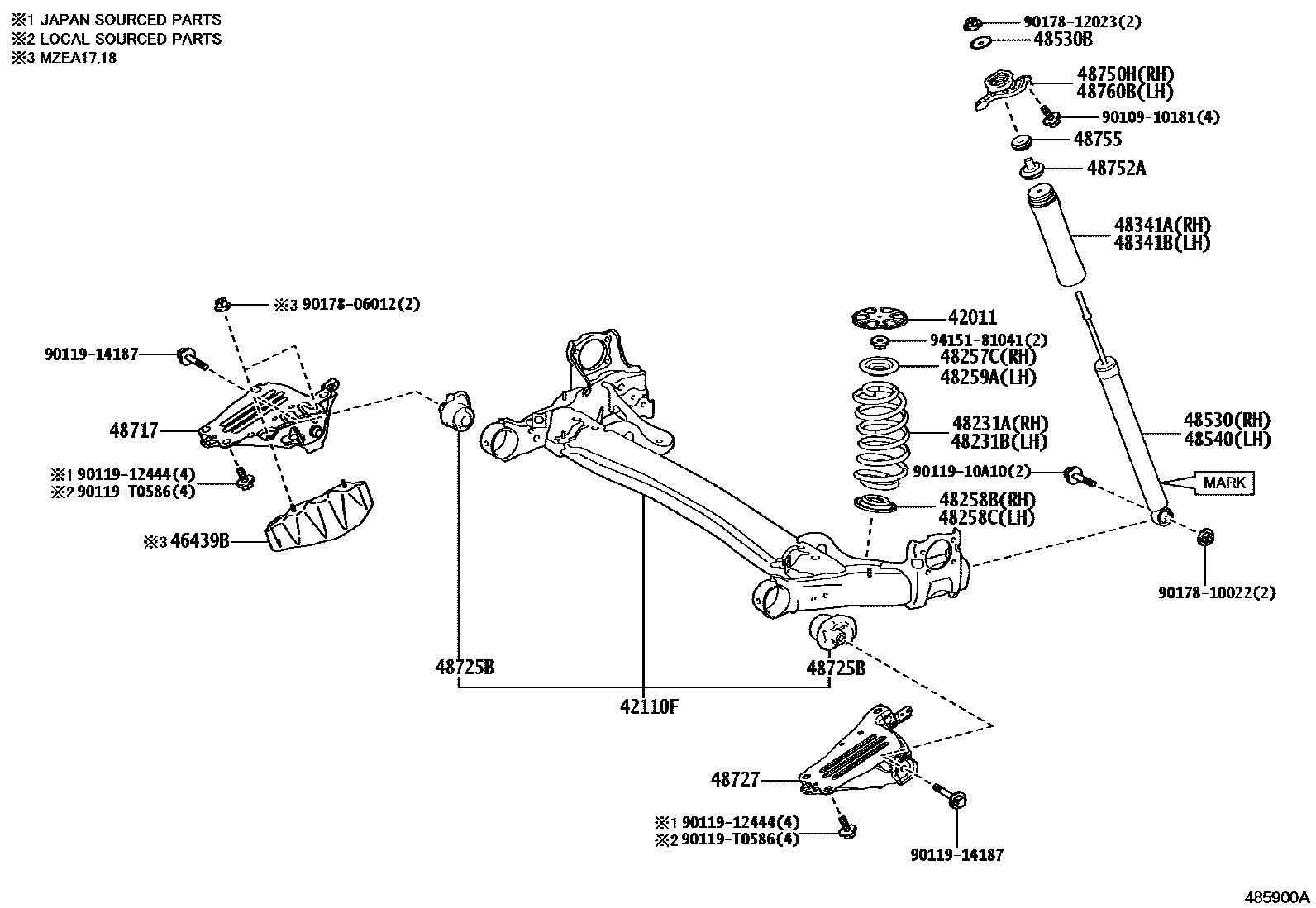

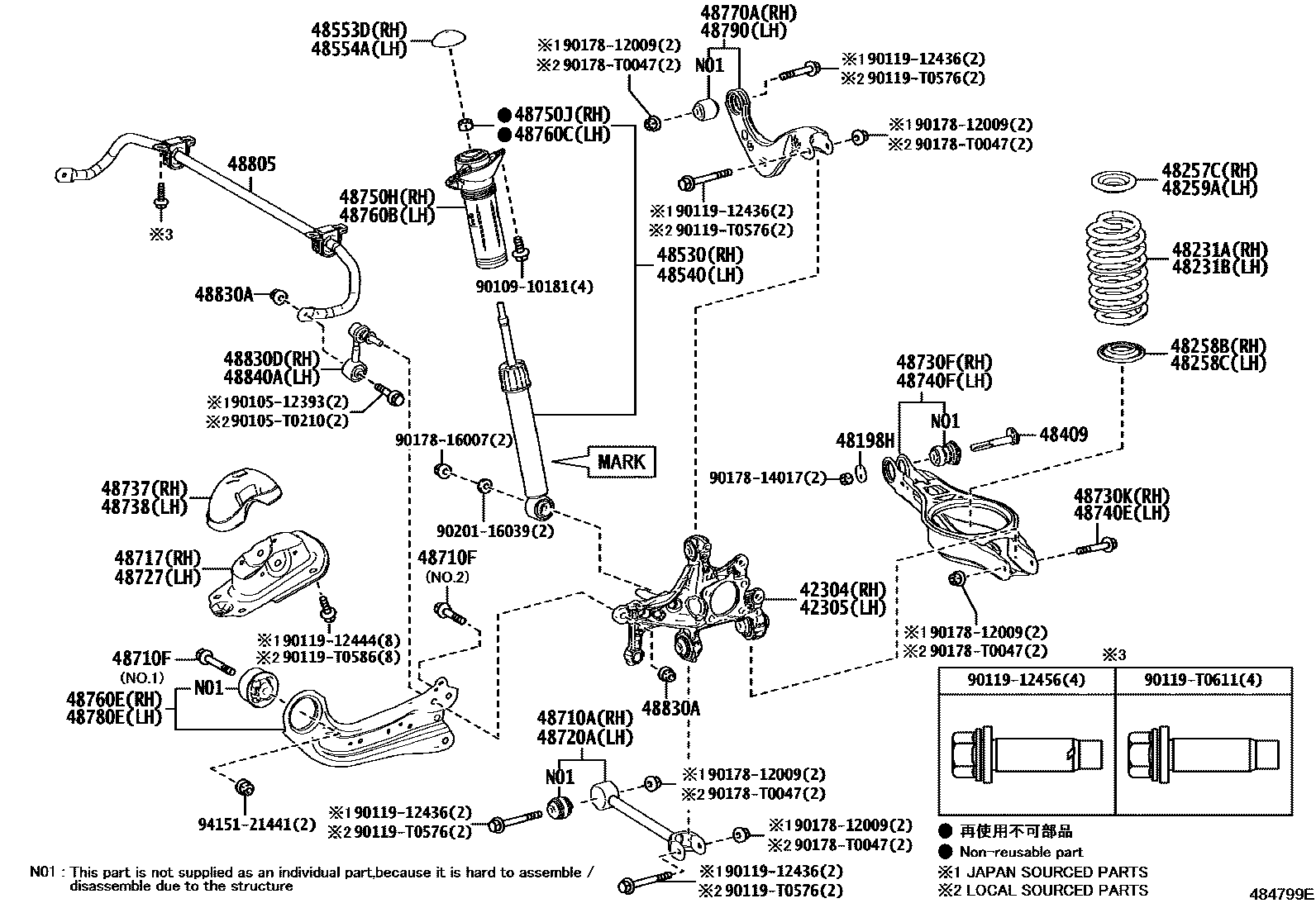

Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 3 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42011 | Rear spring seat sub-assembly | 42011-0A010 |
| 42110F | rear axle assembly | 42110-02840 |
| 42304 | Rear axle right bracket sub-assembly | 42304-02290 · 42304-02300 |
| 42305 | Rear axle left bracket sub-assembly | 42305-02290 · 42305-02300 |
| 46439B | Parking brake cable insulation pad | 46439-02010 |
| 48198H | No. 2 camber angle adjustment cam | 48198-47010 |
| 48231A | Right rear coil spring | 48231-02N90 · 48231-02P10 · 48231-02P20 · 48231-02P30 · 48231-02P40 · 48231-02P80 · 48231-02P90 · 48231-02P91 · 48231-02Q00 · 48231-02Q10 · 48231-02Q20 · 48231-02T40 · 48231-02T60 · 48231-02T70 · 48231-02V50 · 48231-02V60 · 48231-02V80 · 48231-02Y80 · 48231-02Y90 |
| 48231B | Left rear coil spring | 48231-02N90 · 48231-02P10 · 48231-02P20 · 48231-02P30 · 48231-02P40 · 48231-02P80 · 48231-02P90 · 48231-02P91 · 48231-02Q00 · 48231-02Q10 · 48231-02Q20 · 48231-02T40 · 48231-02T60 · 48231-02T70 · 48231-02V50 · 48231-02V60 · 48231-02V80 · 48231-02Y80 · 48231-02Y90 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-02110 · 48257-06050 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-02070 · 48258-06260 · 48258-0A020 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-02070 · 48258-06260 · 48258-0A020 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-02110 · 48257-06050 |
| 48341A | No. 1 right rear spring buffer block | 48341-0A020 |
| 48341B | No. 1 left rear spring buffer block | 48341-0A020 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-47011 |
| 48530 | Right rear shock absorber assembly | 48530-02V00 · 48530-02V10 · 48530-8Z118 · 48530-8Z119 · 48530-8Z120 · 48530-8Z121 · 48530-8Z122 · 48530-8Z123 · 48530-8Z124 · 48530-8Z130 · 48530-8Z131 · 48530-8Z132 · 48530-8Z133 · 48530-8Z134 · 48530-8Z200 · 48530-8Z251 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-03021 |
| 48540 | Left rear shock absorber assembly | 48530-02V00 · 48530-02V10 · 48530-8Z118 · 48530-8Z119 · 48530-8Z120 · 48530-8Z121 · 48530-8Z122 · 48530-8Z123 · 48530-8Z124 · 48530-8Z130 · 48530-8Z131 · 48530-8Z132 · 48530-8Z133 · 48530-8Z134 · 48530-8Z200 · 48530-8Z251 |
| 48553D | Right rear shock absorber cover | 48553-06030 |
| 48554A | Left rear shock absorber cover | 48553-06030 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-02100 · 48710-F4020 |
| 48710F | Bolt (for rear trailing arm) | 90105-14195 · 90105-14197 · 90105-T0217 · 90105-T0381 |
| 48717 | Right rear suspension arm bracket | 48717-02080 · 48717-06100 · 48717-0A020 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-02100 · 48710-F4020 |
| 48725B | Rear suspension No. 1 arm bushing | 48725-0A020 |
| 48727 | Left rear suspension arm bracket | 48727-02050 · 48727-06080 · 48727-0A020 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-02090 · 48730-F4040 |
| 48730K | Bolt (for right rear suspension arm No. 2) | 90119-12426 · 90119-T0519 |
| 48737 | Right rear suspension arm cover | 48753-02030 · 48753-06120 |
| 48738 | Left rear suspension arm cover | 48753-02040 · 48753-06130 |
| 48740E | Bolt (for left rear suspension arm No. 2) | 90119-12426 · 90119-T0519 |
| 48740F | Left rear suspension No. 2 arm assembly | 48730-02090 · 48730-F4040 |
| 48750H | Right rear suspension support assembly | 48750-0A030 · 48750-12050 · 48750-76010 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 94130-61200 |
| 48752A | Rear suspension mount block | 48752-0A020 |
| 48755 | rear suspension mount | 48755-0A020 |
| 48760B | Left rear suspension support assembly | 48750-12050 · 48750-76010 · 48760-0A030 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 94130-61200 |
| 48760E | Right rear trailing arm assembly | 48760-02040 · 48760-F4030 |
| 48770A | Right rear upper control arm assembly | 48770-02020 · 48770-06020 |
| 48780E | Left rear trailing arm assembly | 48780-02090 · 48780-F4030 |
| 48790 | Left rear upper control arm assembly | 48790-02020 · 48790-06020 |
| 48805 | Rear stabilizer bar sub-assembly | 48805-02040 · 48805-02050 · 48805-02060 · 48805-02070 · 48805-12130 |
| 48830A | Nut (for rear stabilizer link) | 90178-T0087 · 94151-21241 |
| 48830D | Right rear stabilizer bar link assembly | 48830-06100 · 48830-47010 |
| 48840A | Left rear stabilizer bar link assembly | 48830-06100 · 48830-47010 |
