Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

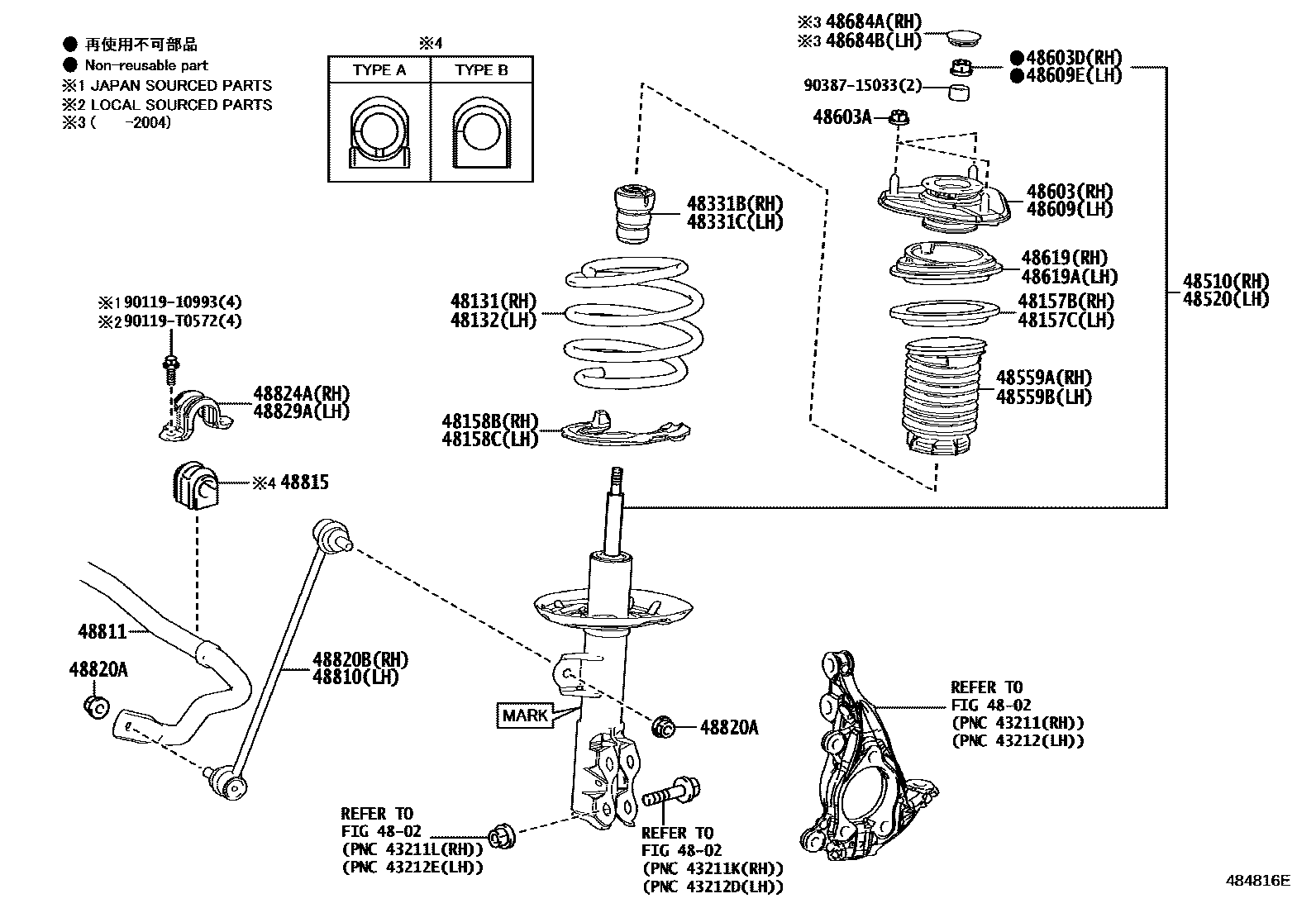

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-0Z420 · 48131-0Z421 · 48131-0Z430 · 48131-0Z431 · 48131-0Z440 · 48131-0Z441 · 48131-0Z450 · 48131-0Z451 · 48131-0Z520 · 48131-0Z530 · 48131-0Z540 · 48131-0Z550 · 48131-0Z560 · 48131-0ZC20 · 48131-0ZC30 |
| 48132 | Left front coil spring | 48131-0Z420 · 48131-0Z421 · 48131-0Z430 · 48131-0Z431 · 48131-0Z440 · 48131-0Z441 · 48131-0Z450 · 48131-0Z451 · 48131-0Z520 · 48131-0Z530 · 48131-0Z540 · 48131-0Z550 · 48131-0Z560 · 48131-0ZC20 · 48131-0ZC30 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-02360 · 48157-F4020 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-02360 · 48157-F4020 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-02250 · 48158-F4020 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-02250 · 48158-F4020 |
| 48331B | Right front spring buffer block | 48331-10120 · 48331-12280 |
| 48331C | Left front spring buffer block | 48331-10120 · 48331-12280 |
| 48510 | Right front shock absorber assembly | 48510-8Z412 · 48510-8Z413 · 48510-8Z414 · 48510-8Z415 · 48510-8Z416 · 48510-8Z417 · 48510-8Z418 · 48510-8Z443 · 48510-8Z444 · 48510-8Z445 · 48510-8Z446 · 48510-8Z552 · 48510-8Z634 · 48510-8Z635 · 48510-8Z636 |
| 48520 | Left front shock absorber assembly | 48520-8Z266 · 48520-8Z267 · 48520-8Z268 · 48520-8Z269 · 48520-8Z270 · 48520-8Z271 · 48520-8Z272 · 48520-8Z301 · 48520-8Z302 · 48520-8Z303 · 48520-8Z304 · 48520-8Z382 · 48520-8Z453 · 48520-8Z454 · 48520-8Z455 |
| 48559A | Right front shock absorber No. 1 dust cover | 48559-02060 · 48559-F4020 |
| 48559B | Left front shock absorber No. 1 dust cover | 48559-02060 · 48559-F4020 |
| 48603 | Right front suspension bearing sub-assembly | 48609-02340 · 48609-F4020 |
| 48603A | Nut (for front suspension mount) | 90178-10029 · 90178-T0129 |
| 48603D | Nut (for front mount to right front shock absorber) | 90177-14007 |
| 48609 | Left front suspension bearing sub-assembly | 48609-02340 · 48609-F4020 |
| 48609E | Nut (for front mount to left front shock absorber) | 90177-14007 |
| 48619 | Bearing installed on the right sliding column | 48619-F4010 |
| 48619A | Bearing installed on the left sliding column | 48619-F4010 |
| 48684A | Right front suspension support dust cover | 48684-02030 · 48684-02040 |
| 48684B | Left front suspension support dust cover | 48684-02030 · 48684-02040 |
| 48810 | Left front stabilizer bar link assembly | 48820-47040 · 48820-F4010 |
| 48811 | front stabilizer bar | 48811-02400 · 48811-02410 · 48811-02420 · 48811-02430 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-02390 · 48815-02400 · 48815-0A030 |
| 48820A | Nut (for front stabilizer bar link) | 90178-T0087 · 94151-21241 |
| 48820B | Right front stabilizer bar link assembly | 48820-47040 · 48820-F4010 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-02120 · 48824-F4020 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-02120 · 48824-F4020 |
