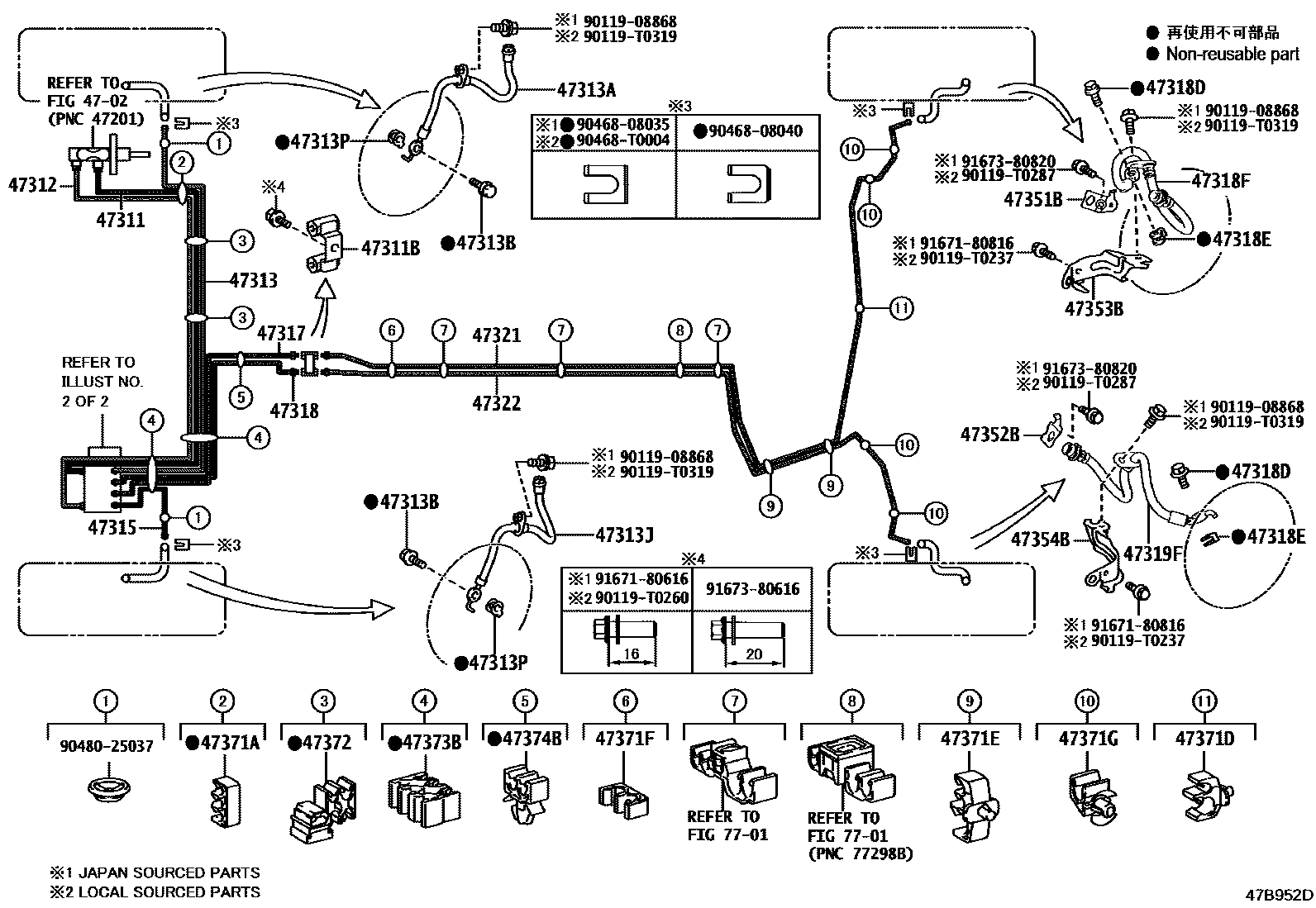

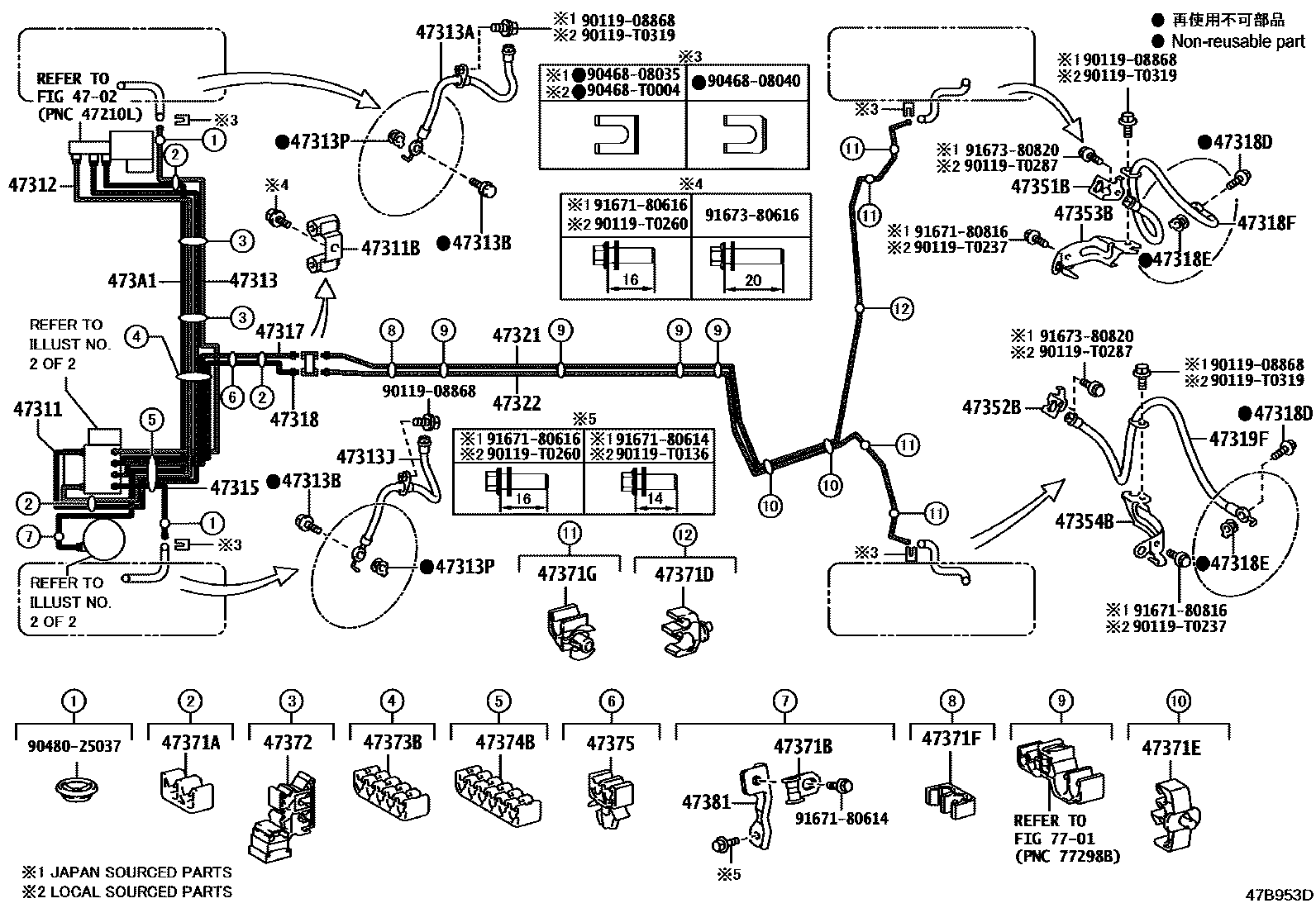

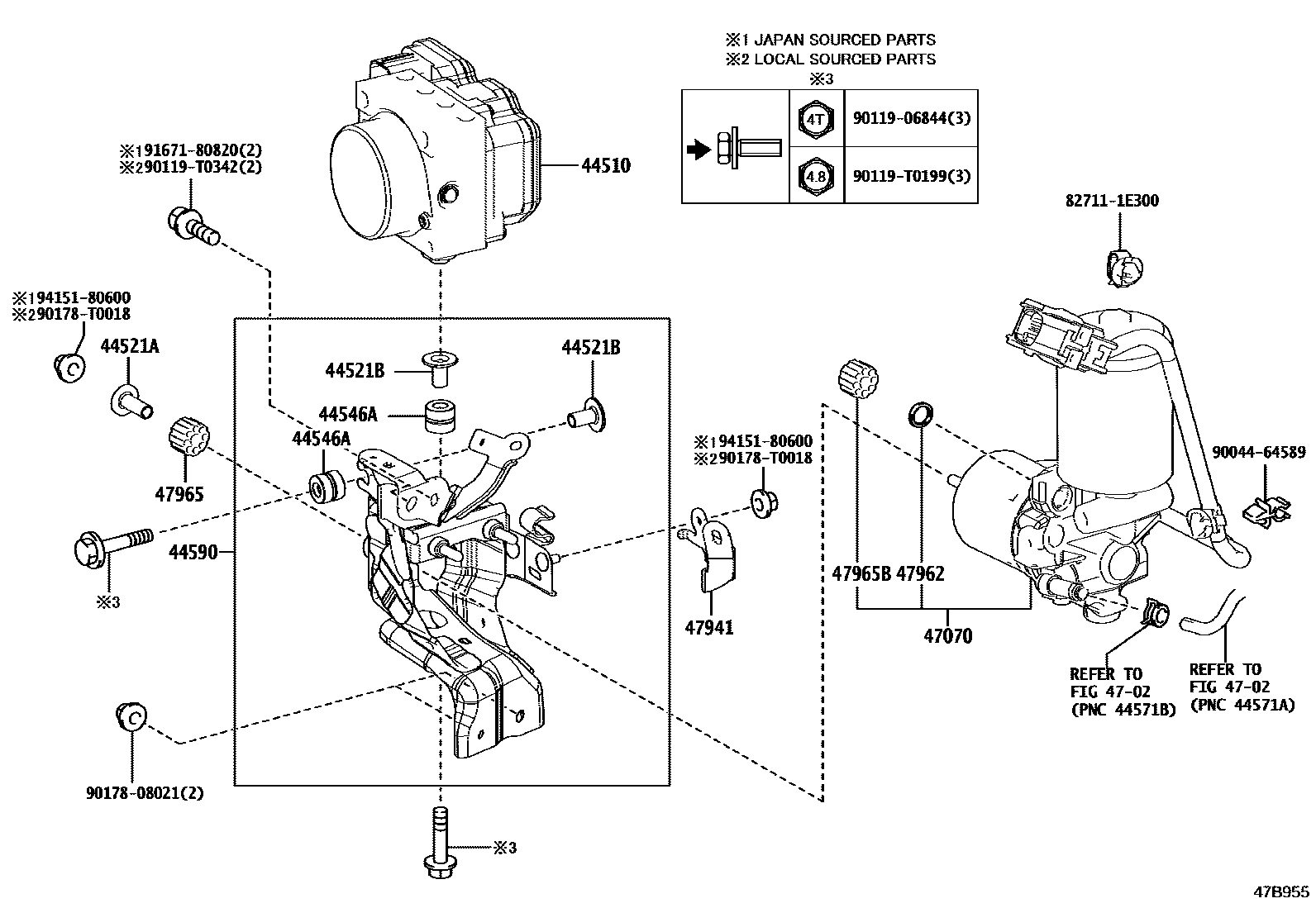

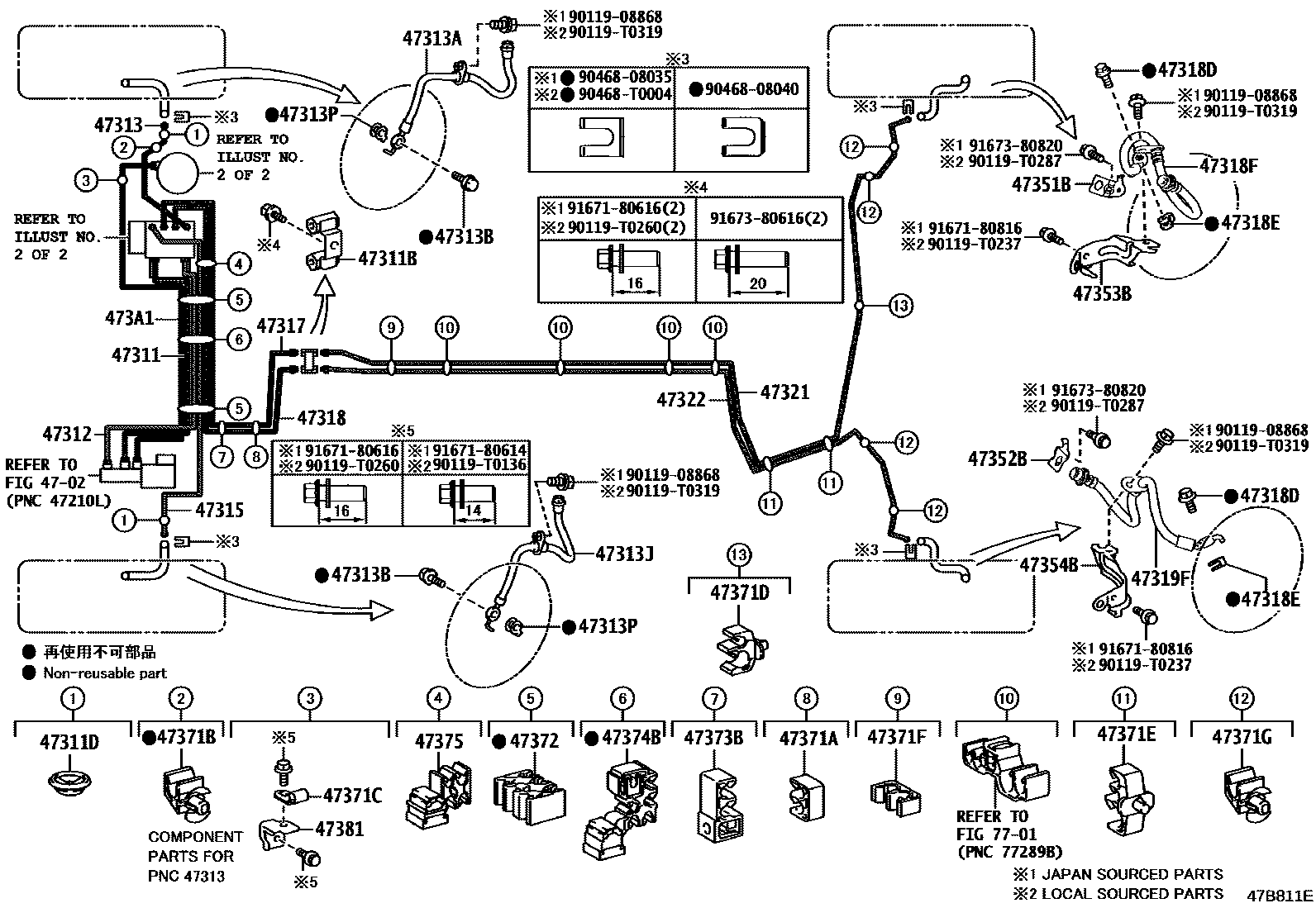

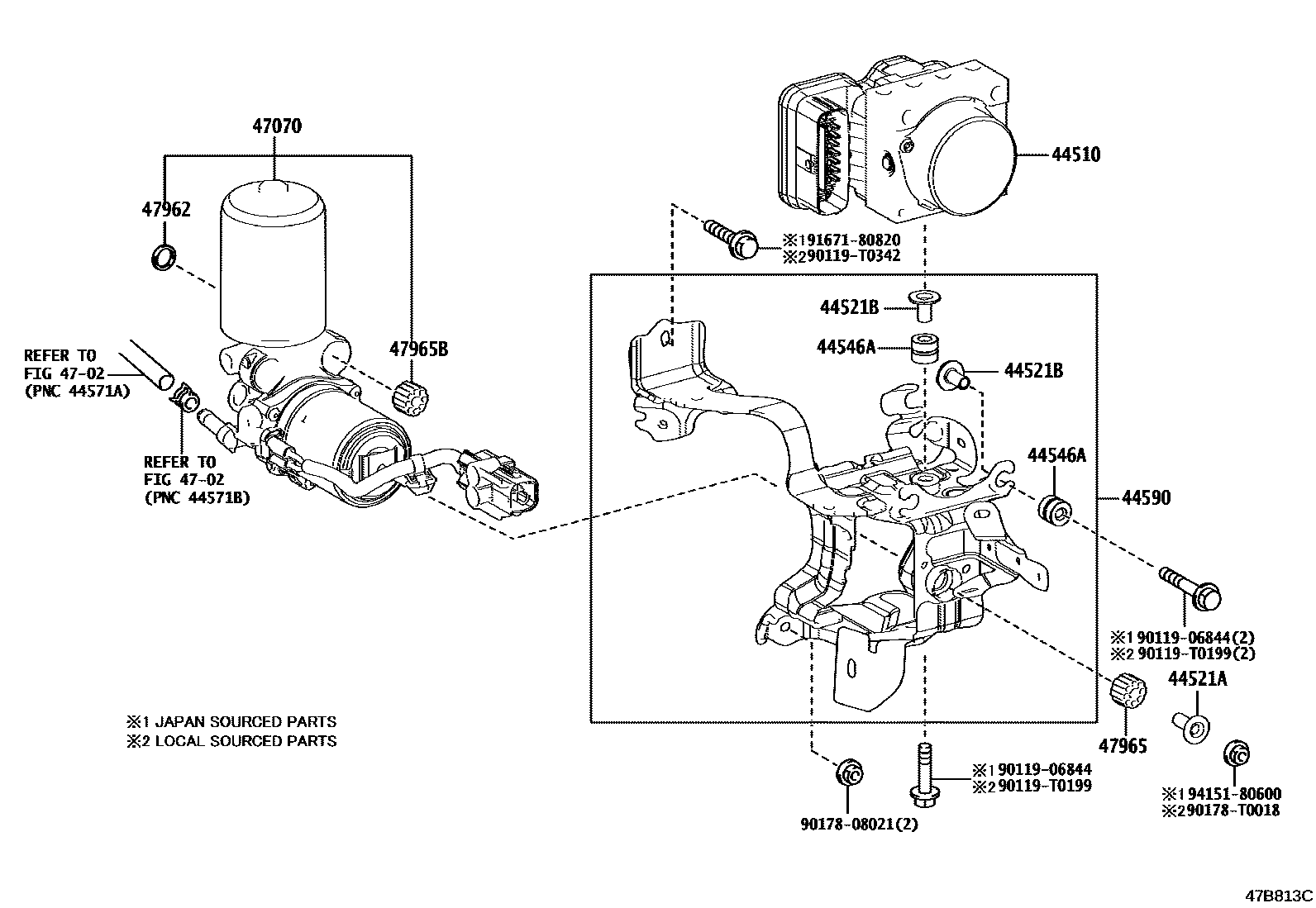

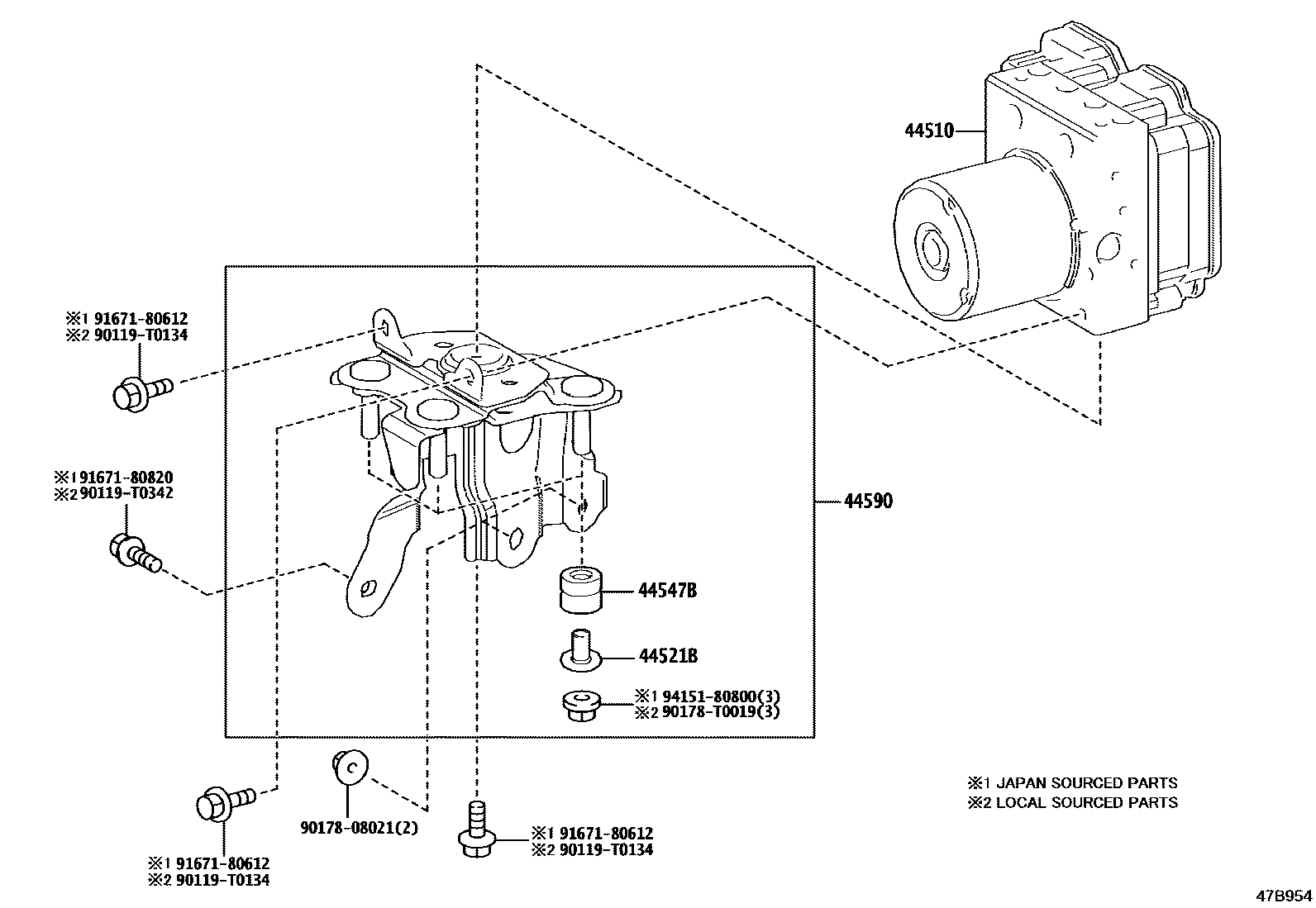

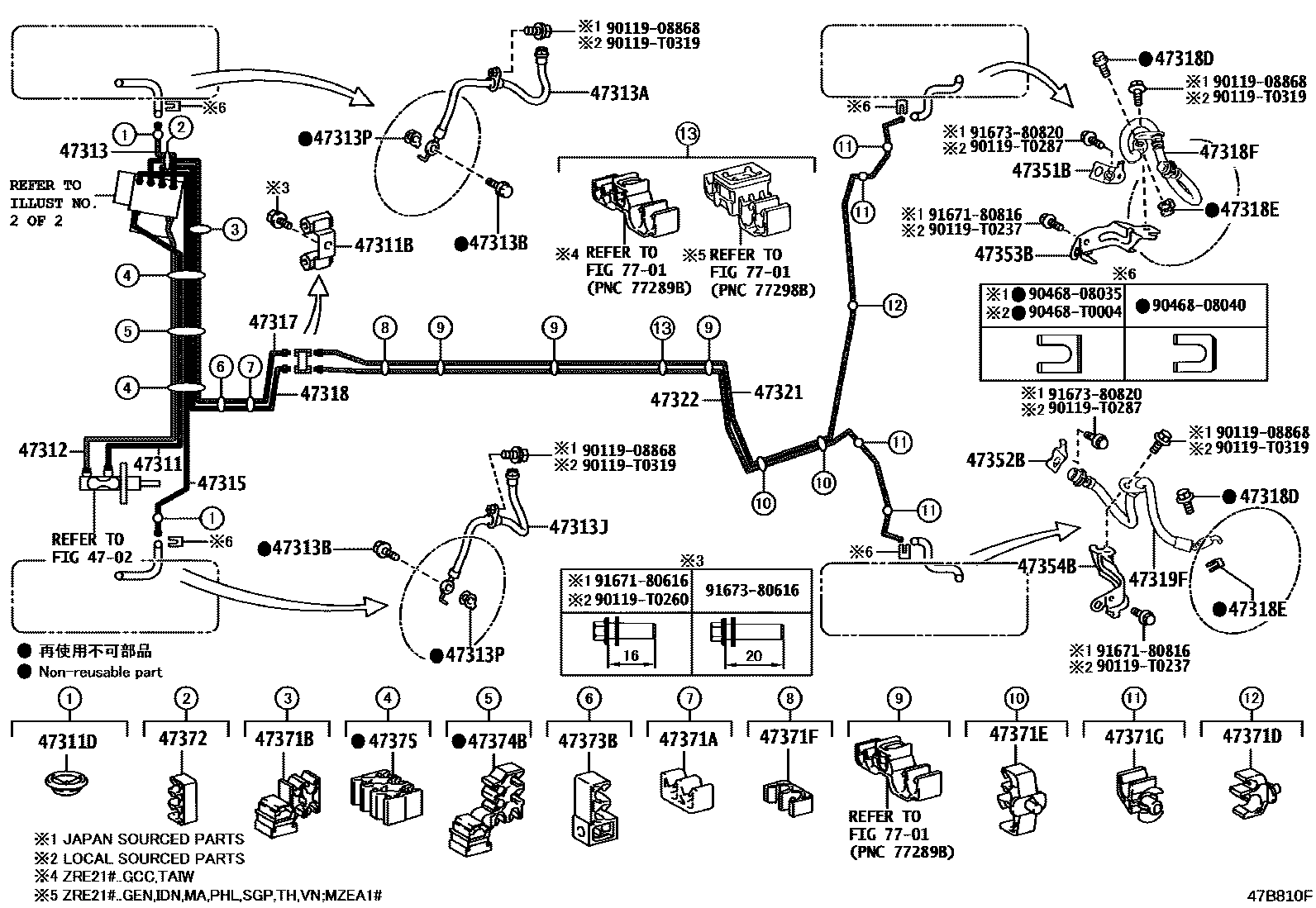

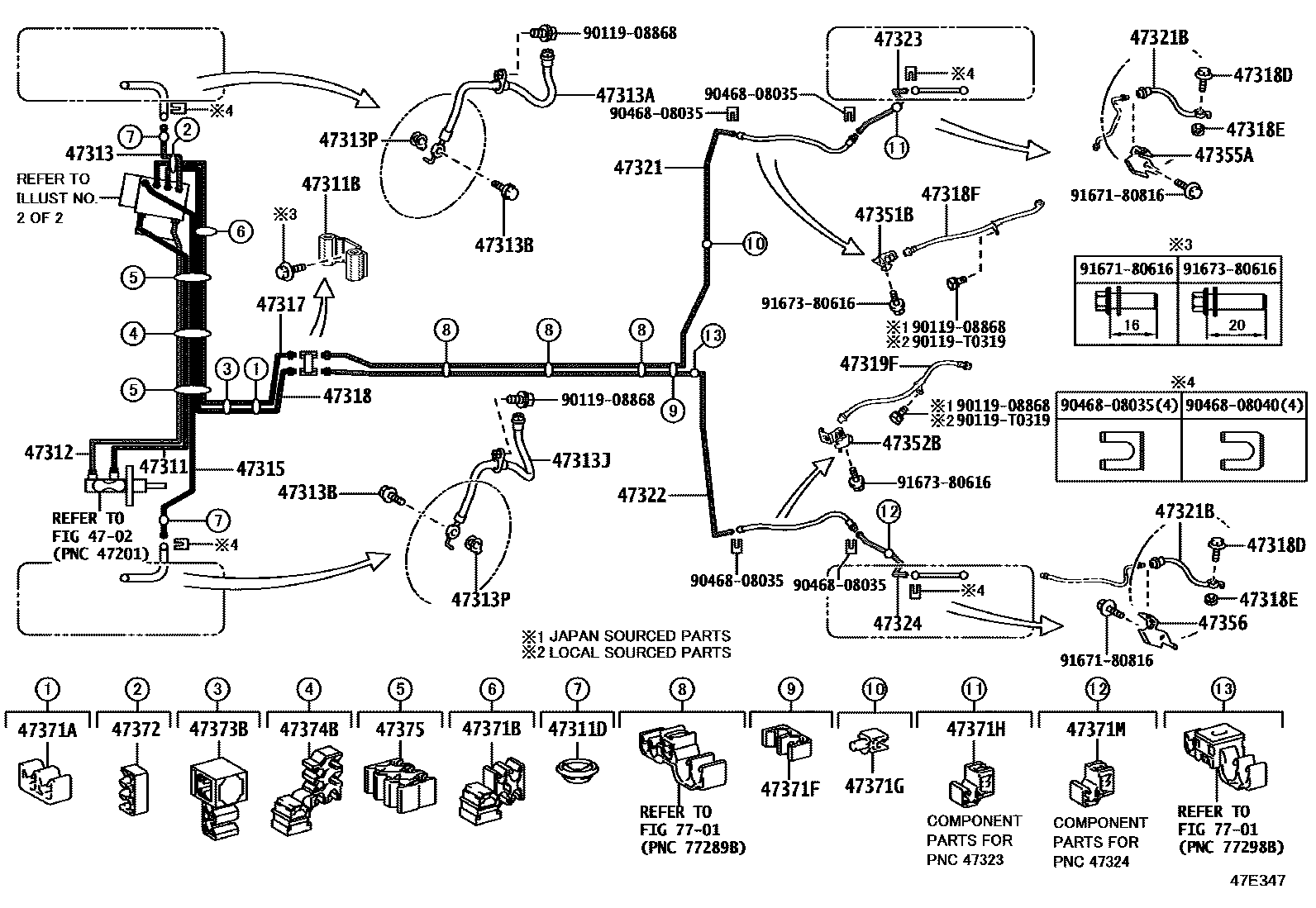

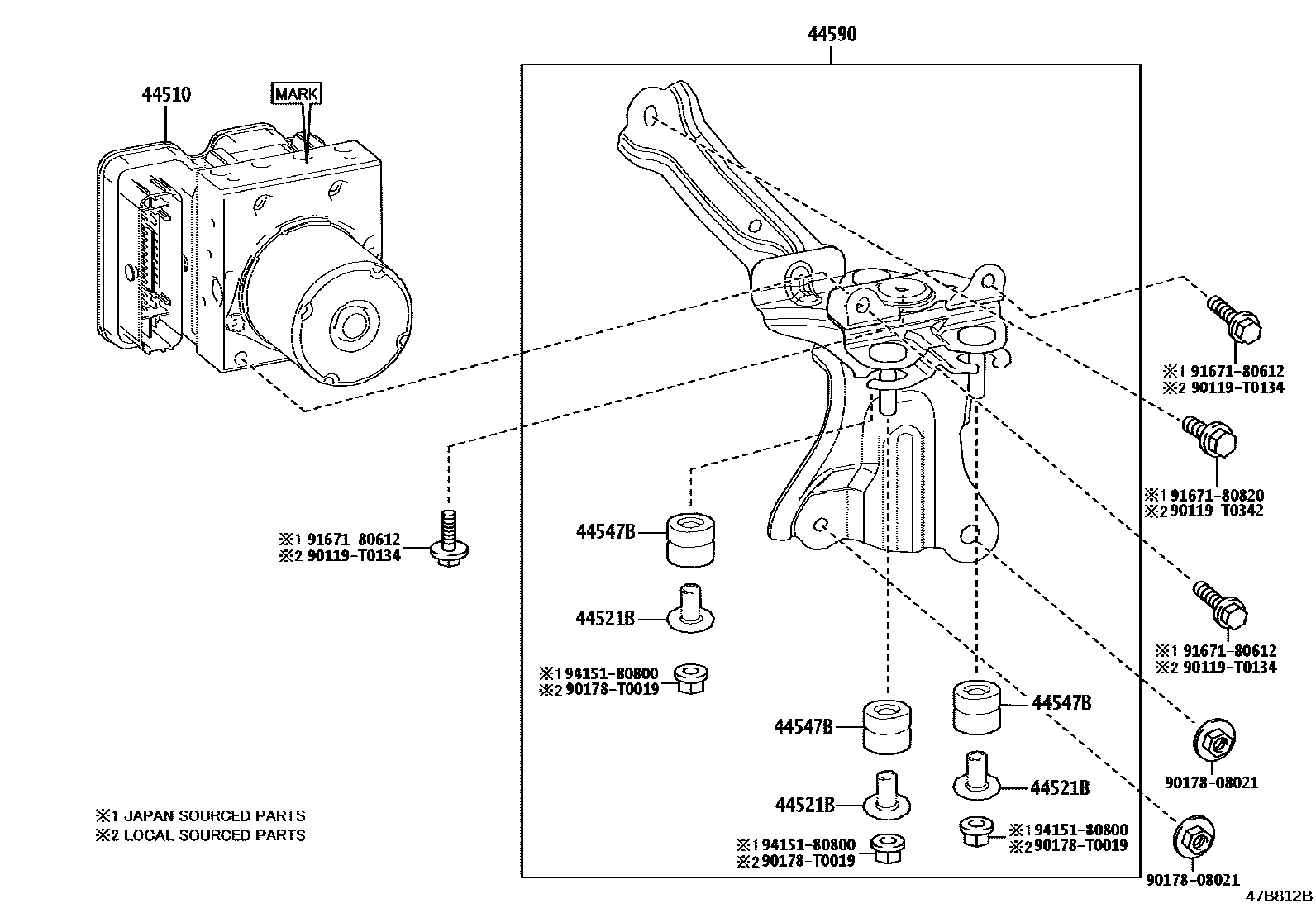

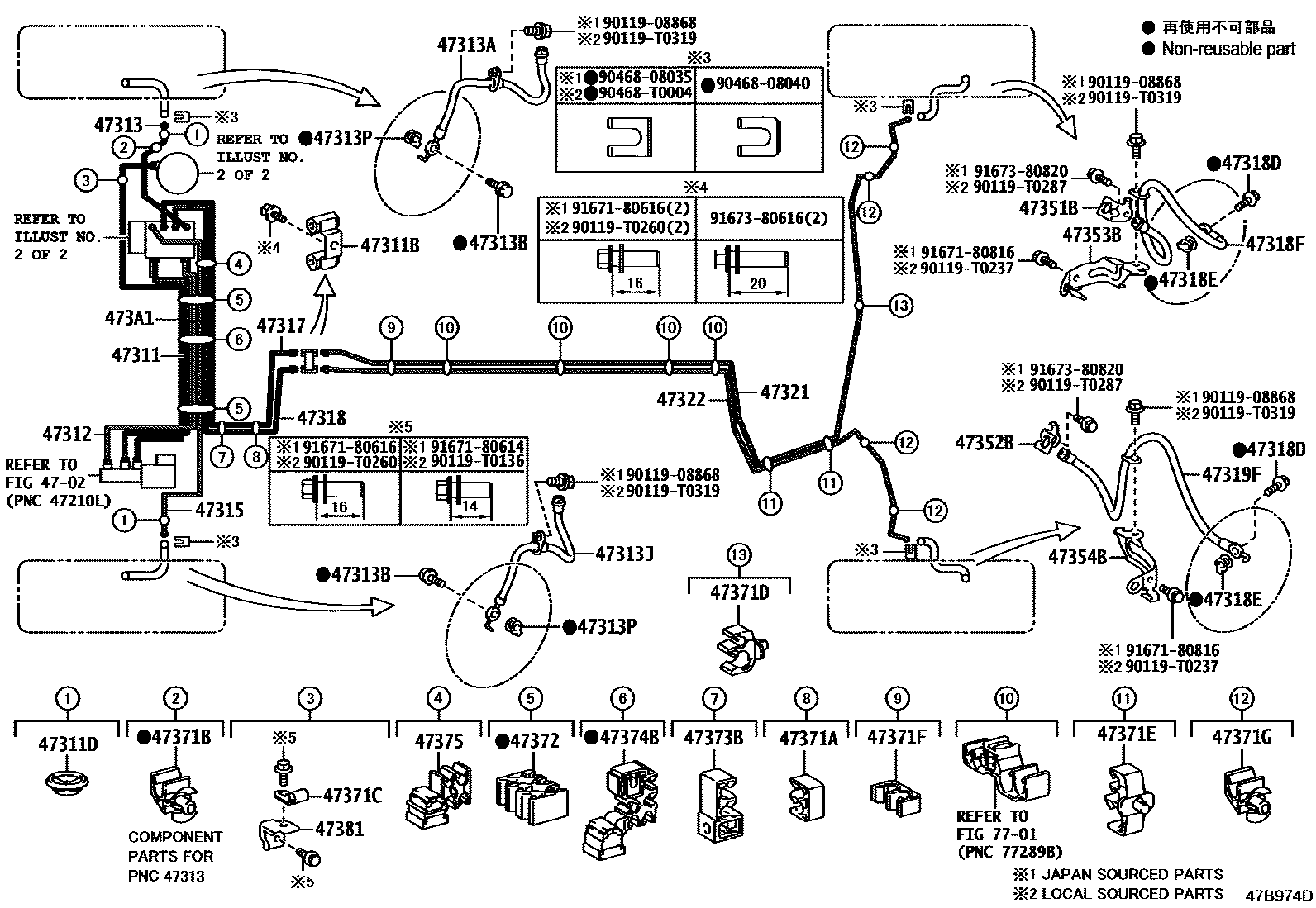

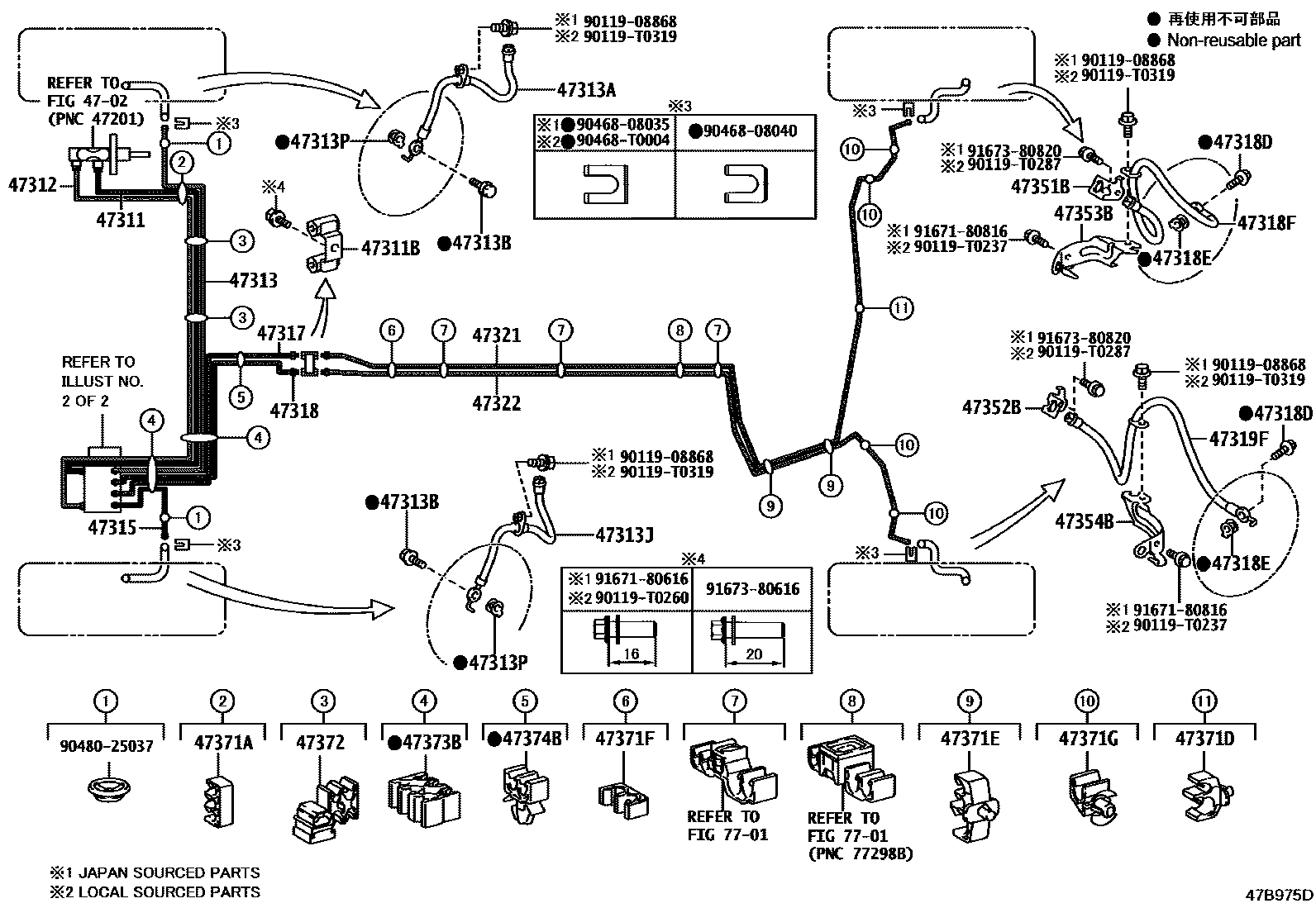

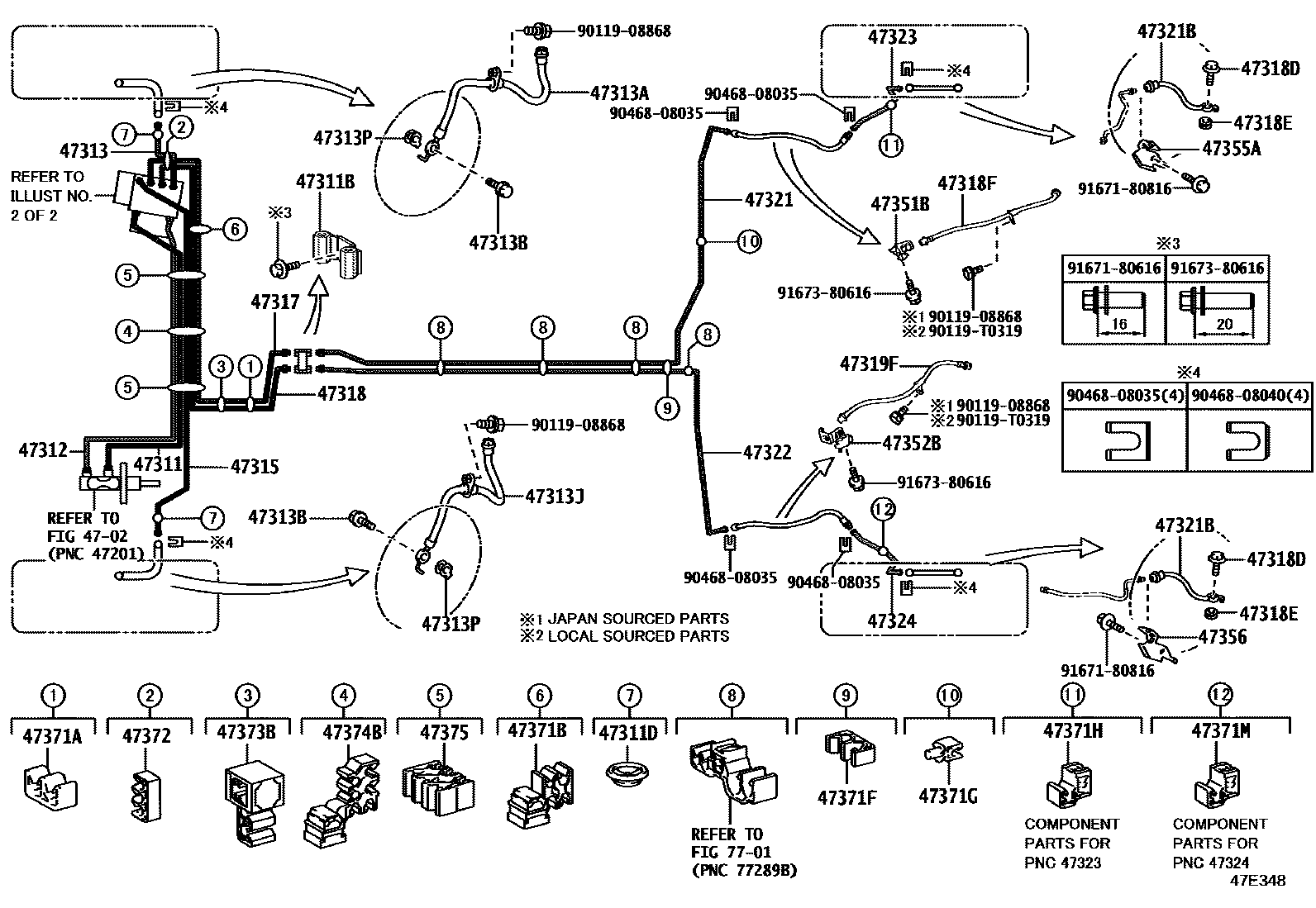

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 12 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-02E20 · 44050-02E30 · 44050-02E50 · 44050-02E80 · 44050-02F60 · 44050-02F80 · 44050-02G30 · 44050-02G40 · 44050-02G50 · 44050-02G60 · 44050-02G70 · 44050-02G90 · 44050-02J00 · 44050-02L10 · 44050-02M10 · 44050-02M20 · 44050-02M30 · 44050-02N10 · 44050-02N20 · 44050-02N30 · 44050-12D90 · 44050-47060 |
| 44521A | No. 1 brake actuator housing collar | 44521-47010 |
| 44521B | No. 2 brake actuator housing collar | 44521-12050 · 44521-33020 |
| 44546A | Brake actuator bolt cushion | 44546-12120 |
| 44547B | brake actuator bracket cushion | 44547-33100 |
| 44590 | Brake actuator bracket assembly | 44590-02520 · 44590-02521 · 44590-02550 · 44590-02560 · 44590-47063 · 44590-47082 |
| 47070 | Brake booster pump assembly | 47070-47090 · 47070-47100 |
| 47311 | No. 1 front brake pipe | 47311-02F00 · 47311-02F10 · 47311-02F20 · 47311-02F30 · 47311-F4050 · 47311-F4060 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10285 |
| 47311D | Seal (for front brake pipe) | 90480-25037 |
| 47312 | No. 2 front brake pipe | 47312-02D40 · 47312-02D50 · 47312-02D60 · 47312-02D70 · 47312-F4050 · 47312-F4060 |
| 47313 | No. 3 front brake pipe | 47313-02F60 · 47313-02F70 · 47313-02F80 · 47313-02F90 · 47313-F4050 · 47313-F4060 |
| 47313A | No. 1 front flexible hose | 90947-T2128 · 90947-T2147 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-T2129 · 90947-T2148 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47315 | No. 5 front brake pipe | 47315-02520 · 47315-02530 · 47315-02540 · 47315-02550 · 47315-F4050 · 47315-F4060 |
| 47317 | No. 7 front brake pipe | 47317-02E50 · 47317-02E60 · 47317-02E70 · 47317-02E80 · 47317-F4050 · 47317-F4060 |
| 47318 | No. 8 front brake pipe | 47318-02E70 · 47318-02E80 · 47318-02E90 · 47318-02F00 · 47318-F4050 · 47318-F4060 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-T2132 · 90947-T2145 · 90947-T2159 · 90947-T2164 |
| 47319F | Left rear flexible hose | 90947-T2133 · 90947-T2145 · 90947-T2159 · 90947-T2165 |
| 47321 | No. 1 rear brake pipe | 47321-02680 · 47321-02690 · 47321-02810 |
| 47321B | Flexible hose (for rear brake pipe) | 90947-T2182 |
| 47322 | No. 2 rear brake pipe | 47322-02680 · 47322-02690 · 47322-02810 |
| 47323 | No. 3 rear brake pipe | 47323-02250 |
| 47324 | No. 4 rear brake pipe | 47324-02250 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-02210 · 47351-06100 · 47351-0A060 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-02210 · 47352-06100 · 47352-0A060 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-02190 · 47351-02220 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-02190 · 47352-02220 |
| 47355A | No. 5 Flexible Hose Bracket | 47351-02350 |
| 47356 | No. 6 Flexible Hose Bracket | 47352-02330 |
| 47371A | No. 1 brake pipe clamp | 90949-01D91 · 90949-01E43 |
| 47371B | No. 6 brake pipe clamp | 90461-10854 · 90949-01E10 · 90949-01E51 |
| 47371C | No. 7 brake pipe clamp | 90461-10854 |
| 47371D | No. 8 brake pipe clamp | 77285-47110 |
| 47371E | No. 9 brake pipe clamp | 77286-47050 |
| 47371F | No. 10 brake pipe clamp | 90464-00904 |
| 47371G | No. 11 brake pipe clamp | 90949-01E01 · 90949-01E10 |
| 47371H | No. 12 brake pipe clamp | 90949-01C82 |
| 47371M | No. 13 brake pipe clamp | 90949-01C82 |
| 47372 | No. 2 brake pipe clamp | 90949-01D92 · 90949-01D99 · 90949-01E30 · 90949-01E49 |
| 47373B | No. 3 brake pipe clamp | 90949-01E15 · 90949-01E33 · 90949-01E44 |
| 47374B | No. 4 brake pipe clamp | 90949-01E17 · 90949-01E34 · 90949-01E42 · 90949-01E50 |
| 47375 | No. 5 brake pipe clamp | 90949-01E34 · 90949-01E44 · 90949-01E51 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-02130 · 47381-47070 · 47381-F4030 |
| 473A1 | Pipe from accumulator to brake master cylinder | 473A1-02050 · 473A1-02060 · 473A1-F4030 |
| 47941 | No. 1 brake power bracket | 47941-47020 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
| 47965B | No. 2 brake booster pump bushing | 47965-30010 |
