Toyota COROLLA 制动总泵 — Figure 4702

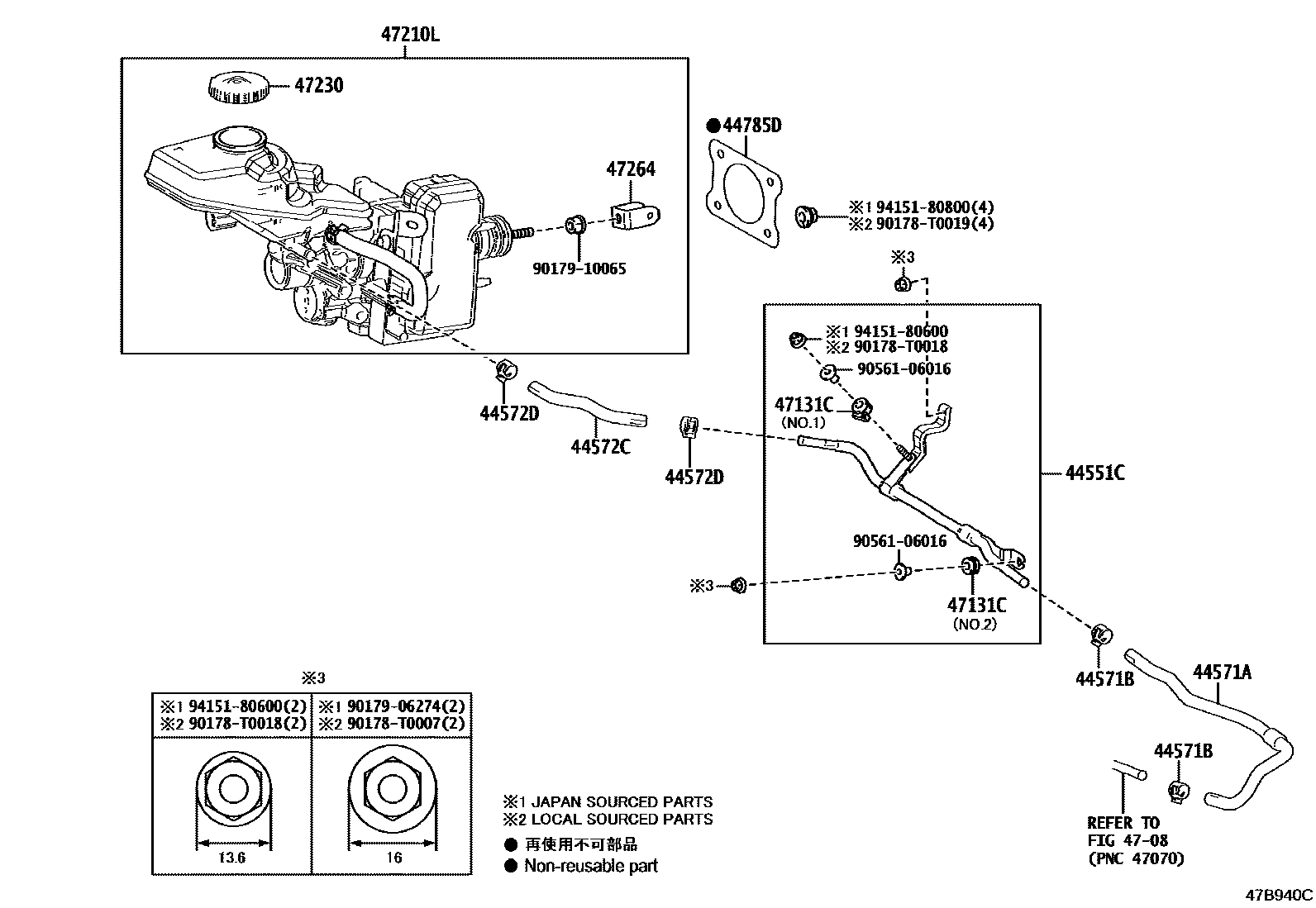

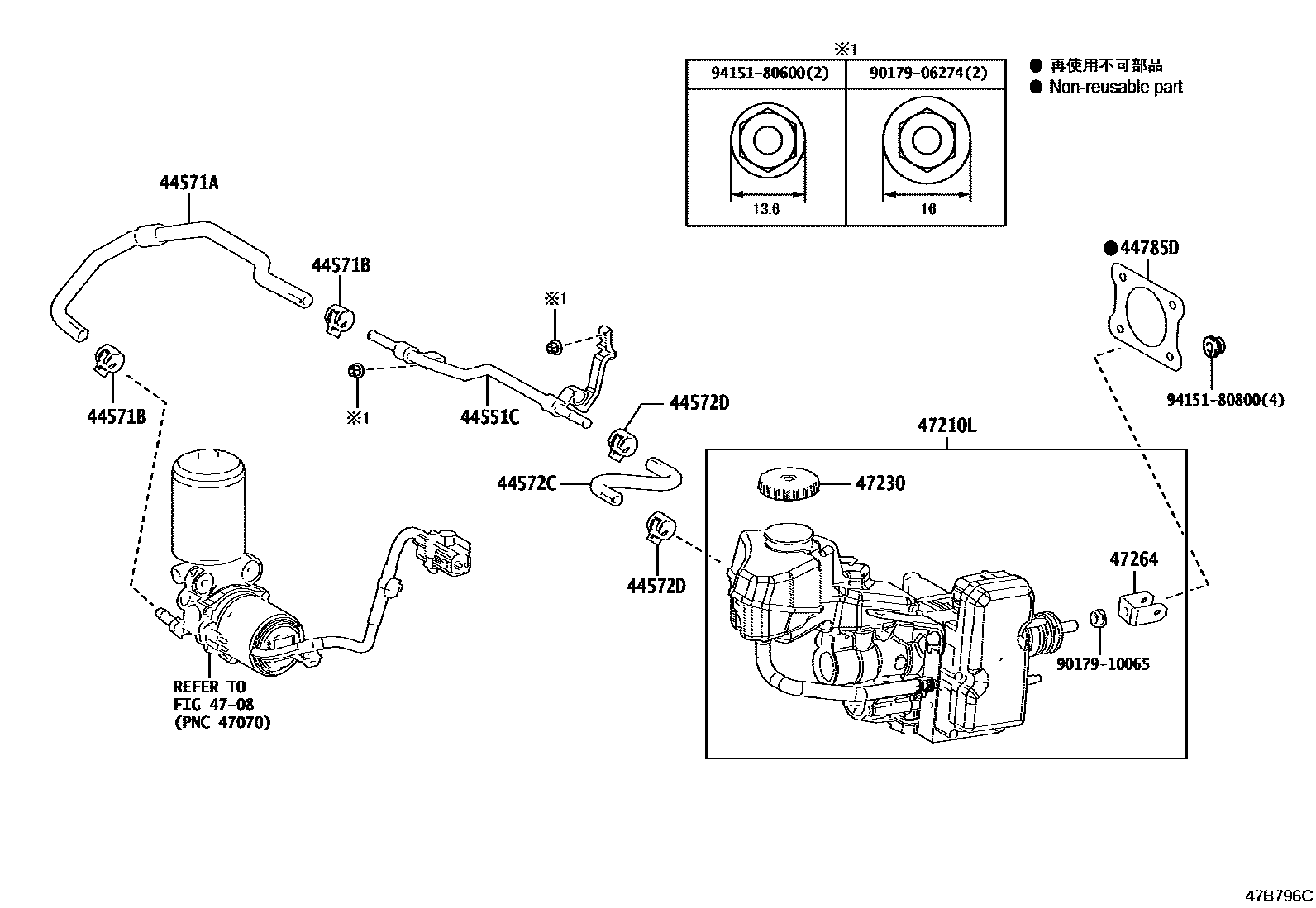

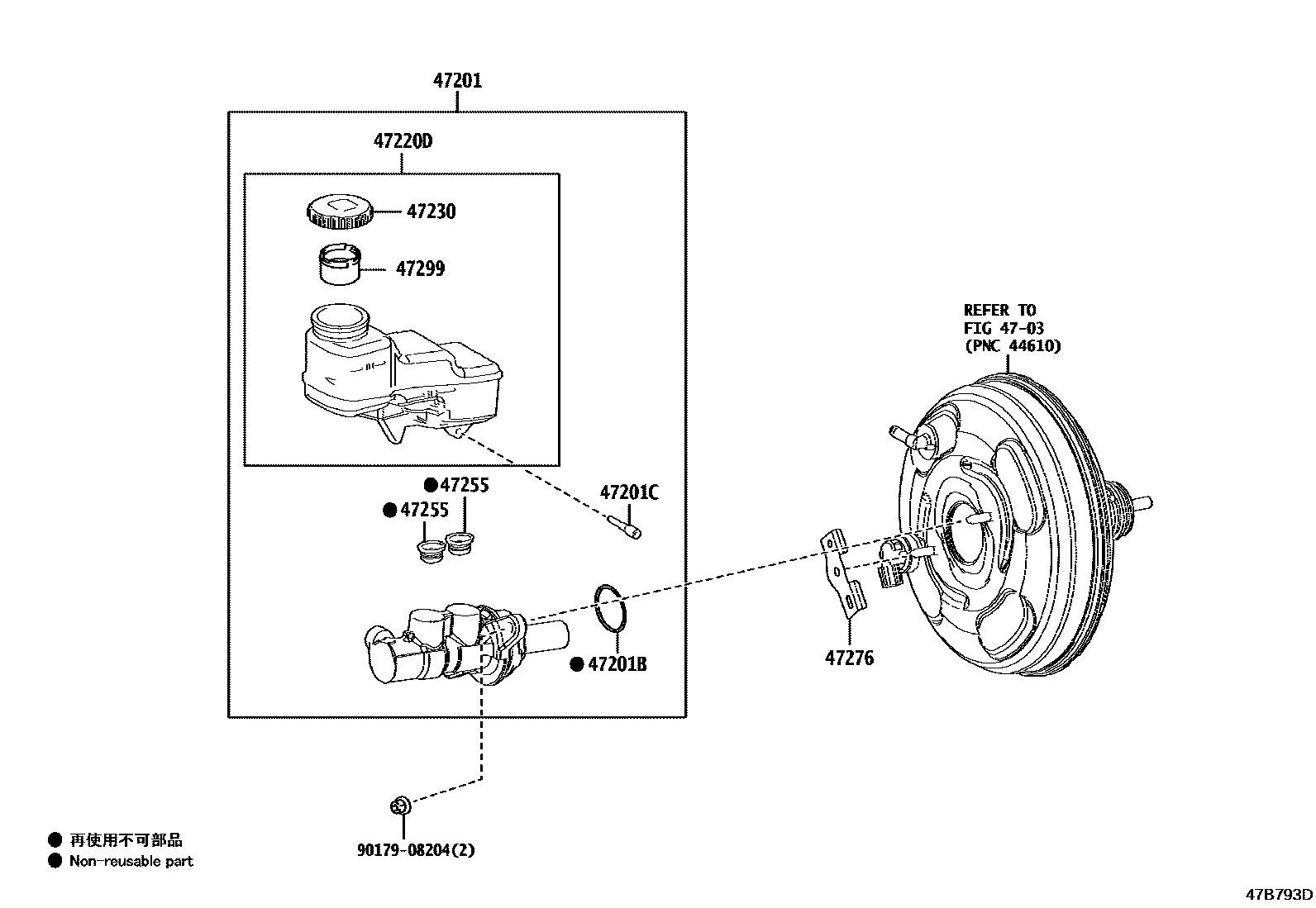

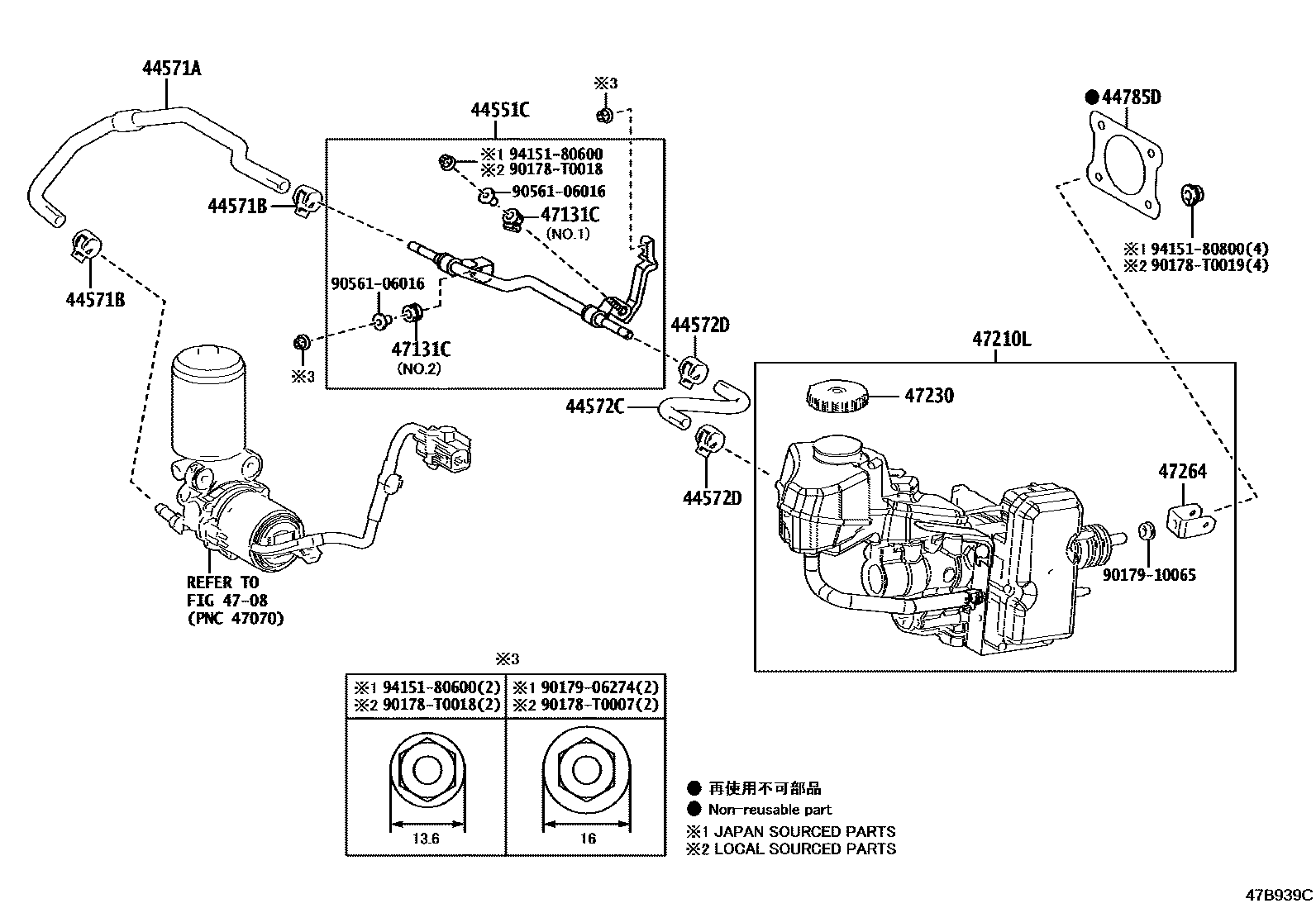

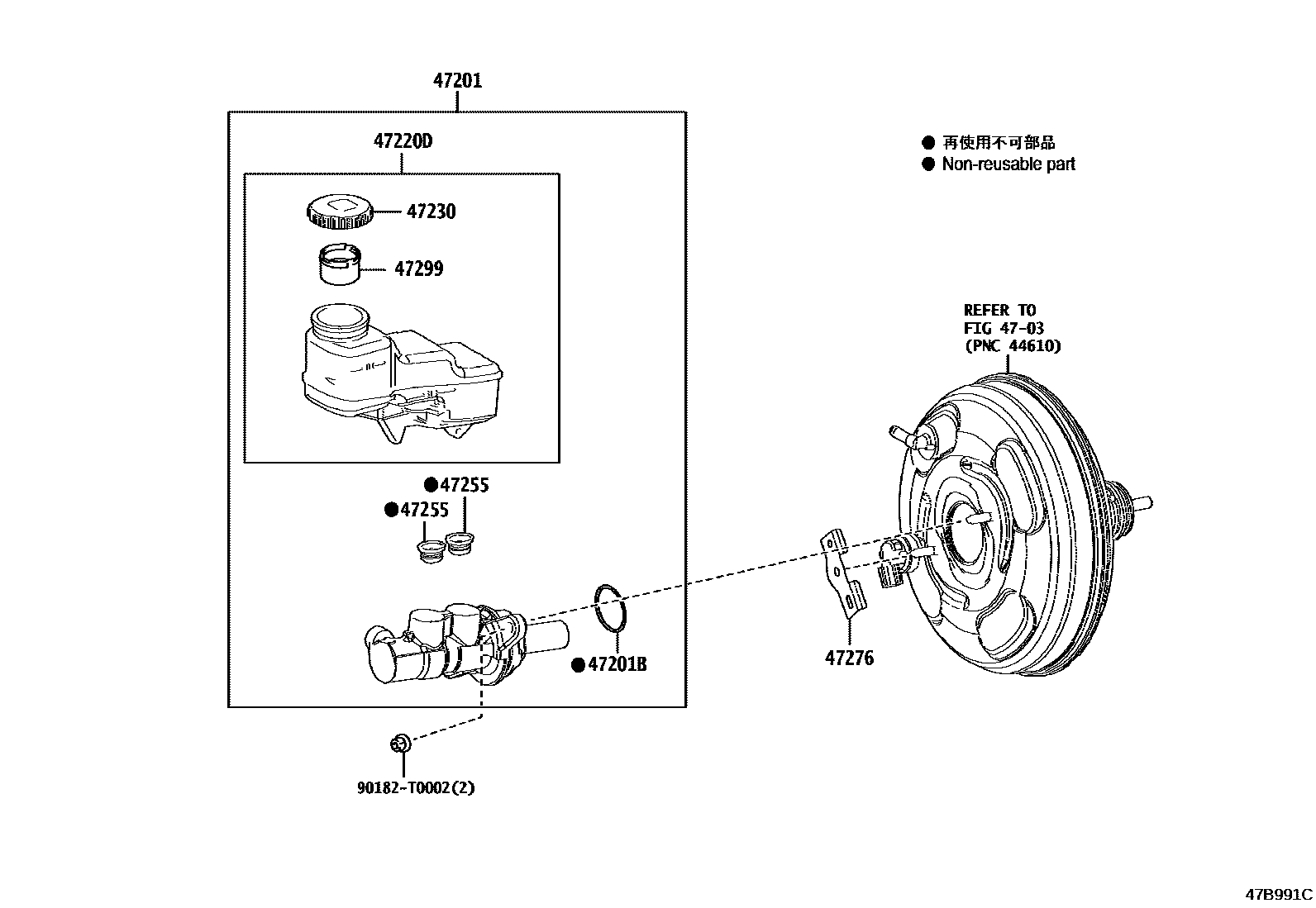

Toyota COROLLA EPC diagram 4702, 制动总泵, with 5 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44551C | No. 1 brake actuator pipe | 44551-02010 · 44551-02050 · 44551-F4011 |
| 44571A | No. 1 brake actuator hose | 44571-02060 · 44571-47070 · 44571-F4010 |
| 44571B | Hose clip (for brake actuator hose No. 1) | 90466-T0059 · 96137-41501 |
| 44572C | No. 2 brake actuator hose | 44572-02050 · 44572-47050 · 44572-F4010 |
| 44572D | Hose clip (for brake actuator hose No. 2) | 90466-T0059 · 96137-41501 |
| 44785D | brake master cylinder gasket | 44785-12040 |
| 47131C | Cushion pad | 47131-02010 · 47131-02020 |
| 47201 | Brake master cylinder sub-assembly | 47201-02A20 · 47201-02A30 · 47201-02A40 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH001 · 90015-AH002 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47210L | Brake booster assembly with master cylinder | 47050-12640 · 47050-12650 · 47050-12660 · 47050-12D10 · 47050-12D20 · 47050-12D70 · 47050-12D80 · 47050-12D90 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-02380 · 47220-02430 · 47220-F4021 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-33330 · 47230-47090 · 47230-F4010 |
| 47255 | Master pump reservoir seal | 90015-AT001 · 90029-48001 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-47010 |
| 47276 | brake master cylinder bracket | 47276-02020 · 47276-02030 · 47276-02040 |
| 47299 | Brake master cylinder reservoir filter | 47299-02160 · 47299-20060 |
