Toyota COROLLA Parking Brake & Cable — Figure 4601

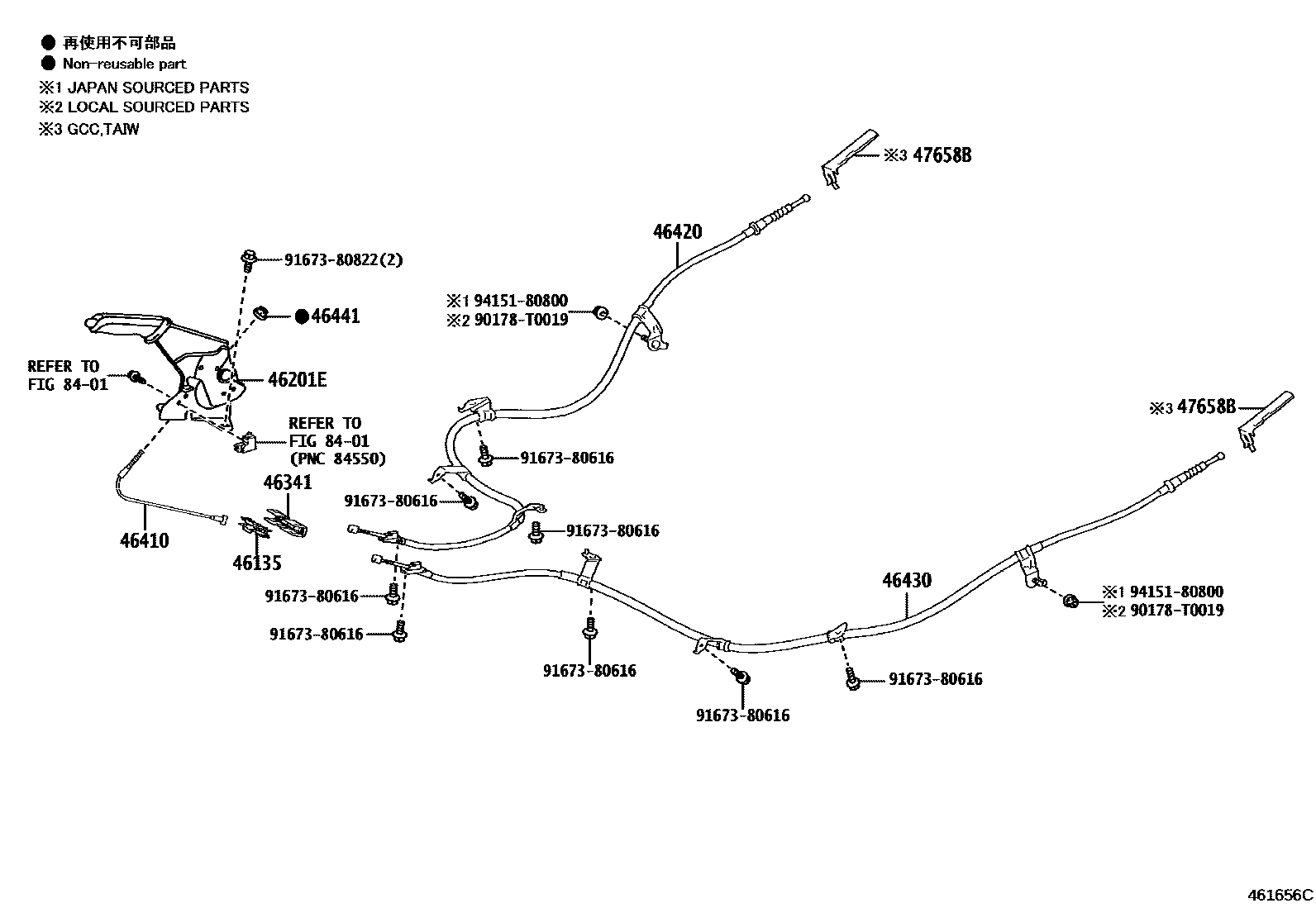

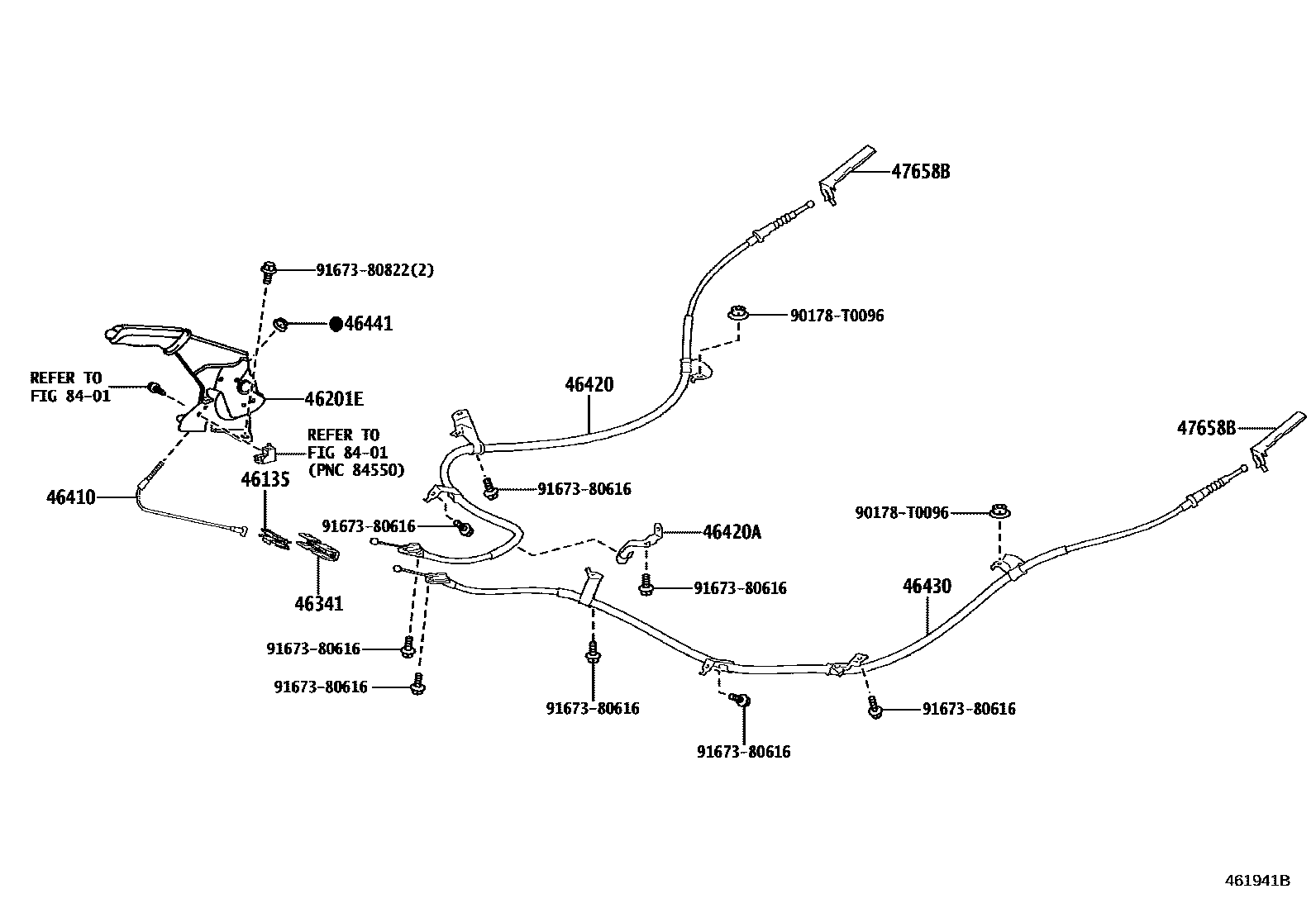

Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46135 | Parking brake cable end stop | 46135-02100 · 46135-12010 |

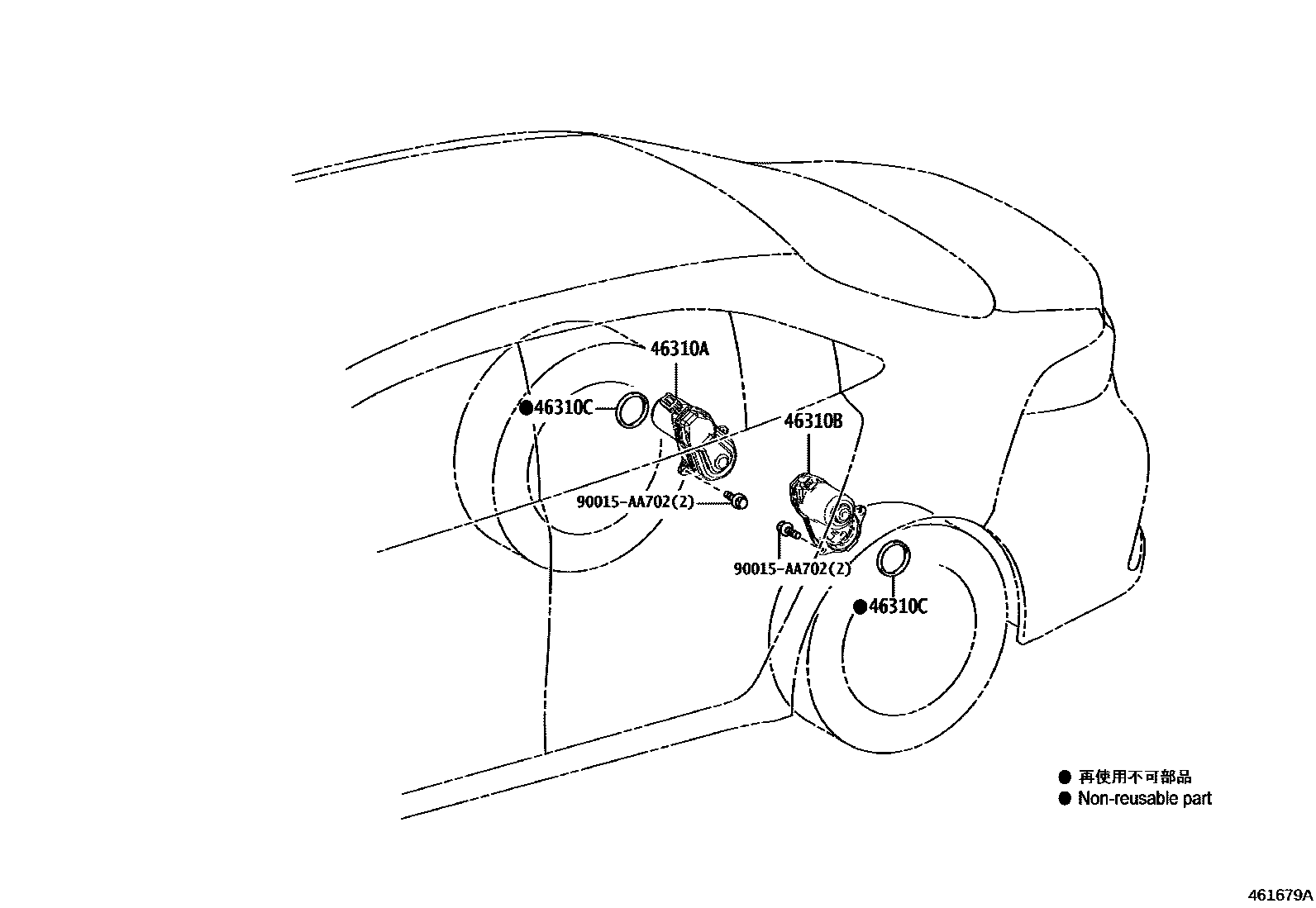

| 46310A | Right parking brake actuator assembly | 46310-07010 · 46310-33010 |
| 46310B | Left parking brake actuator assembly | 46310-07010 · 46310-33010 |
| 46310C | Seal (for parking brake actuator) | 90015-AH005 |
| 46341 | Parking brake balancer | 46341-02120 · 46341-12040 |
| 46410 | Parking brake cable assembly No. 1 | 46410-02250 |
| 46420 | Parking brake No. 2 cable assembly | 46420-02410 · 46420-02430 |
| 46420A | Clamp No. 1 (for parking brake cable) | 46421-0A010 |
| 46430 | Parking brake No. 3 cable assembly | 46430-02410 · 46430-02430 |
| 46441 | No. 1 cable adjustment nut | 90177-06003 |
| 47658B | Parking brake lever protection device | 47658-47010 |
