Toyota COROLLA 前转向齿轮和连杆 — Figure 4505

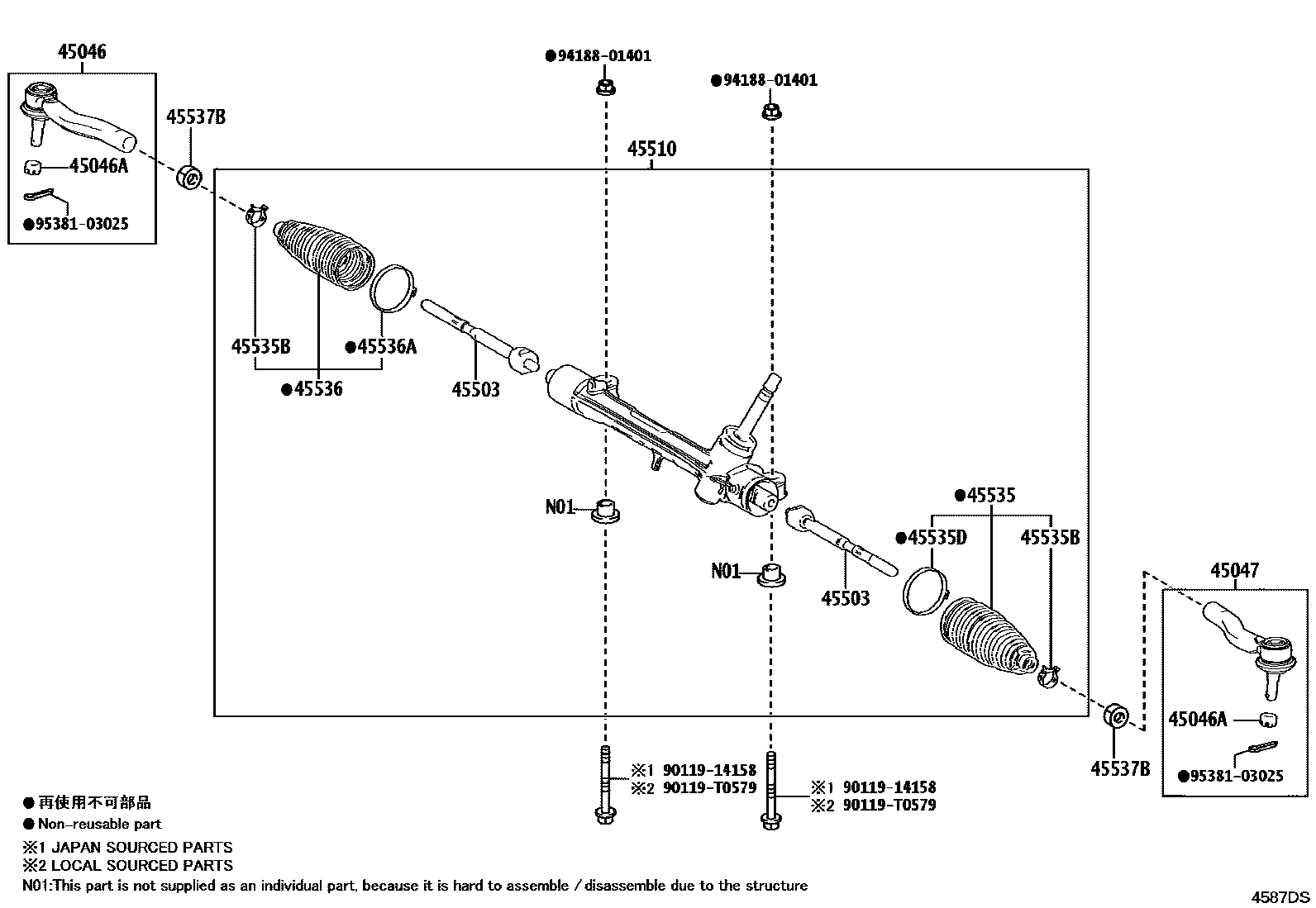

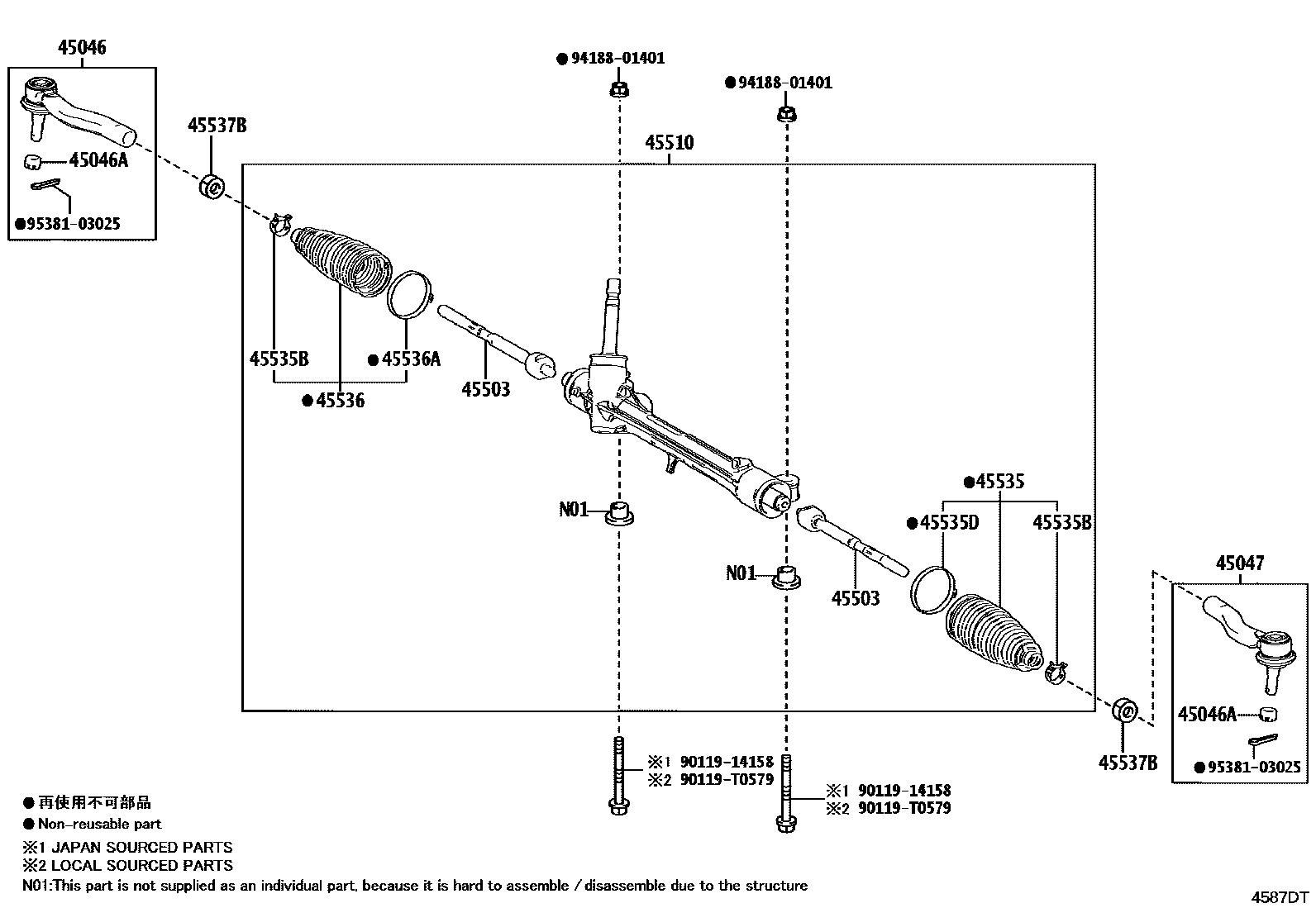

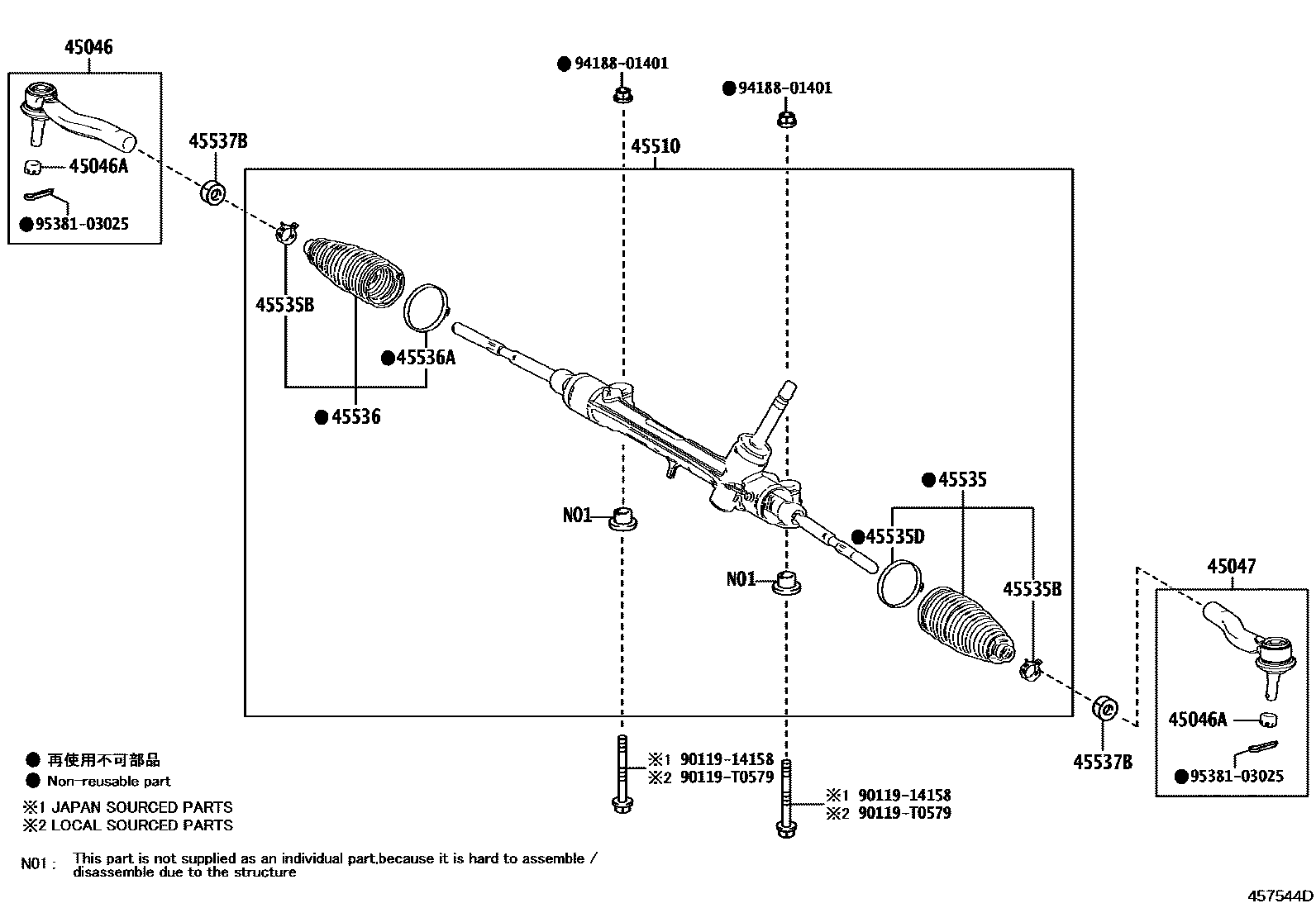

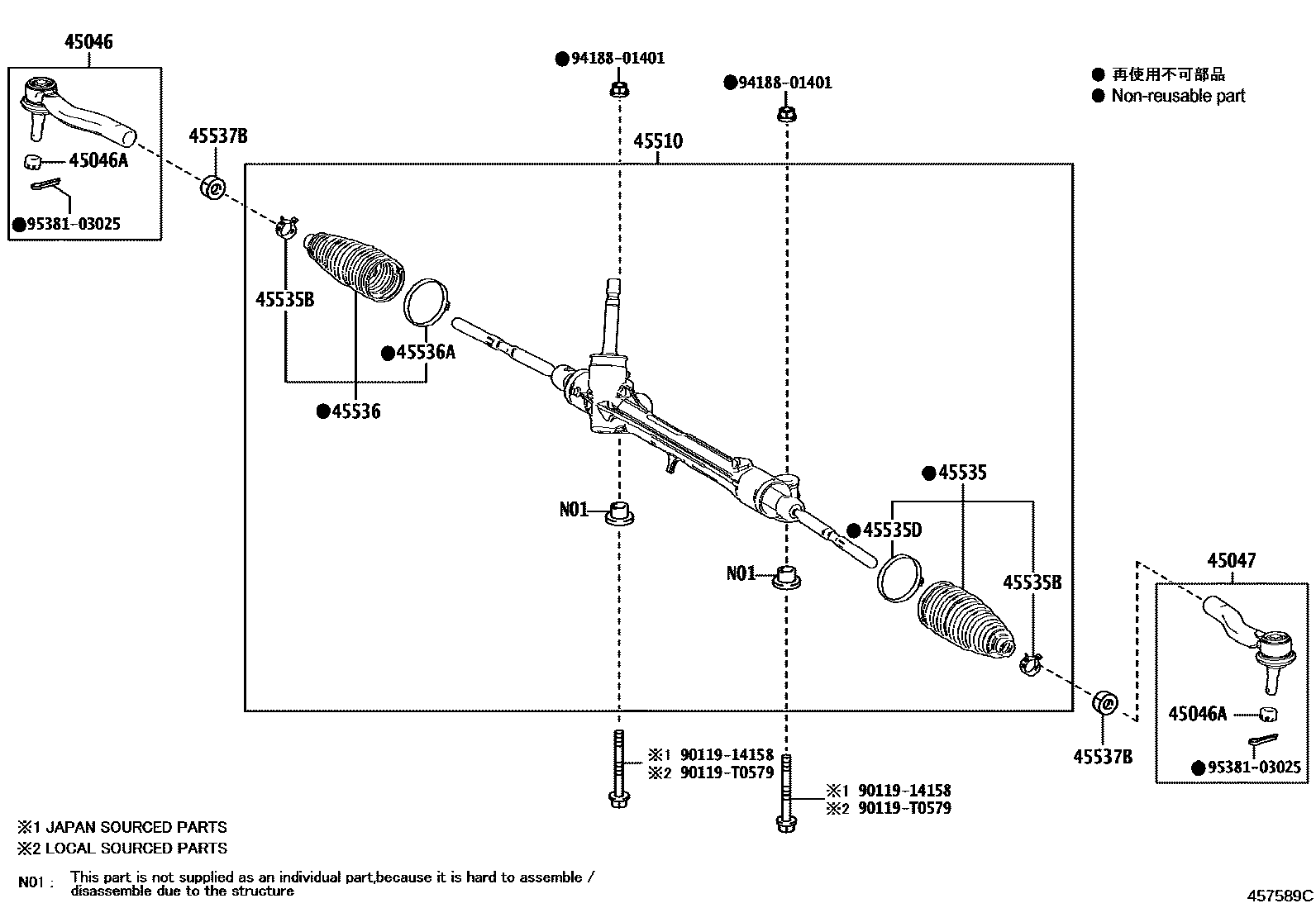

Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45046 | Right tie rod end sub-assembly | 45046-09890 · 45046-49255 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 · 90171-T0004 |
| 45047 | Left tie rod end sub-assembly | 45047-09420 · 45047-49195 |
| 45503 | Steering rack end sub-assembly | 45503-02210 |
| 45510 | Steering gear assembly | 45510-02440 · 45510-02460 · 45510-02470 · 45510-02480 · 45510-02580 · 45510-02590 |
| 45535 | No. 1 steering rack dust cover | 45535-09560 · 45535-09610 |
| 45535B | Clamp (for steering rack dust boot) | 45537-0D100 · 90467-19021 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 45538-0D090 · 45538-0D110 |
| 45536 | No. 2 steering rack dust cover | 45535-09560 · 45535-09610 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 45538-0D090 · 45538-0D110 |
| 45537B | Rack end lock nut | 90178-16001 · 90178-T0073 |
