Toyota COROLLA Front Axle Hub — Figure 4303

Toyota COROLLA EPC diagram 4303, Front Axle Hub, with 1 images and 7 PNC and OE references.

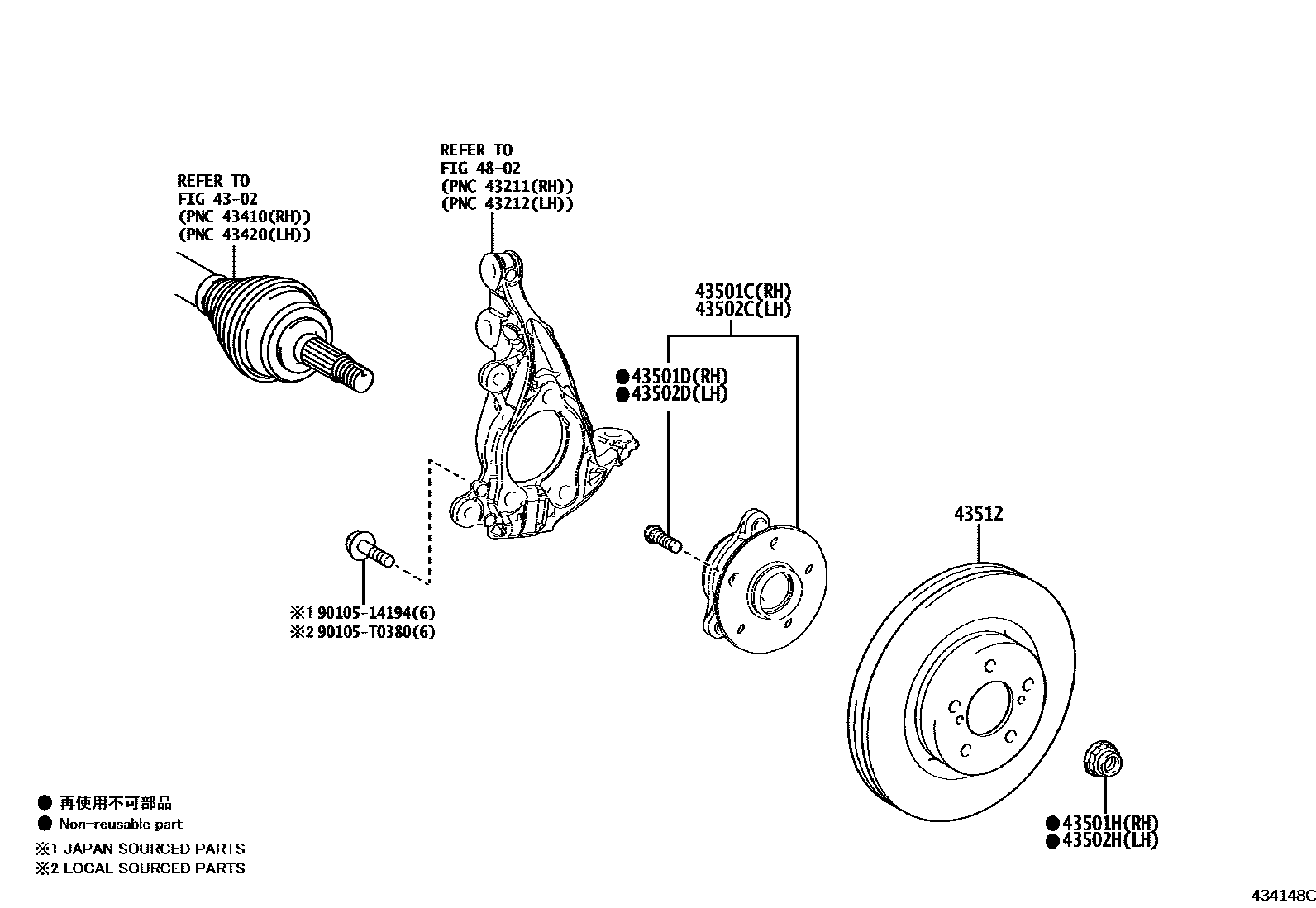

Toyota COROLLA Front Axle Hub EPC diagram — 434148C
Front Axle Hub — 434148C (201904 – 999999)

PNC and OE references

PNCPart nameOE numbers
43501CRight front axle hub sub-assembly43550-02120 · 43550-02130
43501DHub bolt (for right front axle)90942-02049
43501HNut (for front axle right half shaft)90177-22001 · 90177-T0017
43502CLeft front axle wheel hub sub-assembly43550-02120 · 43550-02130
43502DHub bolt (for left front axle)90942-02049
43502HNut (for front axle left half shaft)90177-22001 · 90177-T0017
43512front brake disc43512-02400 · 43512-02410
