Toyota COROLLA 前桥壳和差速器 — Figure 4301

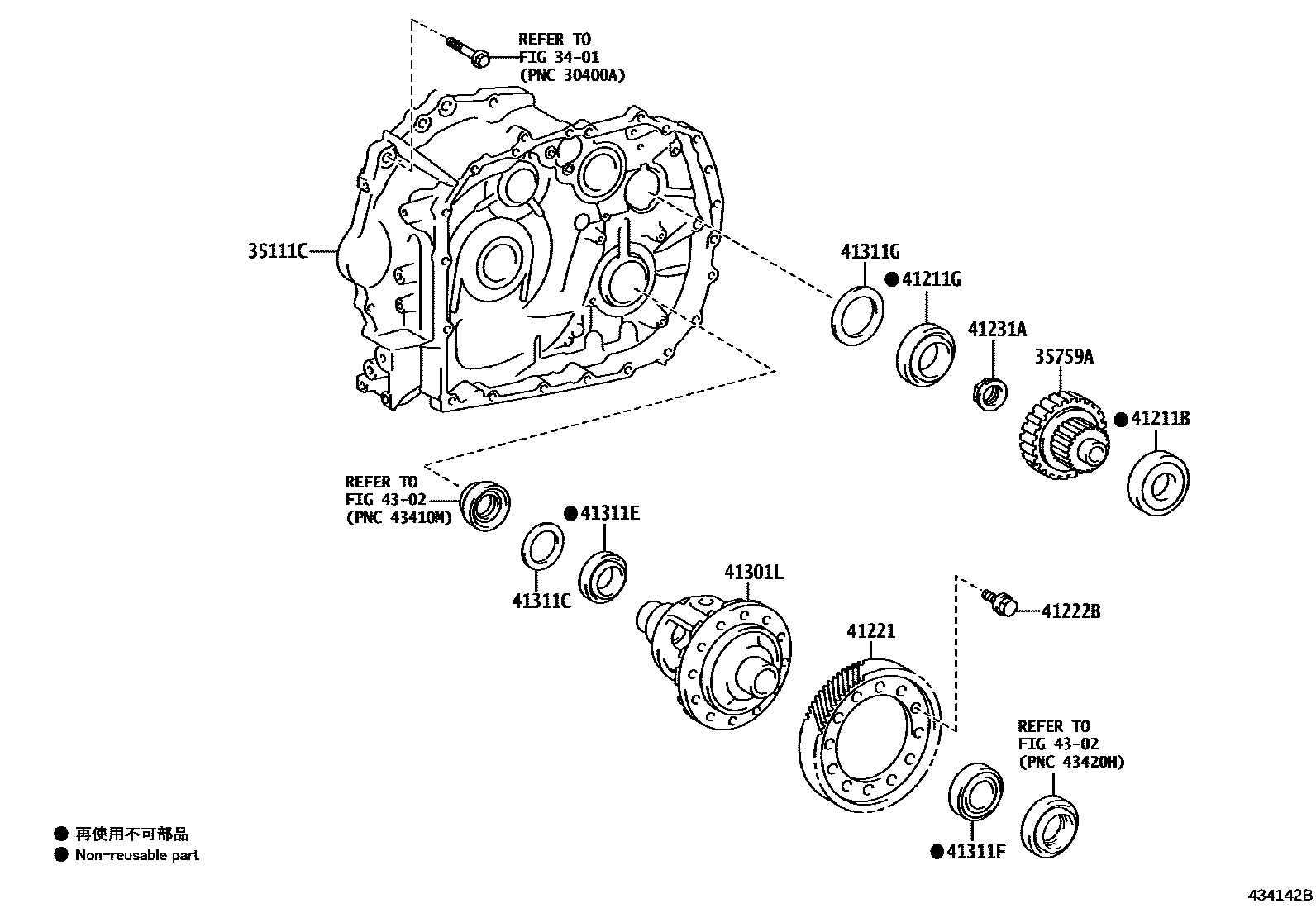

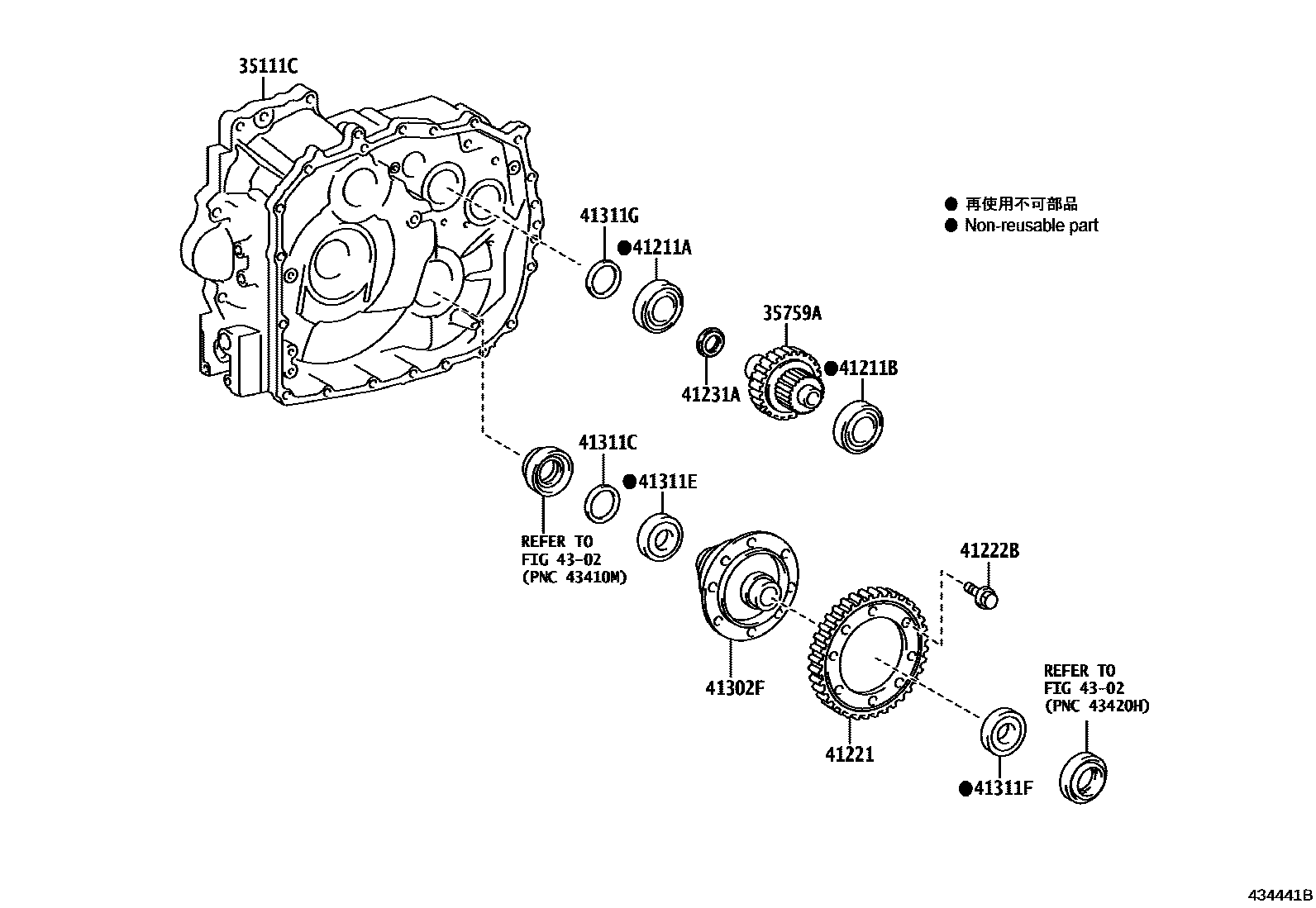

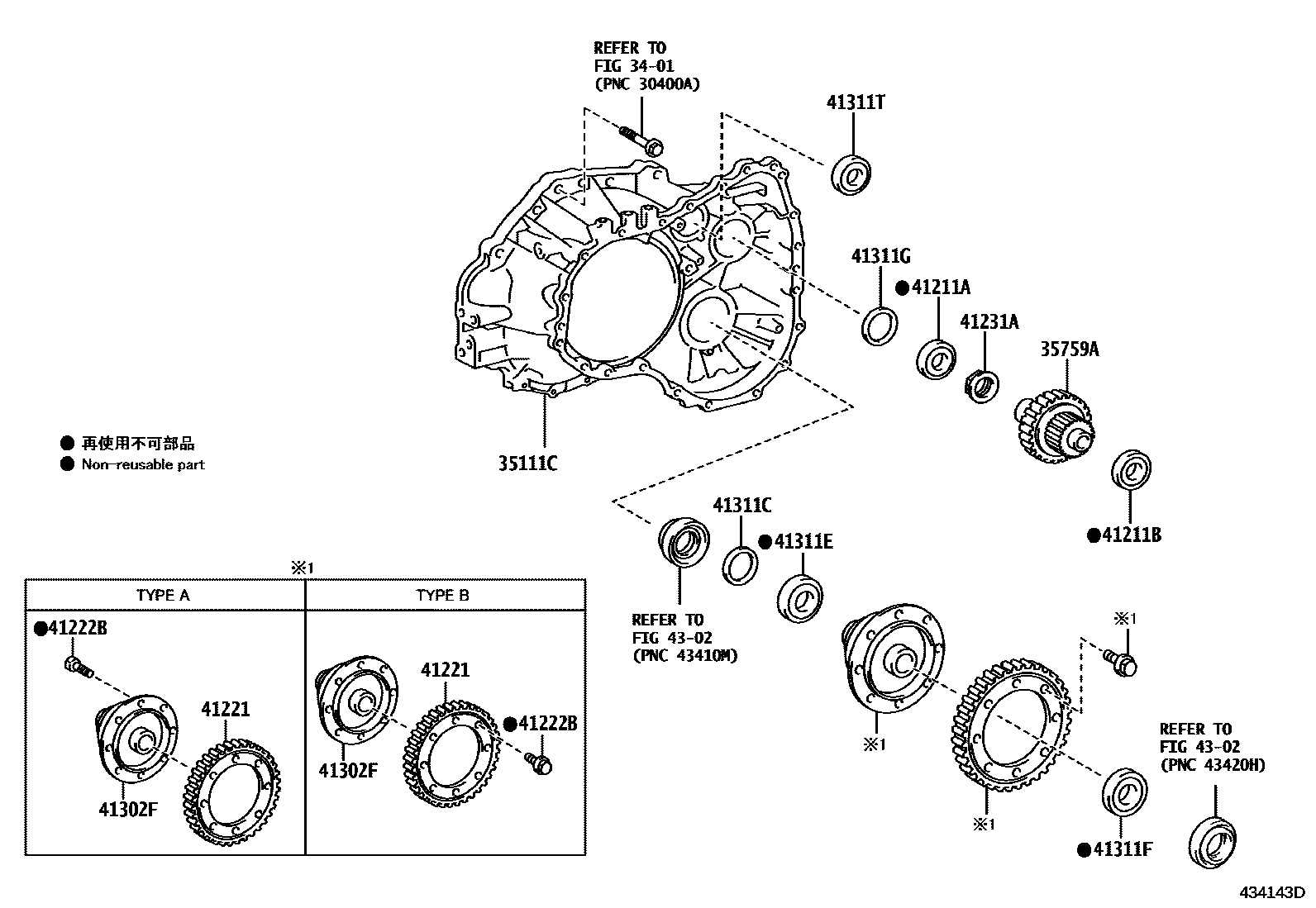

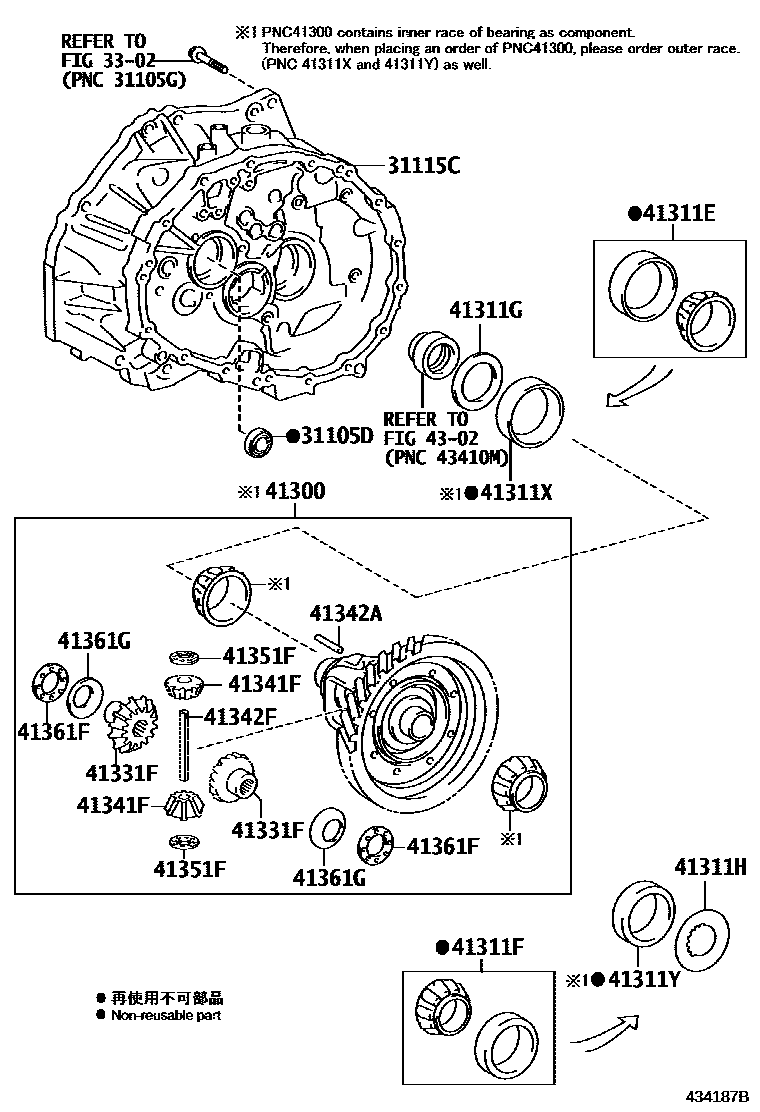

Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25030 |
| 31115C | Front transmission axle housing (MTM) | 31115-12201 |
| 35111C | Transmission axle housing | 35105-12091 · 35105-K0020 · 35111-12241 · 35111-12310 |
| 35759A | Reduction driven gear | 35705-12020 · 35705-12090 · 35705-12110 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-25021 · 90366-25030 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-29010 · 90366-29013 · 90366-29016 |
| 41211G | Left side thrust needle bearing (for front drive pinion) | 90366-25026 |
| 41221 | Front differential ring gear | 41221-12431 · 41221-12670 · 41221-12730 · 41221-12740 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12303 · 90105-12379 |
| 41231A | Drive pinion lock nut | 90179-32006 |
| 41300 | Front differential case assembly with ring gear | 41300-12150 |
| 41301L | No. 1 front differential housing sub-assembly | 41301-12450 |
| 41302F | Front differential housing sub-assembly | 41301-12281 · 41301-12341 · 41301-K0020 |
| 41311C | Rear gasket (for front differential case) | 90564-48001 · 90564-48002 · 90564-48003 · 90564-48004 · 90564-48005 · 90564-48006 · 90564-48007 · 90564-48008 · 90564-48009 · 90564-48010 · 90564-48011 · 90564-48012 · 90564-48013 · 90564-48014 · 90564-48015 · 90564-48016 · 90564-48017 · 90564-48018 · 90564-48019 · 90564-48020 · 90564-58002 · 90564-58003 · 90564-58004 · 90564-58005 · 90564-58006 · 90564-58007 · 90564-58008 · 90564-58009 · 90564-58010 · 90564-58011 · 90564-58012 · 90564-58013 · 90564-58014 · 90564-58015 · 90564-58016 · 90564-58017 · 90564-58018 · 90564-58019 · 90564-58020 · 90564-58021 · 90564-66038 · 90564-66039 · 90564-66067 · 90564-66068 · 90564-66069 · 90564-66070 · 90564-66071 · 90564-66072 · 90564-66073 · 90564-66074 · 90564-66075 · 90564-66076 · 90564-66077 · 90564-66078 · 90564-66079 · 90564-66080 · 90564-66081 · 90564-66082 · 90564-66083 · 90564-66084 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-40117 · 90366-40129 · 90366-40149 · 90366-50172 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-42009 · 90366-44007 · 90366-44010 · 90366-51007 |
| 41311G | Front flat washer (for front differential case) | 90560-41003 · 90564-44070 · 90564-44071 · 90564-44072 · 90564-44073 · 90564-44074 · 90564-44075 · 90564-44076 · 90564-44077 · 90564-44078 · 90564-44079 · 90564-44080 · 90564-44081 · 90564-44082 · 90564-44083 · 90564-44084 · 90564-44085 · 90564-44086 · 90564-44087 · 90564-44088 · 90564-44089 · 90564-44090 · 90564-44091 · 90564-44092 · 90564-44093 · 90564-44094 · 90564-44095 · 90564-44096 · 90564-47001 · 90564-47002 · 90564-47003 · 90564-47004 · 90564-47005 · 90564-47006 · 90564-47007 · 90564-47008 · 90564-47009 · 90564-47010 · 90564-47011 · 90564-47012 · 90564-47013 · 90564-47014 · 90564-47015 · 90564-47016 · 90564-47017 · 90564-47018 · 90564-47019 |
| 41311H | Rear flat washer (for front differential case) | 90564-44039 · 90564-44040 · 90564-44041 · 90564-44042 · 90564-44043 · 90564-44044 · 90564-44045 · 90564-44046 · 90564-44047 · 90564-44048 · 90564-44049 · 90564-44050 · 90564-44051 · 90564-44052 · 90564-44053 · 90564-44054 · 90564-44055 · 90564-44056 · 90564-44057 · 90564-44058 · 90564-44059 · 90564-44060 · 90564-44061 · 90564-44062 · 90564-44063 · 90564-44064 · 90564-44065 · 90564-44066 · 90564-44067 · 90564-44068 · 90564-44069 |
| 41311T | Roller bearing (for secondary pulley shaft) | 90365-24001 |
| 41311X | Roller cone bearing outer race (for front differential) | 90366-40130 |
| 41311Y | Roller cone bearing outer race (for rear differential) | 90366-42010 |
| 41331F | Front differential side gear | 41331-12190 |
| 41341F | Front differential planetary gear | 41341-12130 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-52060 |
| 41351F | Front differential planetary gear thrust washer | 41351-32010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 · 41361-48010 |
| 41361G | Conical spring washer (for center differential side gears) | 90208-35001 |
