Toyota COROLLA 车轮和车轮盖 — Figure 4103

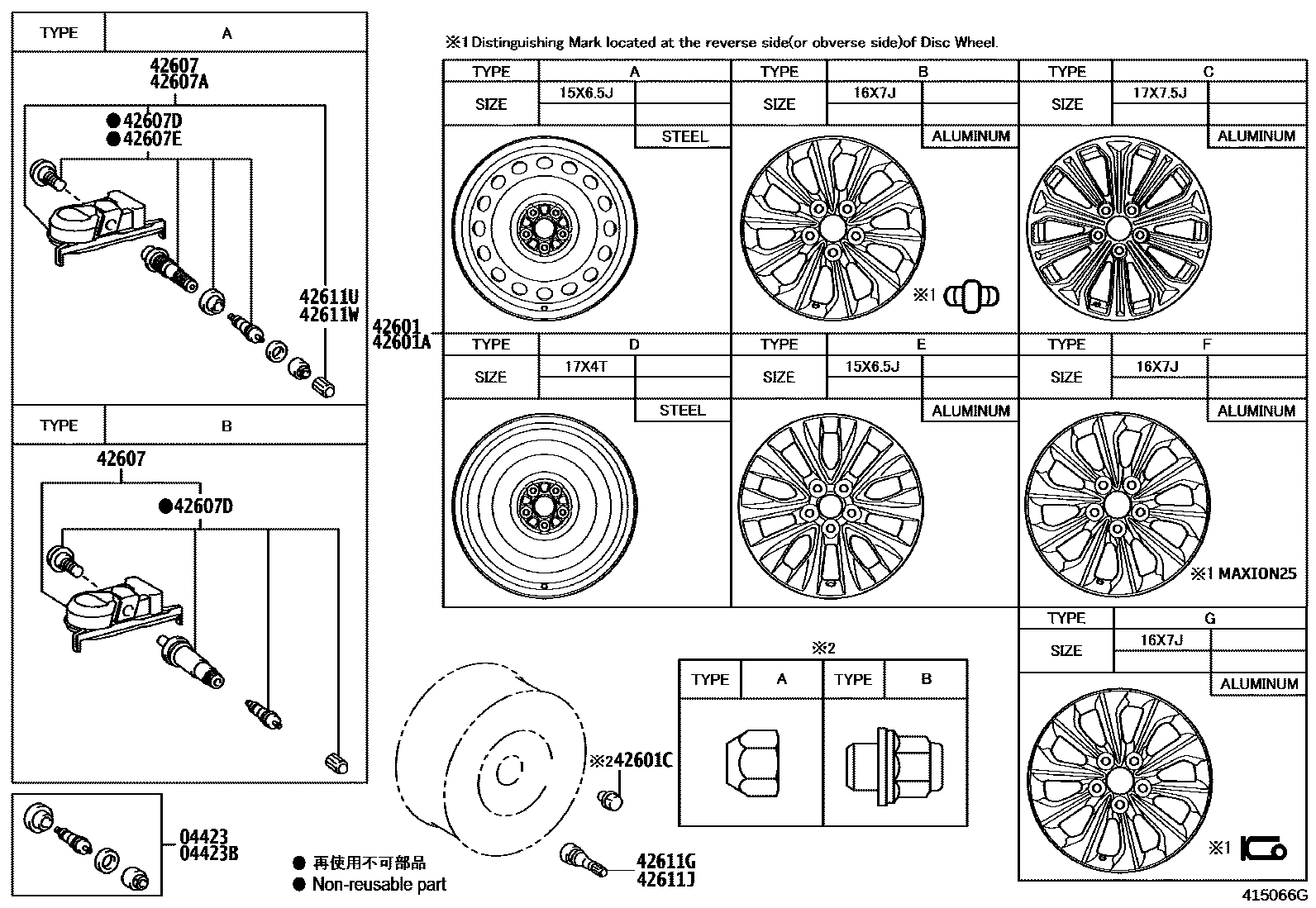

Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33060 |
| 04423B | Tire pressure monitoring valve or balancer valve mounting assembly (spare) | 04423-33060 |

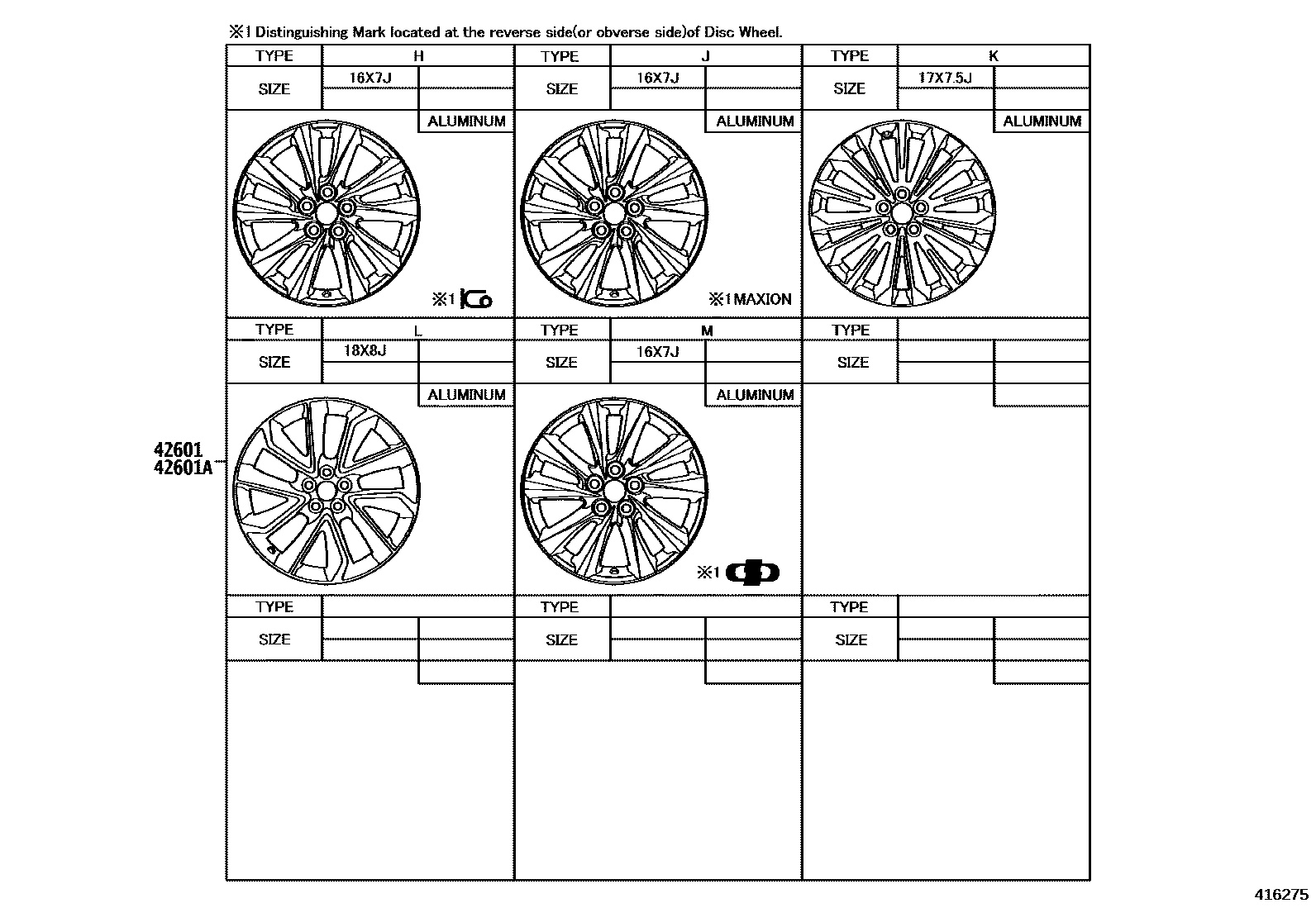

| 42601 | spoke wheel | 42611-02S20 · 42611-02S30 · 42611-02S40 · 42611-02S50 · 42611-02S60 · 42611-02S80 · 42611-02S90 · 42611-02W40 · 42611-02W50 · 42611-02Z00 · 42611-02Z10 · 42611-02Z20 · 42611-02Z30 · 42611-02Z40 · 42611-02Z50 · 42611-02Z60 · 42611-02Z80 · 42611-0Z060 |
| 42601A | Spoke wheel (for spare tire) | 42611-02M80 · 42611-02S20 · 42611-02S30 · 42611-02S40 · 42611-02S50 · 42611-02S60 · 42611-02S80 · 42611-02S90 · 42611-02T00 · 42611-02Z00 · 42611-02Z10 · 42611-02Z40 · 42611-02Z50 · 42611-02Z60 · 42611-02Z80 · 42611-0Z060 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 |

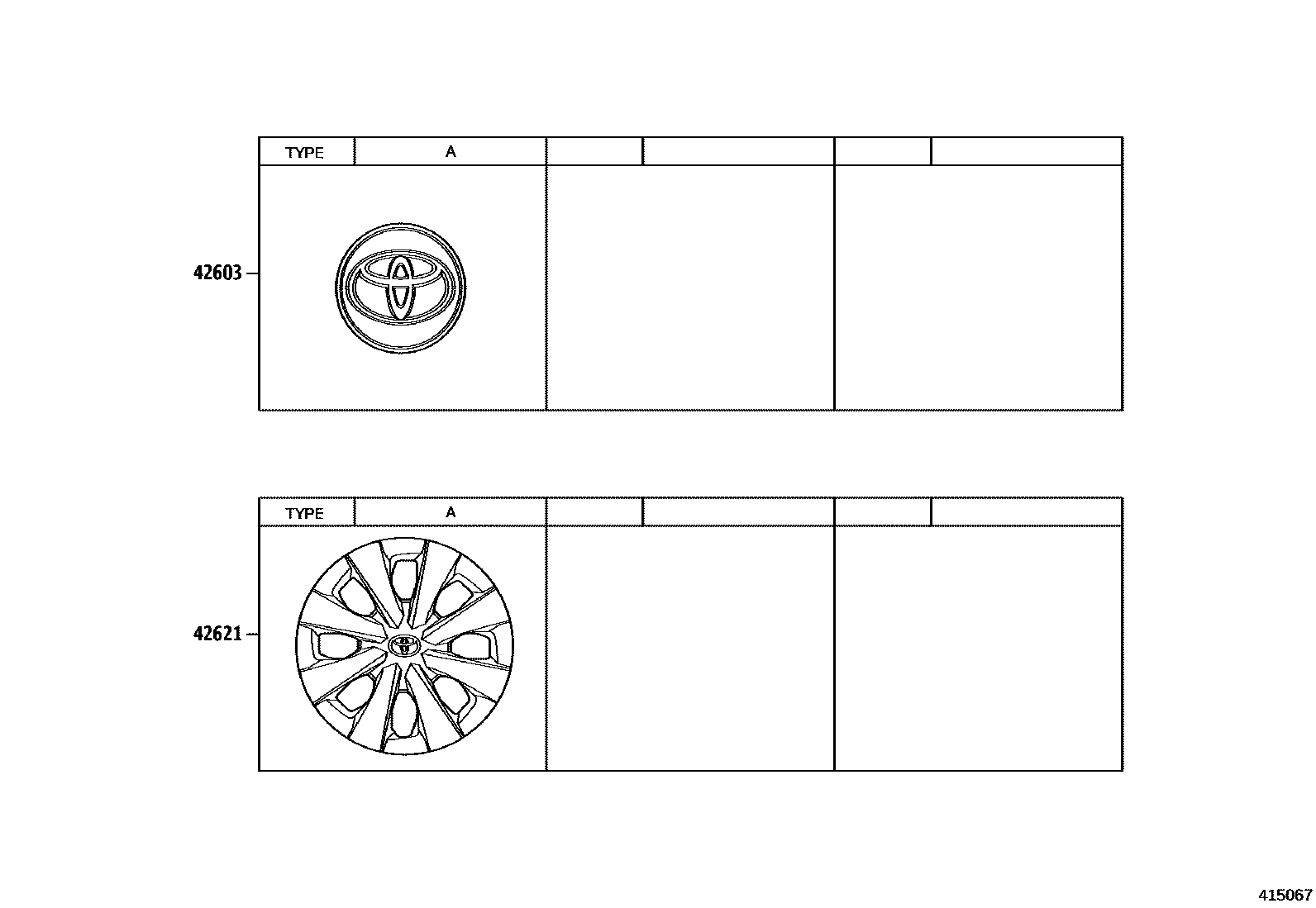

| 42603 | Wheel hub decorative parts sub-assembly | 42603-0D200 · 42603-52170 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-12010 · 42607-12020 · 42607-12040 · 42607-42050 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-12020 · 42607-42050 |
| 42607D | tire pressure monitoring valve | 90942-05043 · 90942-05044 |
| 42607E | Tire pressure monitoring valve (for septa) | 90942-05043 · 90942-05044 |
| 42611G | Valve (for tubeless tires) | 90080-94031 |
| 42611J | Valve (for tubeless spare tire) | 90080-94031 · 90942-05009 |
| 42611U | tire valve cover | 90942-05039 |
| 42611W | Tire valve cap (for spare tire) | 90942-05039 |
| 42621 | wheel cover | 42602-02580 |
