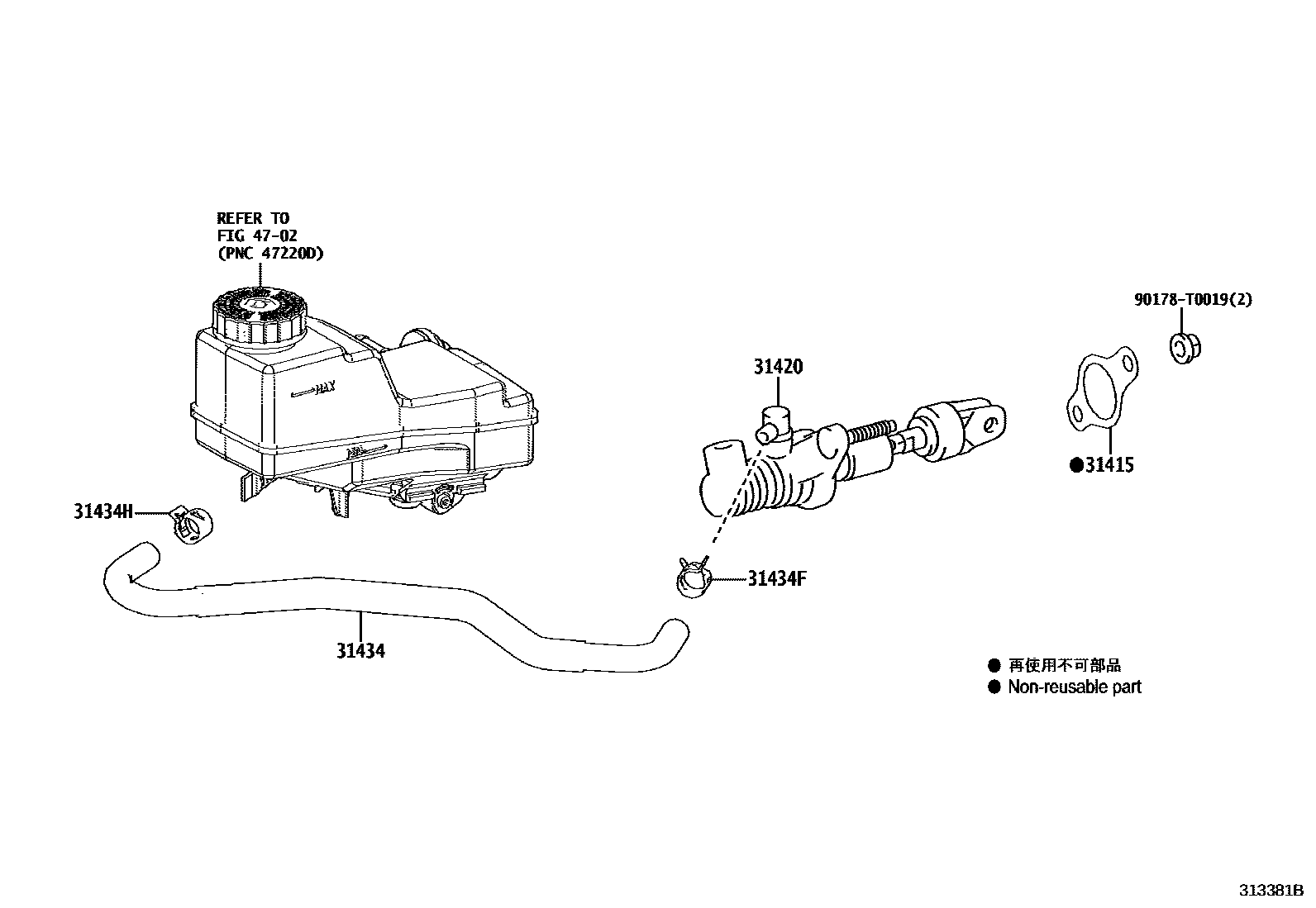

Toyota COROLLA 离合器总泵 — Figure 3103
Toyota COROLLA EPC diagram 3103, 离合器总泵, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31415 | Clutch master cylinder gasket | 31415-0K010 |
| 31420 | Master pump assembly without reservoir | 31420-02110 |
| 31434 | Clutch reservoir connecting pipe | 31434-02100 |
| 31434F | Clamp (for clutch reservoir hose No. 1) | 96138-41501 |
| 31434H | Clamp (for clutch reservoir hose No. 2) | 90466-T0059 |
