Toyota COROLLA vacuum tube — Figure 1708

Toyota COROLLA EPC diagram 1708, vacuum tube, with 10 images and 29 PNC and OE references.

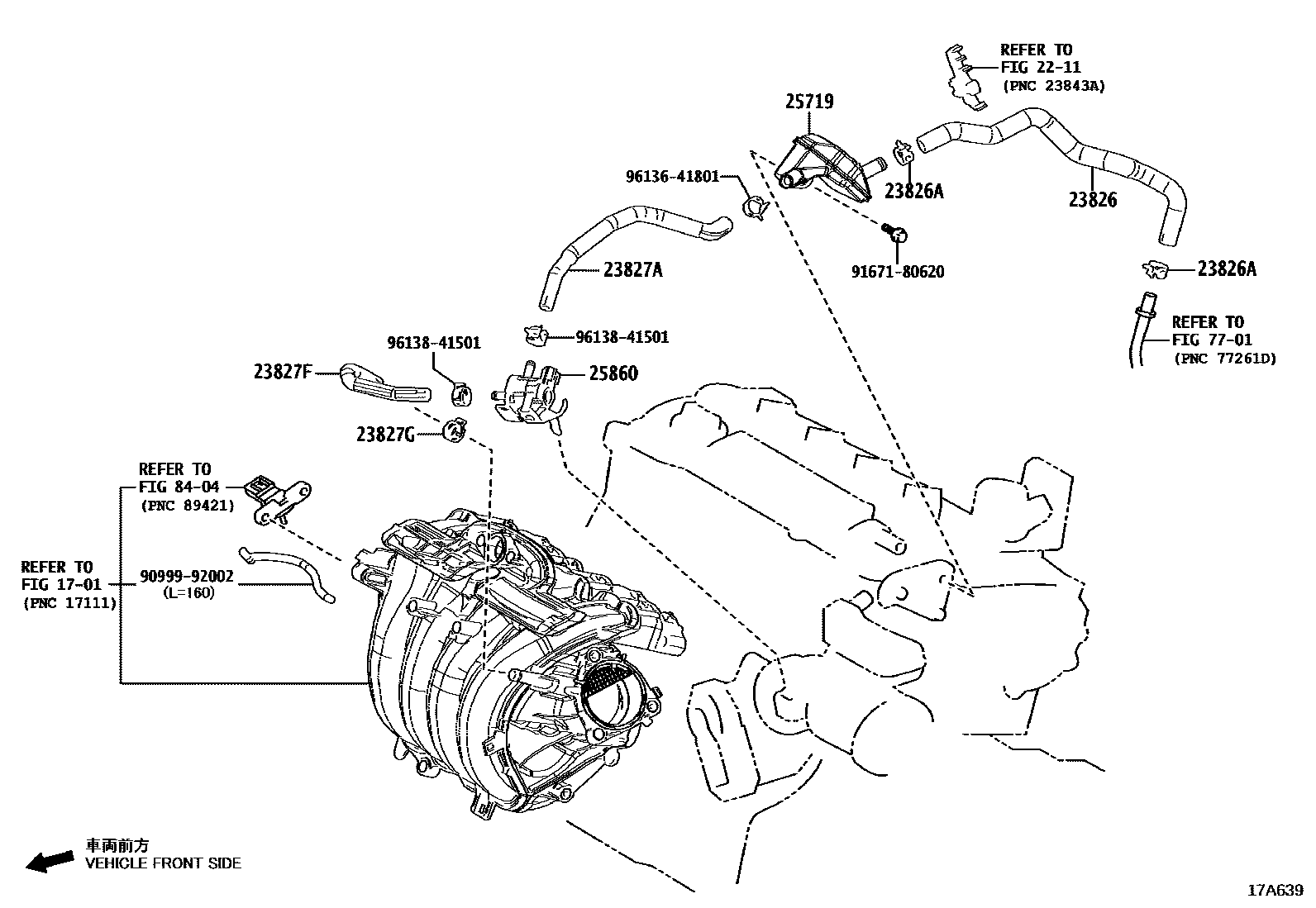

Toyota COROLLA vacuum tube EPC diagram — 17A639 — vacuum tube — 17A639 (201904 – 999999)

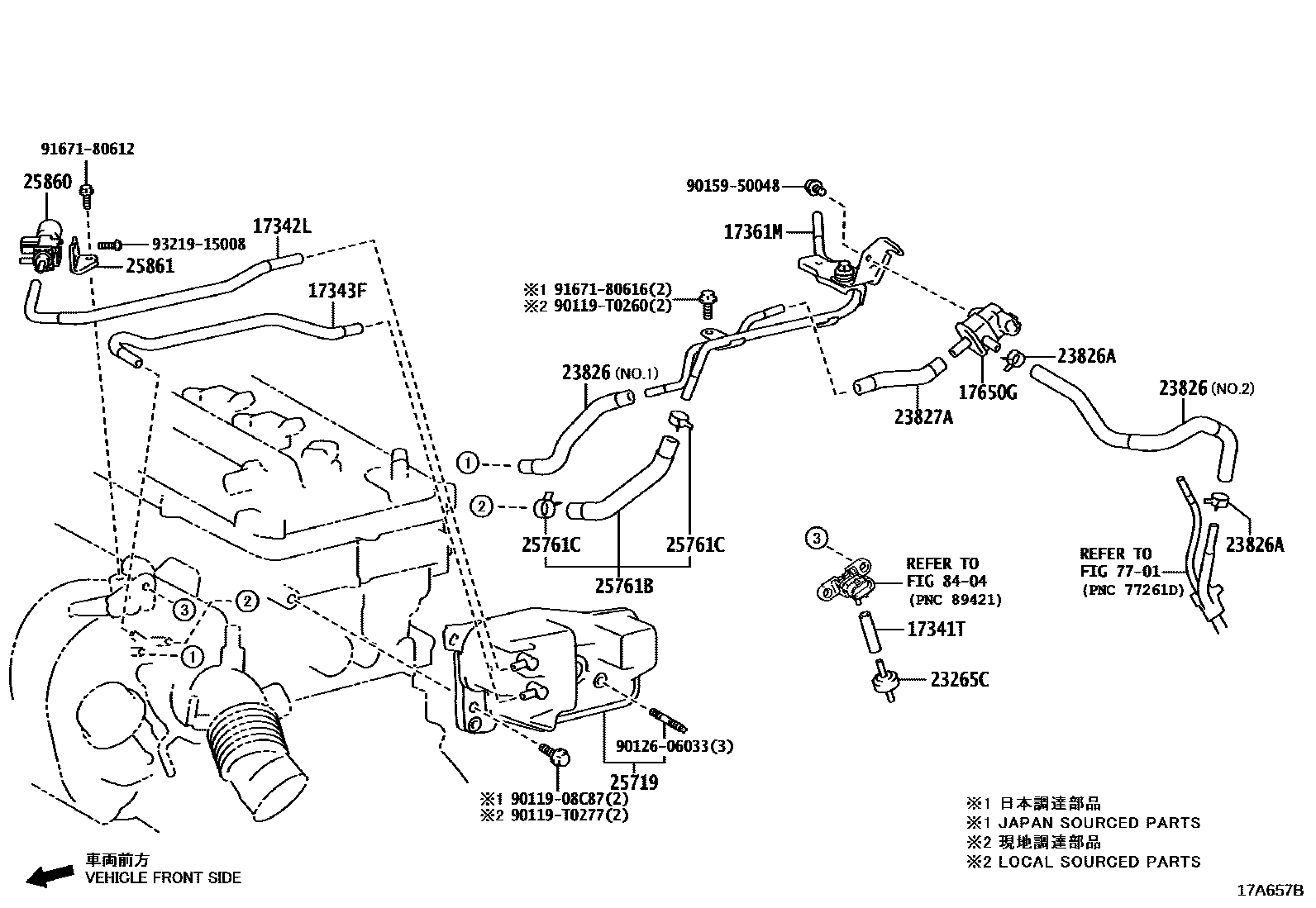

Toyota COROLLA vacuum tube EPC diagram — 17A657B — vacuum tube — 17A657B (201904 – 999999)

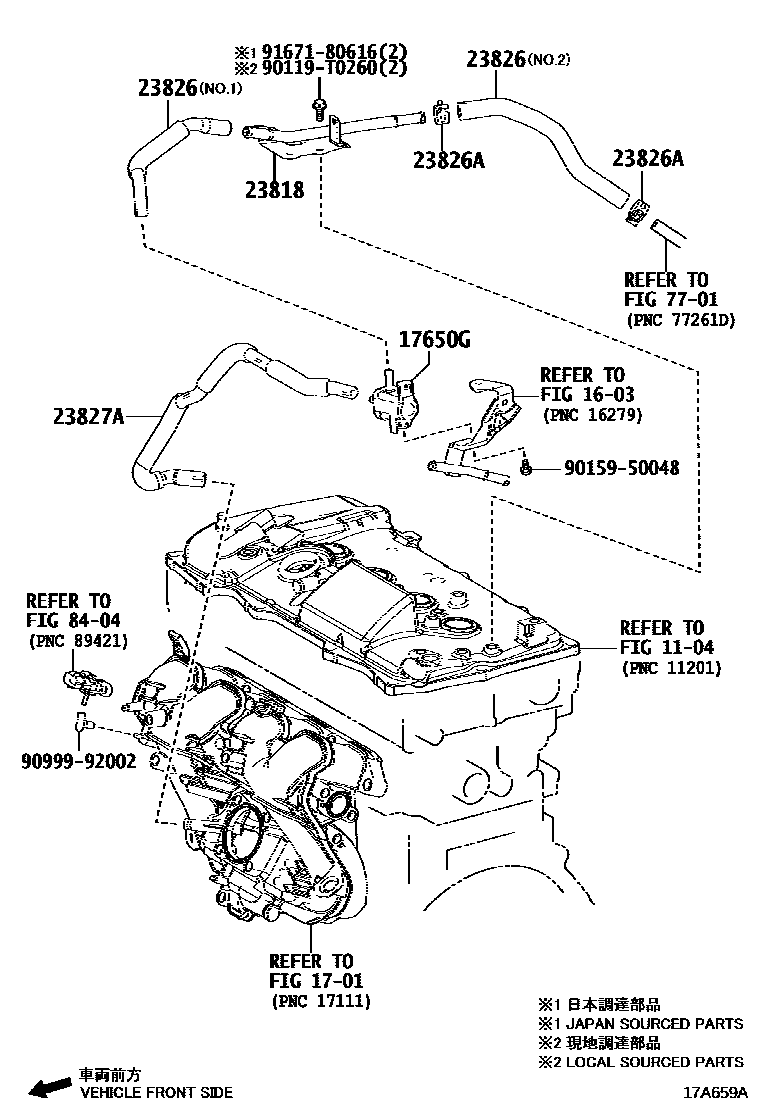

Toyota COROLLA vacuum tube EPC diagram — 17A659A — vacuum tube — 17A659A (201904 – 999999)

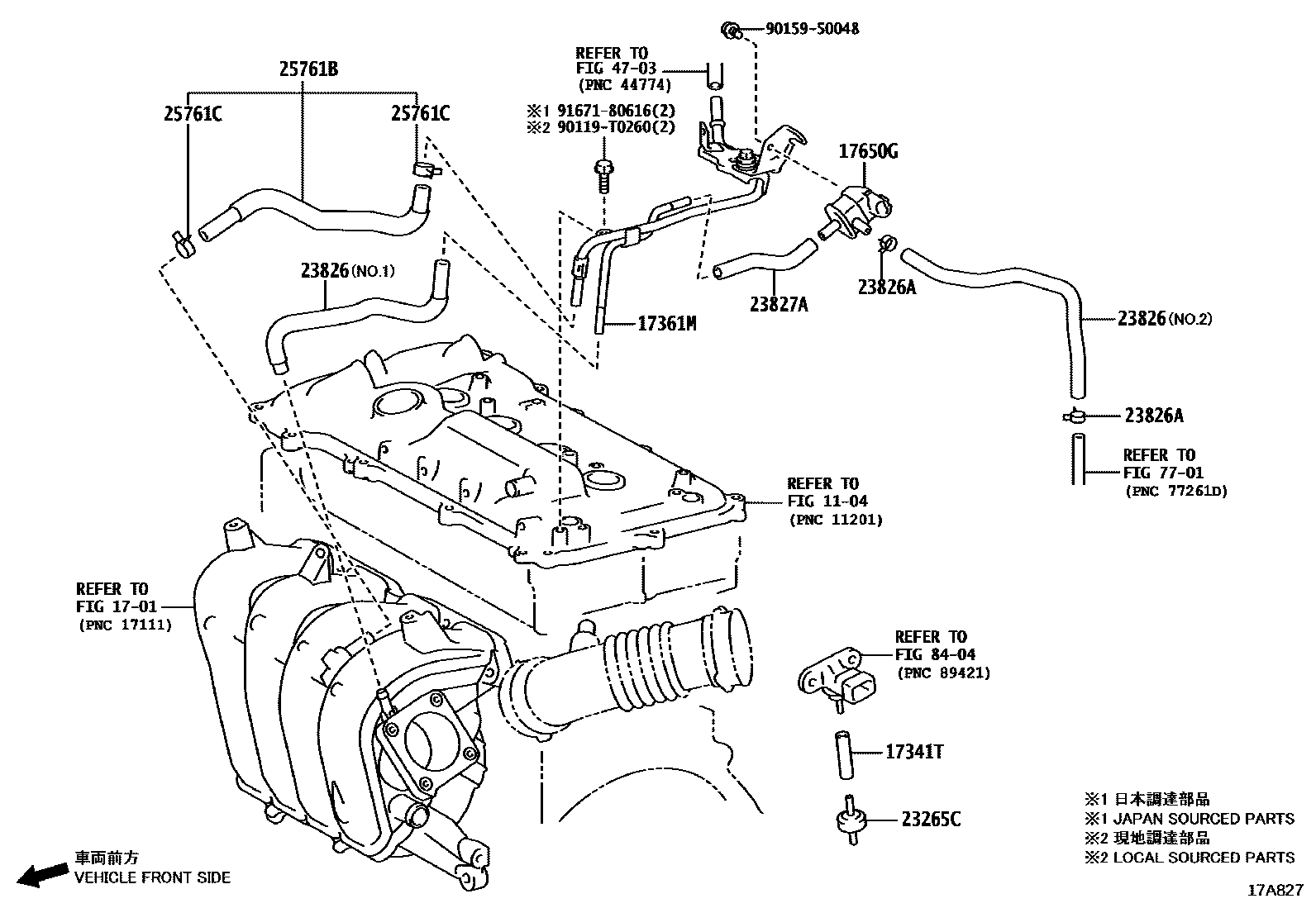

Toyota COROLLA vacuum tube EPC diagram — 17A827 — vacuum tube — 17A827 (201908 – 999999)

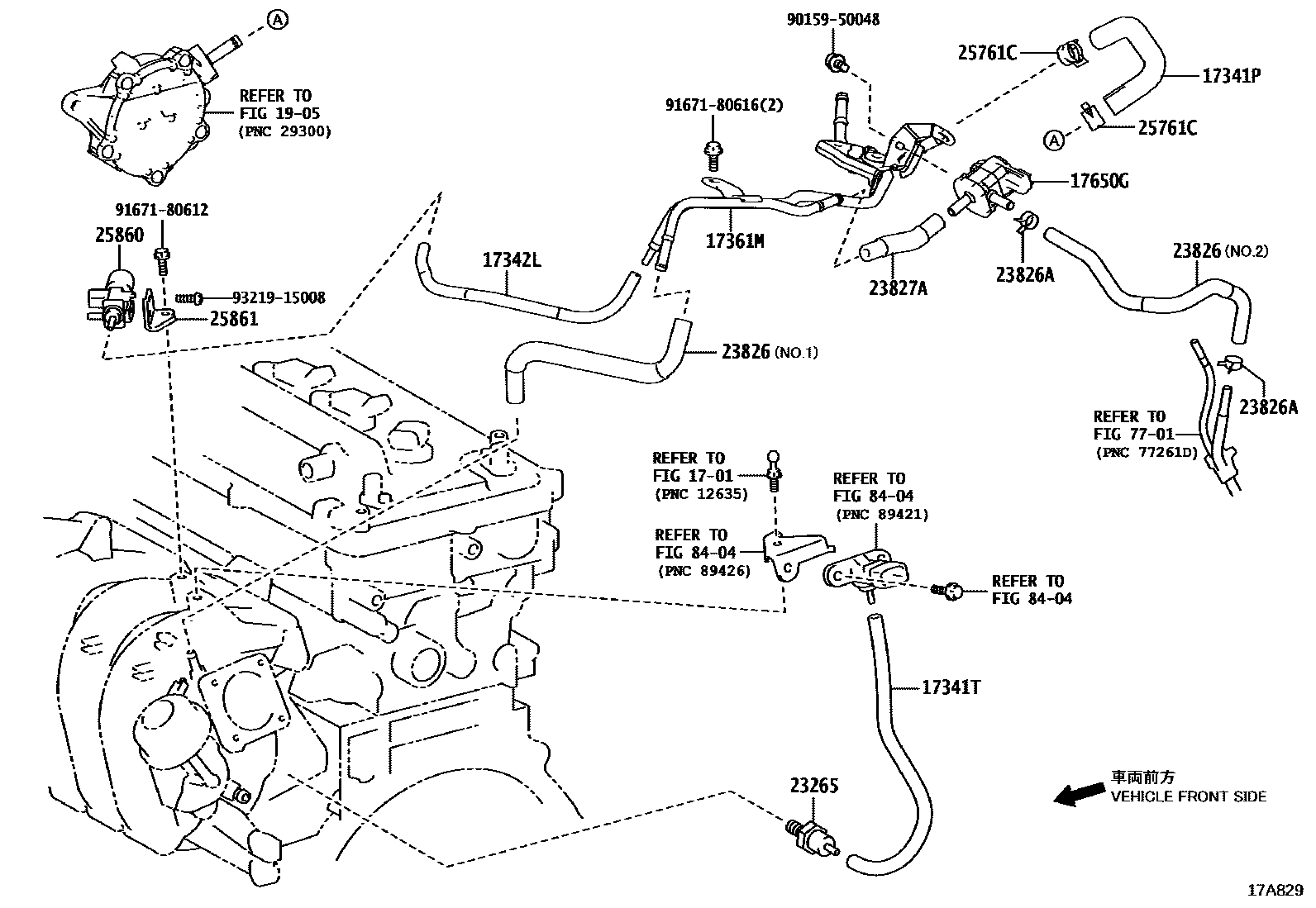

Toyota COROLLA vacuum tube EPC diagram — 17A829 — vacuum tube — 17A829 (201908 – 999999)

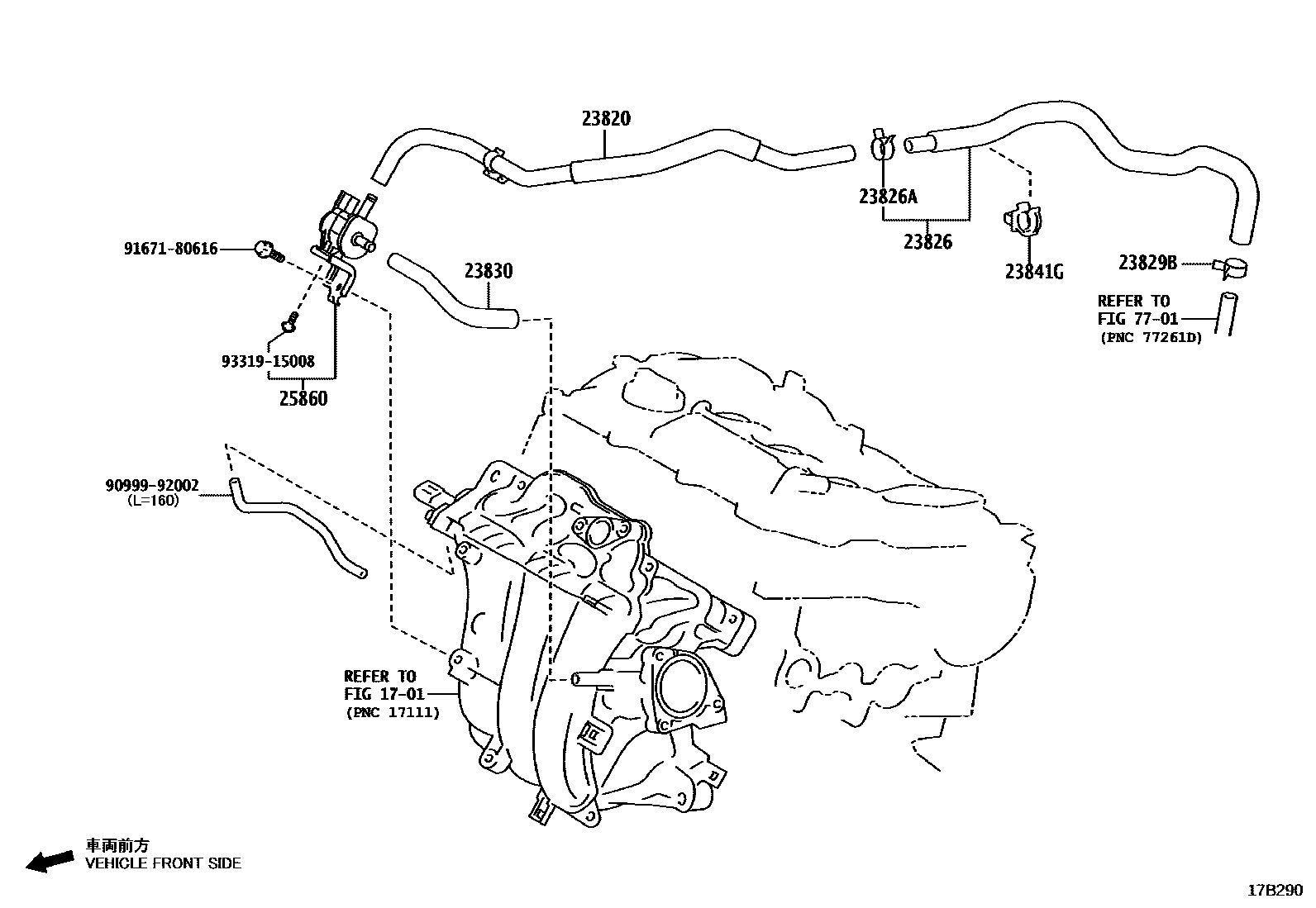

Toyota COROLLA vacuum tube EPC diagram — 17B290 — vacuum tube — 17B290 (202008 – 999999)

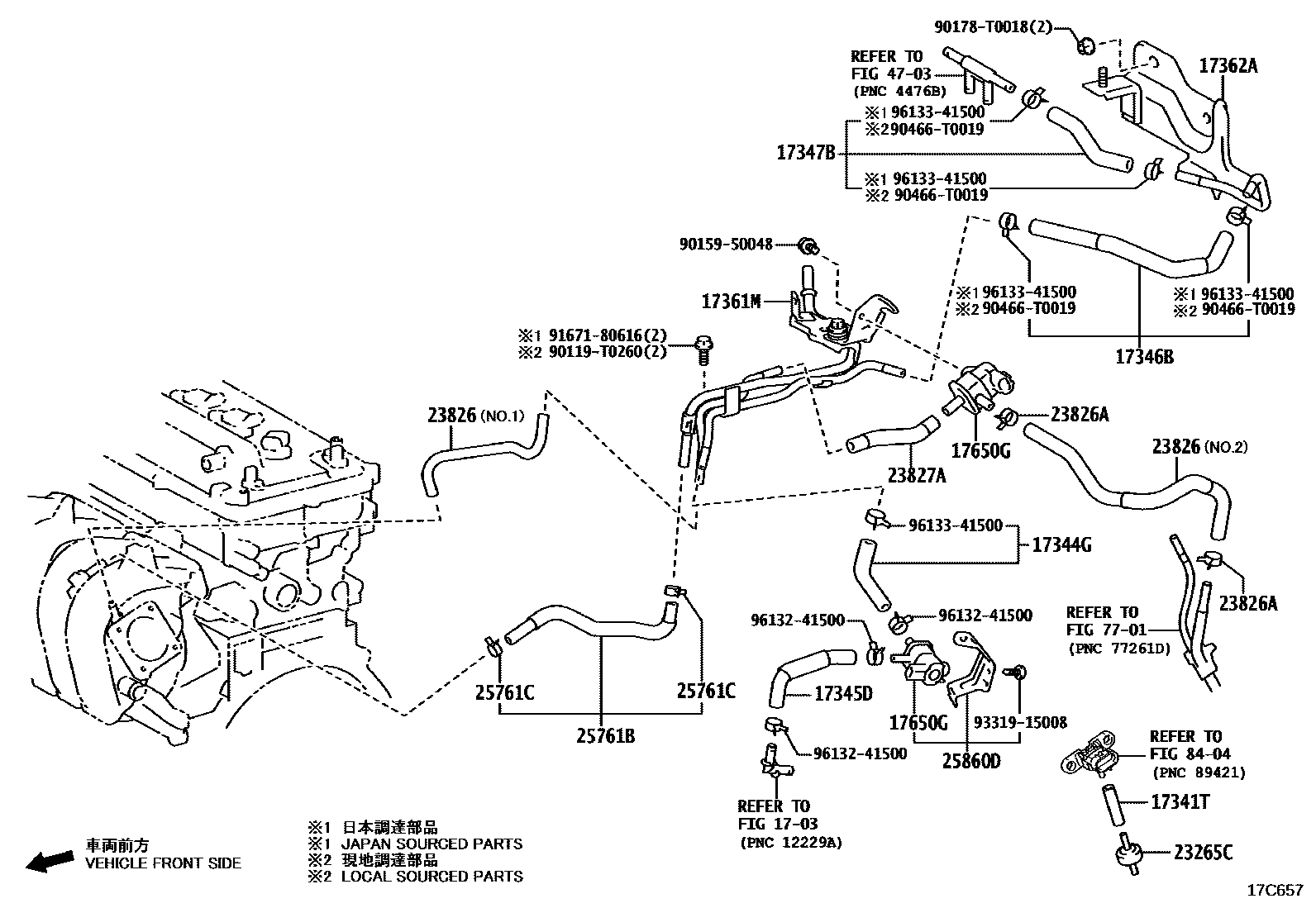

Toyota COROLLA vacuum tube EPC diagram — 17C657 — vacuum tube — 17C657 (201908 – 999999)

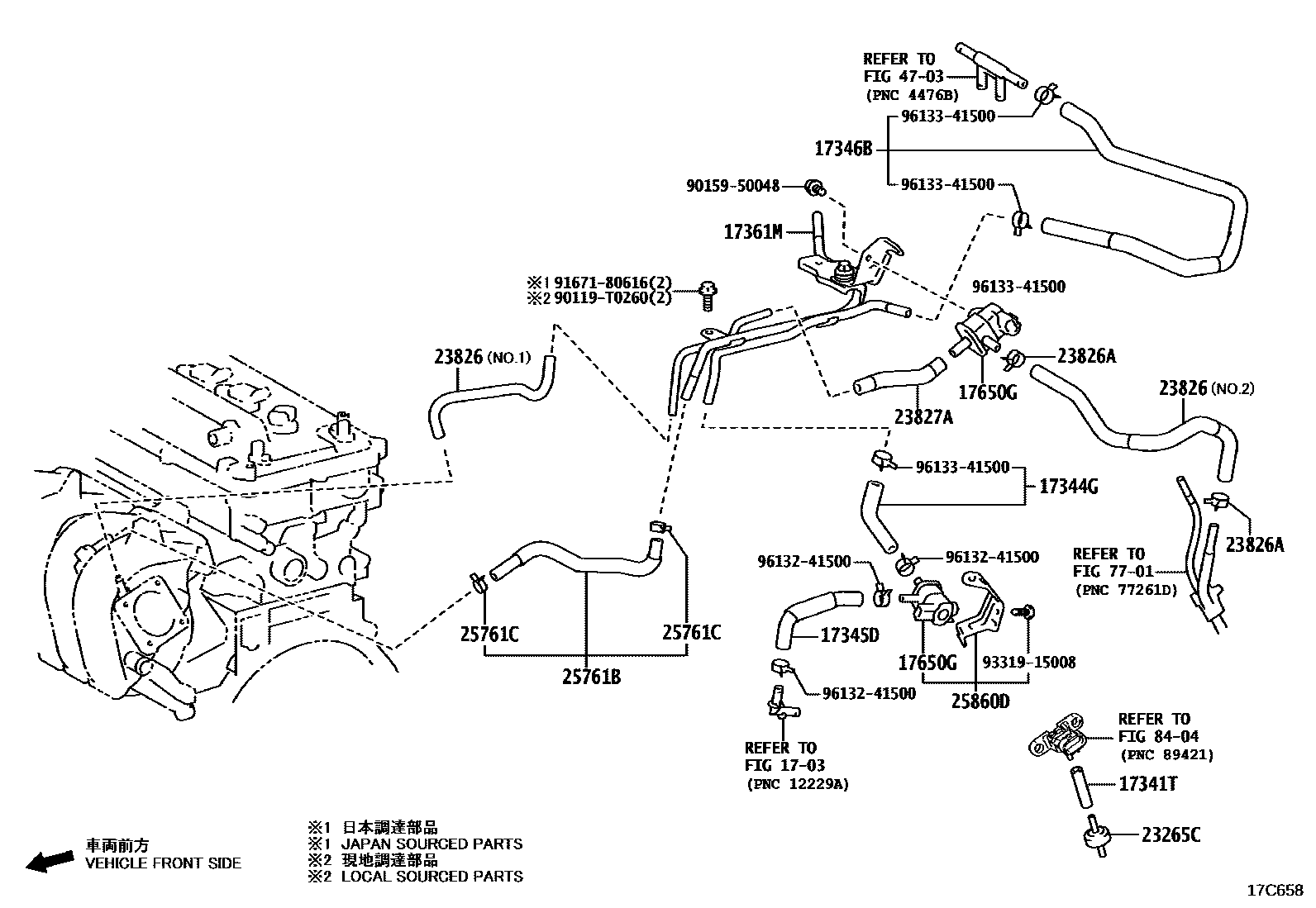

Toyota COROLLA vacuum tube EPC diagram — 17C658 — vacuum tube — 17C658 (201904 – 999999)

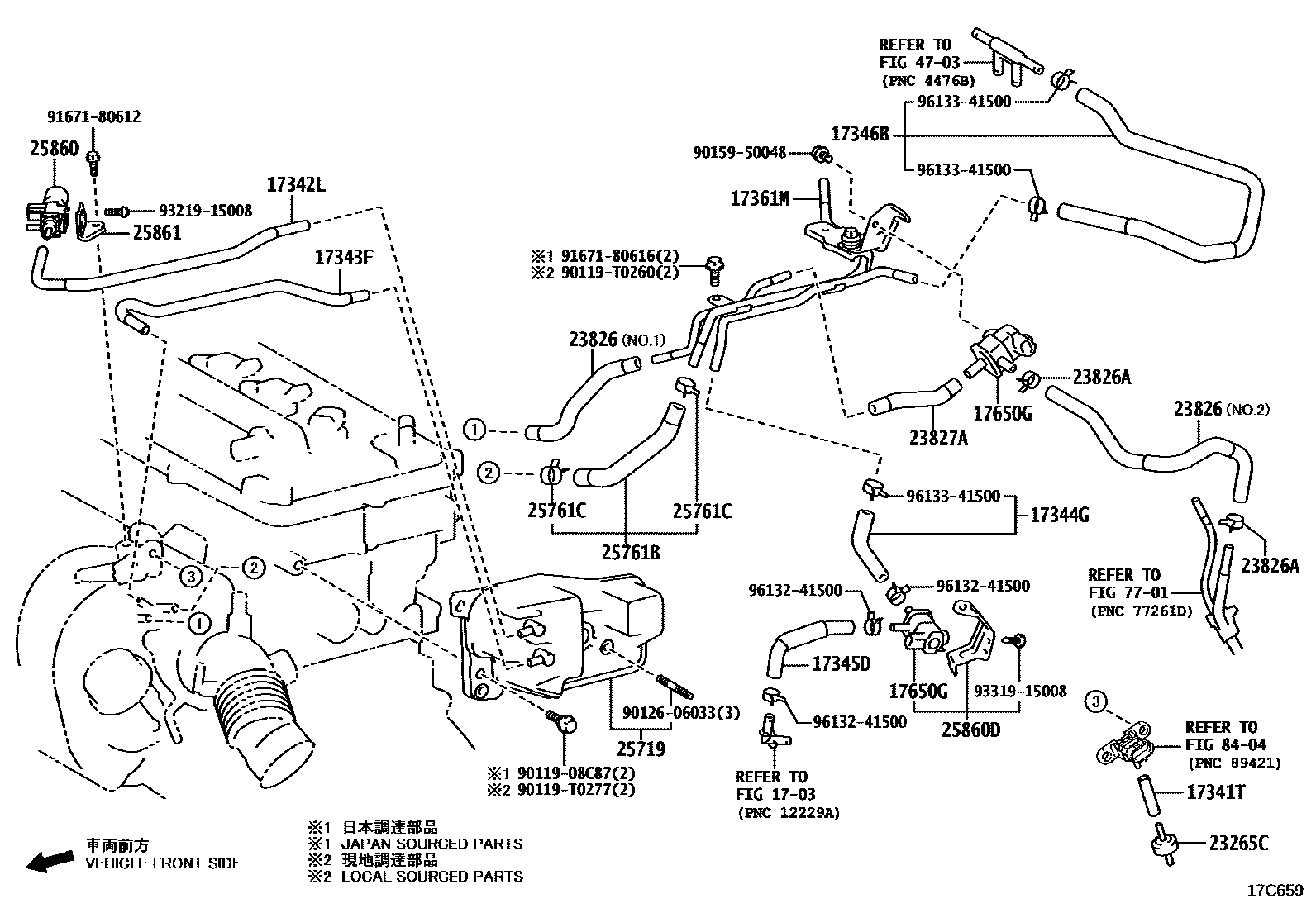

Toyota COROLLA vacuum tube EPC diagram — 17C659 — vacuum tube — 17C659 (202201 – 999999)

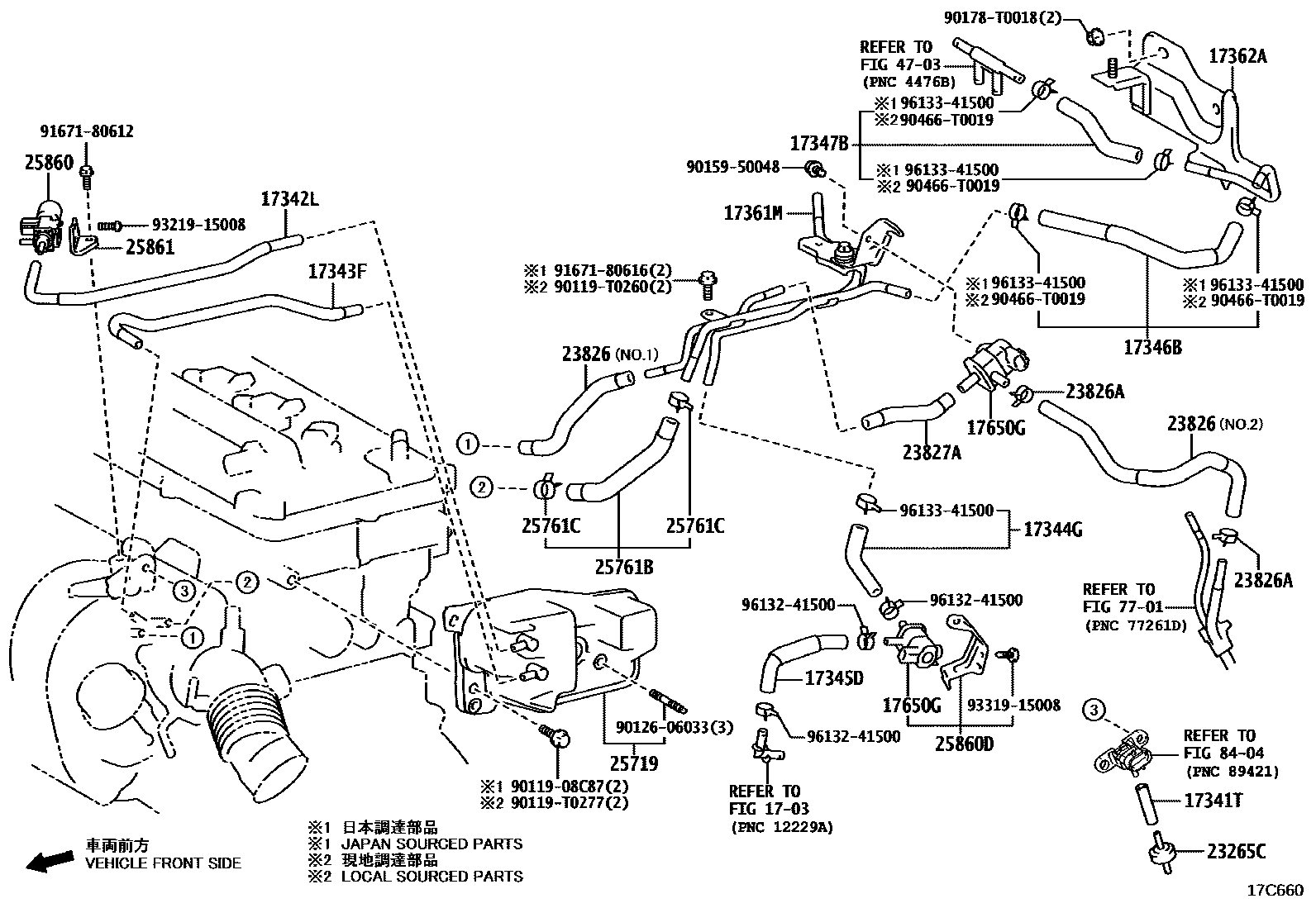

Toyota COROLLA vacuum tube EPC diagram — 17C660 — vacuum tube — 17C660 (201908 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17341P	air hose	17341-37090
17341T	Air hose No. 1	17341-0T080 · 17341-37060 · 17341-37080
17342L	Air hose No. 2	17342-0T060 · 17342-37050 · 17342-37060
17343F	No. 3 air hose	17343-0T010 · 17343-37040
17344G	No. 4 air hose	17344-0T060 · 17344-37040
17345D	No. 5 air hose	17345-0T040
17346B	No. 6 air hose	17346-0T010 · 17346-0T020
17347B	No. 7 air hose	17347-0T010
17361M	air tube	17361-0T040 · 17361-0T050 · 17361-0T060 · 17361-37011 · 17361-37070 · 17361-37120 · 17361-37140
17362A	No. 2 air pipe	17362-0T010
17650G	Duty cycle controlled vacuum switching valve	90910-12276 · 90910-TC001
23265	No. 1 gas filter	90917-11022
23265C	gas filter	90917-11030
23818	Fuel vapor supply pipe	23818-37030 · 23818-37050
23820	Fuel vapor supply hose assembly	23820-15040
23826	No. 1 fuel vapor supply hose	23826-0T120 · 23826-0T130 · 23826-0T360 · 23826-0T370 · 23826-0T410 · 23826-0T450 · 23826-0T560 · 23826-0T570 · 23826-24030 · 23826-24091 · 23826-37021 · 23826-37050 · 23826-37190 · 23826-37250 · 23826-37330 · 23826-37331 · 23826-37340
23826A	Clamp (for No. 1 fuel vapor supply hose)	96132-51300 · 96136-41901
23827A	No. 2 fuel vapor supply hose	23826-24100 · 23827-0T040 · 23827-0T060 · 23827-37020 · 23827-37030 · 23827-37060 · 23827-37070
23827F	No. 3 fuel vapor supply hose	23826-24110
23827G	Clamp (for No. 3 fuel vapor supply hose)	96136-41801
23829B	Clamp (for fuel vapor supply hose)	96136-41901
23830	No. 2 fuel vapor supply hose assembly	23826-15010
23841G	fuel hose clamp	77196-33040
25719	Vacuum pressure tank	25719-24020 · 25719-37011
25761B	No. 1 Vacuum Transfer Hose	25761-0T080 · 25761-37011 · 25761-37040 · 25761-37041 · 25761-37080
25761C	Clamp (No. 1 vacuum transfer hose)	96133-41500
25860	No. 1 vacuum switch valve assembly	25860-15040 · 25860-24050 · 90910-12281
25860D	No. 2 vacuum switch valve assembly	25860-0T020
25861	Vacuum switch valve bracket	25861-37010
