Toyota COROLLA Exhaust Pipe — Figure 1702

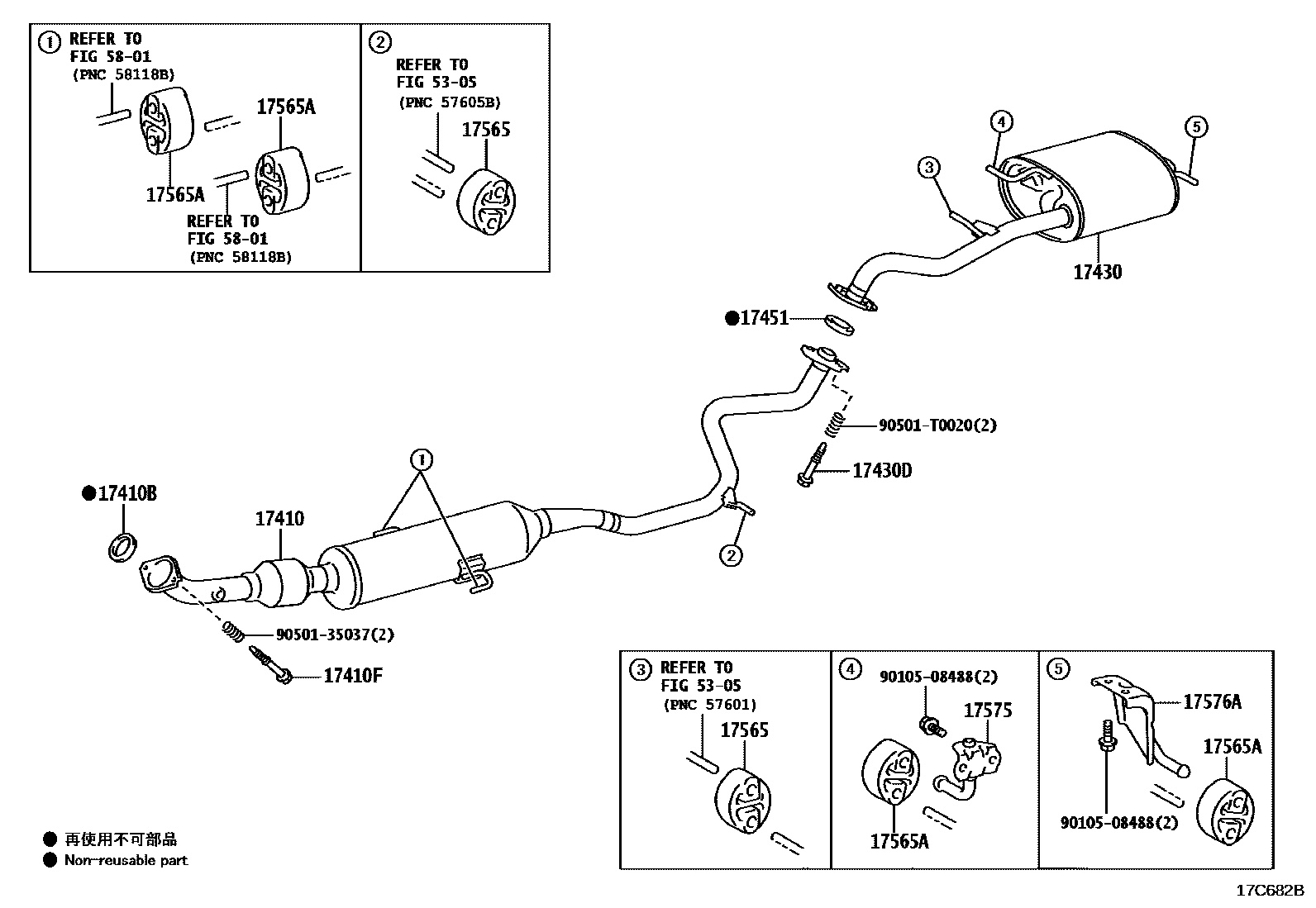

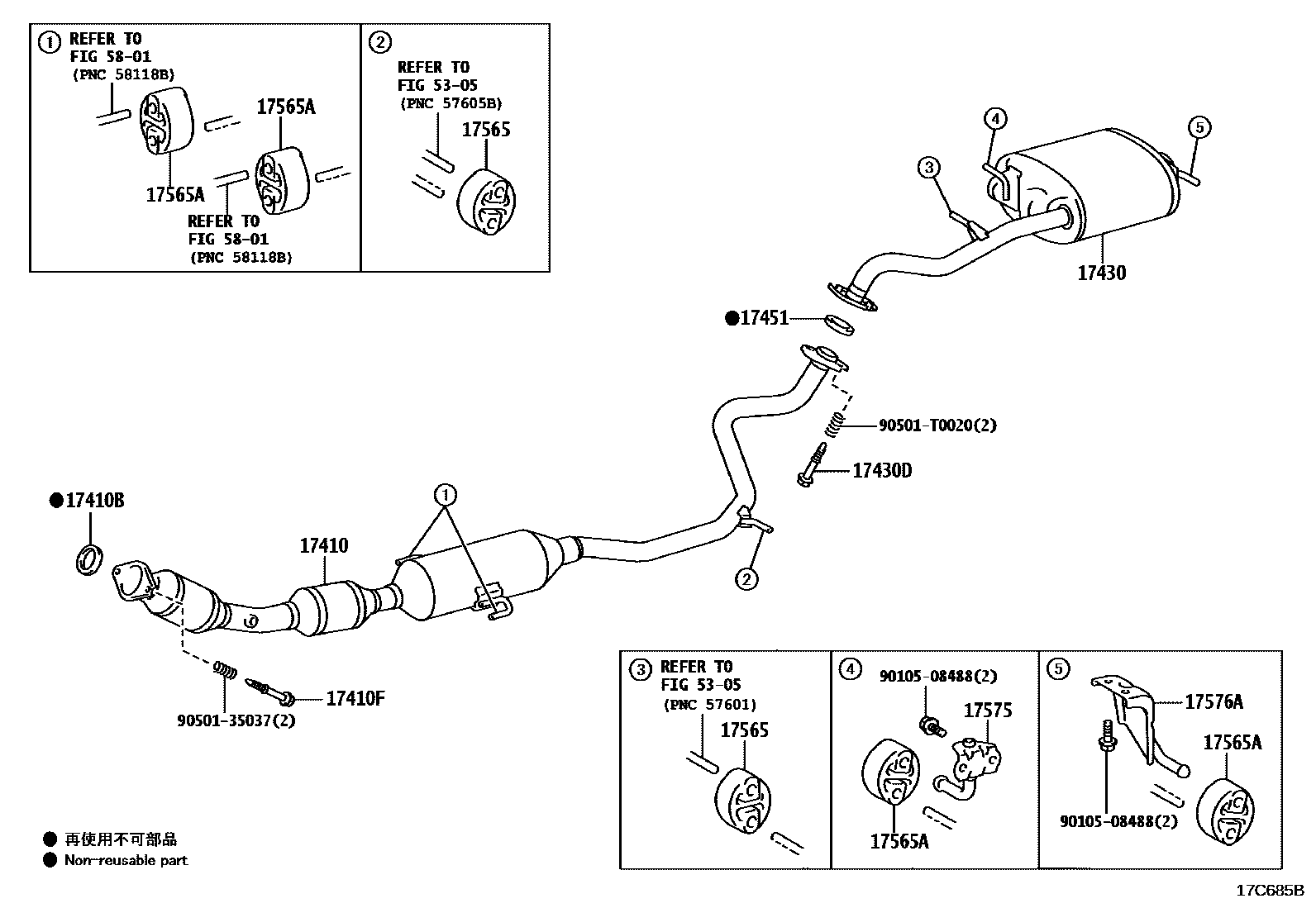

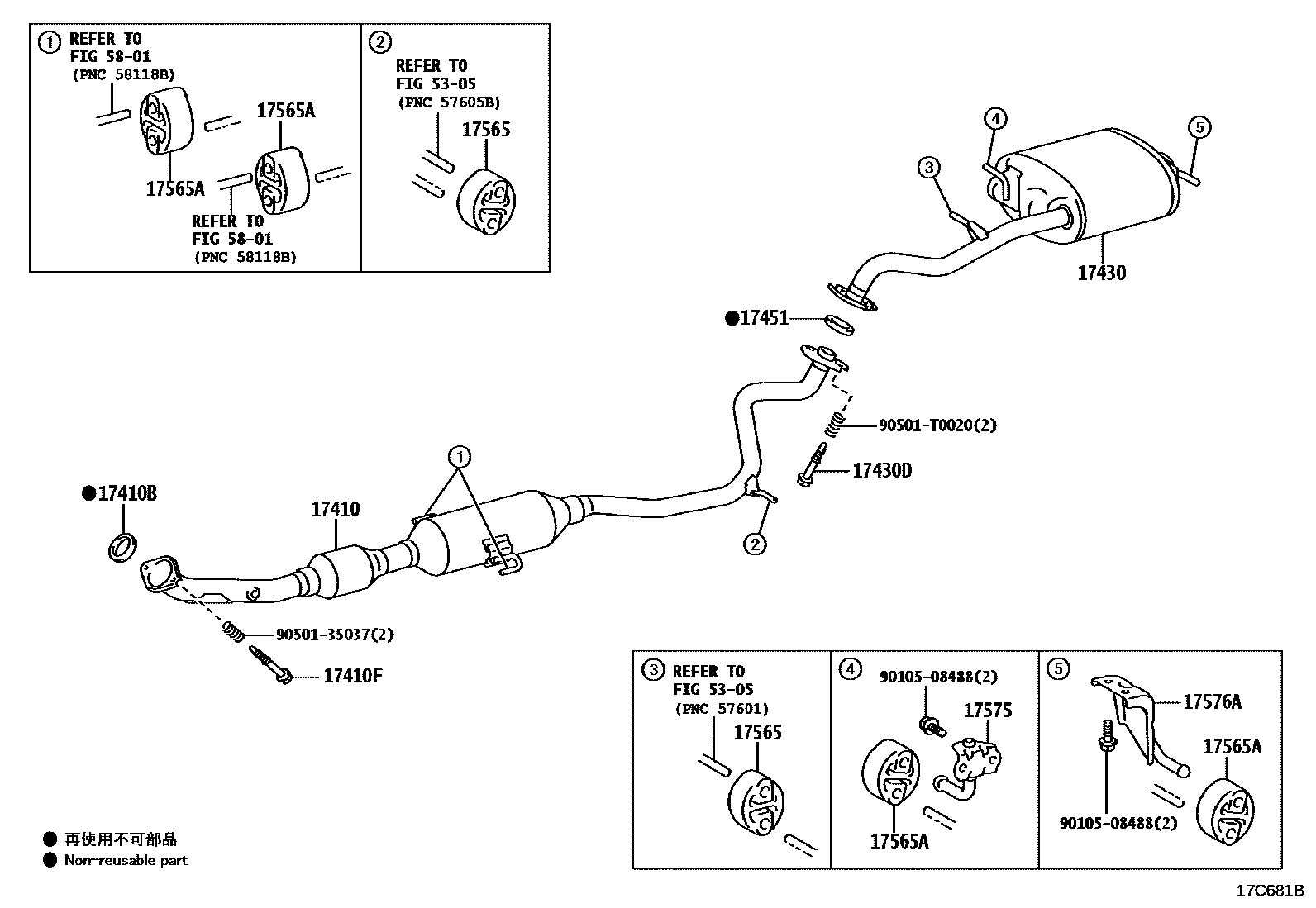

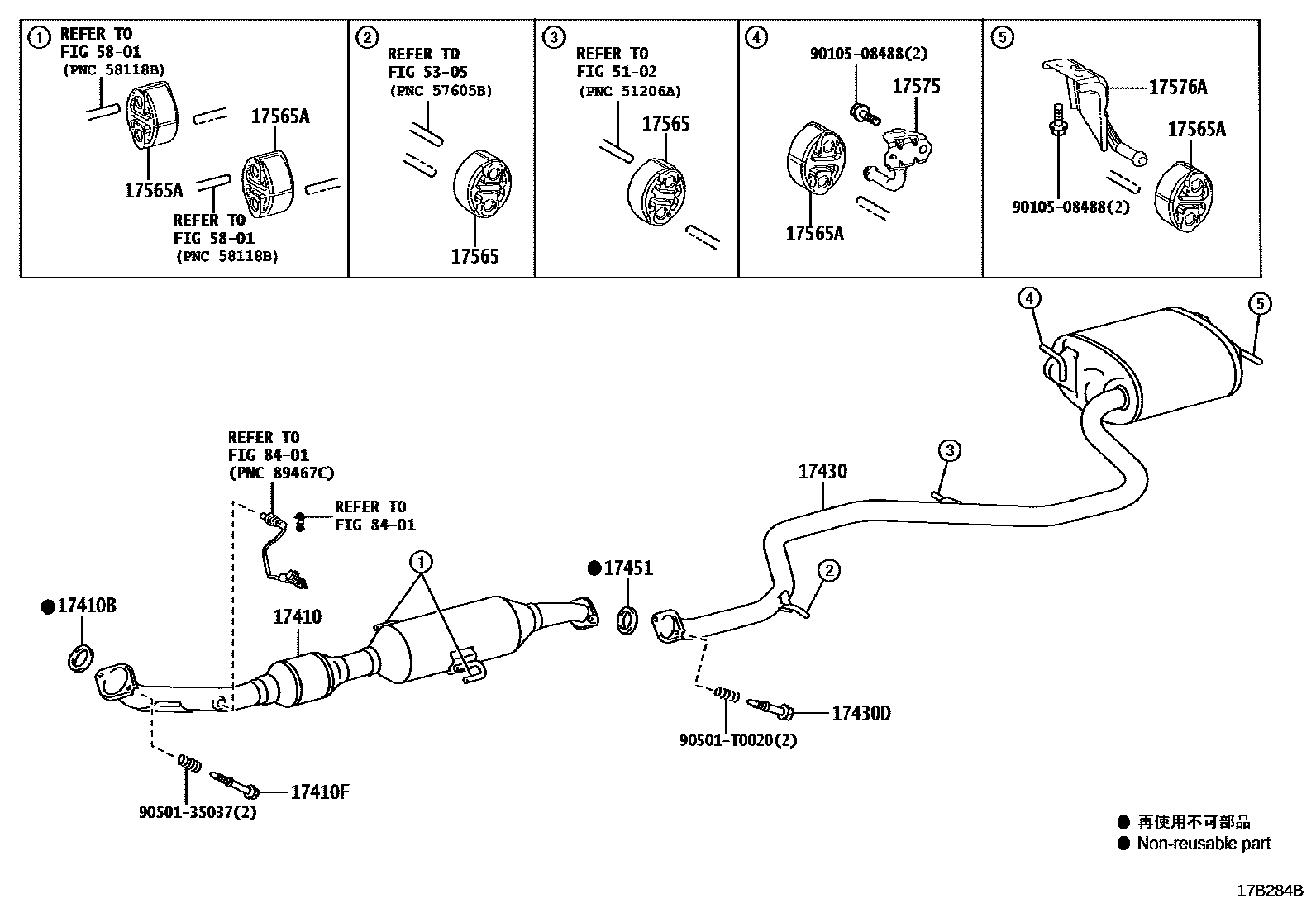

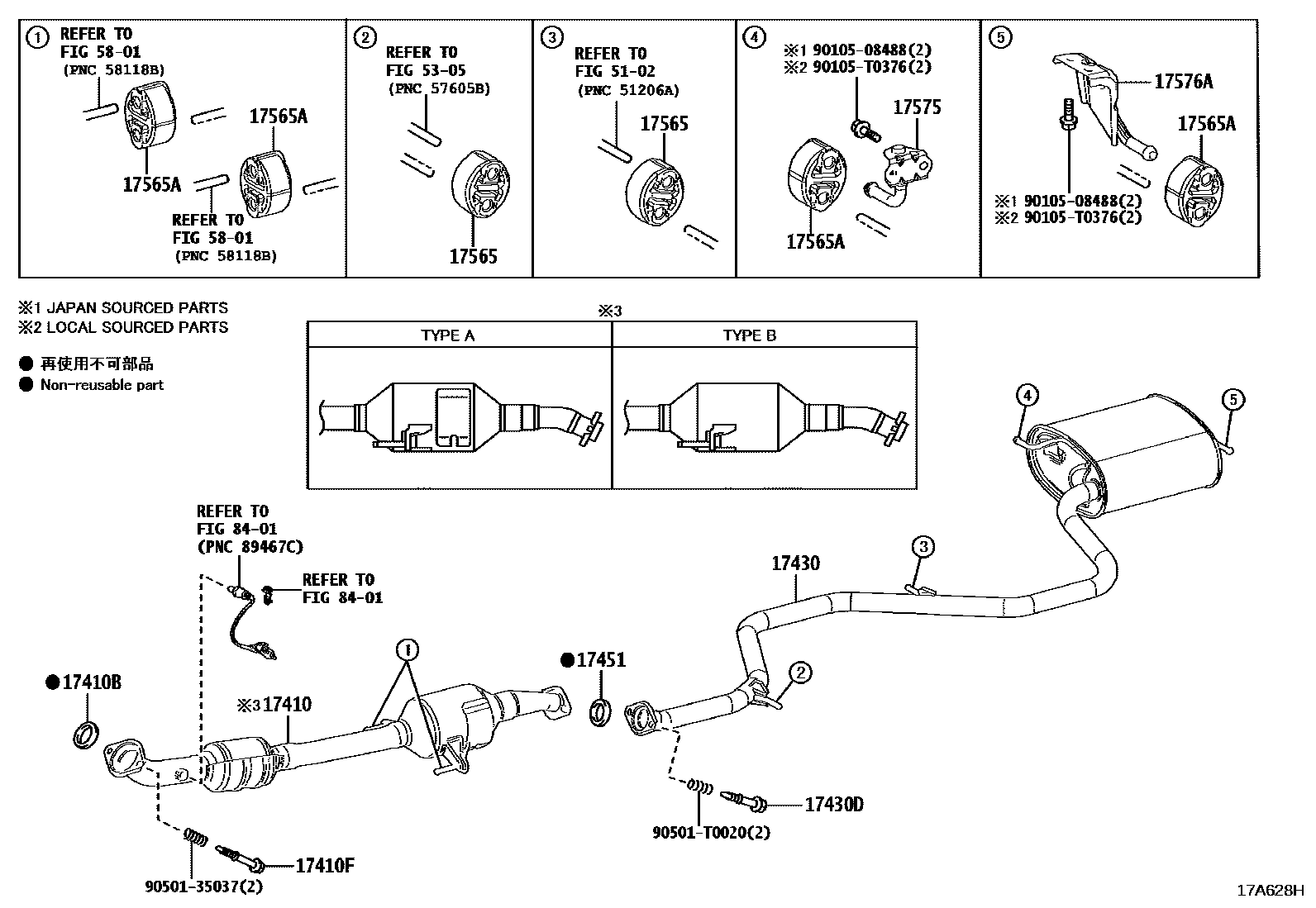

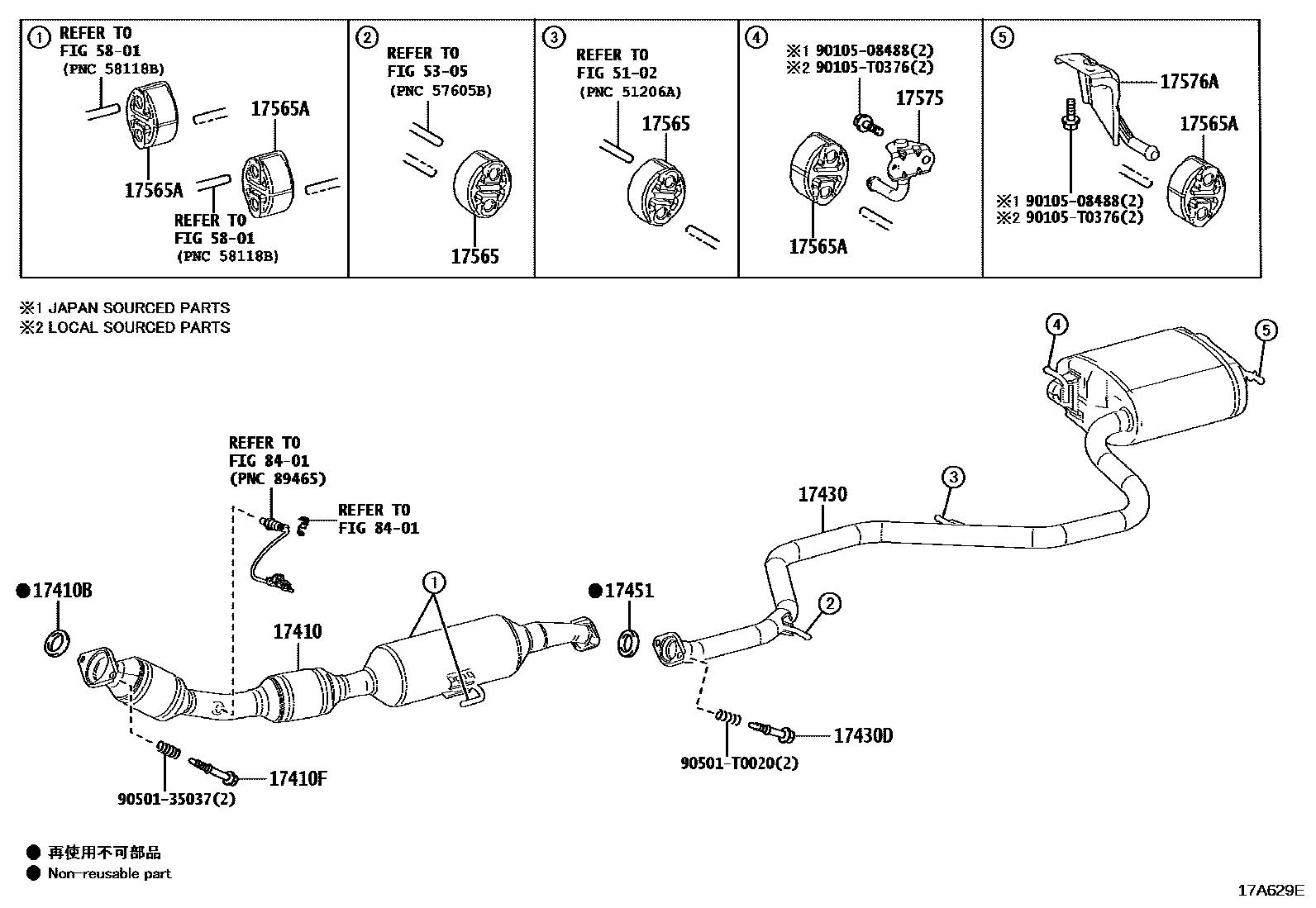

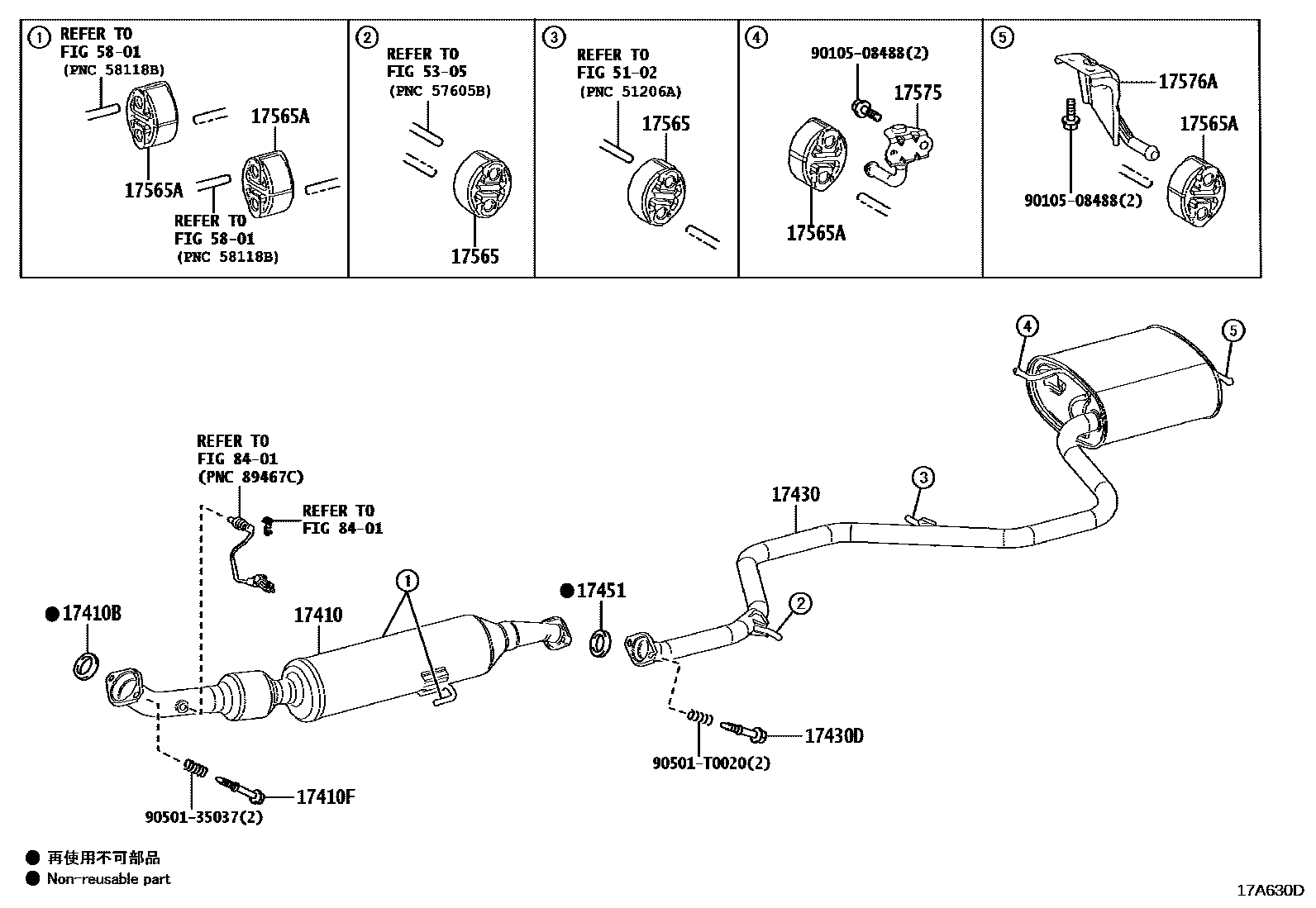

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 7 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-0TE00 · 17410-0TE10 · 17410-0TE11 · 17410-0TE30 · 17410-0TE40 · 17410-0TE70 · 17410-0TE80 · 17410-0TE81 · 17410-0TJ40 · 17410-0TK50 · 17410-0TK60 · 17410-0TK90 · 17410-0TL00 · 17410-0TL10 · 17410-0TL20 · 17410-0TL30 · 17410-0TL40 · 17410-0TP00 · 17410-0TP10 · 17410-0TP20 · 17410-0TP30 · 17410-0TP40 · 17410-0TP50 · 17410-0TP60 · 17410-0TP70 · 17410-F2090 · 17410-F2490 · 17410-F3070 · 17410-F3080 · 17410-F3110 · 17410-F3140 |
| 17410B | Exhaust pipe gasket | 17451-15010 · 17451-24010 · 17451-28040 · 17451-28041 |
| 17410F | Front exhaust pipe bolt or ring (for front) | 90109-10182 · 90109-T0005 · 90901-05020 |
| 17430 | Exhaust tailpipe assembly | 17430-0T560 · 17430-0T570 · 17430-0T590 · 17430-0T600 · 17430-0T660 · 17430-0T820 · 17430-0T860 · 17430-0T861 · 17430-0T870 · 17430-0T871 · 17430-F2070 · 17430-F2330 · 17430-F3060 · 17430-F3120 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 90109-10183 · 90109-T0016 · 90901-05026 |
| 17451 | Exhaust pipe gasket | 17451-0M032 · 17451-23042 · 17451-23043 · 17451-24020 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0P240 · 17565-28010 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0D120 · 17565-0P110 |
| 17575 | No. 5 exhaust pipe bracket | 17575-0T110 · 17575-0T140 |
| 17576A | No. 6 exhaust pipe bracket | 17576-0T060 · 17576-0T090 |
