Toyota COROLLA Water Pump — Figure 1601

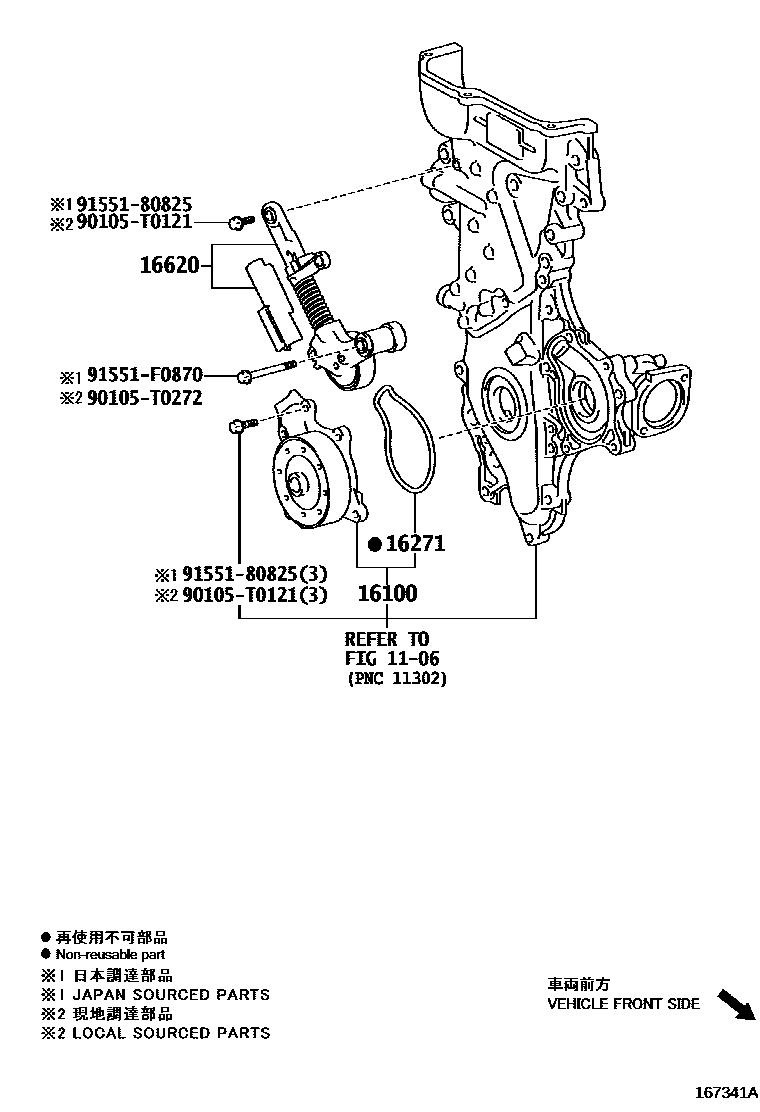

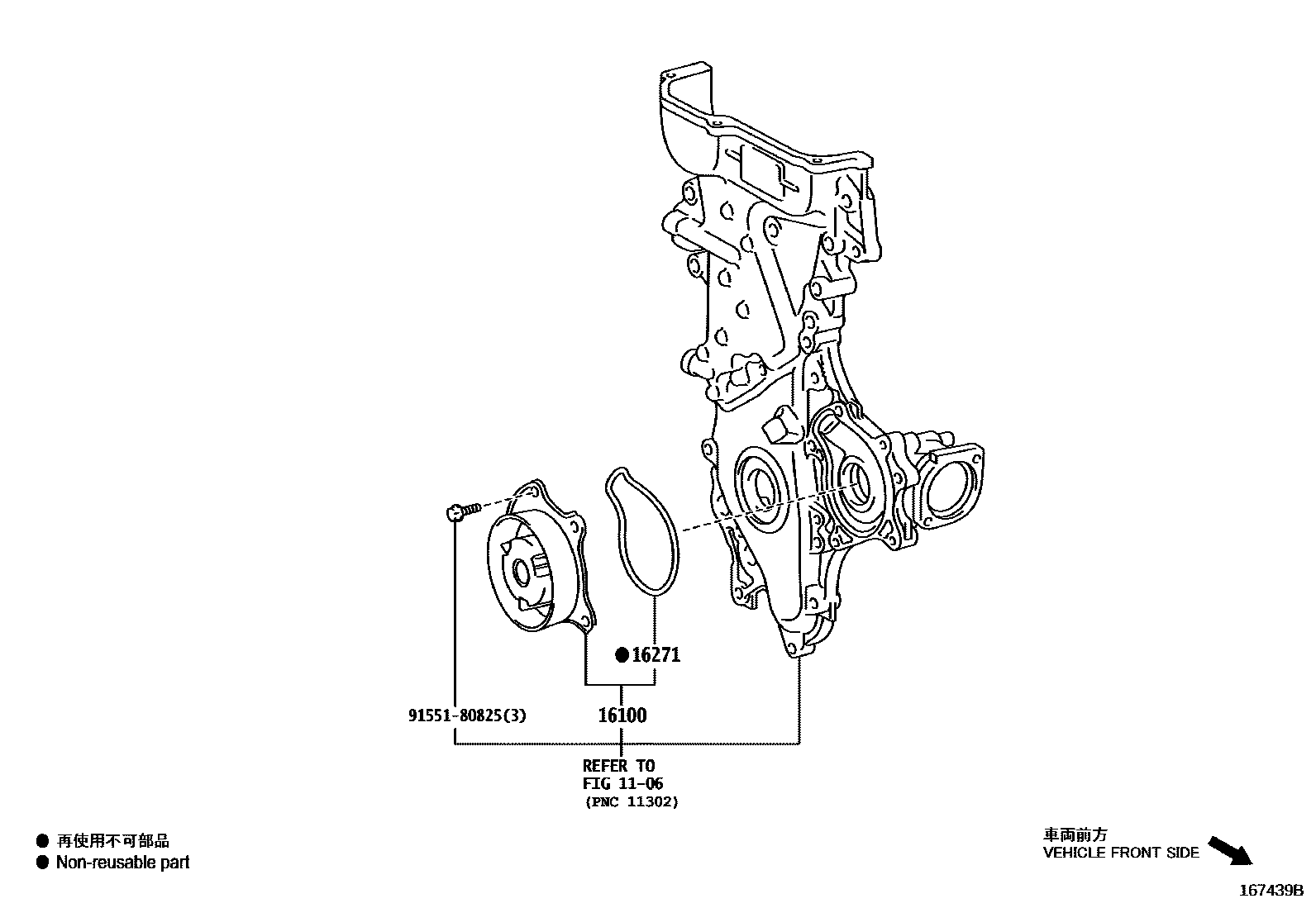

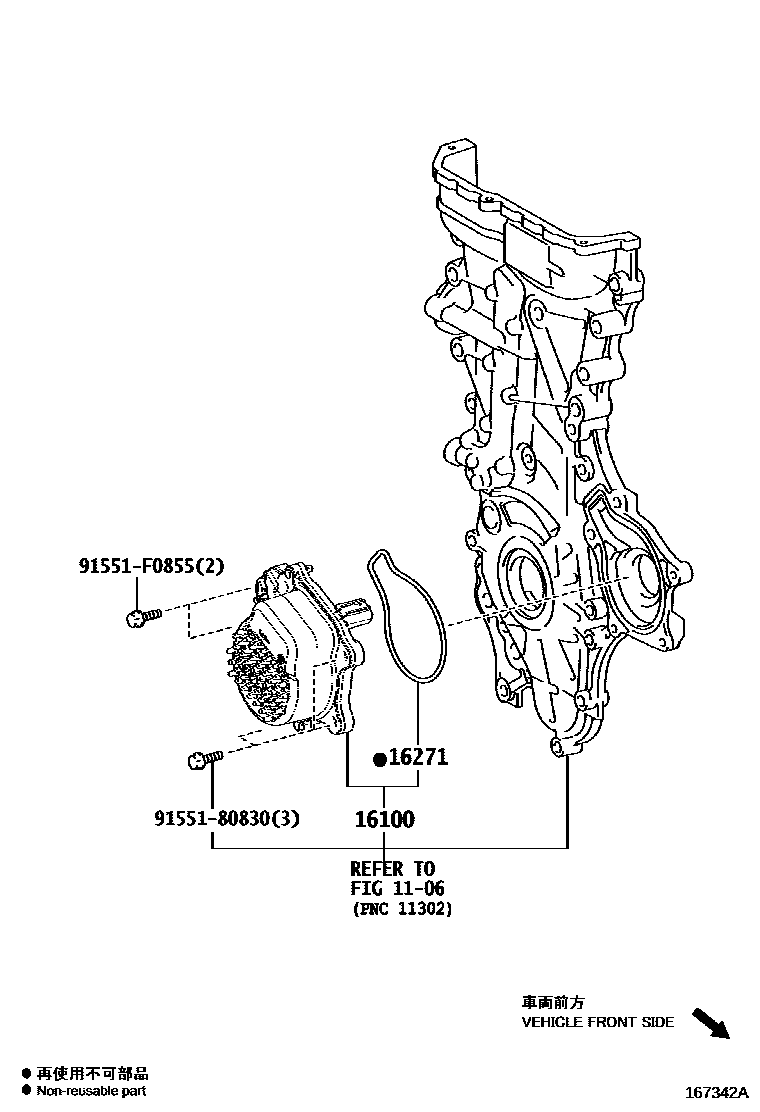

Toyota COROLLA EPC diagram 1601, Water Pump, with 3 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-09740 · 16100-39466 · 16100-39565 · 161A0-39035 |
| 16271 | water pump gasket | 16271-37010 · 16271-37020 · 16271-37030 |
| 16620 | Poly V-belt tensioner assembly | 16620-37030 · 16620-37040 |
