Toyota COROLLA Crankshaft & Piston — Figure 1301

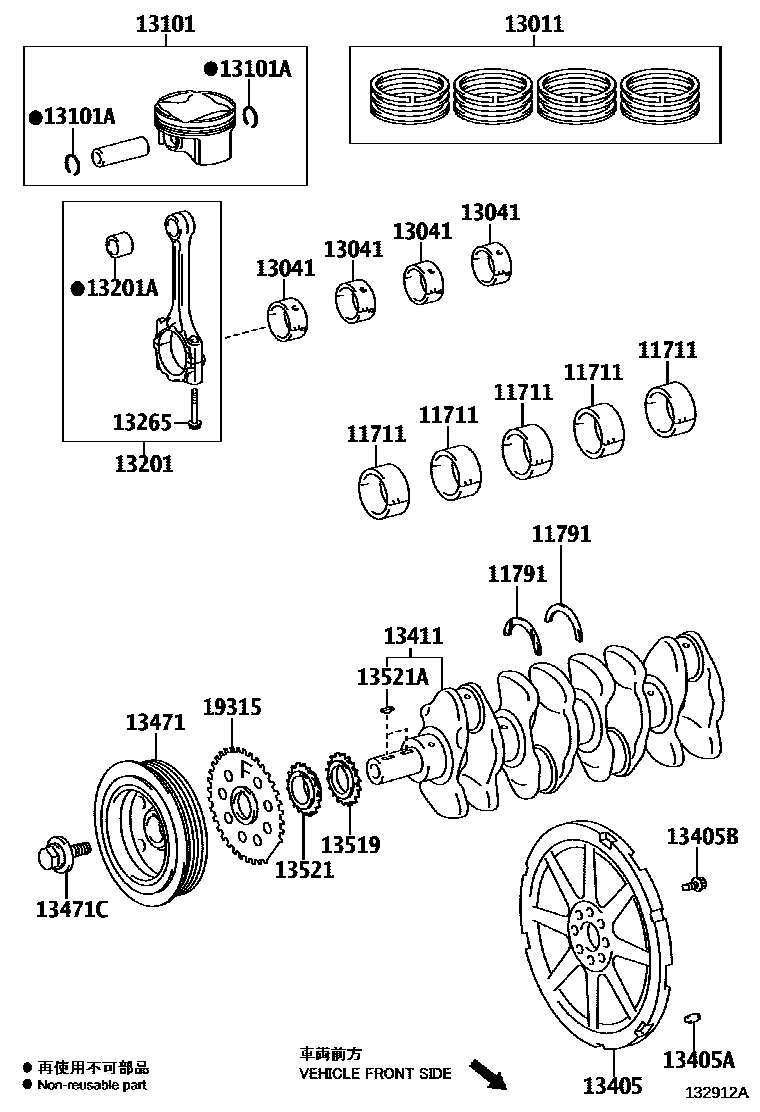

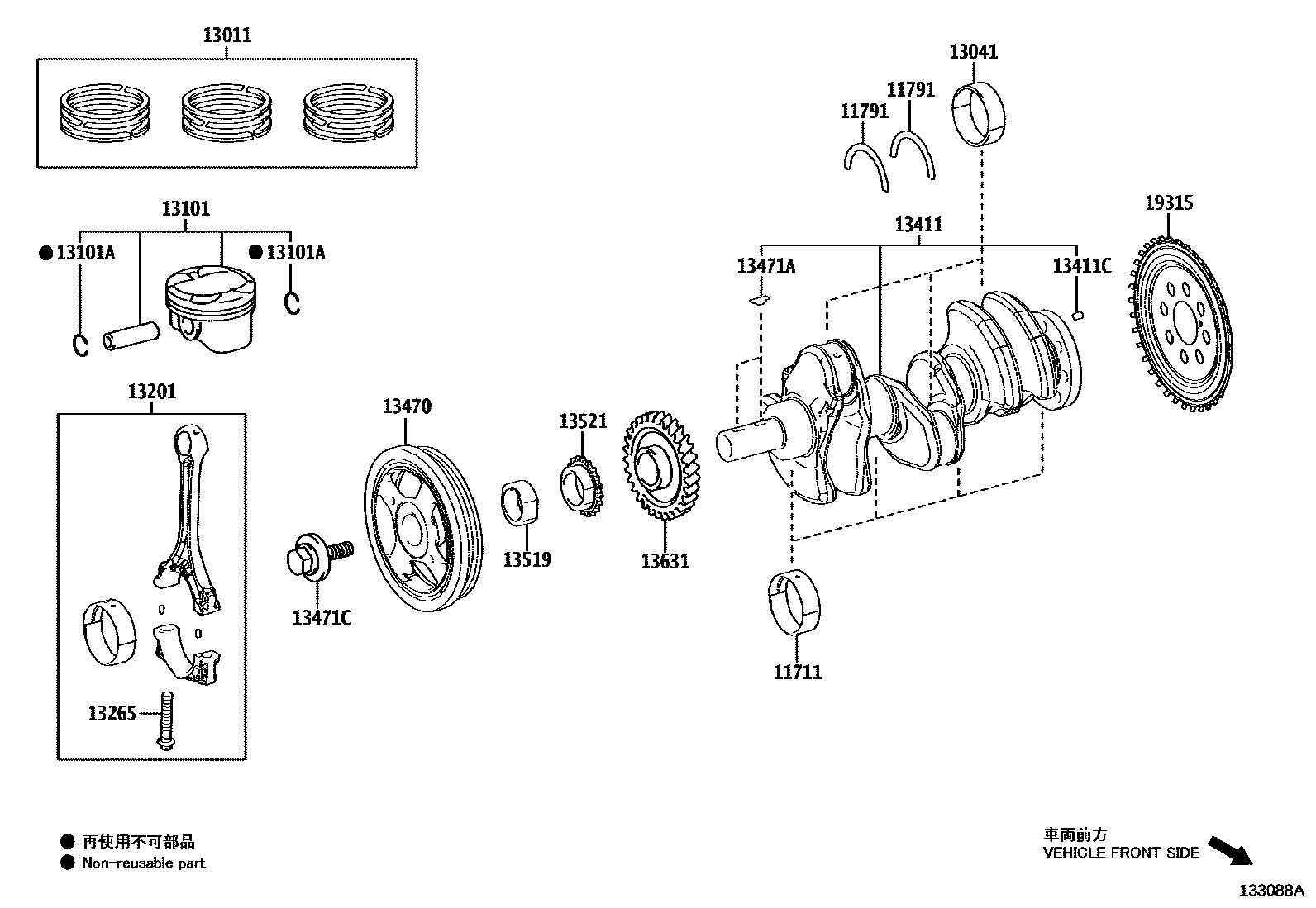

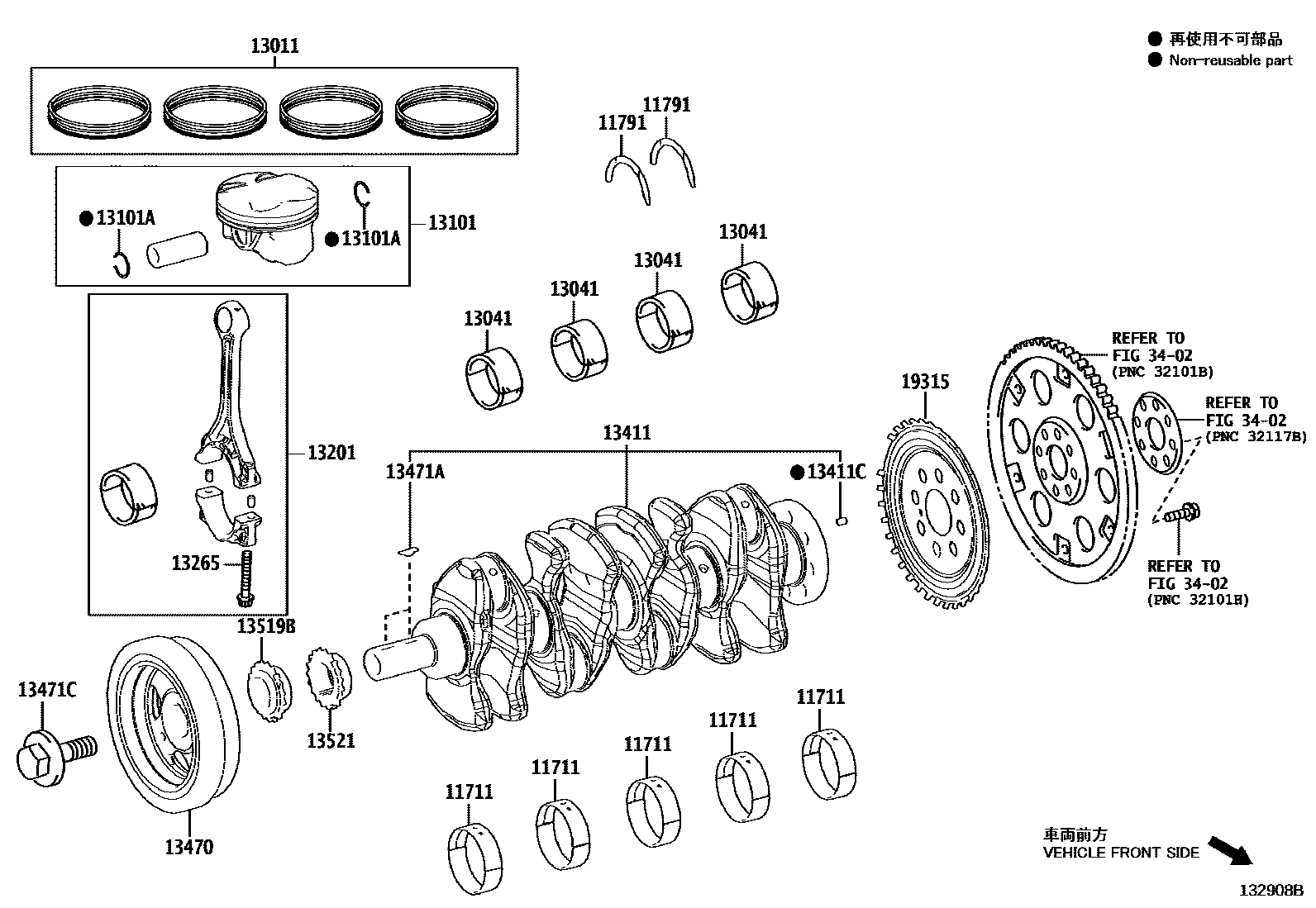

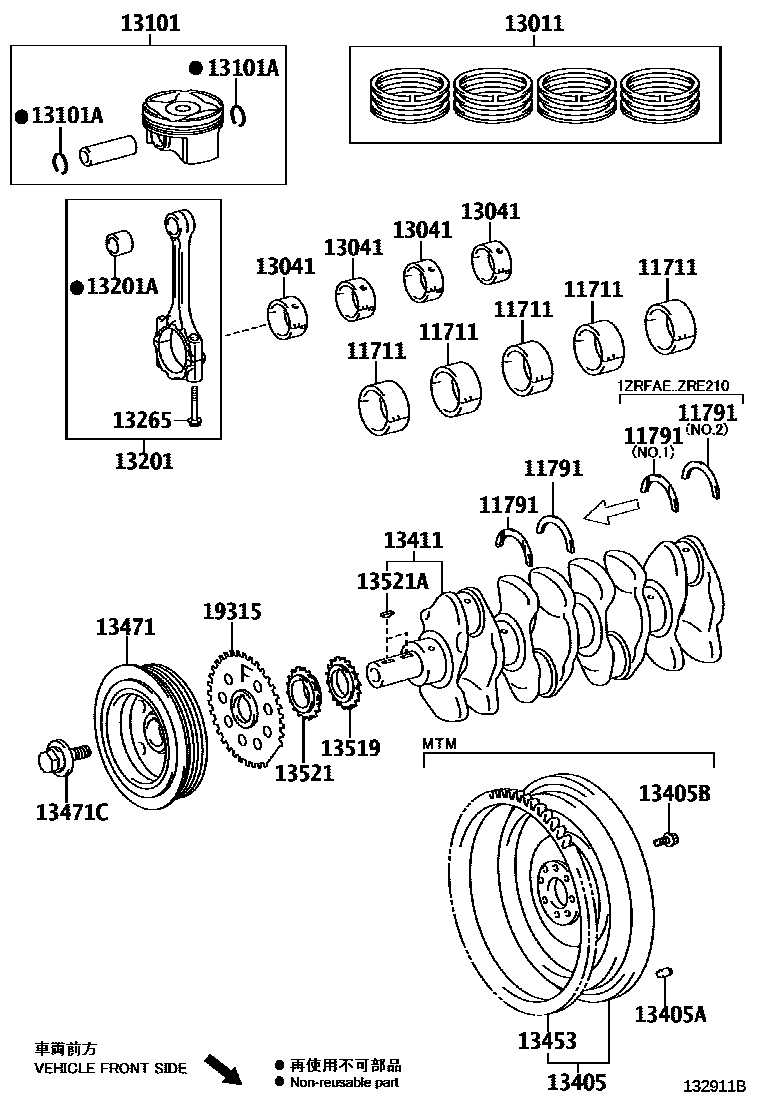

Toyota COROLLA EPC diagram 1301, Crankshaft & Piston, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11791 | Thrust washer on crankshaft | 11791-0M020 · 11791-15030 · 11791-22020 · 11791-24030 · 11791-37010 |
| 13011 | Piston ring assembly | 13011-0T180 · 13011-0T190 · 13011-0T240 · 13011-0T250 · 13011-15150 · 13011-24040 · 13011-37150 · 13011-37290 · 13011-37300 · 13011-37350 |
| 13101 | Piston sub-assembly with pin | 13101-0T151 · 13101-0T240 · 13101-0T290 · 13101-0T370 · 13101-0T380 · 13101-0T400 · 13101-24040 · 13101-37260 · 13101-37270 · 13101-37360 |
| 13101A | Bore snap ring (for piston pin) | 90520-19019 · 90520-20064 |
| 13201 | Connecting rod sub-assembly | 13201-09B40 · 13201-09D40 · 13201-39185 · 13201-39295 |
| 13201A | Bushing (for connecting rod small end) | 90999-73151 |
| 13265 | Connecting rod bolts | 13265-22040 · 13265-25020 |
| 13405 | Flywheel sub-assembly | 13405-0T020 · 13405-37051 · 13451-37070 |
| 13405A | Direct sales (for flywheel) | 90250-08120 · 90250-T0007 |
| 13405B | Flywheel fixing bolt | 90913-01027 · 90913-T1003 |
| 13411 | crankshaft | 13401-0T041 · 13401-0T071 · 13401-15010 · 13401-24010 · 13401-37011 · 13401-37021 |
| 13411C | Direct sales (for crankshaft) | 90250-06035 |
| 13453 | flywheel ring gear | 13453-0M010 · 13453-0T010 · 13453-10010 |
| 13470 | Crankshaft wheel assembly | 13470-15140 · 13470-15141 · 13470-24010 |
| 13471 | crankshaft pulley | 13470-0T050 · 13470-37042 · 13470-37060 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-04001 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-14106 · 90119-16020 · 90119-T0444 |
| 13519 | Oil pump driving gear | 13519-0T020 · 13519-15010 · 13519-37010 |
| 13519B | Oil pump sprocket | 13519-24010 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0T050 · 13521-15030 · 13521-15050 · 13521-24010 · 13521-37011 |
| 13521A | Key (for crankshaft timing gear) | 90280-04003 |
| 13631 | Balance shaft drive gear | 13631-15010 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-0T040 · 19315-24010 · 19315-37020 |
