Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 4 images and 9 PNC and OE references.

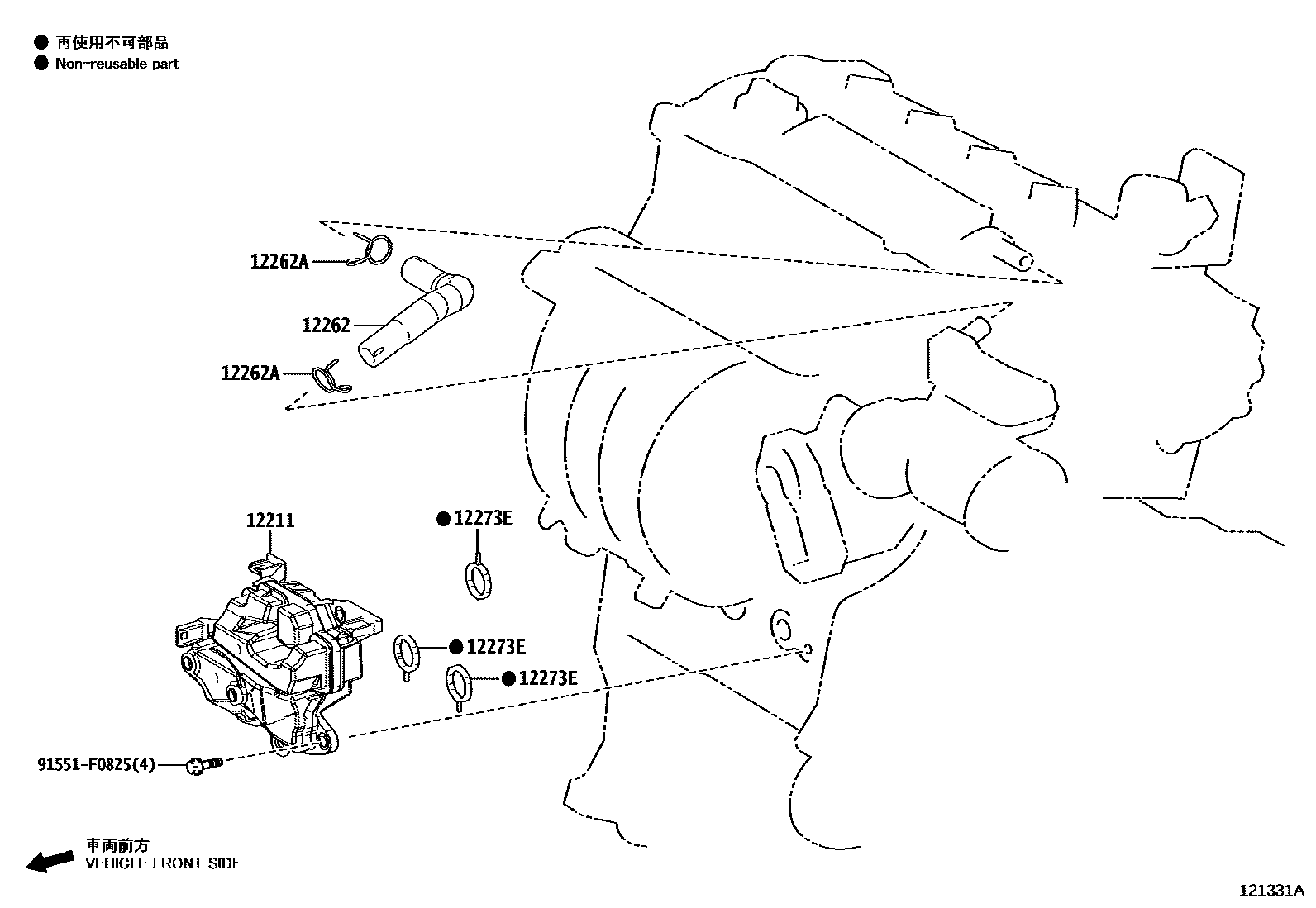

Toyota COROLLA Ventilation Hose EPC diagram — 121331A
Ventilation Hose — 121331A (201904 – 999999)

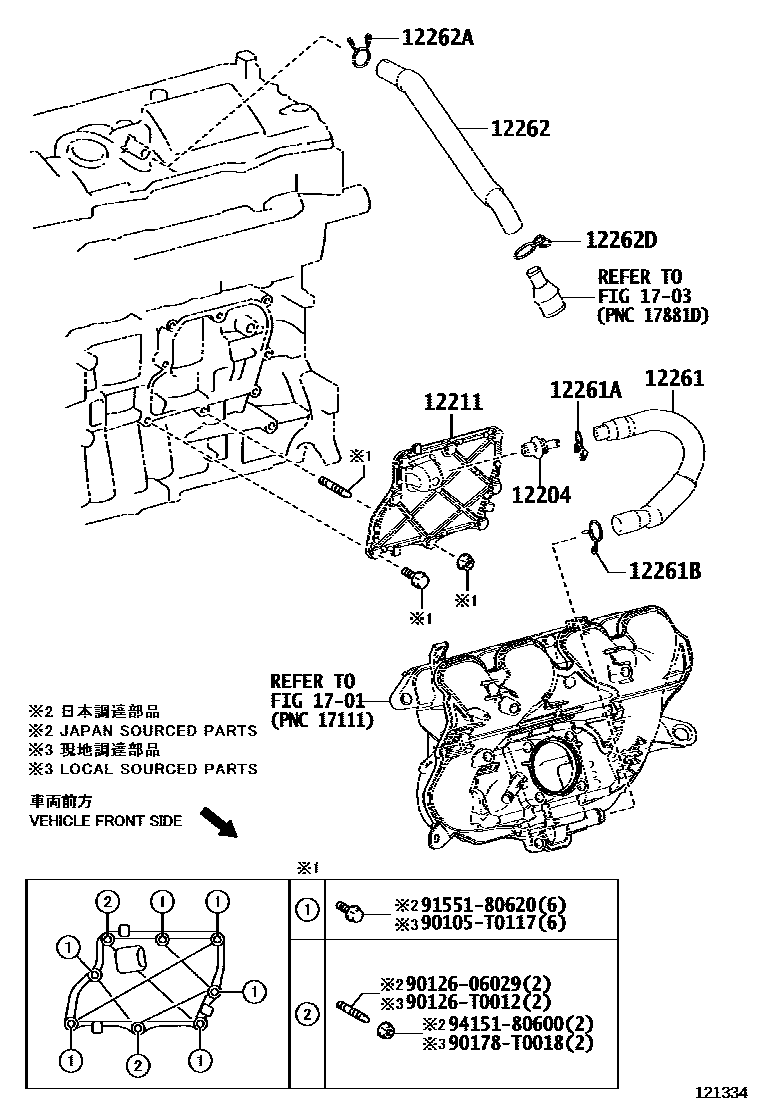

Toyota COROLLA Ventilation Hose EPC diagram — 121334
Ventilation Hose — 121334 (201904 – 999999)

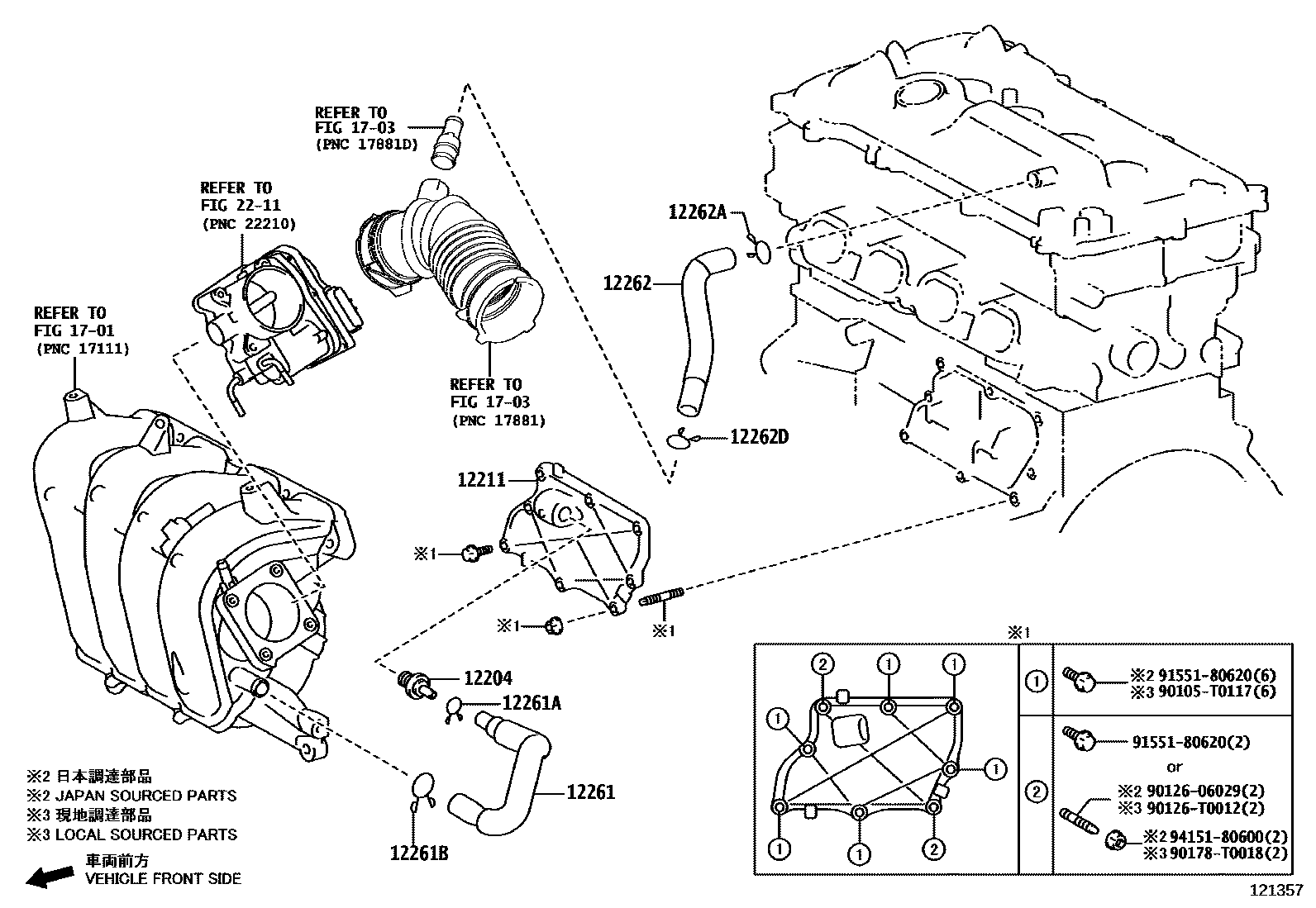

Toyota COROLLA Ventilation Hose EPC diagram — 121357
Ventilation Hose — 121357 (201904 – 999999)

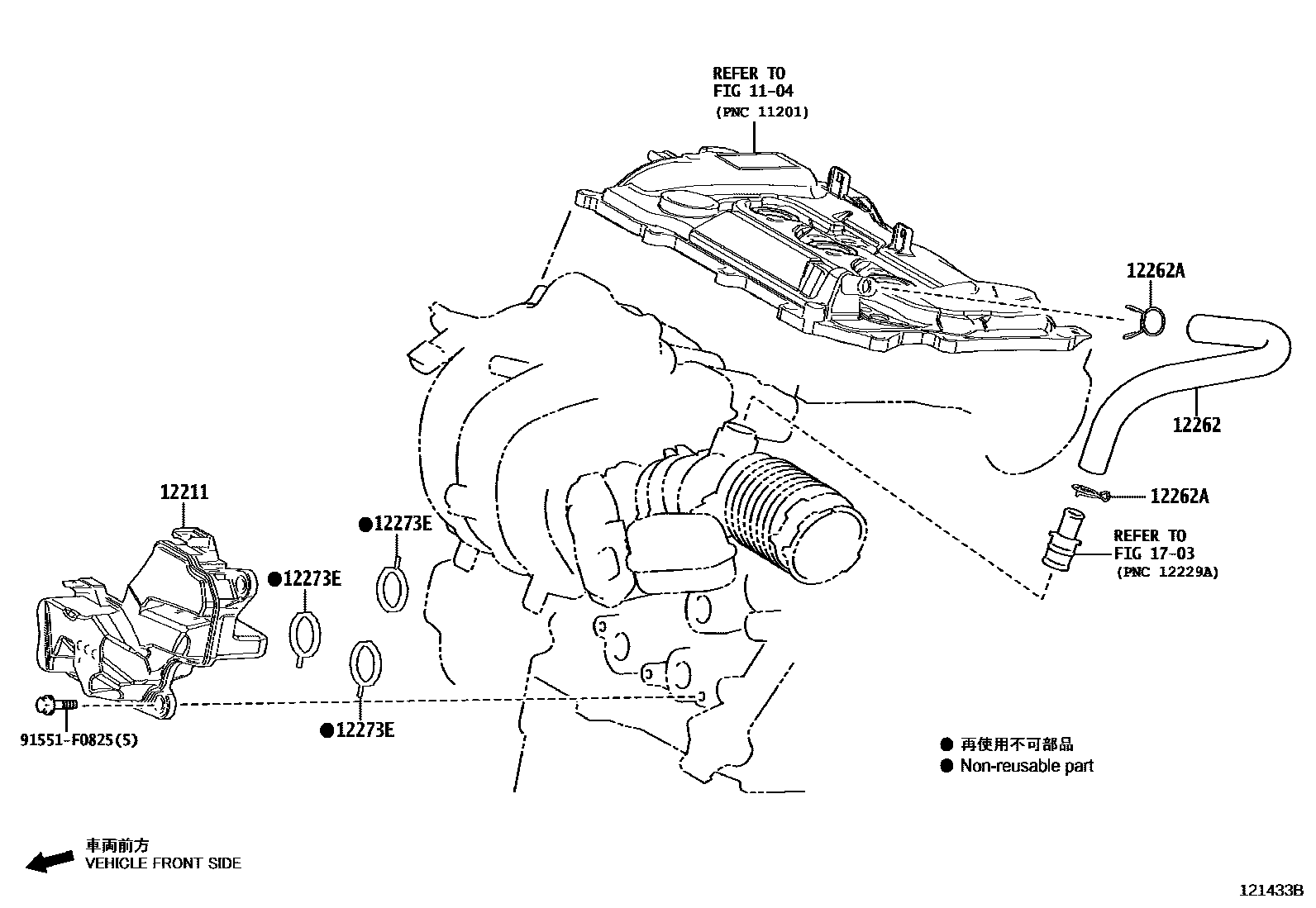

Toyota COROLLA Ventilation Hose EPC diagram — 121433B
Ventilation Hose — 121433B (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-37010 · 12204-37040 · 12204-37060
12211Ventilation box No. 112211-0T040 · 12211-15060 · 12211-15061 · 12211-24010 · 12211-24020 · 12211-37010
12261Ventilation Hose12261-0T050 · 12261-37040 · 12261-37070 · 12261-37090
12261AClip or clip (for vent hose)90467-15120
12261BClip or clip (for vent hose)90466-22005 · 90466-T0032 · 90467-22010 · 90467-23002
12262Ventilation hose No. 212262-0T040 · 12262-0T090 · 12262-0T100 · 12262-15120 · 12262-24020 · 12262-37020 · 12262-37030 · 12262-37060 · 12262-37070 · 12262-37071 · 12262-37110
12262AClamp (for vent hose No. 2)90466-T0027 · 90467-21004
12262DClamp (for vent hose No. 2)90466-T0027 · 90467-21004
12273EPads (for ventilation boxes)12273-15010 · 12273-24010
