Toyota COROLLA Engine Mounting — Figure 1107

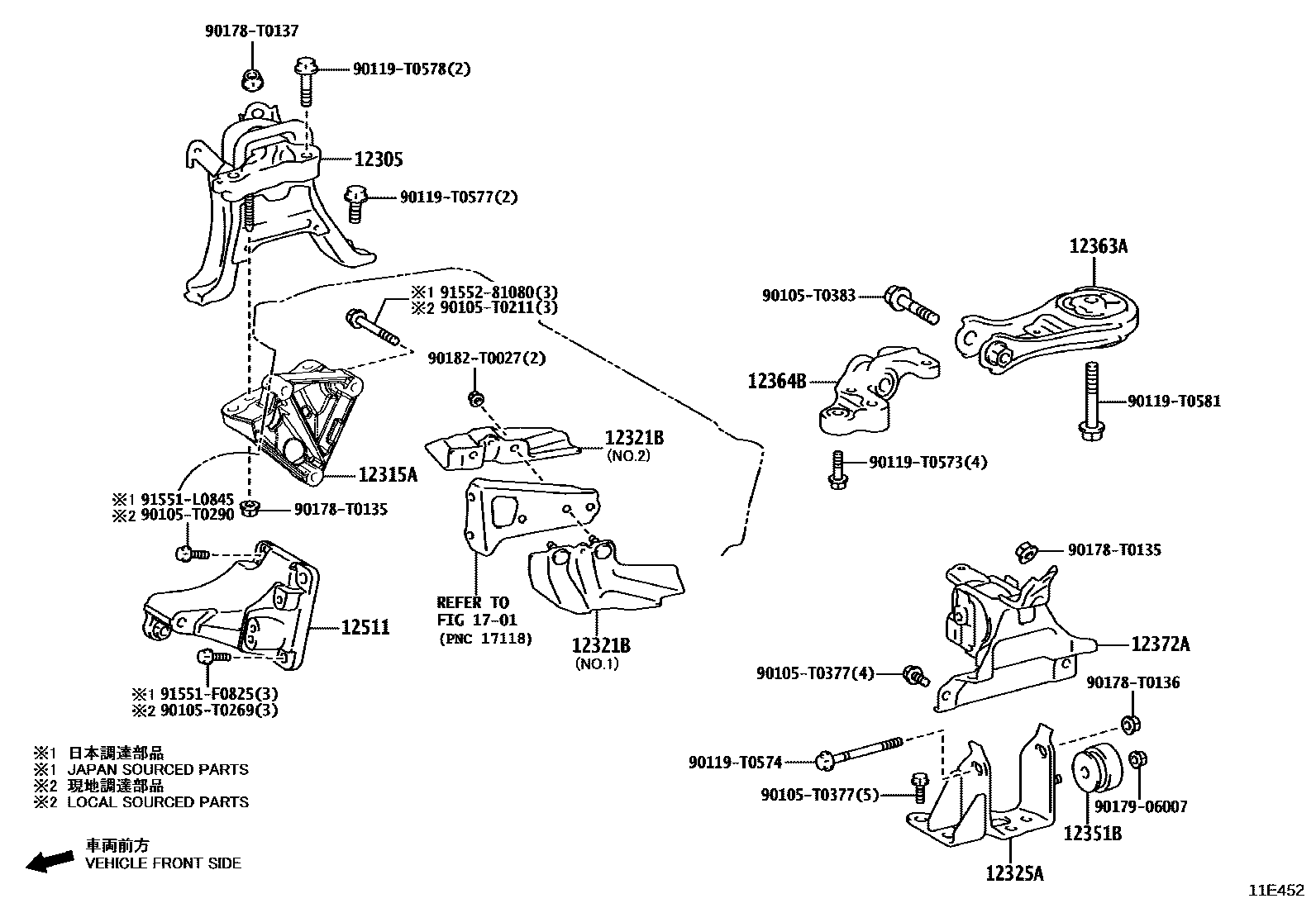

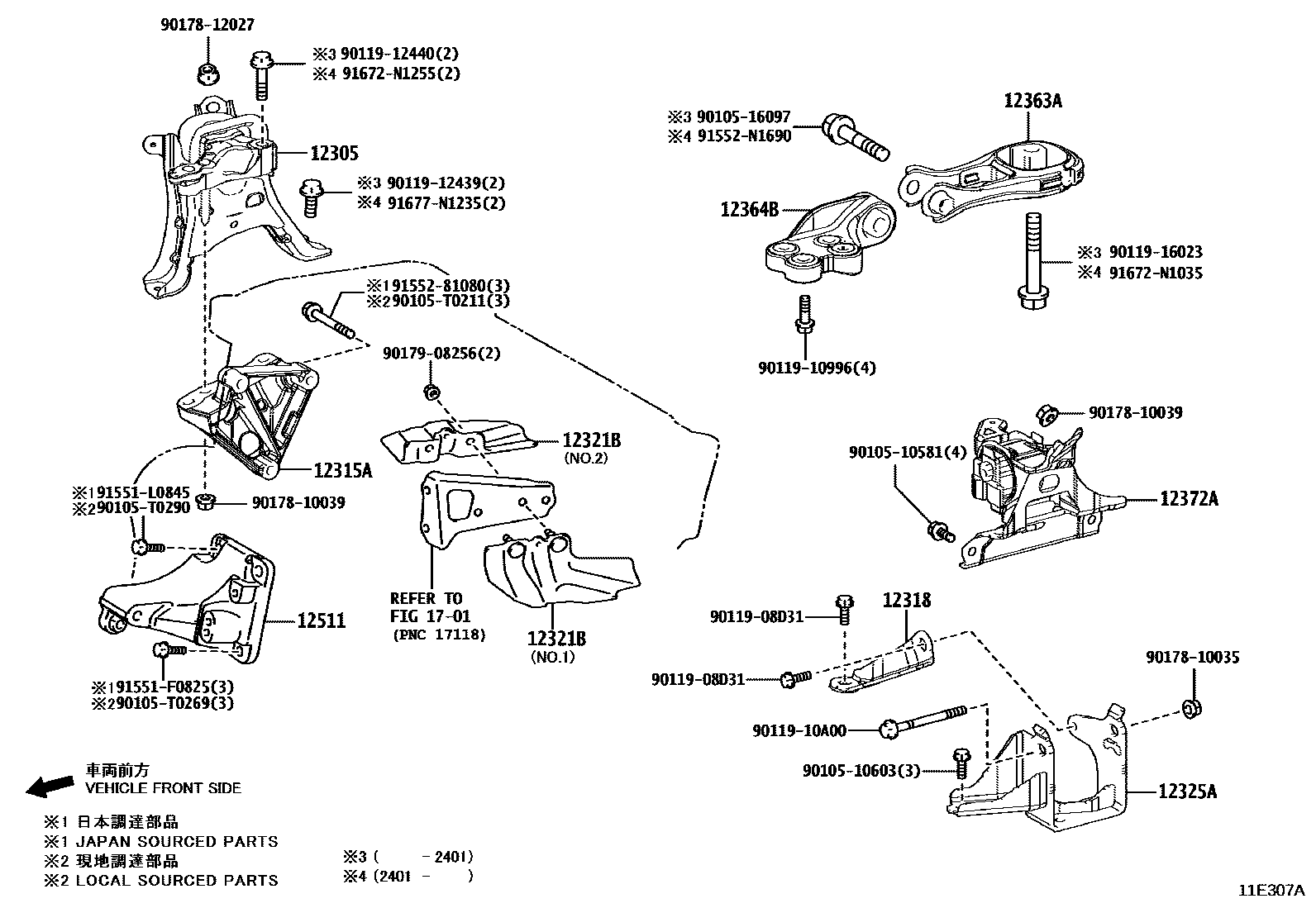

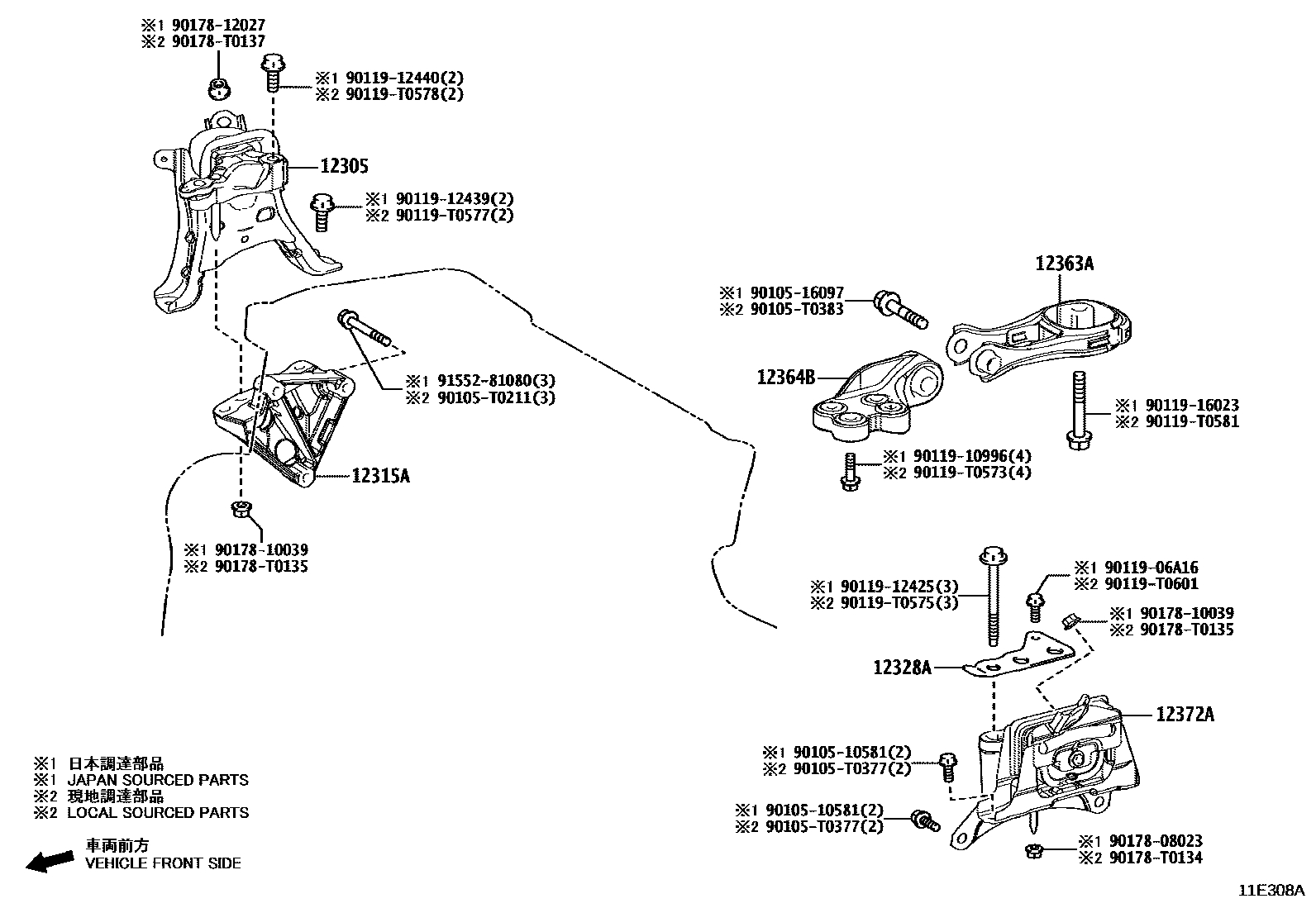

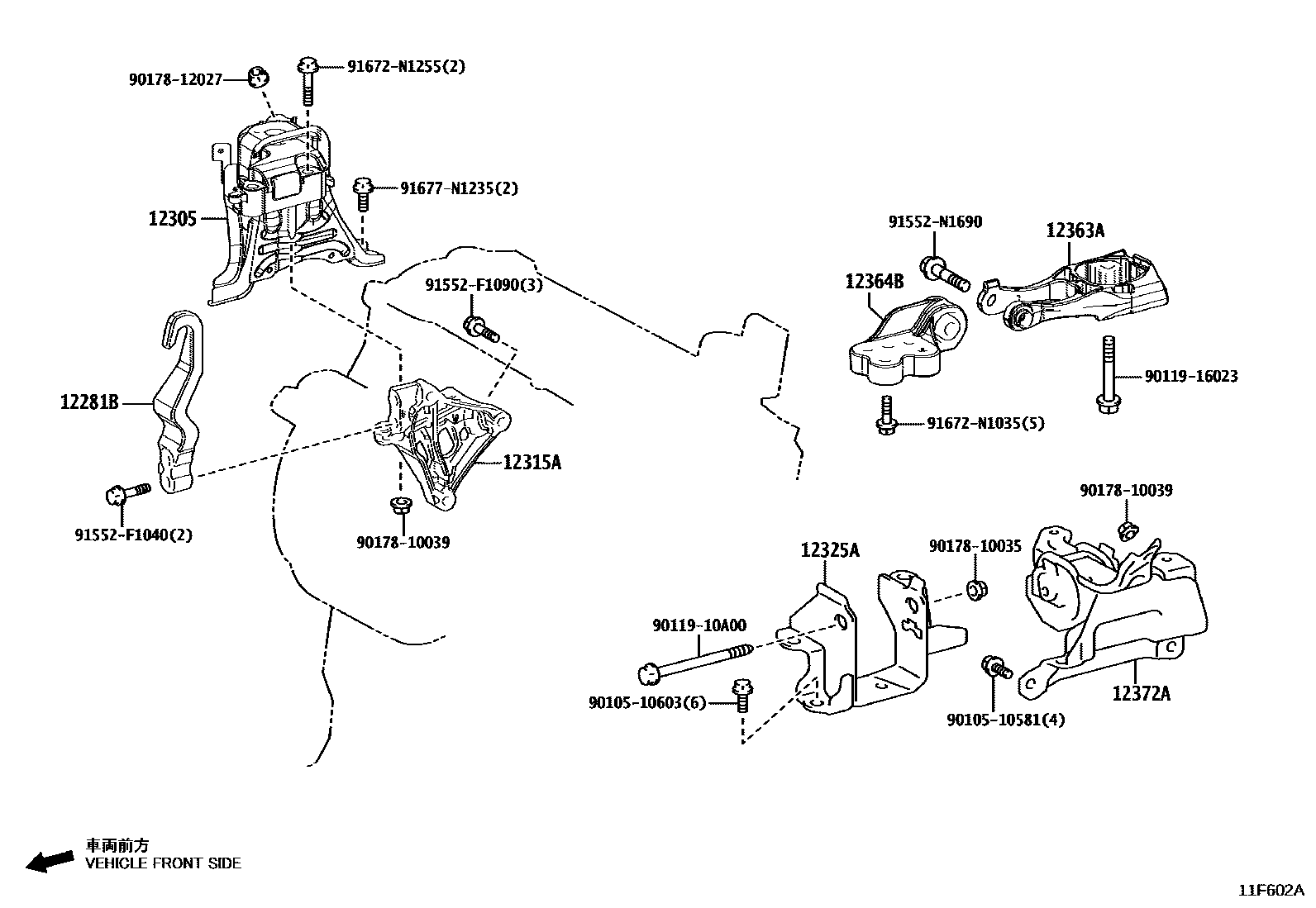

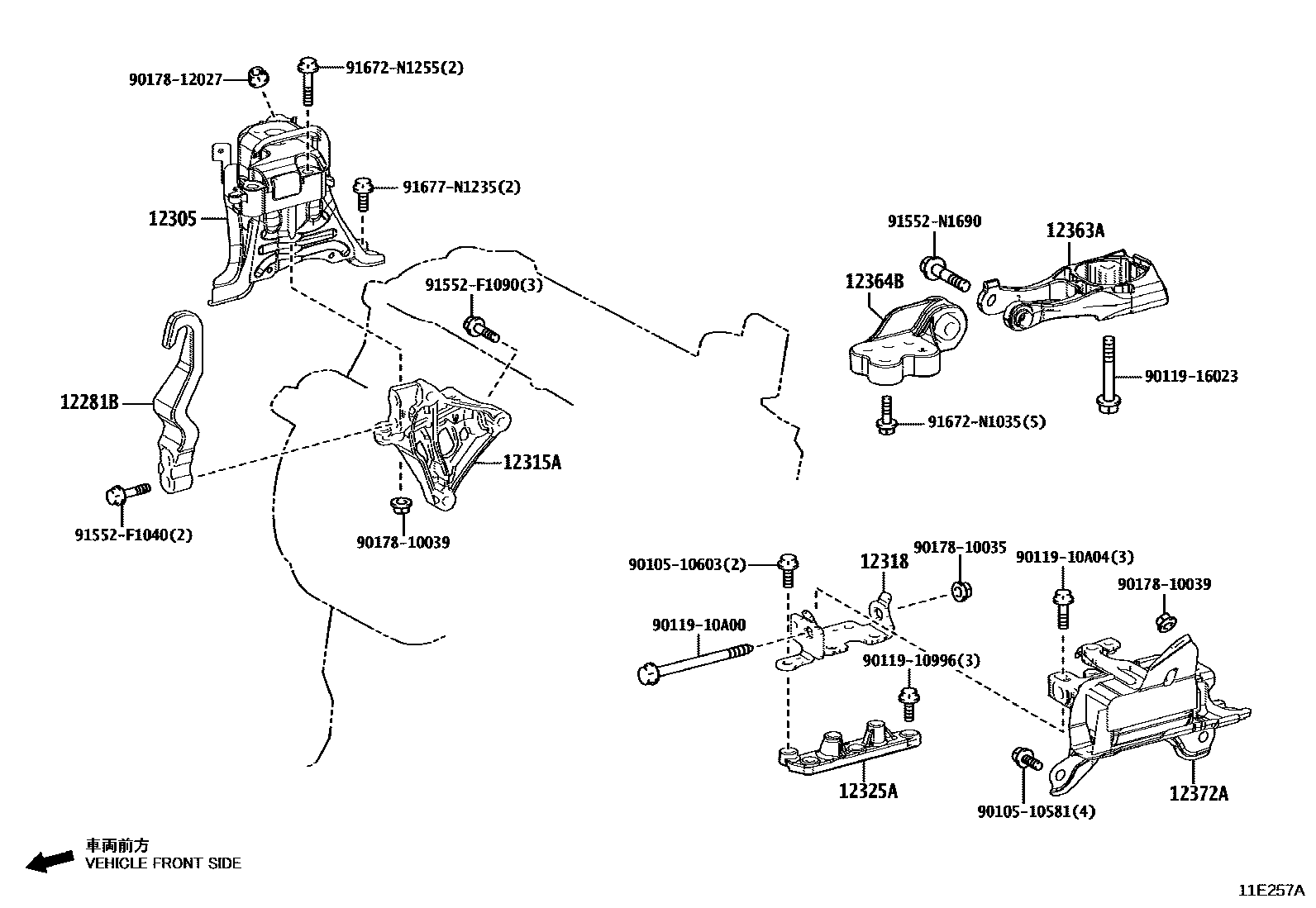

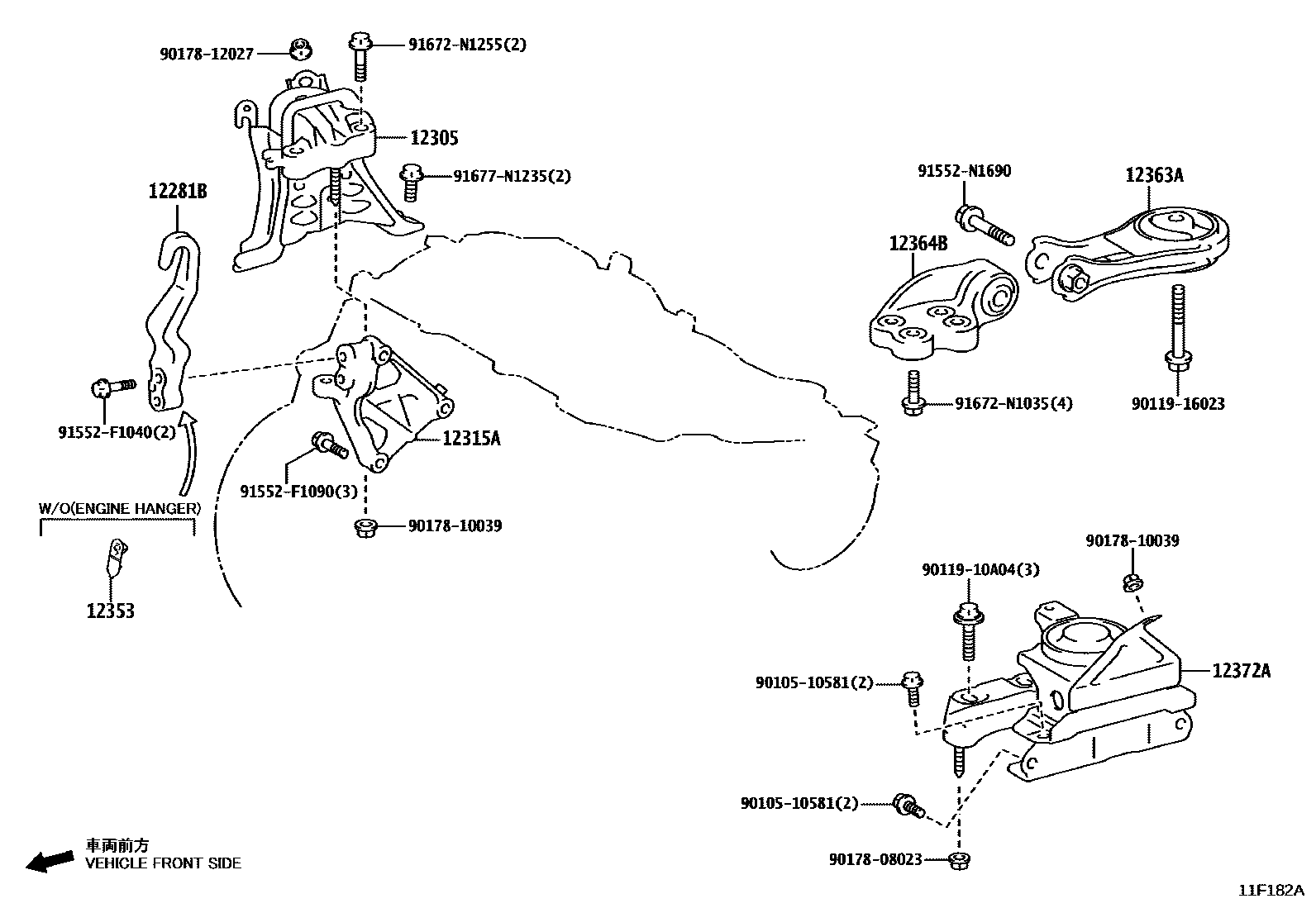

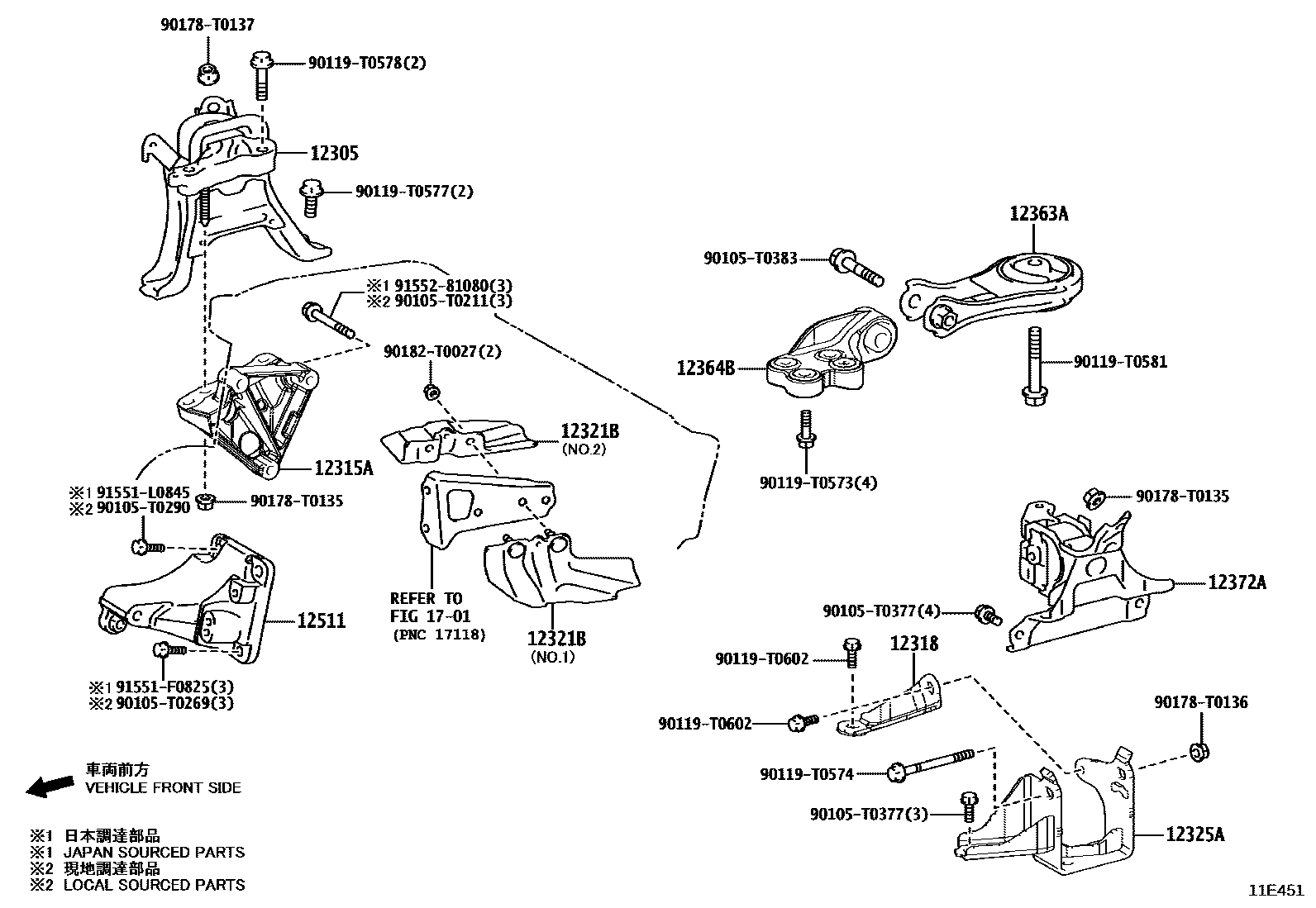

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 7 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12281B | Engine No. 1 hanger | 12281-25030 |
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0T381 · 12305-0T430 · 12305-0T440 · 12305-15120 · 12305-24010 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-15090 · 12315-24010 · 12315-24011 · 12315-37060 |
| 12318 | Engine left mounting bracket | 12318-0T050 · 12318-0T060 · 12318-F2040 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-02031 · 43409-02110 · 43498-02061 · 43498-02200 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-0T530 · 12325-0T540 · 12325-47150 · 12325-F2040 · 12325-F2130 |
| 12328A | Engine No. 2 left side mounting bracket | 12328-0T020 · 12328-0T030 |
| 12351B | engine mount shock absorber | 12351-37070 |
| 12353 | Engine mounting bracket cover | 12353-15010 |
| 12363A | Engine movement control lever | 12363-0T090 · 12363-0T091 · 12363-0T100 · 12363-0T110 · 12363-0T120 · 12363-37040 · 12363-F2050 · 12363-F3050 |
| 12364B | Engine No. 2 motion control lever | 12364-0T100 · 12364-0T110 · 12364-37060 · 12364-F2050 · 12364-F3110 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0T610 · 12372-0T660 · 12372-0T670 · 12372-15300 · 12372-15301 · 12372-24021 · 12372-24080 · 12372-24081 · 12372-37313 |
| 12511 | No. 1 generator bracket | 12501-0T020 · 12501-37020 · 12511-37010 |
