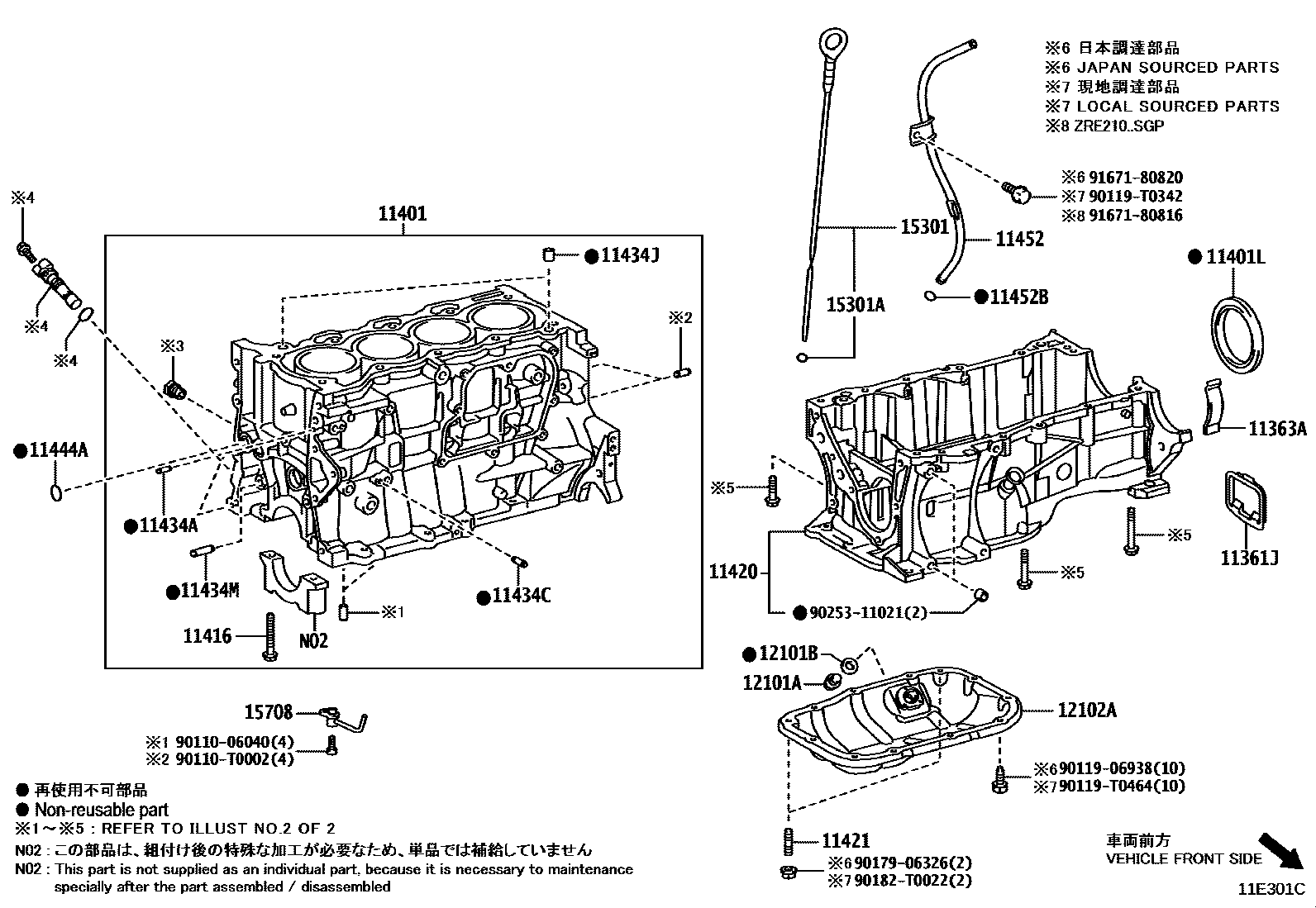

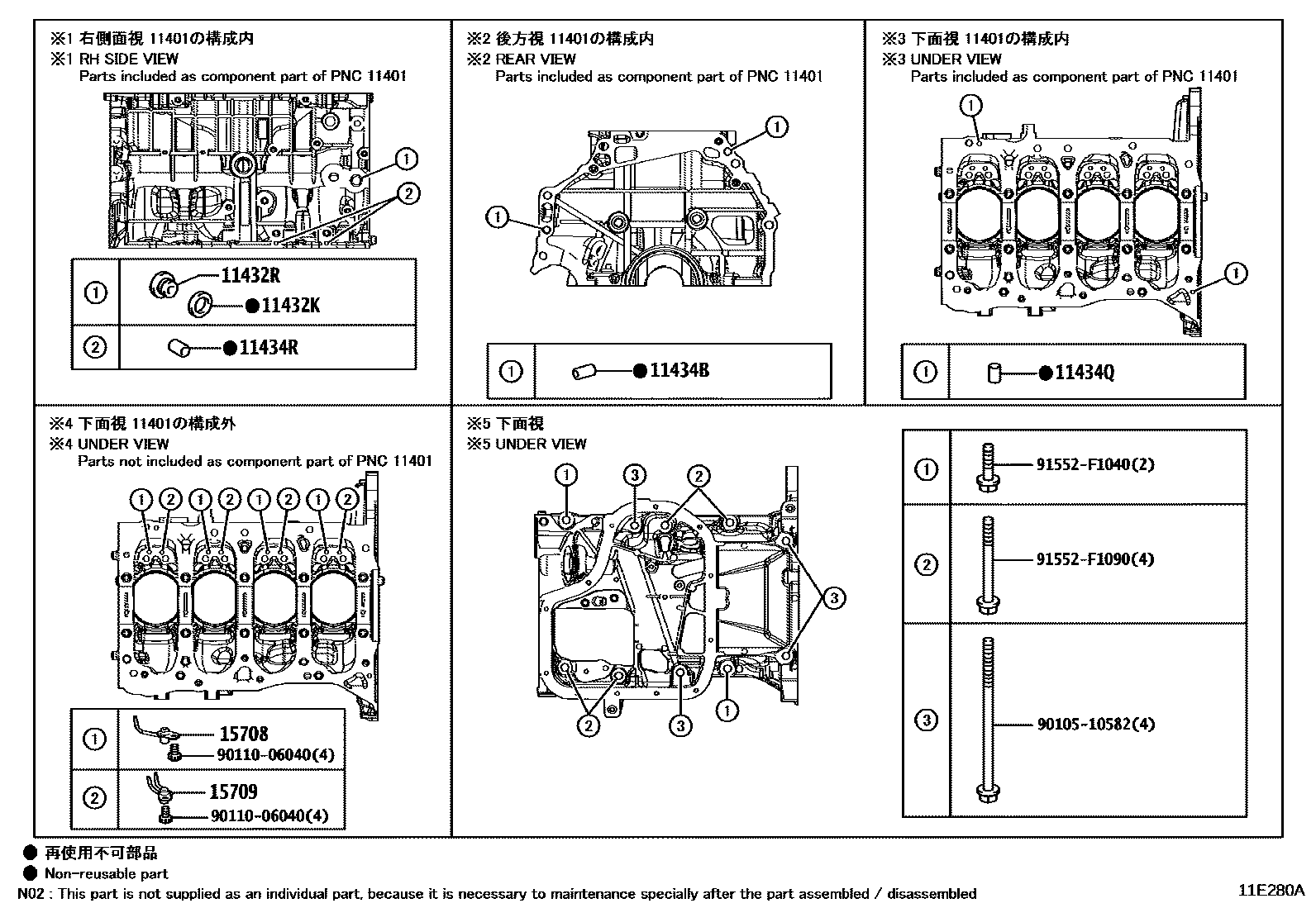

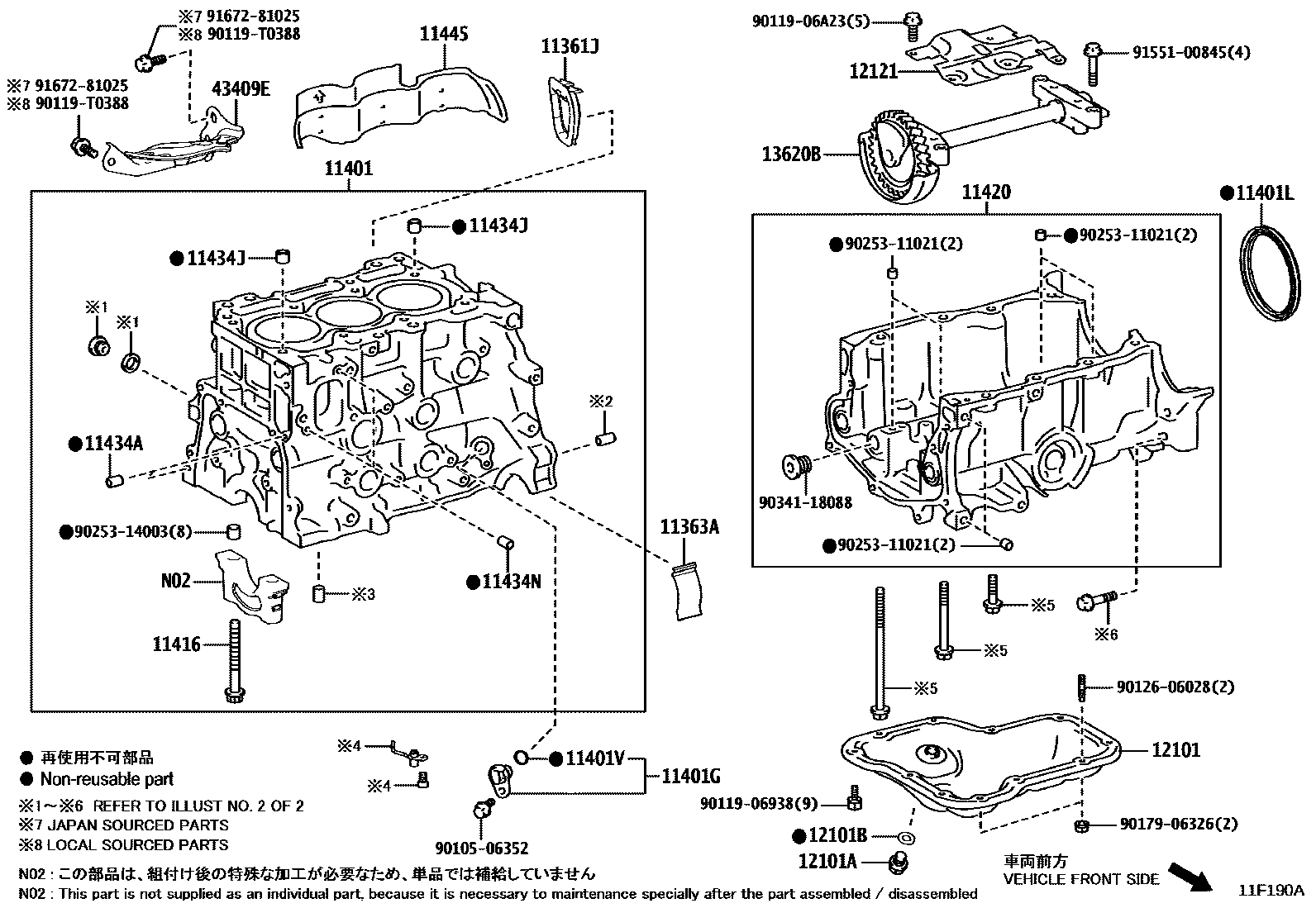

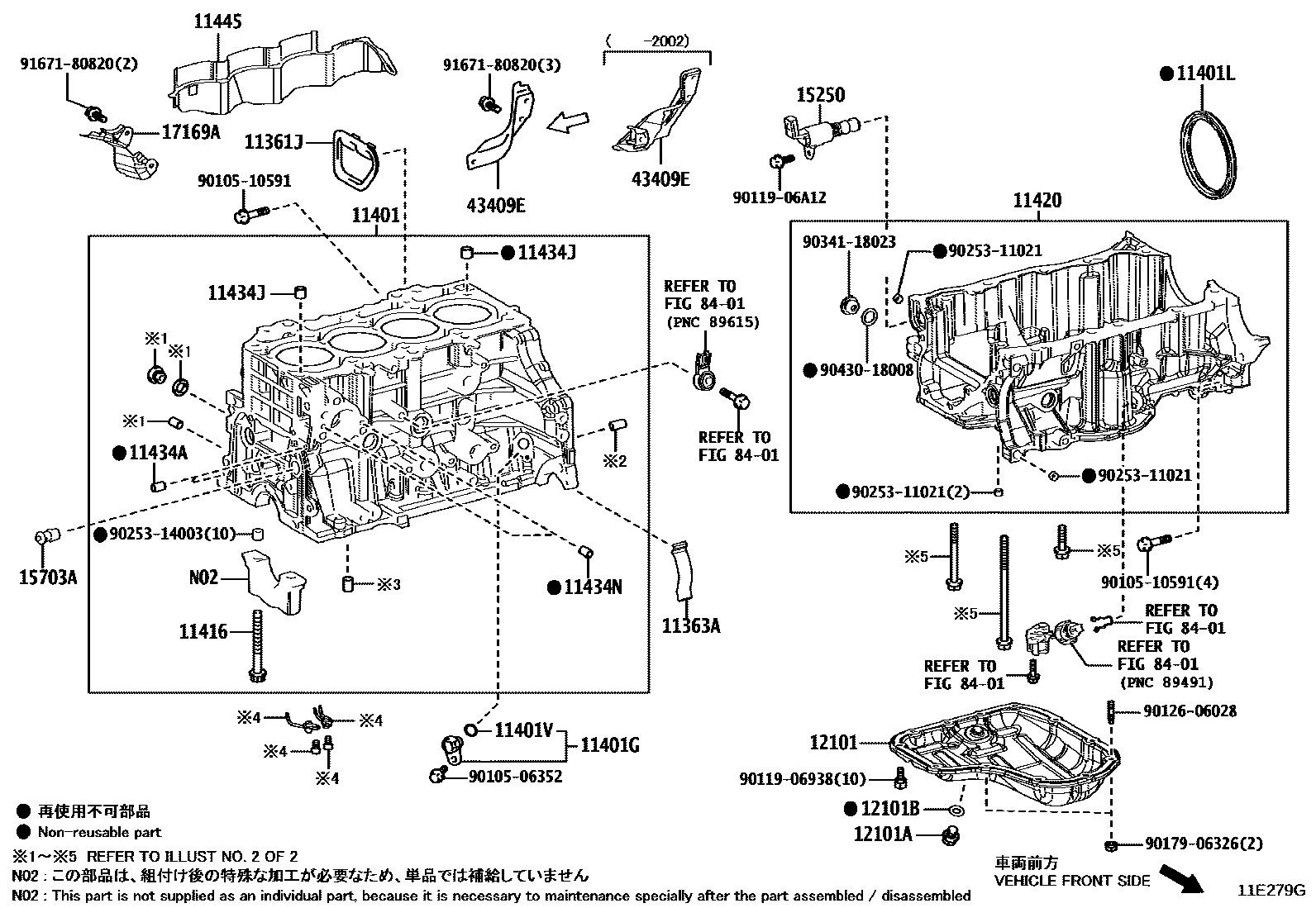

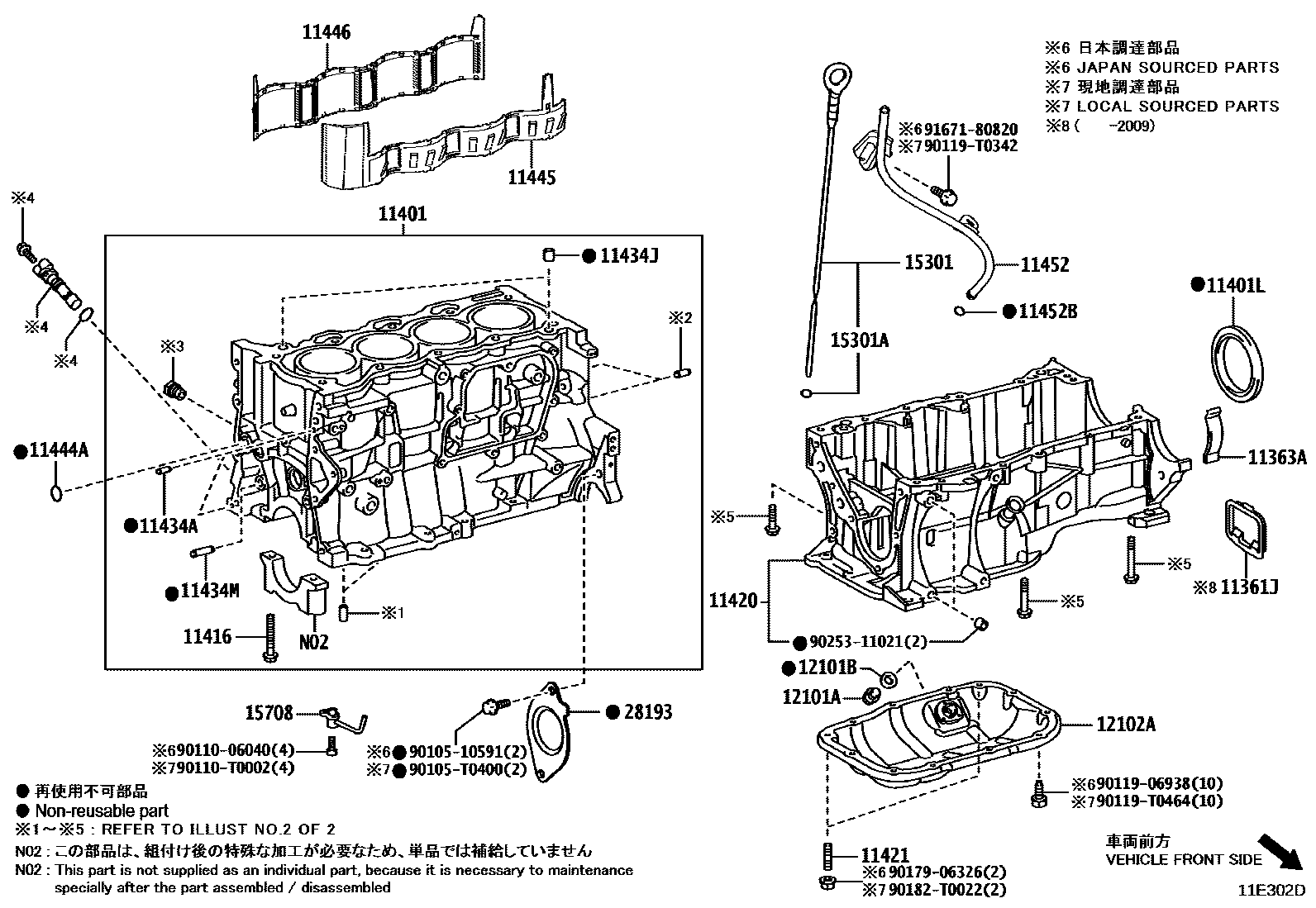

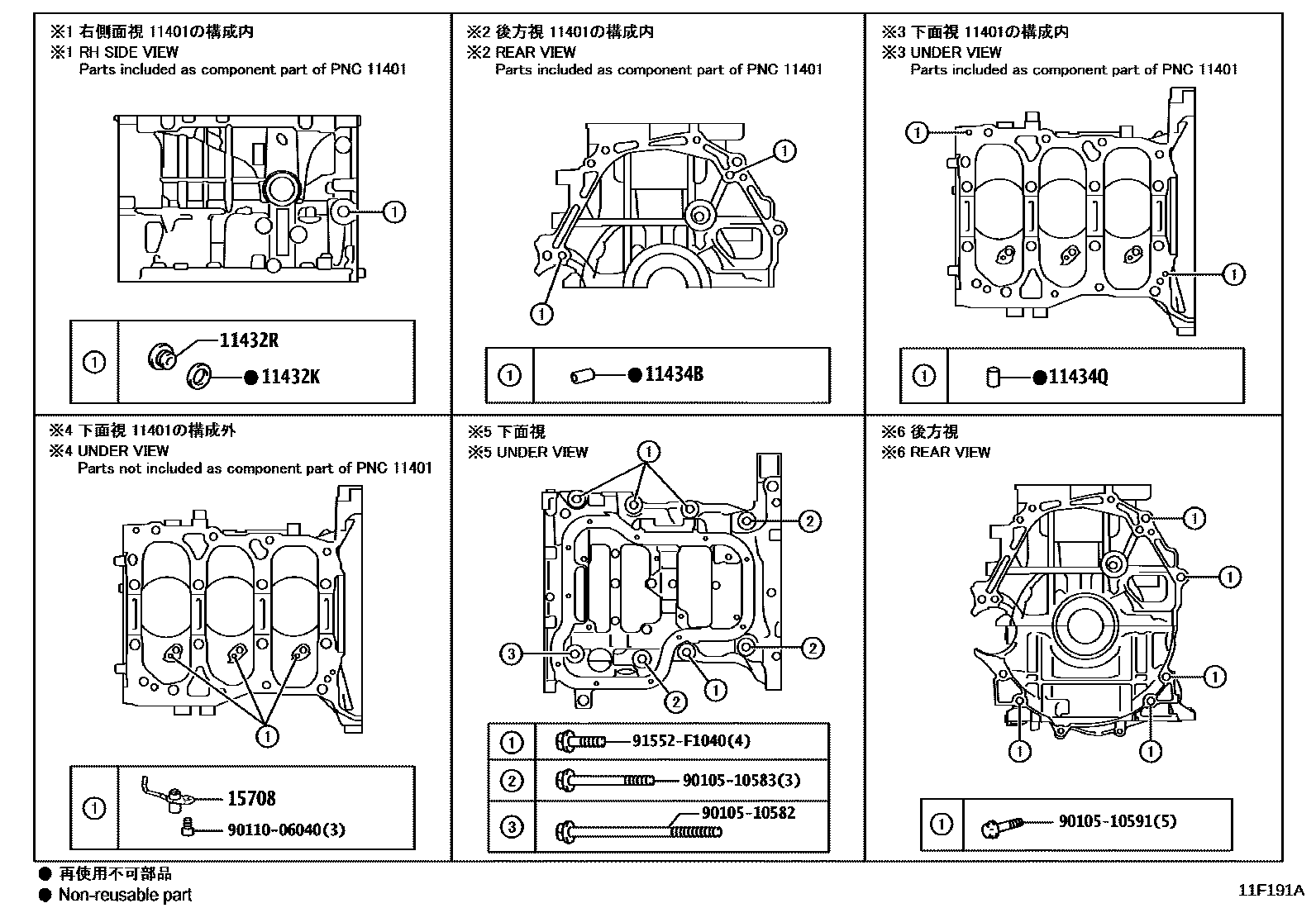

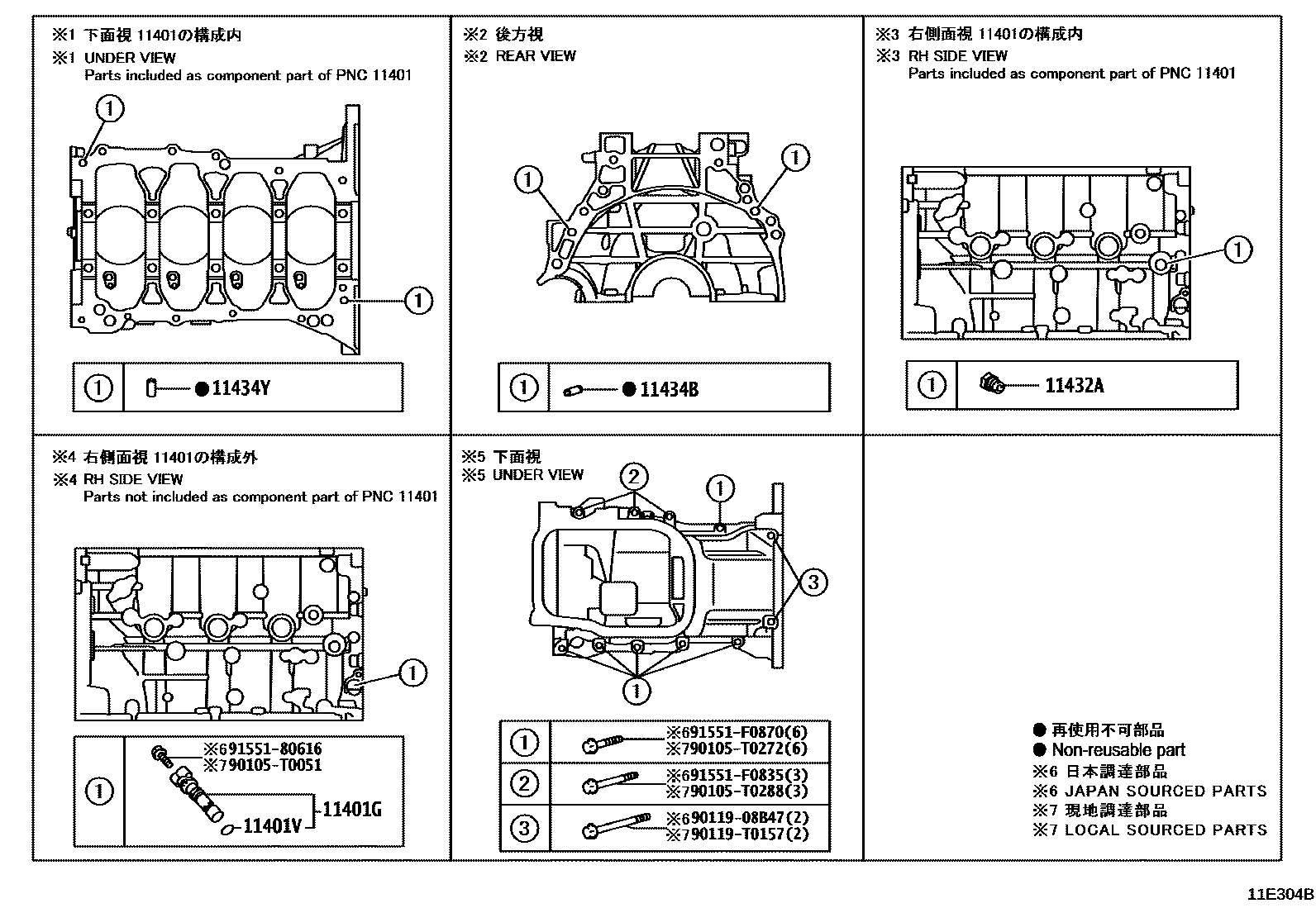

Toyota COROLLA Cylinder Block — Figure 1105
Toyota COROLLA EPC diagram 1105, Cylinder Block, with 7 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-21011 · 11361-25010 |
| 11363A | Flywheel housing side cover | 11363-15010 · 11363-21010 · 11363-33010 |
| 11401 | Cylinder block sub-assembly | 11410-09631 · 11410-09641 · 11410-09830 · 11410-19005 · 11410-29665 · 11410-39226 · 11410-39235 · 11410-39236 · 11410-39245 · 11410-39246 · 11410-39295 · 11410-39296 |
| 11401G | crankshaft position sensor | 90919-05070 · 90919-05095 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-78008 · 90311-90010 · 90311-T0088 · 90311-T0106 |
| 11401V | Crankshaft position sensor O-ring | 90301-11039 · 90301-14016 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02163 · 90910-02197 · 90910-T2008 |
| 11420 | Reinforce crankcase assembly | 11420-0T050 · 11420-0T100 · 11420-15010 · 11420-24010 · 11420-37010 · 11420-37030 · 11420-37040 |
| 11421 | Stud bolts (for oil pan) | 90126-06028 |
| 11432A | No. 1 headed tapered thread plug | 90345-53006 |
| 11432K | Headed straight thread plug liner | 90430-18008 |
| 11432R | No. 1 headed straight thread plug (for cylinder block) | 90341-18023 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-04097 · 90250-06003 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 · 90250-T0018 |
| 11434C | Direct sales (for cylinder head components) | 90250-04097 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13001 · 90253-13017 |
| 11434M | Direct pin (for chain tensioner) | 90250-10030 · 90250-T0019 |
| 11434N | Direct sales (for water inlet housing) | 90250-06003 |
| 11434Q | Direct sales (for crankcase) | 90250-06003 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-06003 |
| 11434Y | Direct sales (for oil pan) | 90250-08120 · 90250-T0007 |
| 11444A | O-ring | 90301-T0041 · 96723-24020 |
| 11445 | Cylinder block water jacket spacer | 11445-15010 · 11445-24010 · 11445-37010 |
| 11446 | Left cylinder block water jacket spacer | 11446-37010 |
| 11452 | Engine oil level gauge guide | 11452-0T010 · 11452-0T110 · 11452-37011 · 11452-37040 · 11452-37050 |
| 11452B | O-ring (for oil level gauge guide) | 90301-T0025 · 96721-19010 |
| 12101 | Oil pan sub-assembly | 12102-15010 · 12102-24010 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 |
| 12101B | Gasket (for oil pan drain plug) | 90080-43030 · 90430-12031 |
| 12102A | No. 2 oil pan sub-assembly | 12102-0T050 · 12102-37010 |
| 12121 | No. 1 oil pan baffle | 12121-15050 |
| 13620B | Engine balancer assembly | 13620-15010 |
| 15250 | Oil pressure control valve assembly | 15250-25010 |
| 15301 | Engine oil level scoring assembly | 15301-37010 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
| 15703A | Oil nozzle valve sub-assembly | 15703-25011 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-0T010 · 15708-15010 · 15708-25010 · 15708-37012 |
| 15709 | No. 2 oil nozzle sub-assembly | 15709-25010 |
| 17169A | Exhaust manifold No. 3 heat shield | 17169-24010 |
| 28193 | Starter hole vibration isolation pad | 28193-0T040 · 28193-21010 |
| 43409E | Drive shaft heat insulation pad sub-assembly | 43409-12101 · 43409-K0030 · 43498-12120 · 43498-12121 |
