Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 10 images and 2 PNC and OE references.

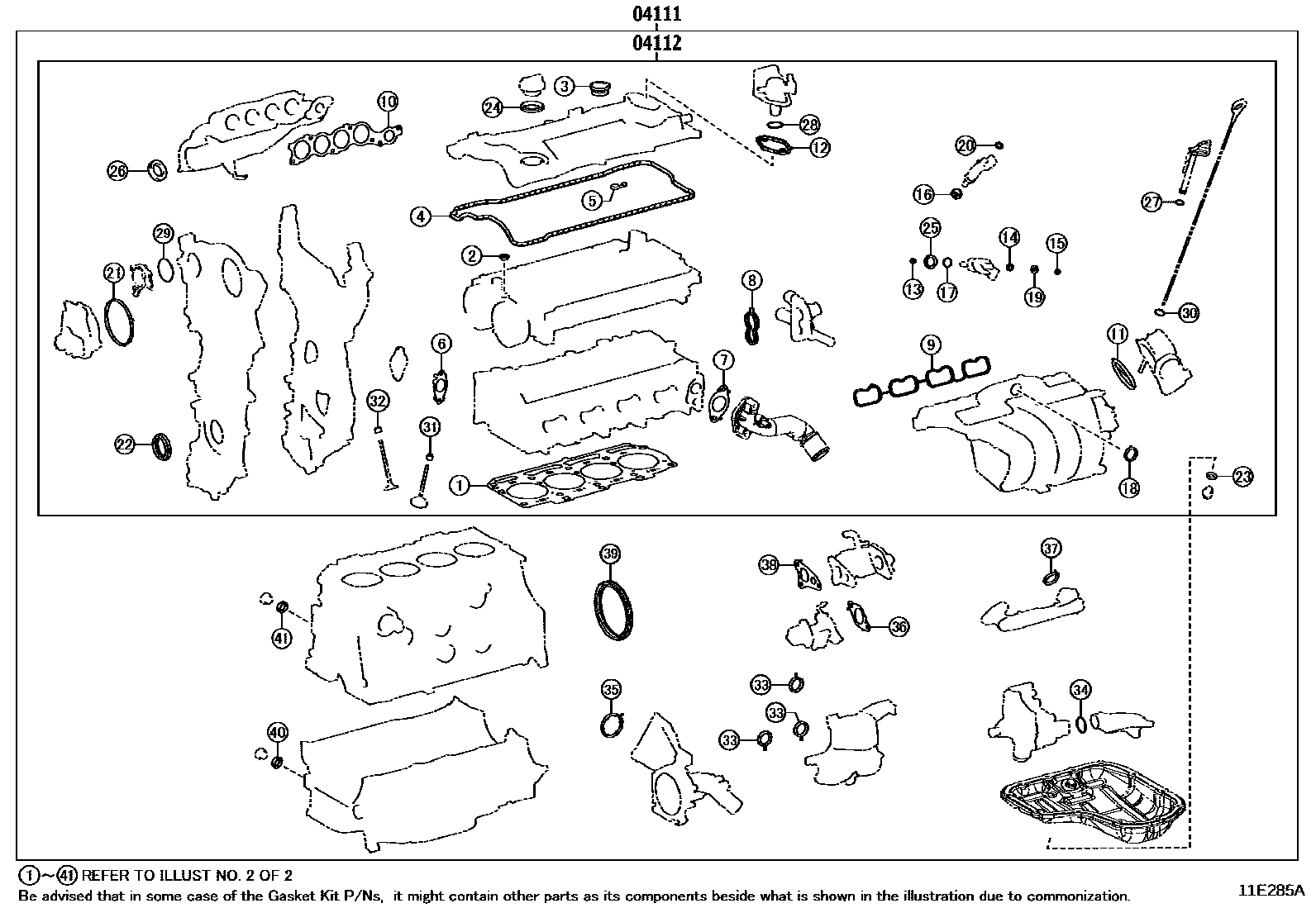

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E285A
Engine Overhaul Gasket Kit — 11E285A (201904 – 999999)

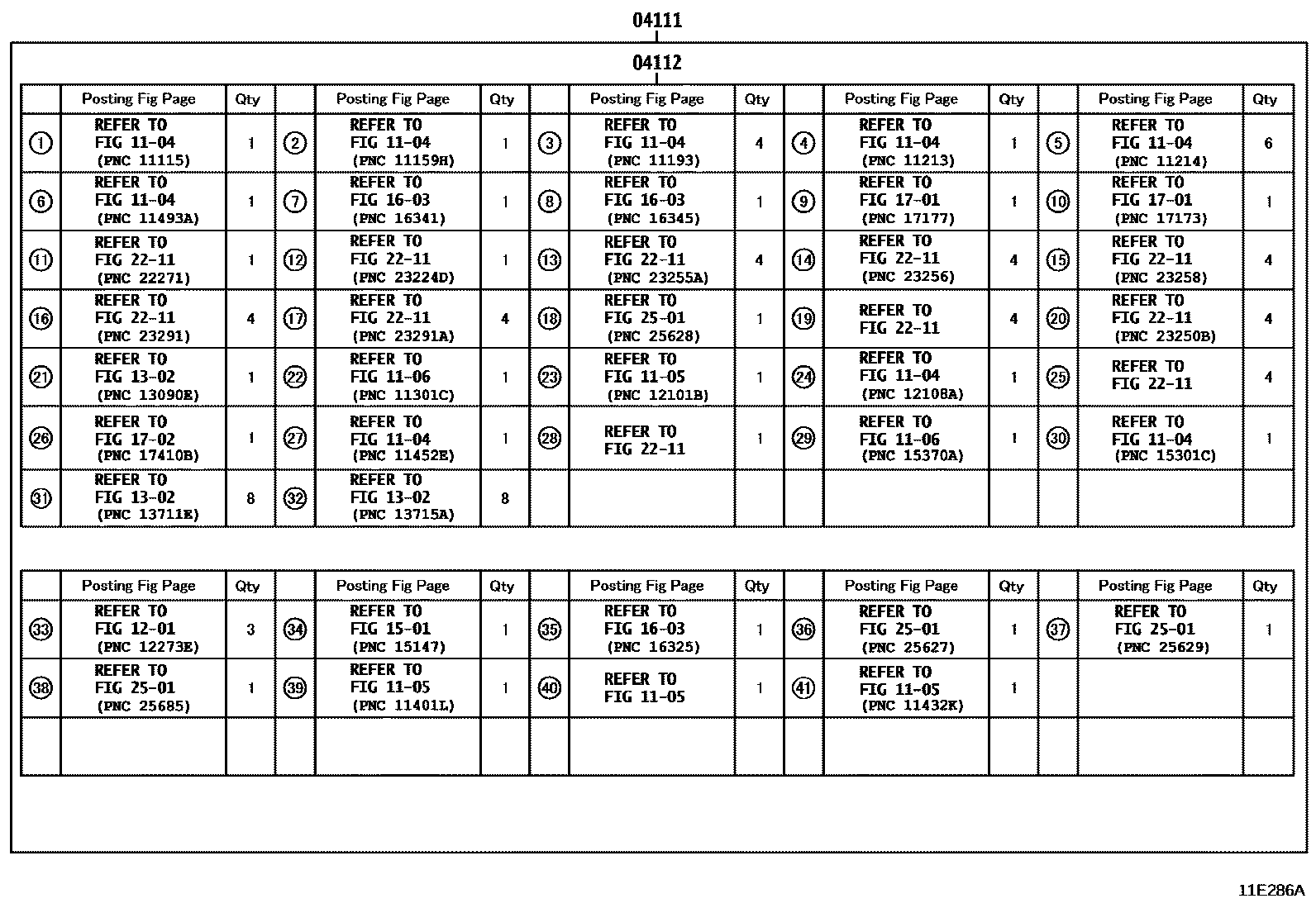

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E286A
Engine Overhaul Gasket Kit — 11E286A (201904 – 999999)

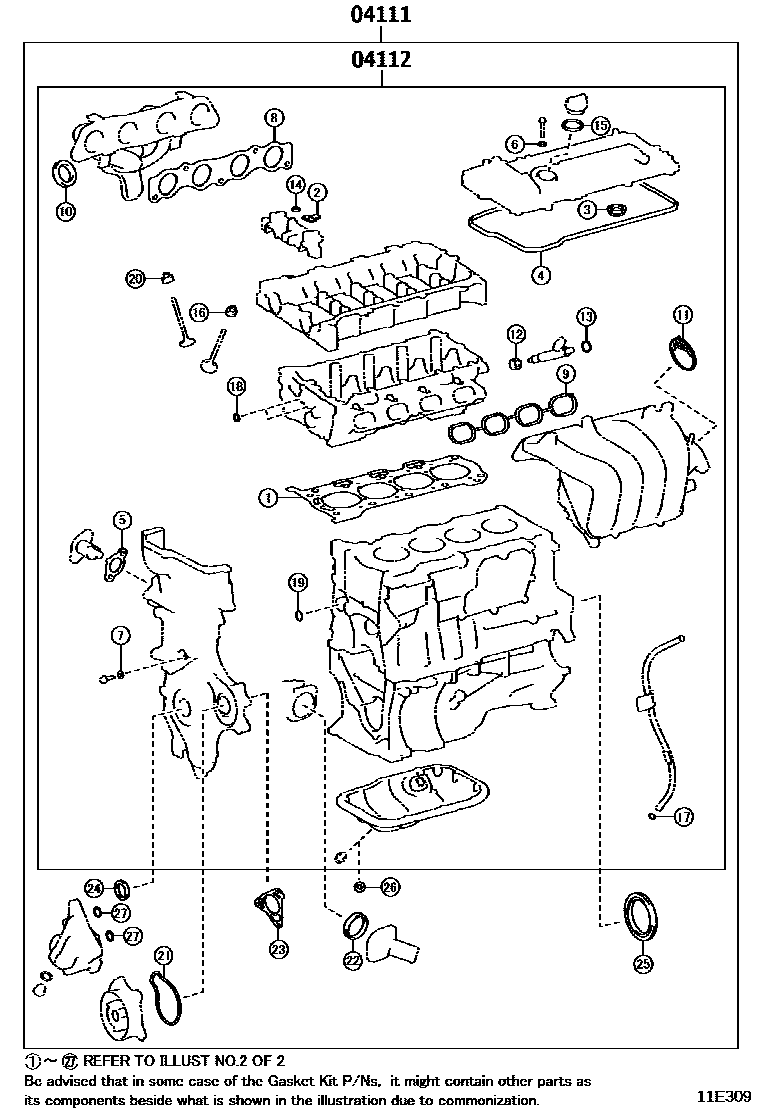

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E309
Engine Overhaul Gasket Kit — 11E309 (201904 – 999999)

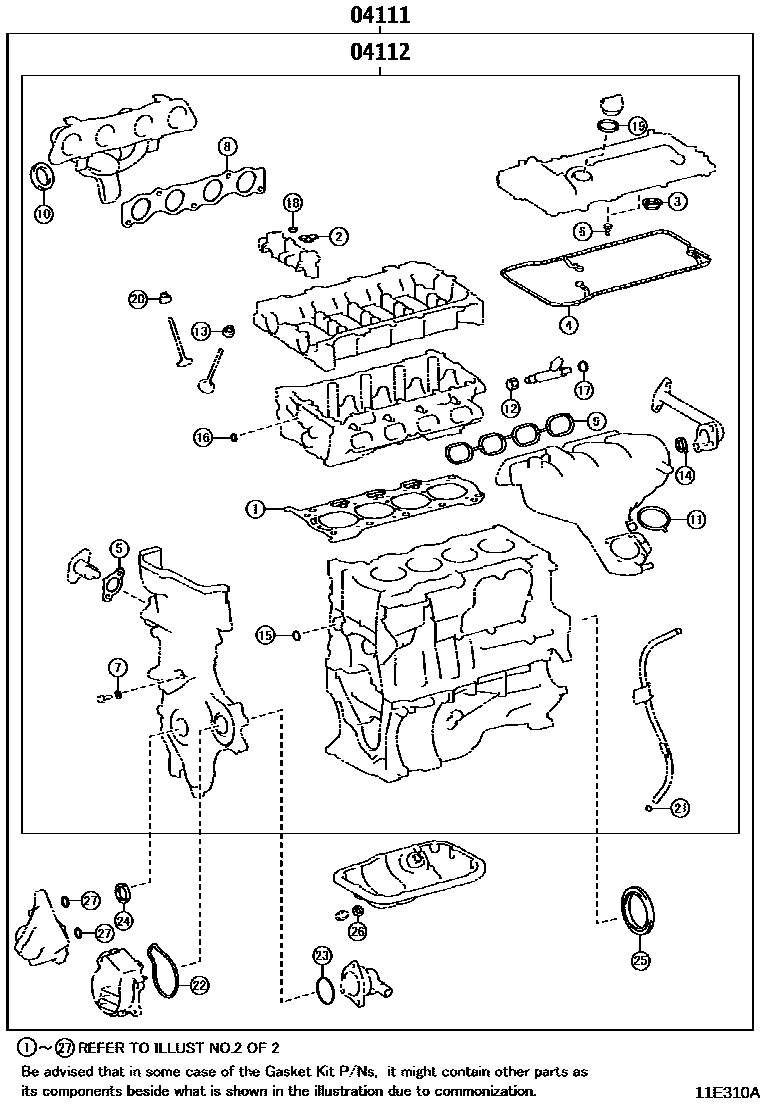

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E310A
Engine Overhaul Gasket Kit — 11E310A (201904 – 999999)

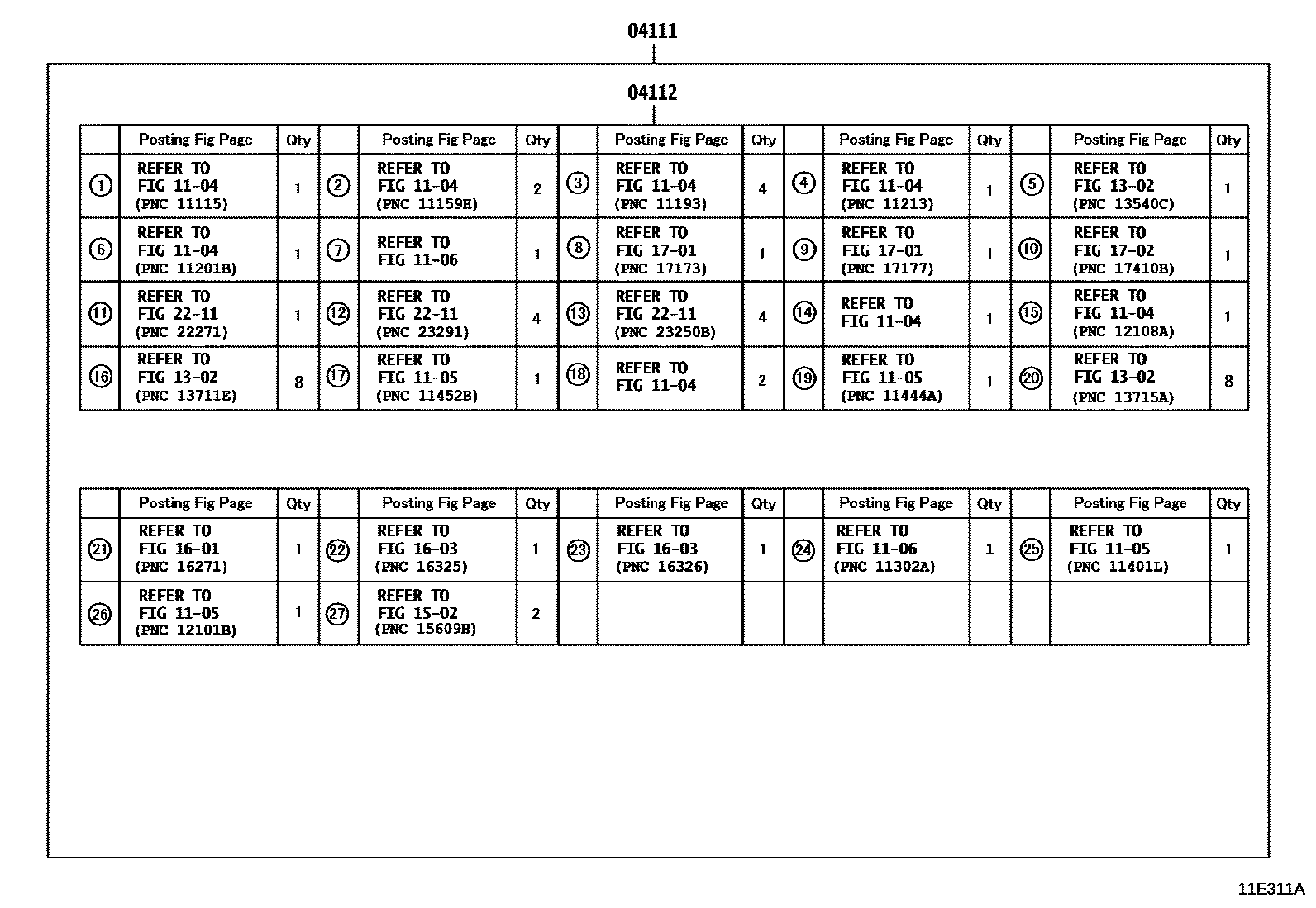

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E311A
Engine Overhaul Gasket Kit — 11E311A (201904 – 999999)

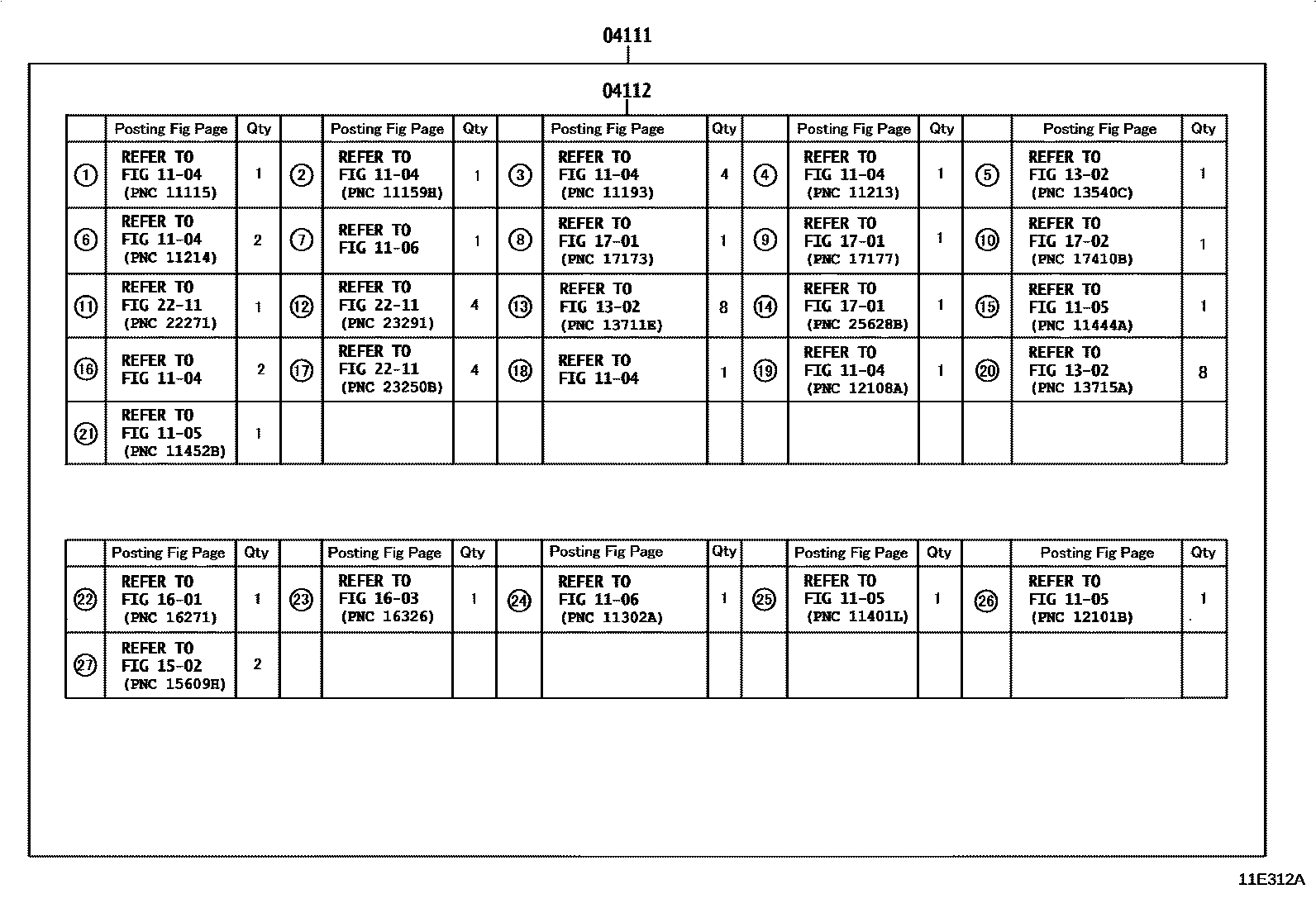

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E312A
Engine Overhaul Gasket Kit — 11E312A (201904 – 999999)

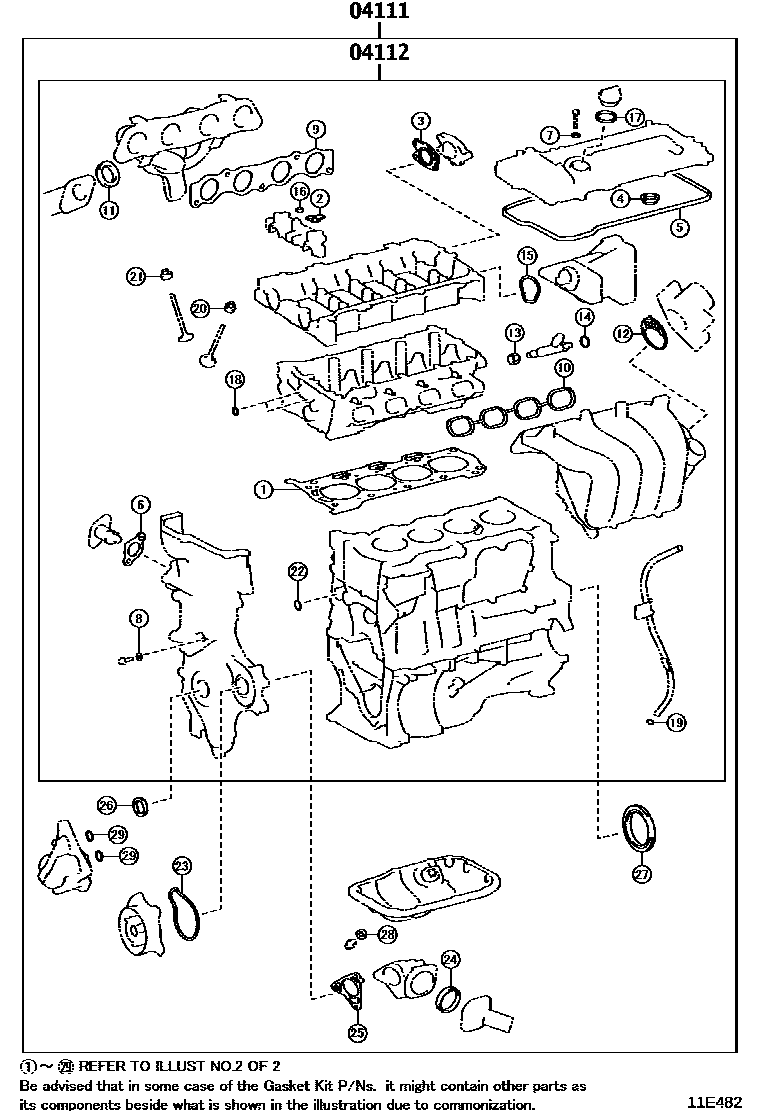

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E482
Engine Overhaul Gasket Kit — 11E482 (201908 – 999999)

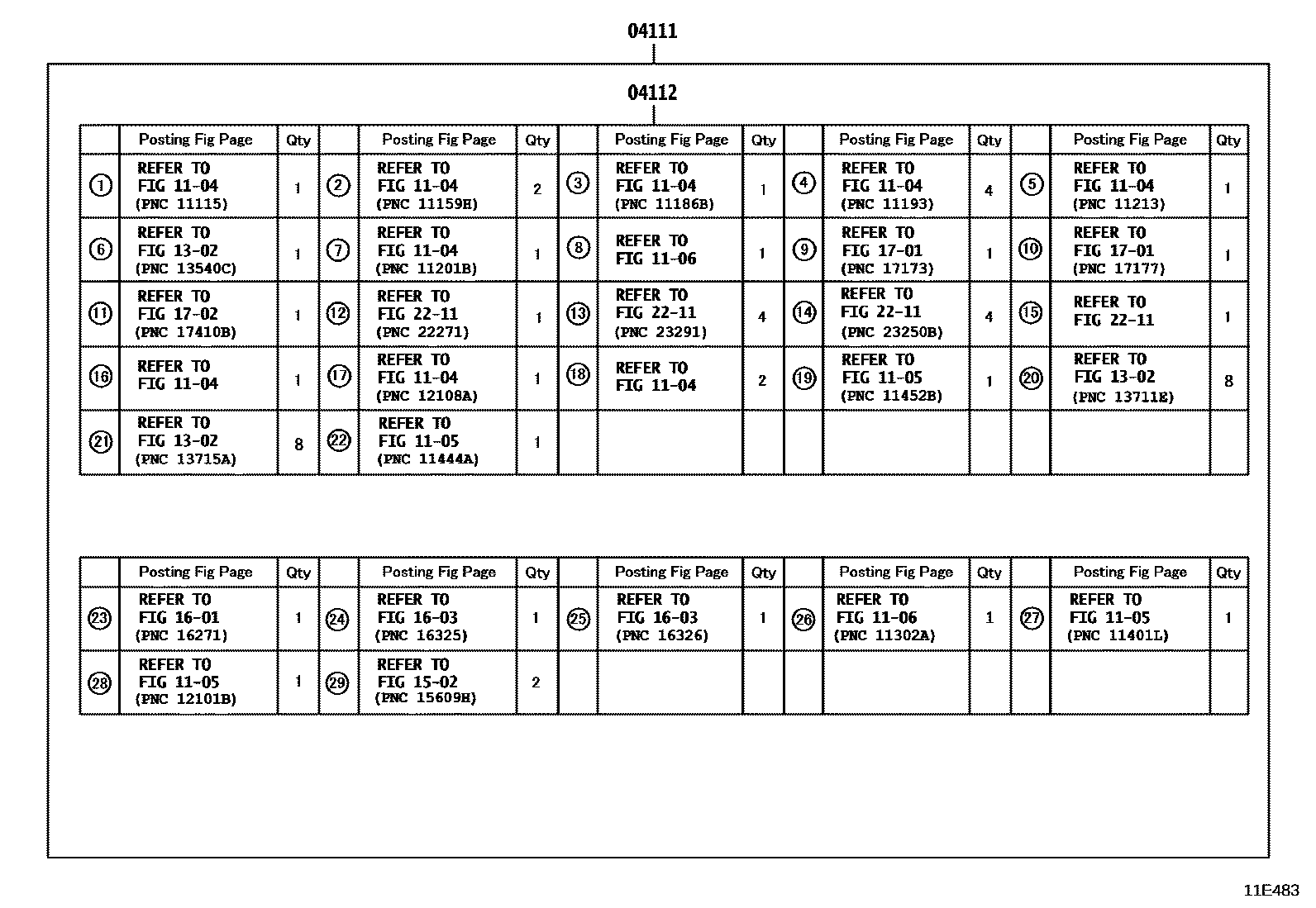

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E483
Engine Overhaul Gasket Kit — 11E483 (201908 – 999999)

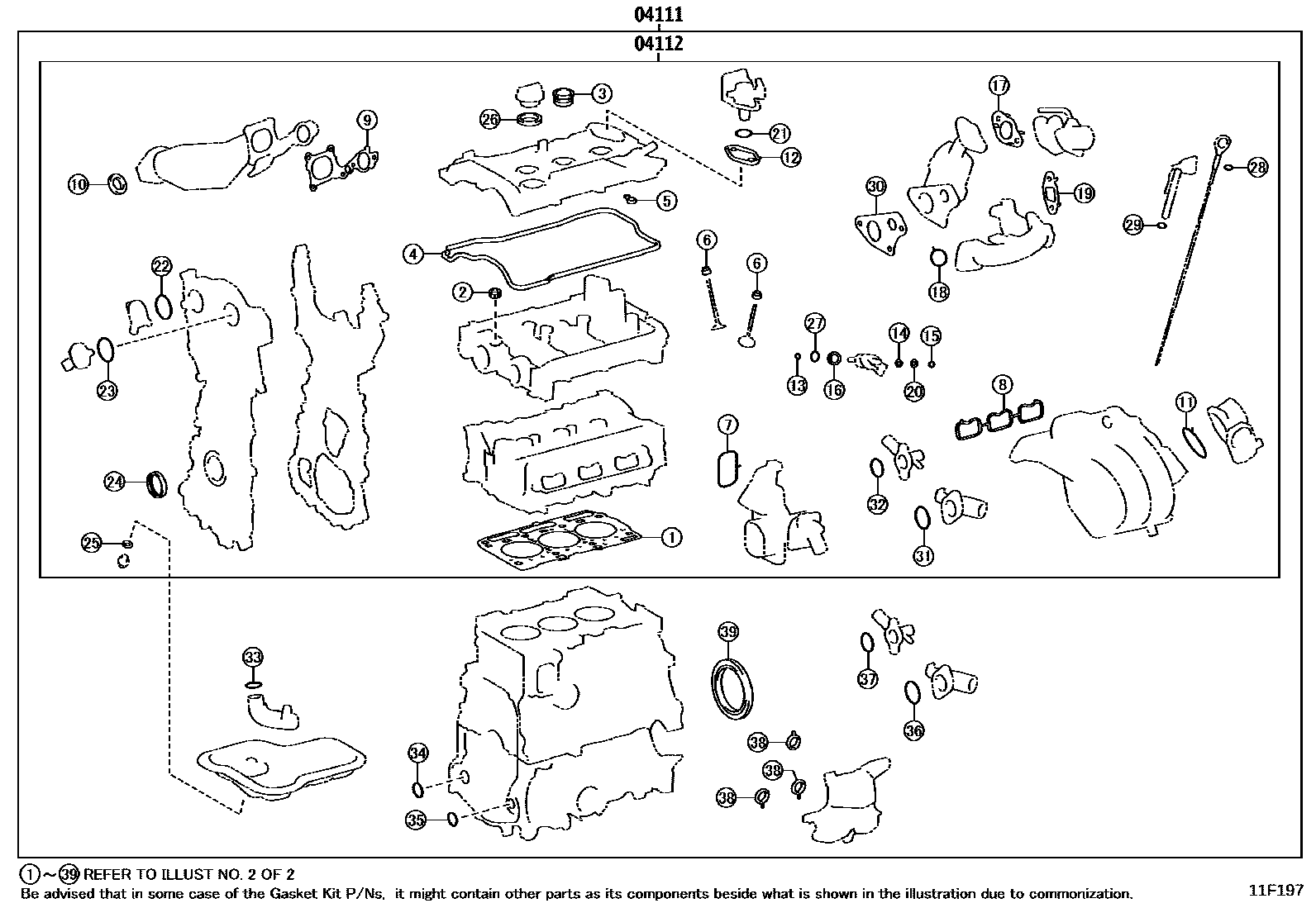

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11F197
Engine Overhaul Gasket Kit — 11F197 (202008 – 999999)

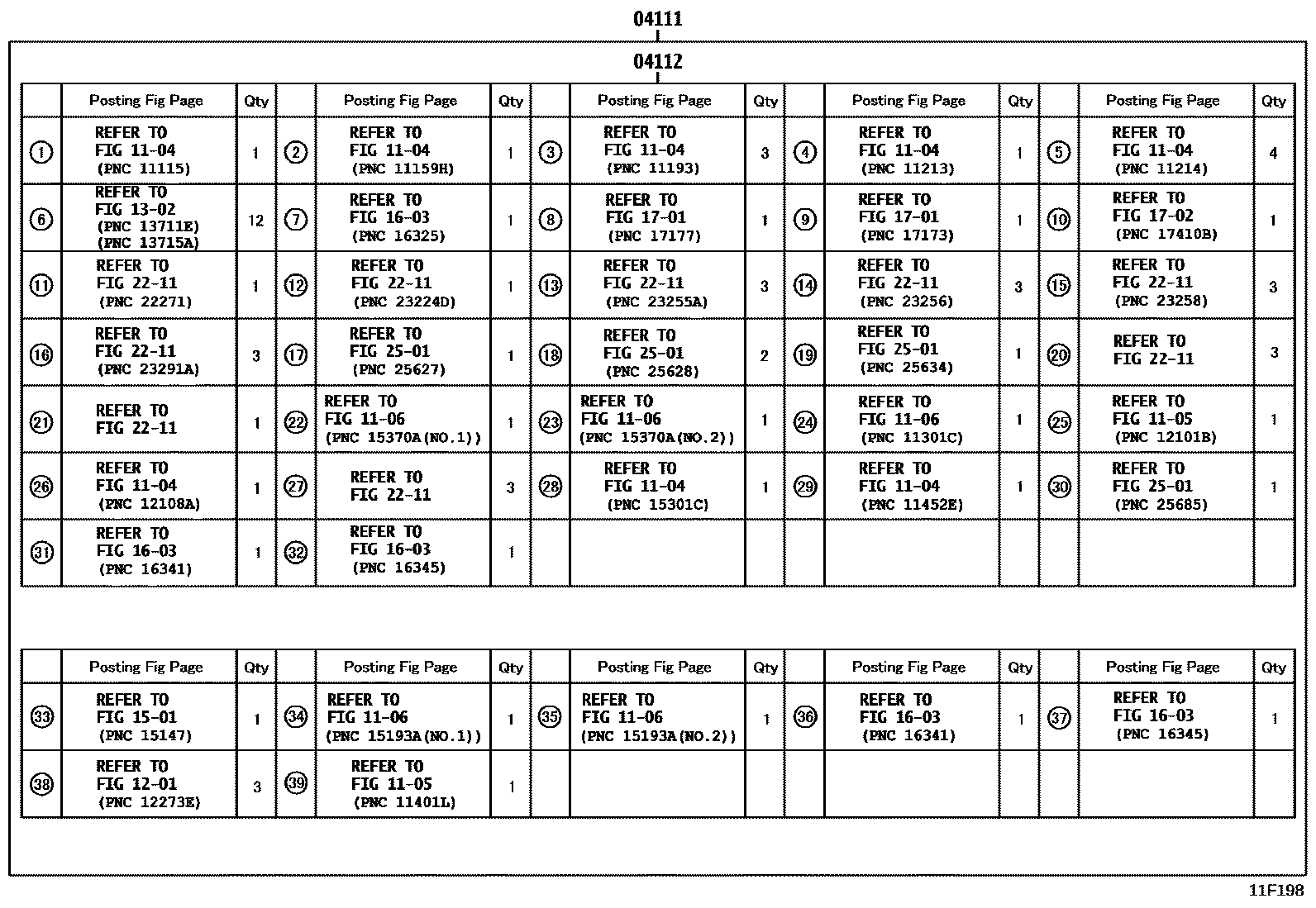

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11F198
Engine Overhaul Gasket Kit — 11F198 (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0T291 · 04111-0T292 · 04111-0T293 · 04111-15130 · 04111-15131 · 04111-24110 · 04111-24111 · 04111-30521 · 04111-37275 · 04111-37276 · 04111-37510 · 04111-37511 · 04111-37520
04112Engine valve grinding pad assembly04112-0T241 · 04112-0T242 · 04112-0T243 · 04112-15140 · 04112-15141 · 04112-24060 · 04112-24061 · 04112-37076 · 04112-37077 · 04112-37224 · 04112-37225
