Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

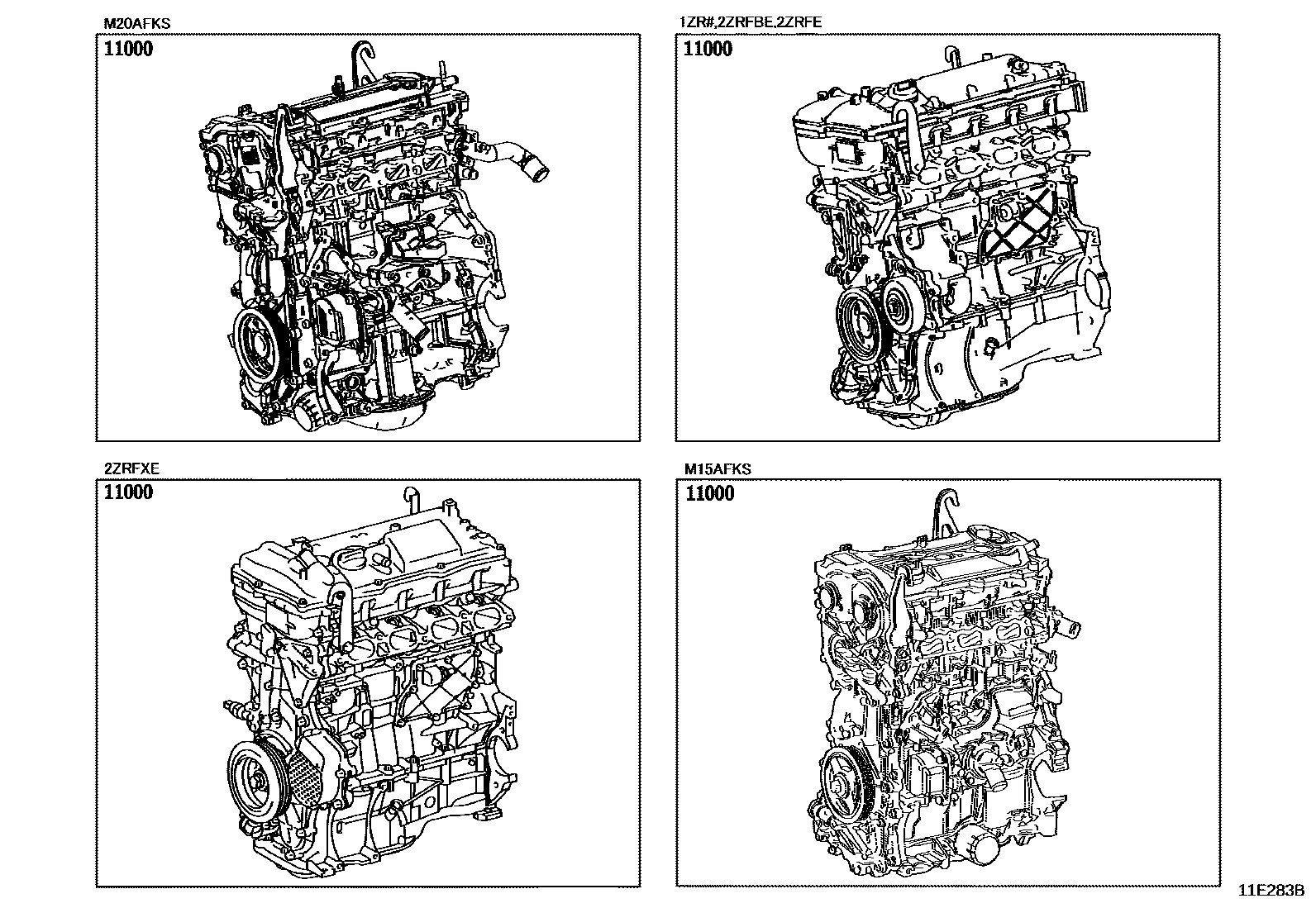

Toyota COROLLA Partial Engine Assembly EPC diagram — 11E283B
Partial Engine Assembly — 11E283B (201904 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-0T650 · 19000-0T660 · 19000-0T750 · 19000-0T760 · 19000-0T770 · 19000-15390 · 19000-24300 · 19000-37890
