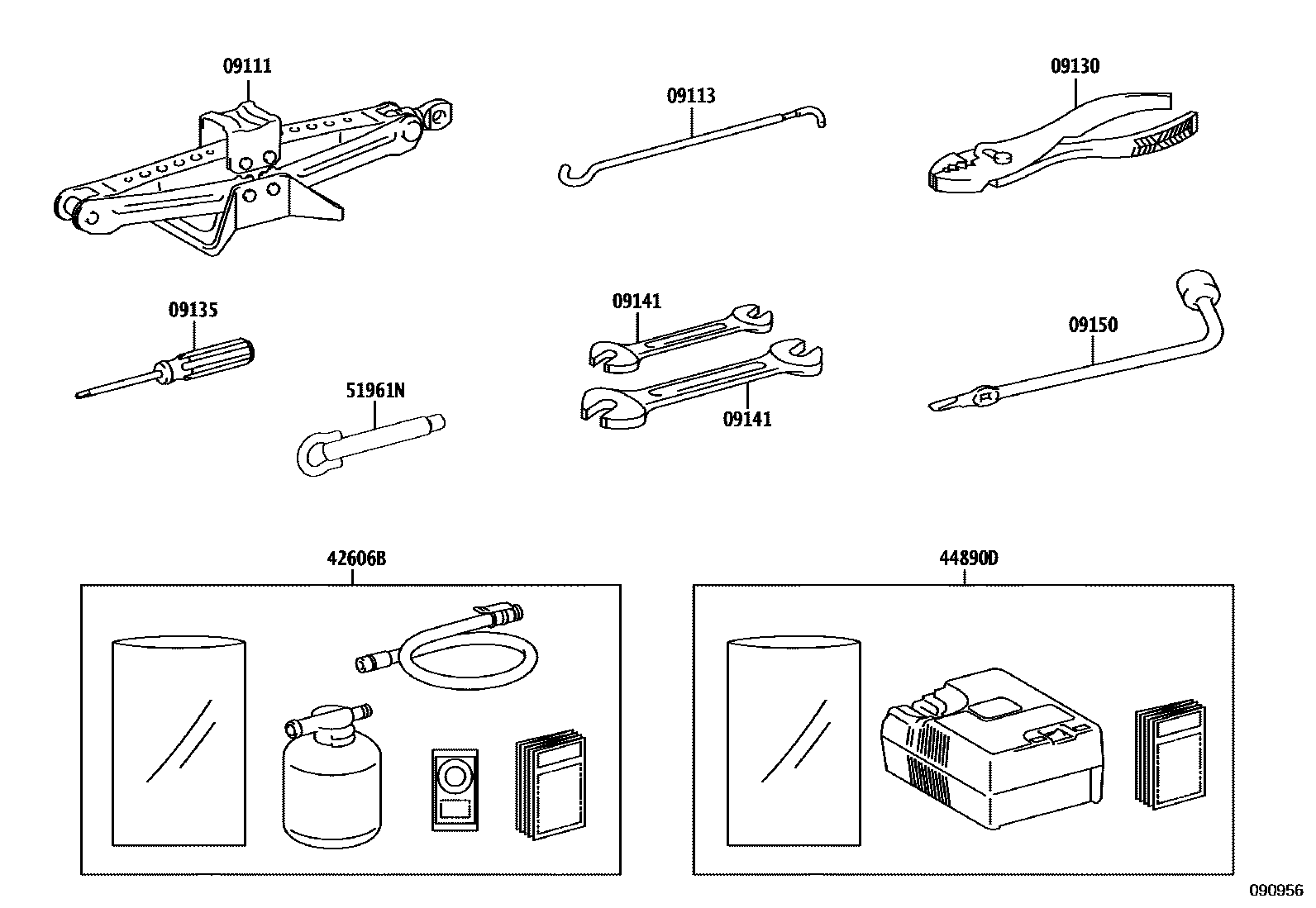

Toyota COROLLA Standard Tools — Figure 0901
Toyota COROLLA EPC diagram 0901, Standard Tools, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09111 | Jack sub-assembly | 09111-02110 · 09111-12190 · 09111-47050 · 09111-47051 |
| 09113 | Jack Handle | 09113-02070 · 09113-02090 |
| 09130 | Pliers | 99913-11500 |
| 09135 | Screwdriver | 99915-10700 |
| 09141 | Wrench | 99914-10810 · 99914-11214 |
| 09150 | Wheel Nut Wrench Case | 09150-0A040 · 09150-42010 |
| 42606B | Tubeless tire repair components | 42606-02030 · 42606-02040 · 42606-12040 |
| 44890D | Air Compressor Assembly | 44890-02020 · 44890-02030 · 44890-12030 |
| 51961N | transport hook | 51960-02180 · 51960-02190 |
