Toyota COROLLA 空气净化器或离子发生器 — Figure 8724

Toyota COROLLA EPC diagram 8724, 空气净化器或离子发生器, with 1 images and 4 PNC and OE references.

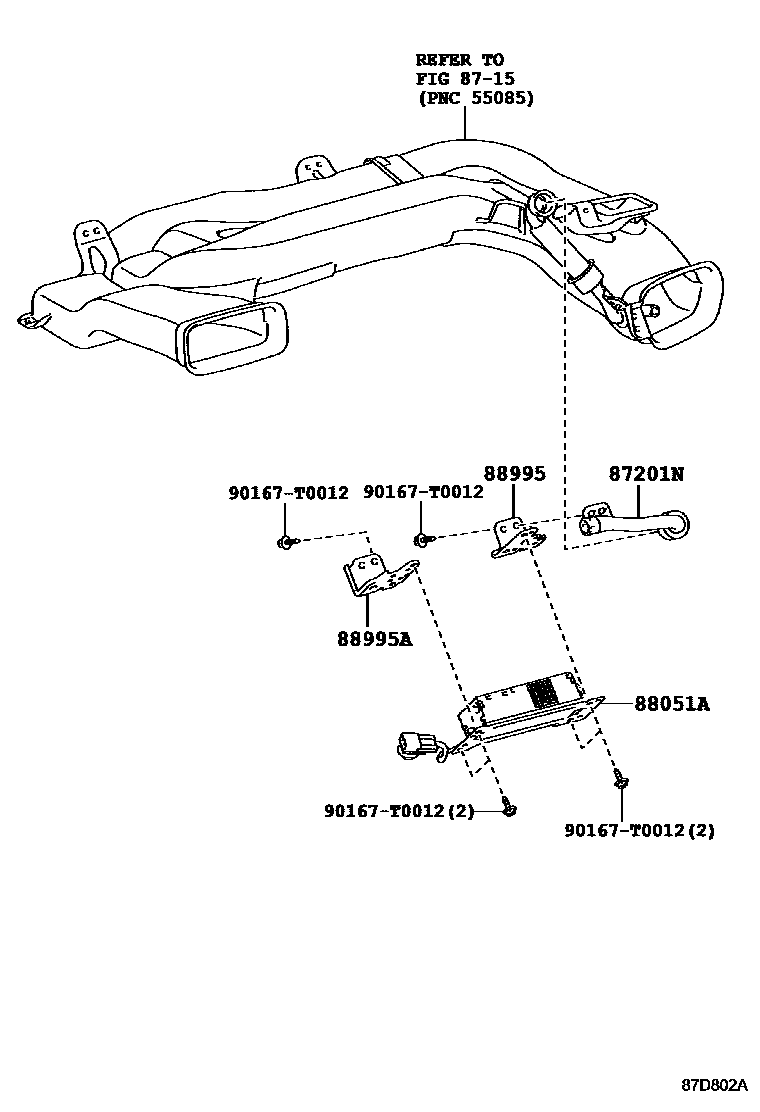

Toyota COROLLA 空气净化器或离子发生器 EPC diagram — 87D802A
空气净化器或离子发生器 — 87D802A (201312 – 999999)

PNC and OE references

PNCPart nameOE numbers
87201NAir duct sub-assembly55848-02020
88051AIon generator sub-assembly88051-52020
88995No. 1 ion generator bracket88995-02010
88995ANo. 2 ion generator bracket88995-02020
