Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

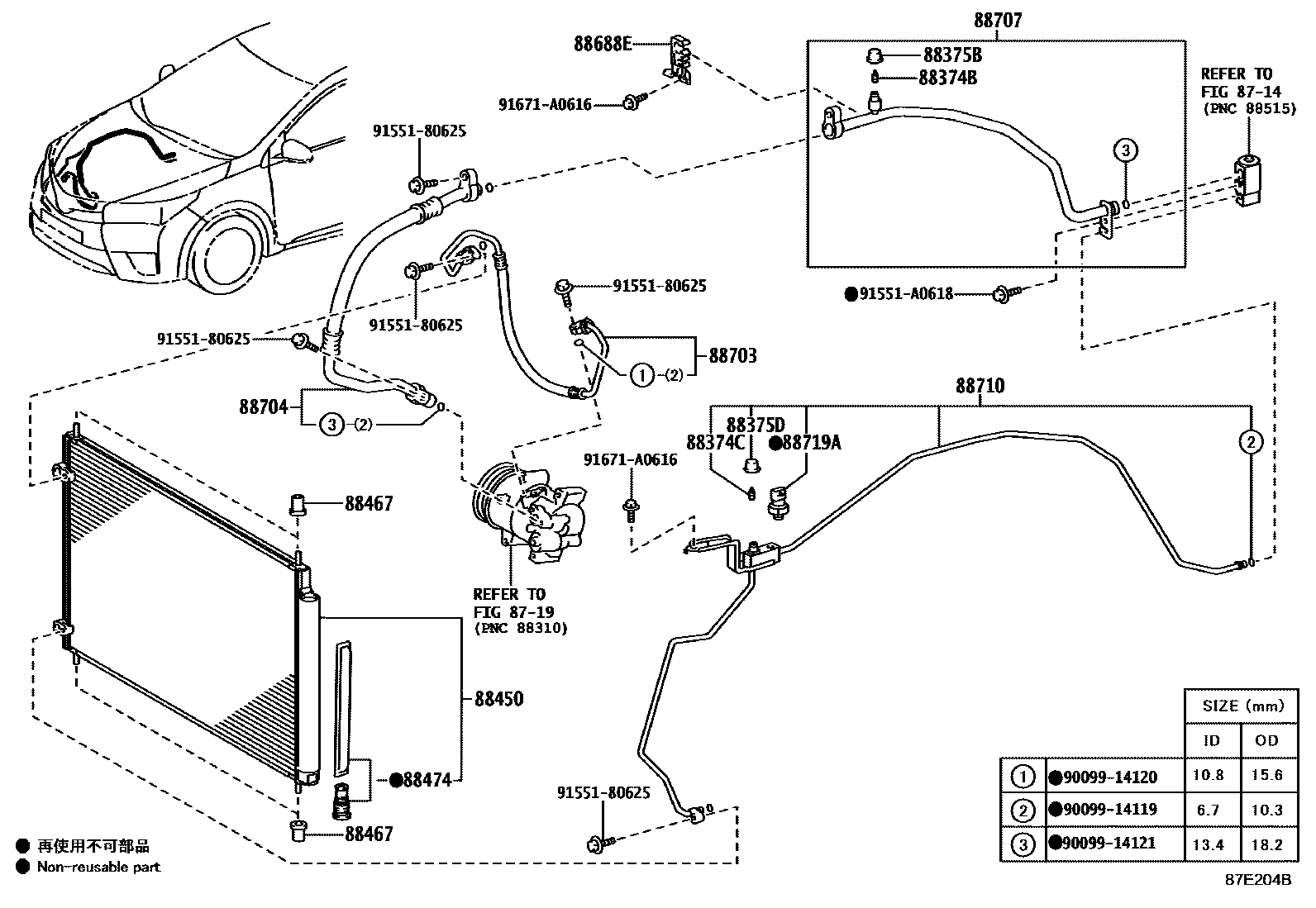

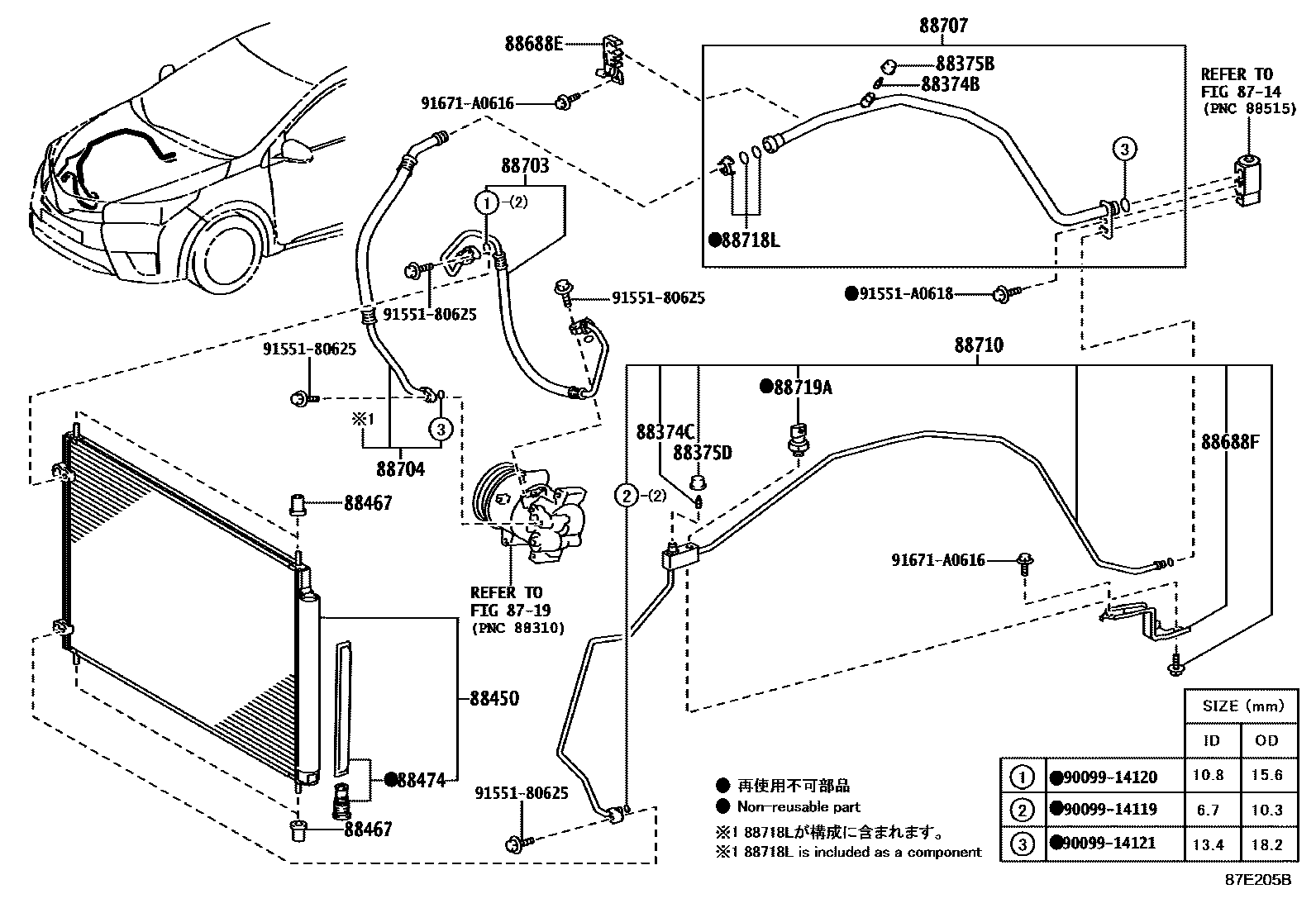

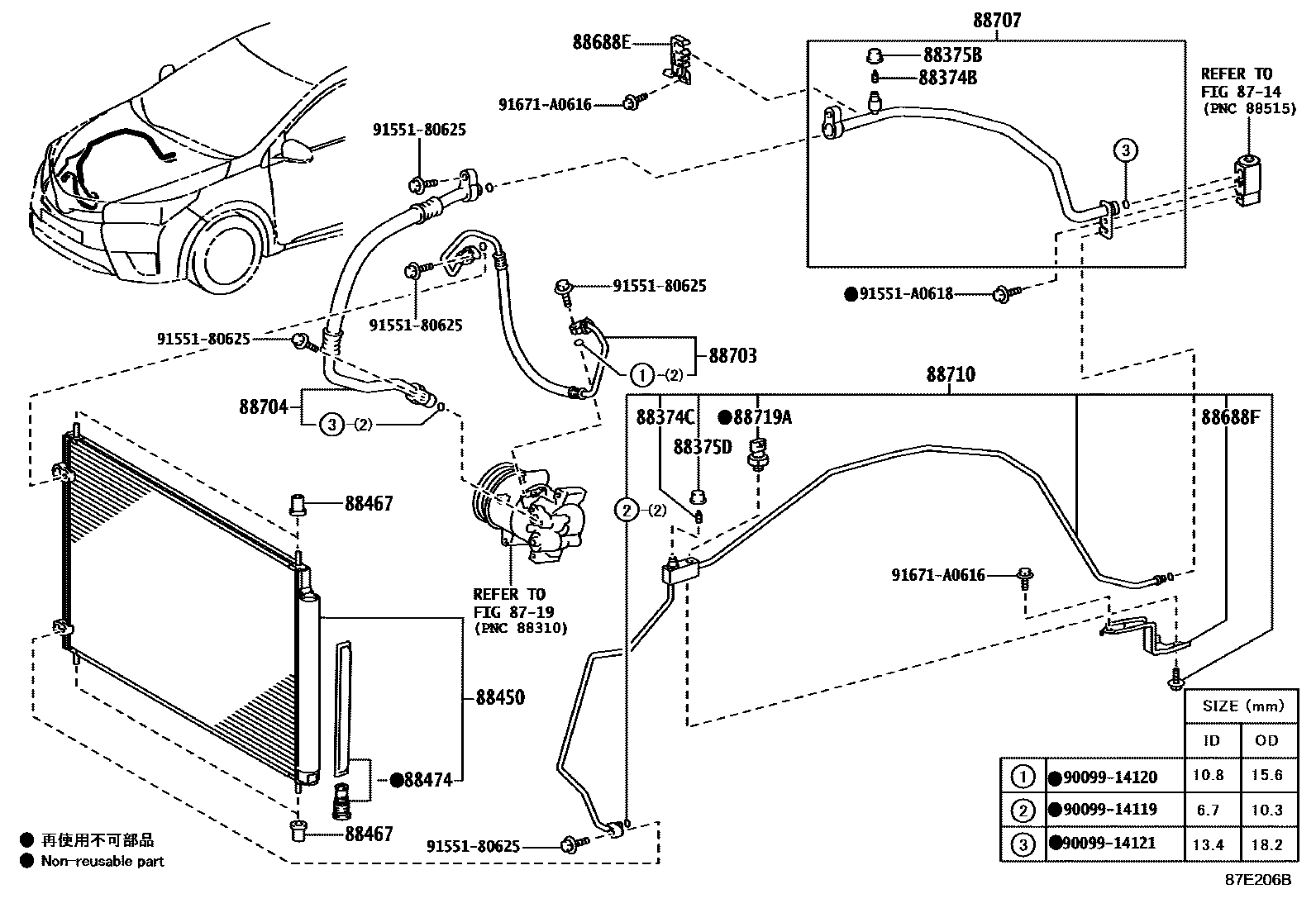

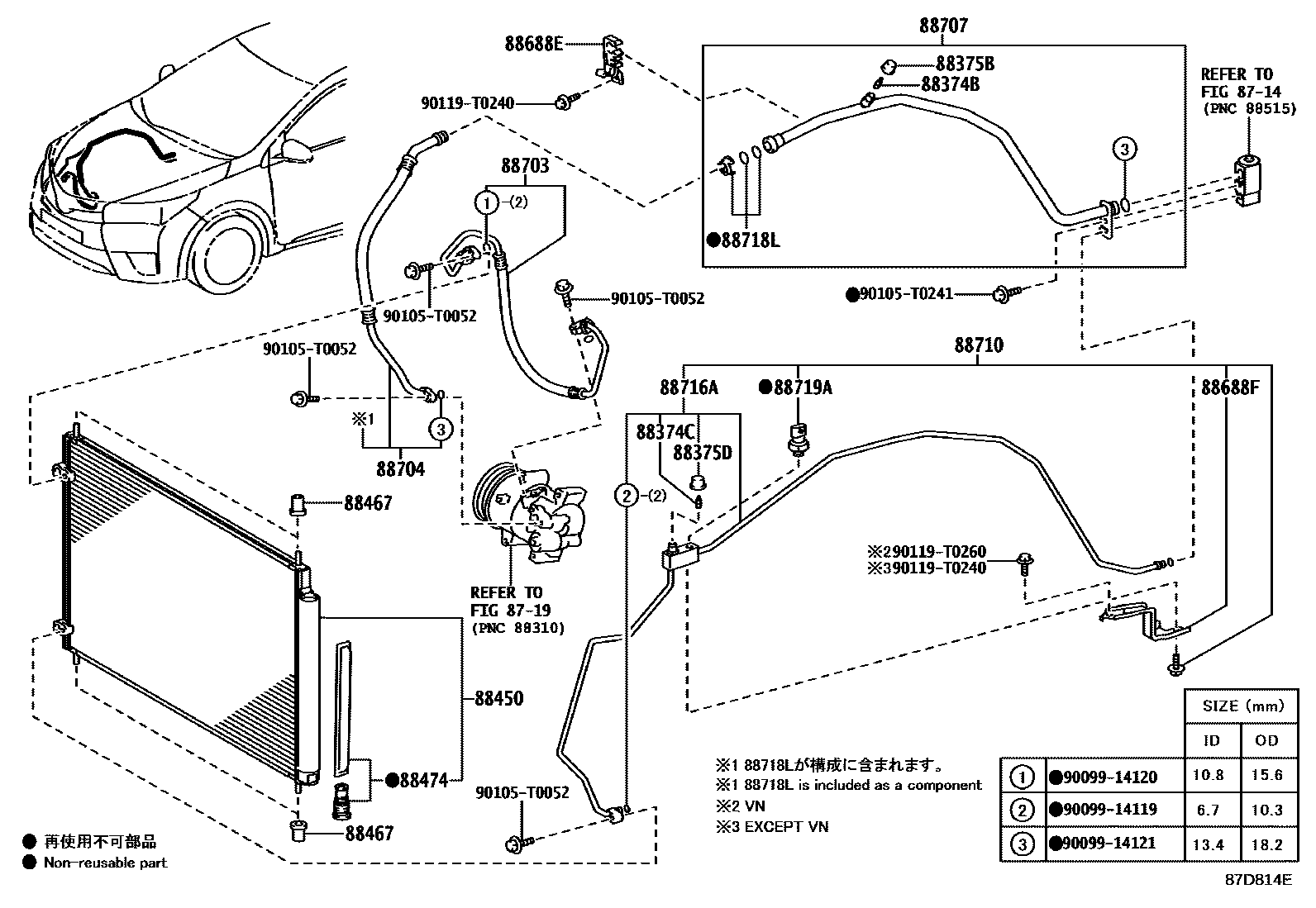

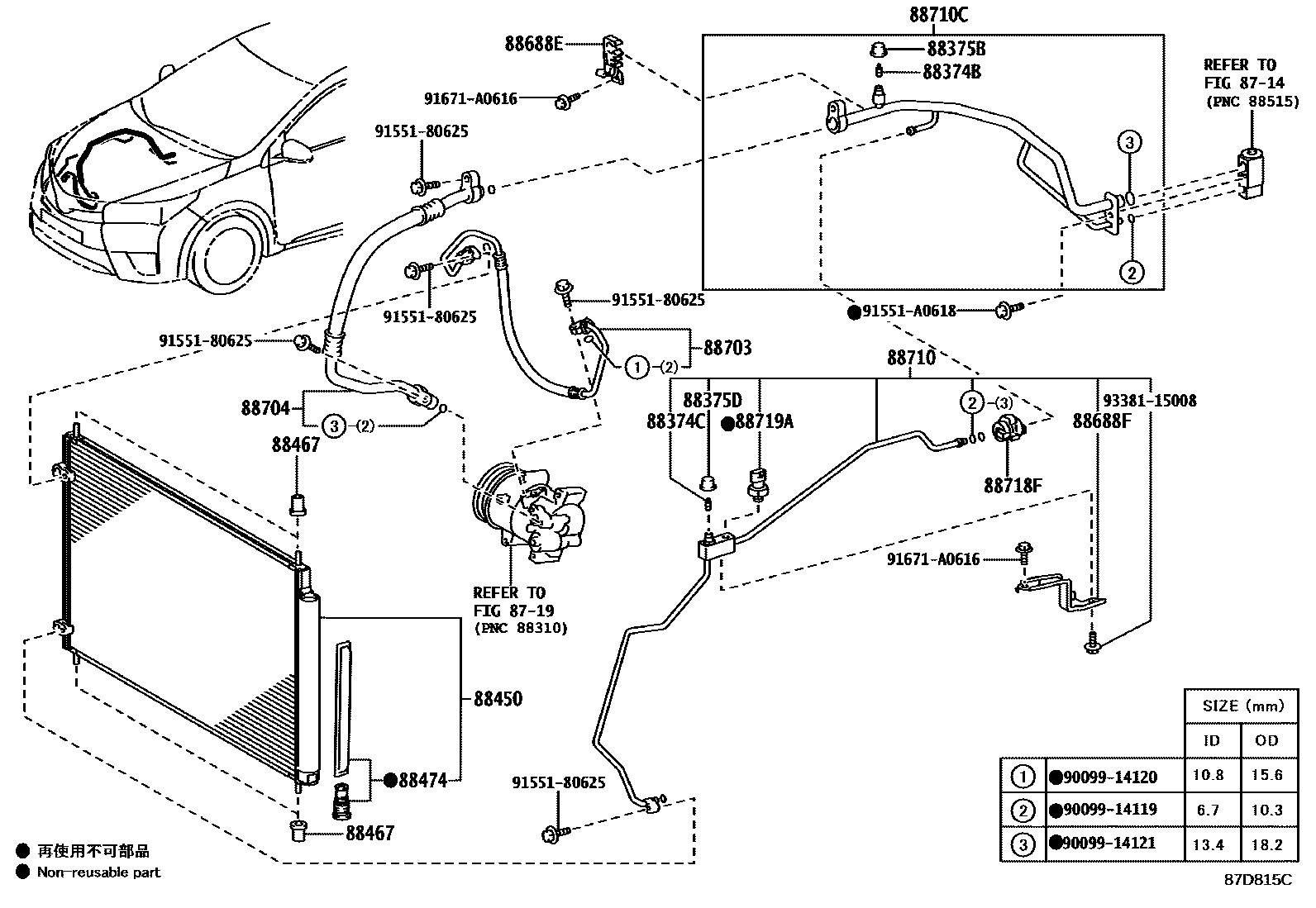

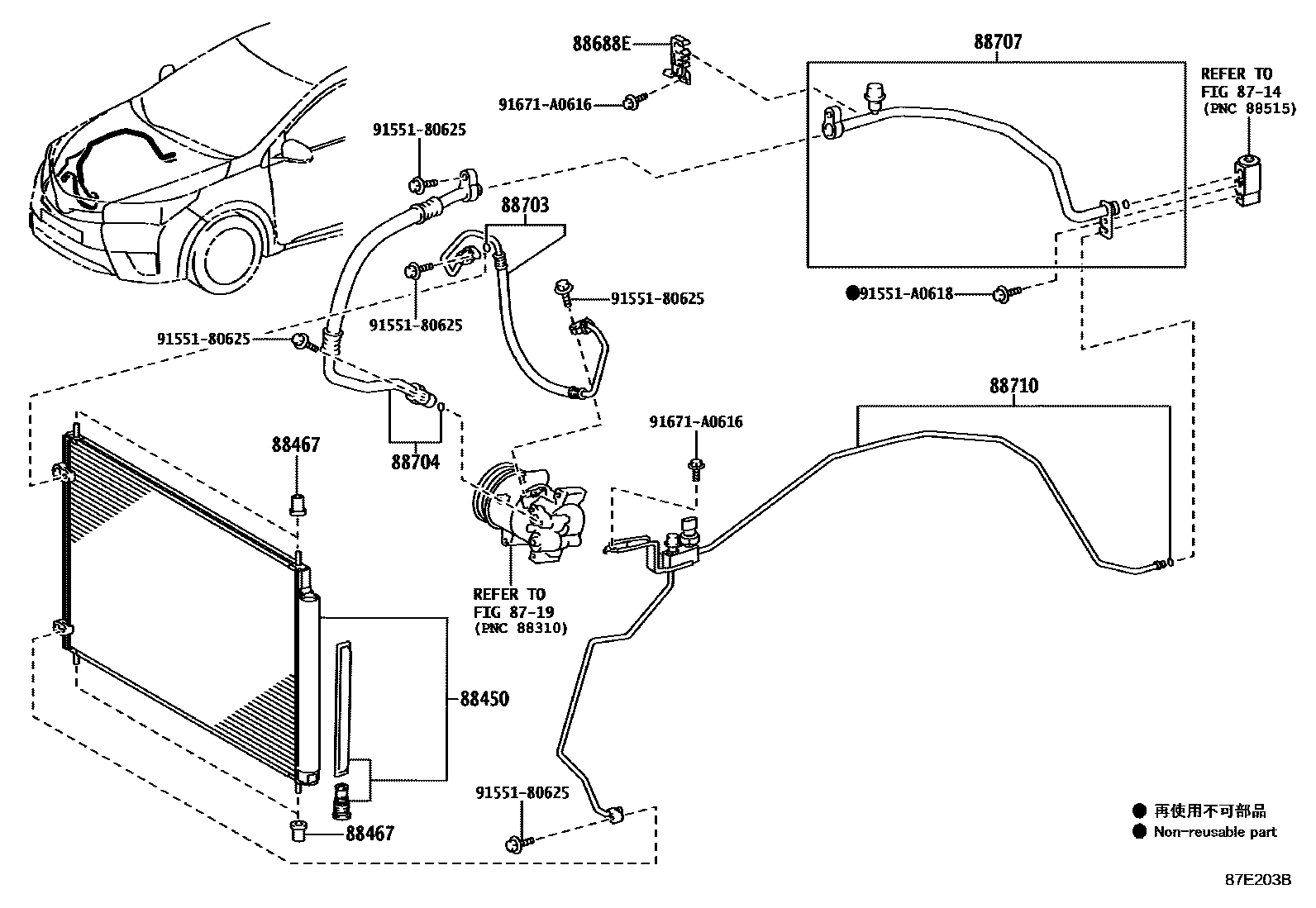

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 6 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88450 | Condenser assembly with liquid reservoir | 88450-02350 · 88450-02360 · 88450-02370 · 88450-02380 |
| 88467 | No. 1 air conditioning condenser buffer pad | 16716-28010 |
| 88474 | cooler dryer | 88474-17010 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-02720 · 88688-02840 · 88688-02A10 · 88688-02A30 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-02810 · 88688-02A00 |
| 88703 | Discharge hose sub-assembly | 88703-02A00 · 88703-02A10 · 88703-02A20 · 88703-02A21 · 88703-02A30 · 88703-02A31 · 88703-02A40 · 88703-02A50 · 88703-02A51 · 88703-02A60 · 88703-02A61 |
| 88704 | Oil suction hose sub-assembly | 88704-02840 · 88704-02A00 · 88704-02A10 · 88704-02A20 · 88704-02A21 · 88704-02A30 · 88704-02A31 · 88704-02A40 · 88704-02A50 · 88704-02A60 · 88704-02A70 · 88704-02A80 |
| 88707 | Suction pipe sub-assembly | 88707-02260 · 88707-02261 · 88707-02270 · 88707-02280 · 88707-02290 · 88707-02291 · 88707-02300 · 88707-02310 · 88707-02311 · 88707-02340 |
| 88710 | Air conditioning pipe assembly | 88710-02700 · 88710-02701 · 88710-02770 · 88710-02830 · 88710-02A20 · 88710-02A21 · 88710-02A30 · 88710-02A31 · 88710-02A40 · 88710-02A41 · 88710-02B30 |
| 88710C | Air conditioning pipe assembly | 88710-02B20 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-02720 · 88716-02730 · 88716-02C60 |
| 88718F | Clamp No. 1 (for cooler refrigerant hose) | 88718-2D150 |
| 88718L | Pipe clamp | 88718-52260 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
