Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715

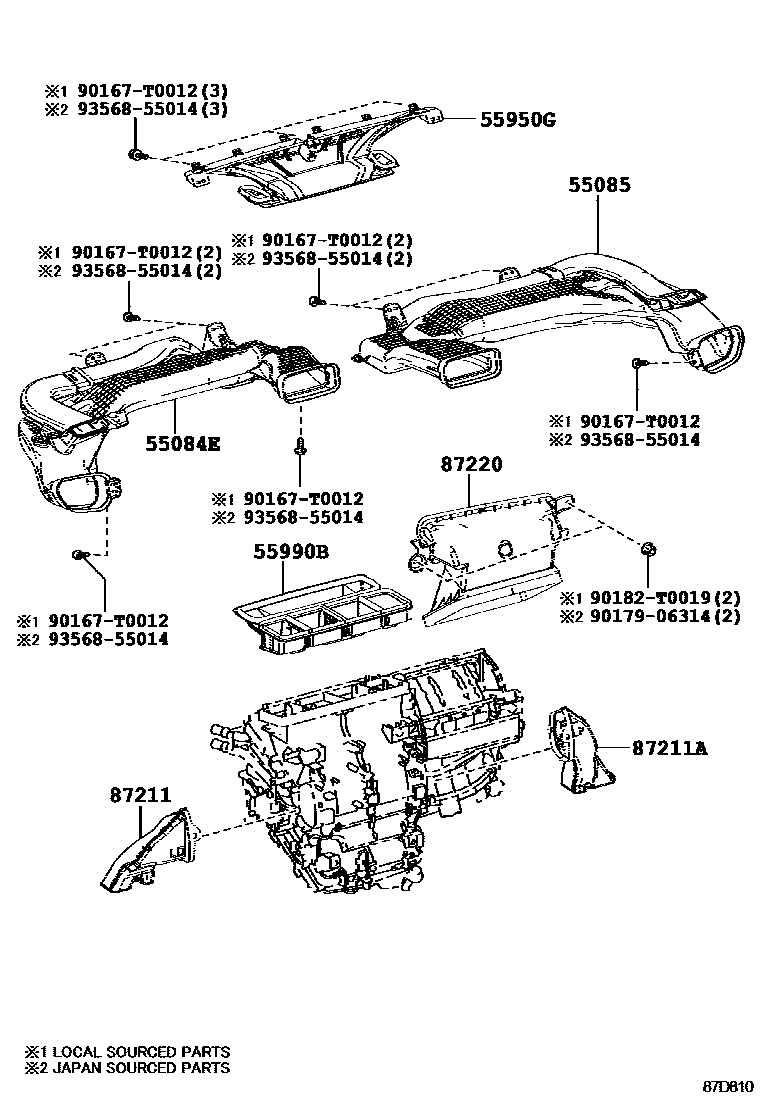

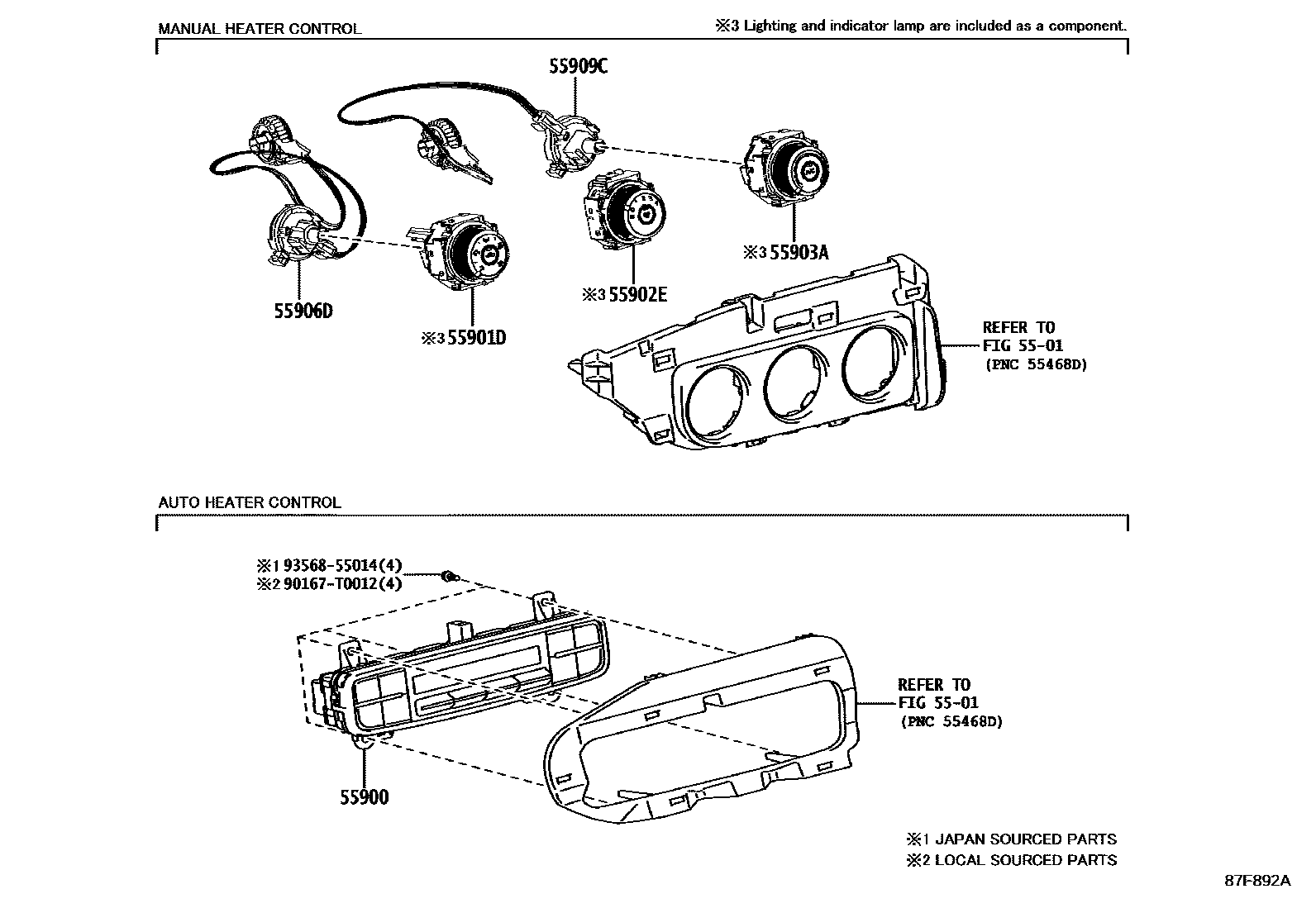

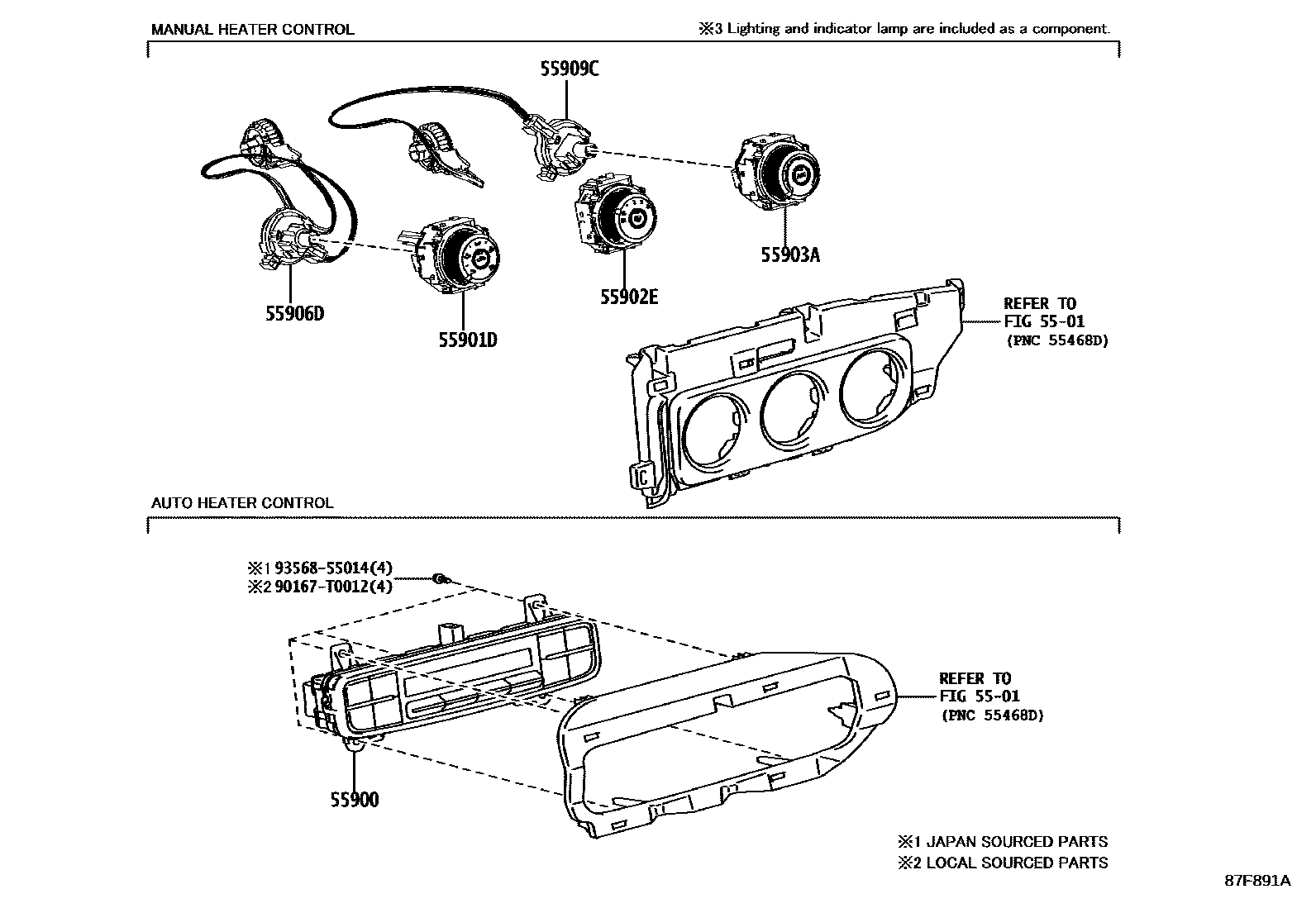

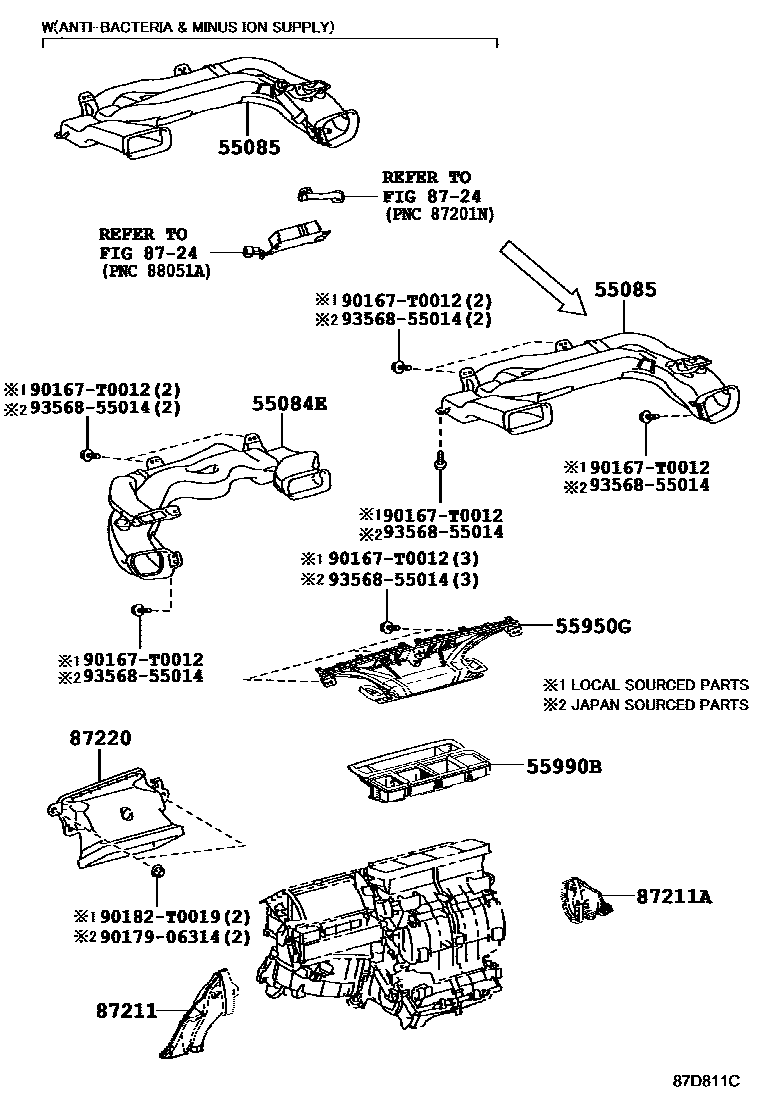

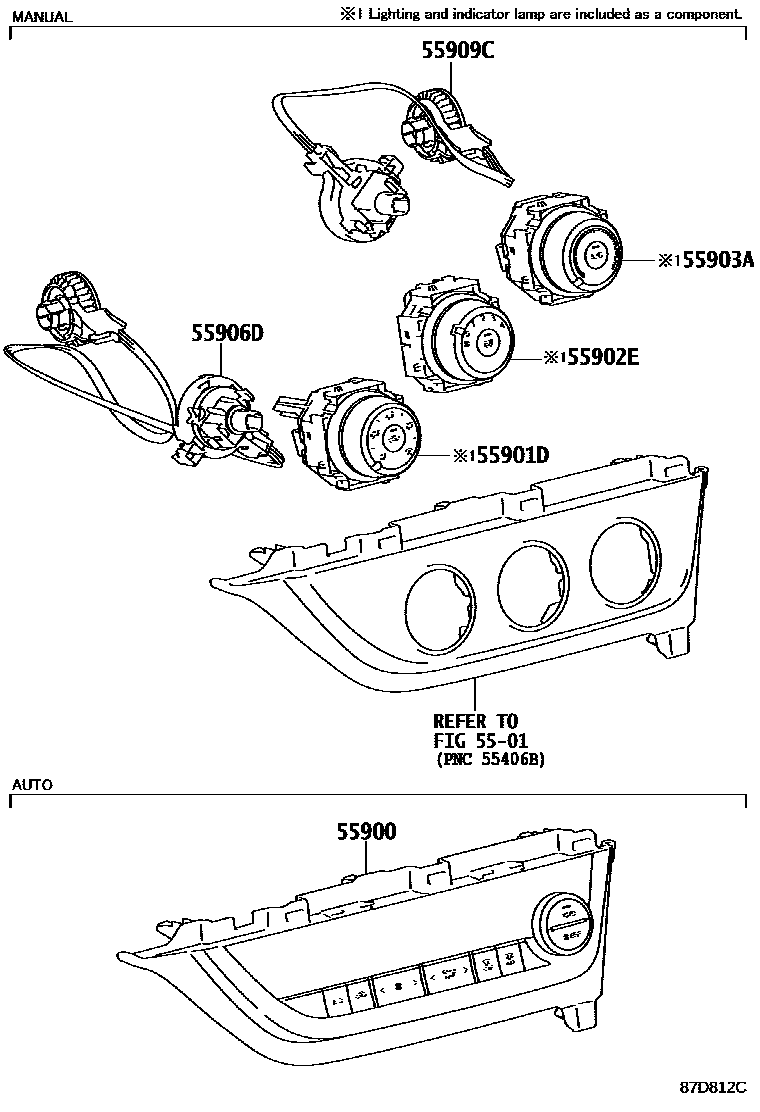

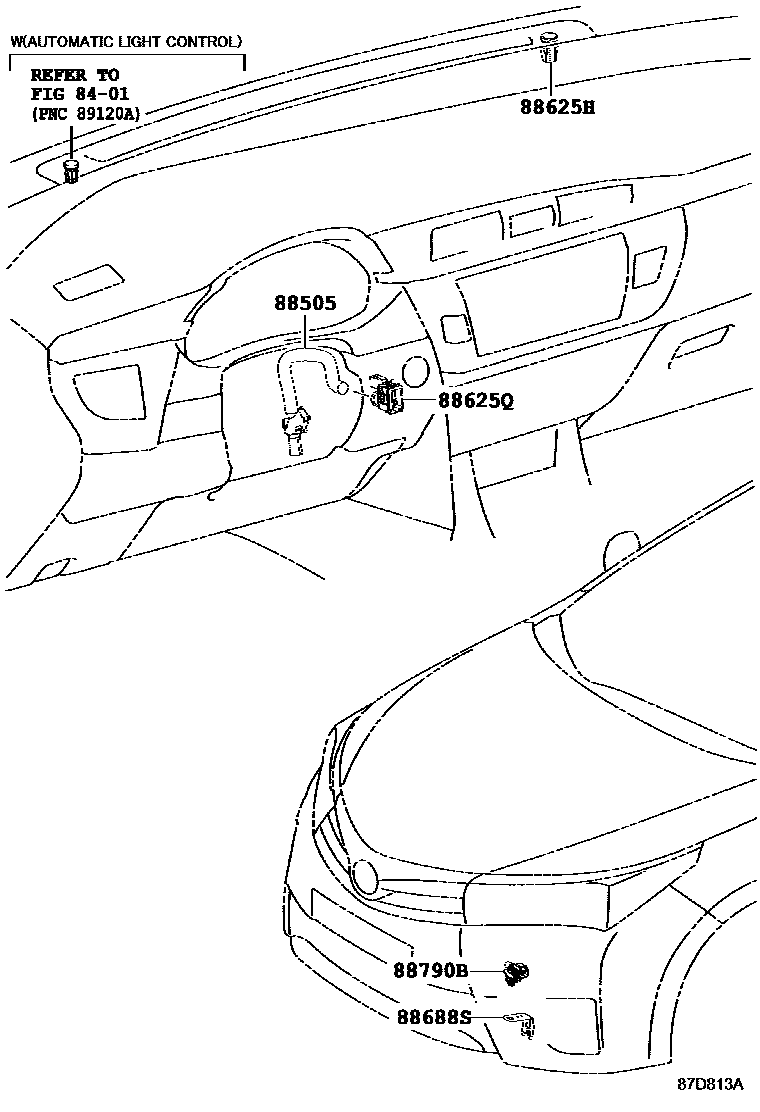

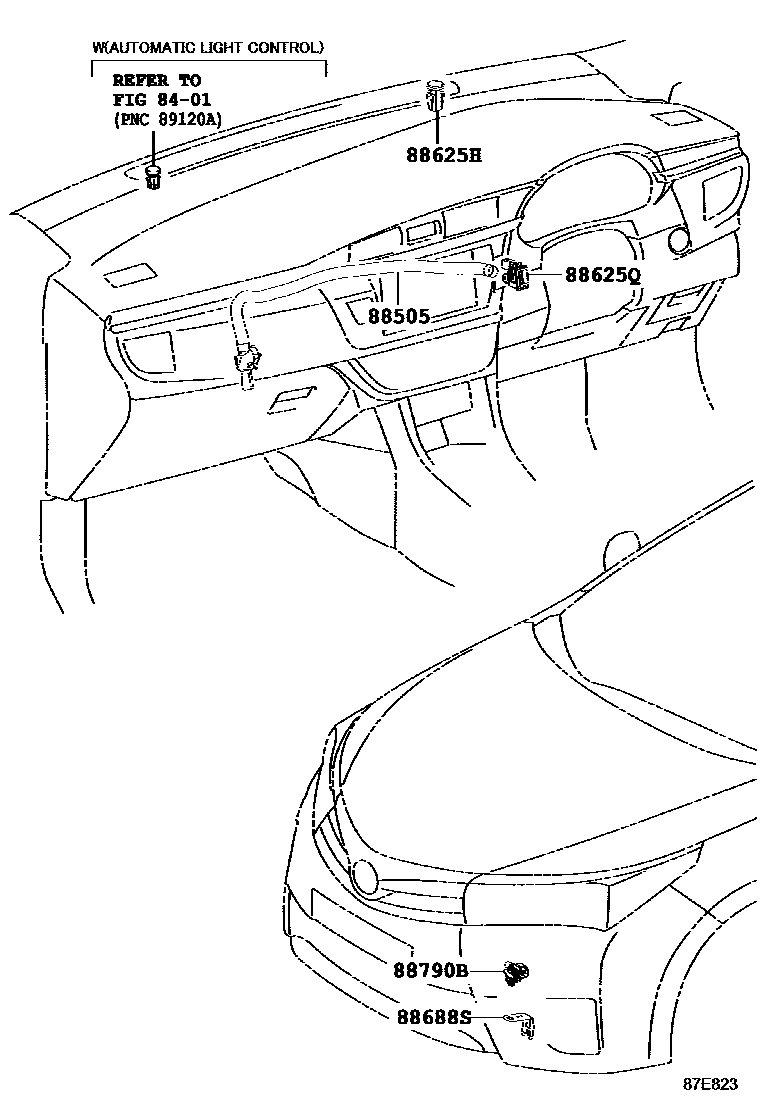

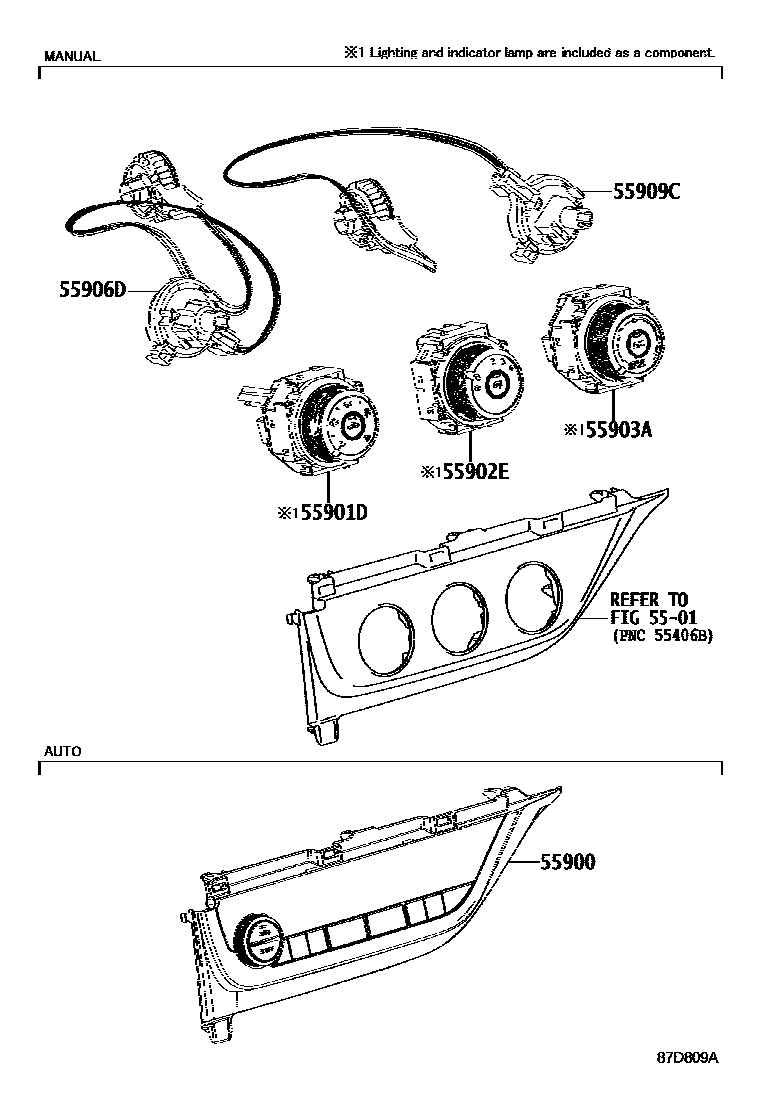

Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 8 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-02260 · 55084-02470 · 55086-02280 · 55086-02290 · 55086-02300 · 55086-02460 · 55086-02480 · 55086-02560 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55084-02270 · 55084-02280 · 55084-02290 · 55084-02300 · 55084-02480 · 55084-02490 · 55084-02510 · 55084-02580 · 55084-02590 · 55086-02270 · 55086-02450 |
| 55900 | Air conditioning control assembly | 55900-02530 · 55900-02540 · 55900-02550 · 55900-02560 · 55900-02770 · 55900-02780 · 55900-02A50 · 55900-02A60 · 55900-02A70 · 55900-02A80 · 55900-02A90 · 55900-02B00 |
| 55901D | No. 1 heater control sub-assembly | 55901-02170 · 55901-02190 · 55901-02200 |
| 55902E | No. 2 heater control sub-assembly | 55902-02180 · 55902-02200 · 55902-02210 |
| 55903A | No. 3 heater control sub-assembly | 55903-02300 · 55903-02310 · 55903-02330 · 55903-02340 |
| 55906D | No. 2 heater control cable sub-assembly | 55906-0K010 |
| 55909C | Air mix damper control cable sub-assembly | 55909-0K010 |
| 55950G | Defroster nozzle assembly | 55950-02310 · 55950-02320 · 55950-02330 · 55950-02380 · 55950-02390 |
| 55990B | Lower defroster nozzle assembly | 55990-02190 · 55990-02200 · 55990-02220 |
| 87211 | No. 1 air duct | 87211-02350 · 87211-02361 · 87211-02381 · 87211-02410 · 87211-02430 |
| 87211A | Duct No. 2 | 87211-02341 · 87211-02370 · 87211-02390 · 87211-02401 · 87211-02421 |
| 87220 | Air duct assembly | 87220-02210 · 87220-02220 · 87220-02230 · 87220-02240 · 87220-02250 · 87220-02310 · 87220-02320 · 87220-02330 · 87220-02340 |
| 88505 | Air conditioning duct sub-assembly | 88505-02080 · 88505-02090 · 88505-02100 · 88505-02110 · 88505-02200 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-47031 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88688S | Bracket (for cooler thermistor) | 88688-0Z330 · 88688-0Z340 · 88688-0Z350 · 88688-0Z360 |
| 88790B | Thermistor assembly | 88790-22131 |
