Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 8 PNC and OE references.

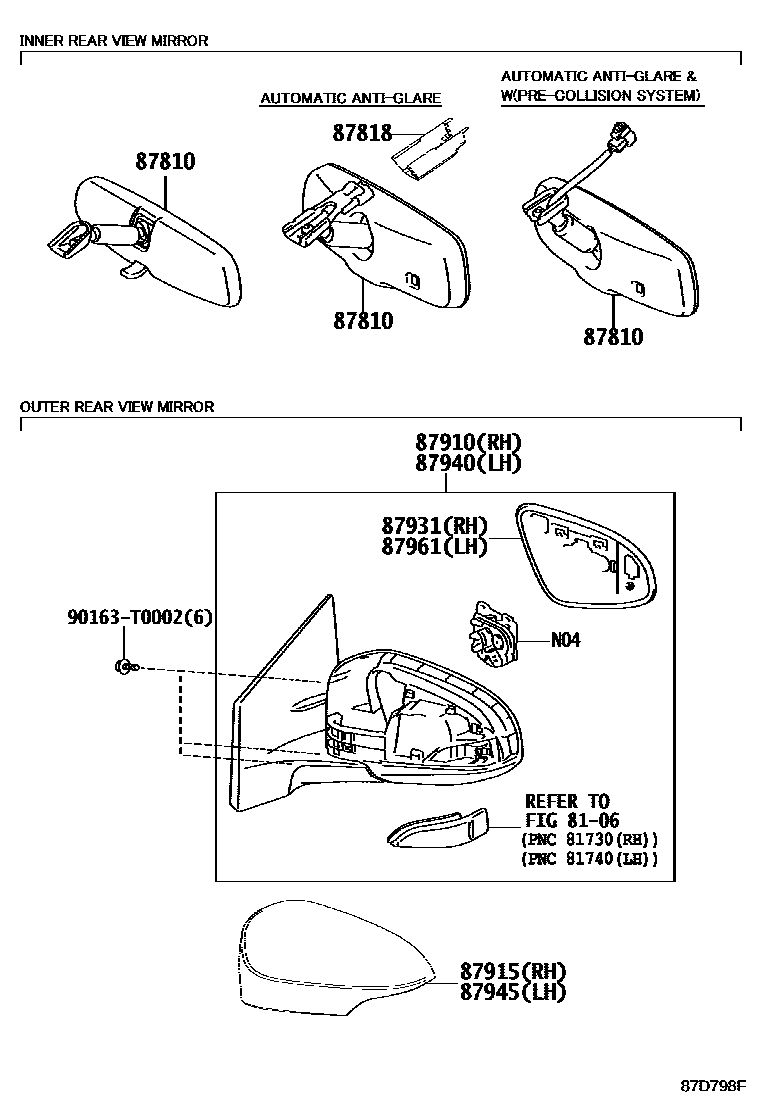

Toyota COROLLA 后视镜 EPC diagram — 87D798F
后视镜 — 87D798F (201312 – 999999)

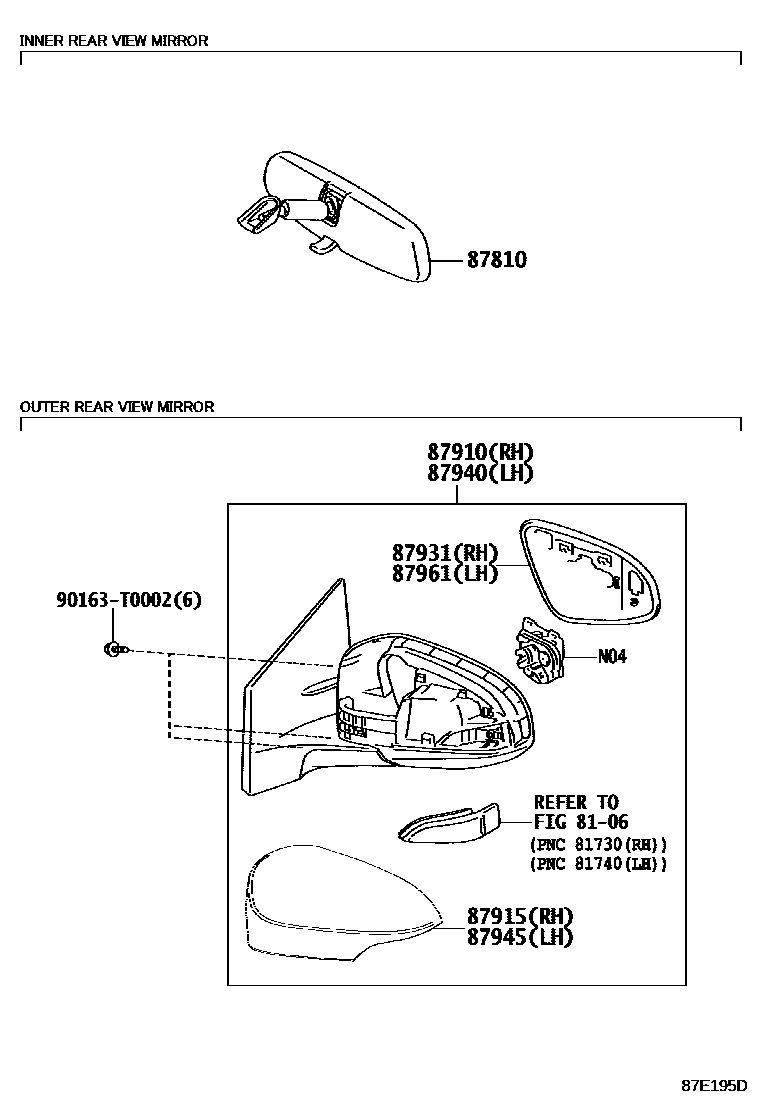

Toyota COROLLA 后视镜 EPC diagram — 87E195D
后视镜 — 87E195D (201310 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-02220 · 87810-02230 · 87810-02260 · 87810-06030 · 87810-06041 · 87810-0W810 · 87810-0WQ50
87818Interior rearview mirror cover87818-0W070
87910Right exterior rearview mirror assembly87910-02908 · 87910-02909 · 87910-02910 · 87910-02911 · 87910-02J10 · 87910-02J20 · 87910-02J30 · 87910-02J40 · 87910-02J50 · 87910-02J60 · 87910-02J70 · 87910-02J80 · 87910-02K30 · 87910-02K40 · 87910-02K50 · 87910-02K60
87915Right exterior rearview mirror cover87915-02929 · 87915-02932 · 87915-06910 · 87915-06911
87931Right exterior rearview mirror87931-02J50 · 87931-02K00 · 87931-02K20 · 87931-02K30 · 87931-02K60 · 87931-0D750
87940Left exterior rearview mirror assembly87940-02908 · 87940-02909 · 87940-02910 · 87940-02911 · 87940-02G50 · 87940-02G60 · 87940-02G70 · 87940-02G80 · 87940-02G90 · 87940-02J00 · 87940-02J10 · 87940-02J20 · 87940-02K20 · 87940-02K30 · 87940-02K40 · 87940-02K50
87945Left exterior rearview mirror cap87945-02929 · 87945-02932 · 87945-06910 · 87945-06911
87961Left exterior rearview mirror87961-02G90 · 87961-02J40 · 87961-02J60 · 87961-02K20 · 87961-02K50 · 87961-0D740
