Toyota COROLLA 预碰撞安全系统 — Figure 8617

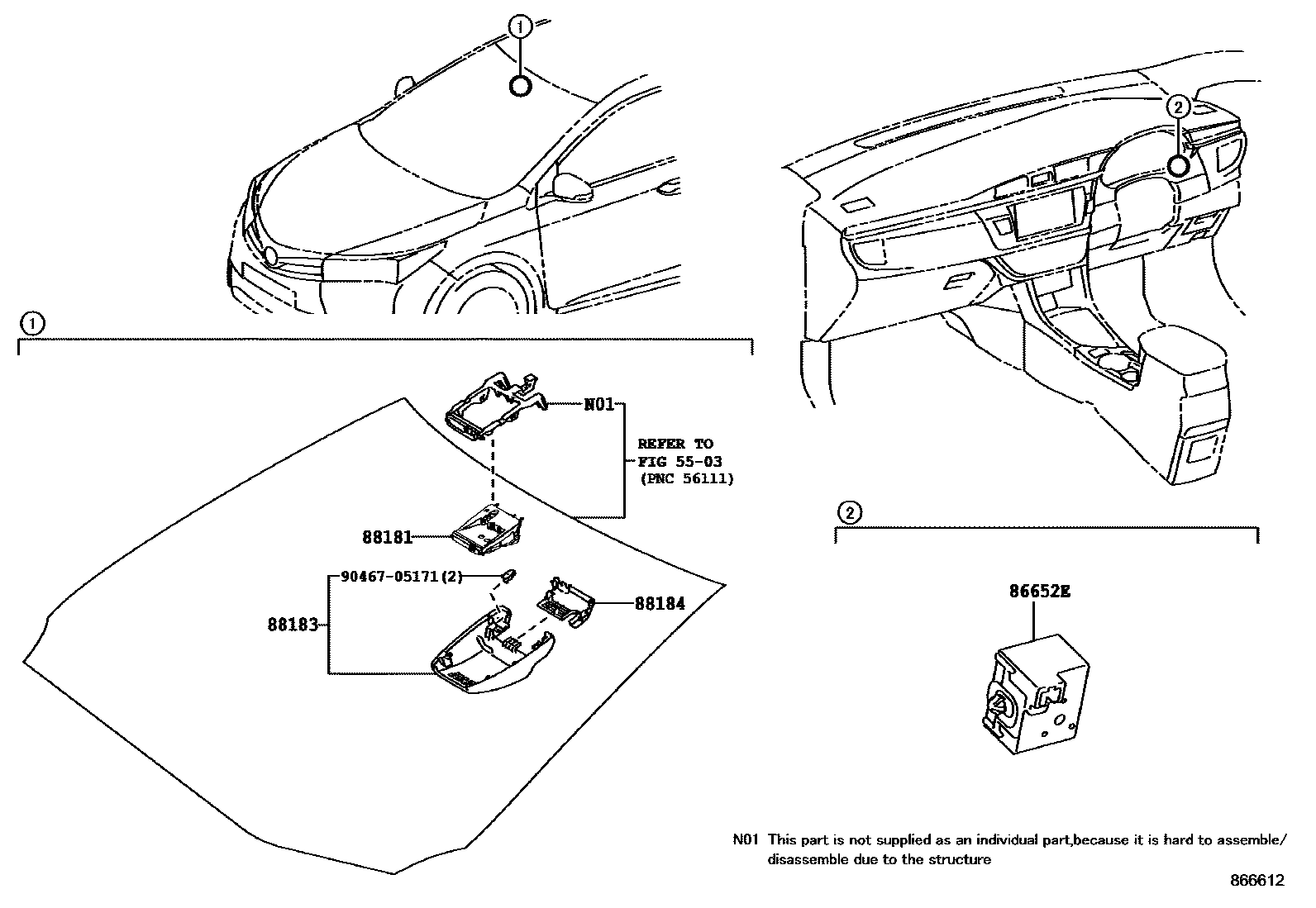

Toyota COROLLA EPC diagram 8617, 预碰撞安全系统, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86652E | Pre-collision safety system buzzer | 86652-50010 |
| 88181 | Pre-collision safety system sensor | 88181-02040 |
| 88183 | Pre-crash safety system cover | 88183-12021 |
| 88184 | Pre-collision safety system cover 2 | 88184-12030 |
