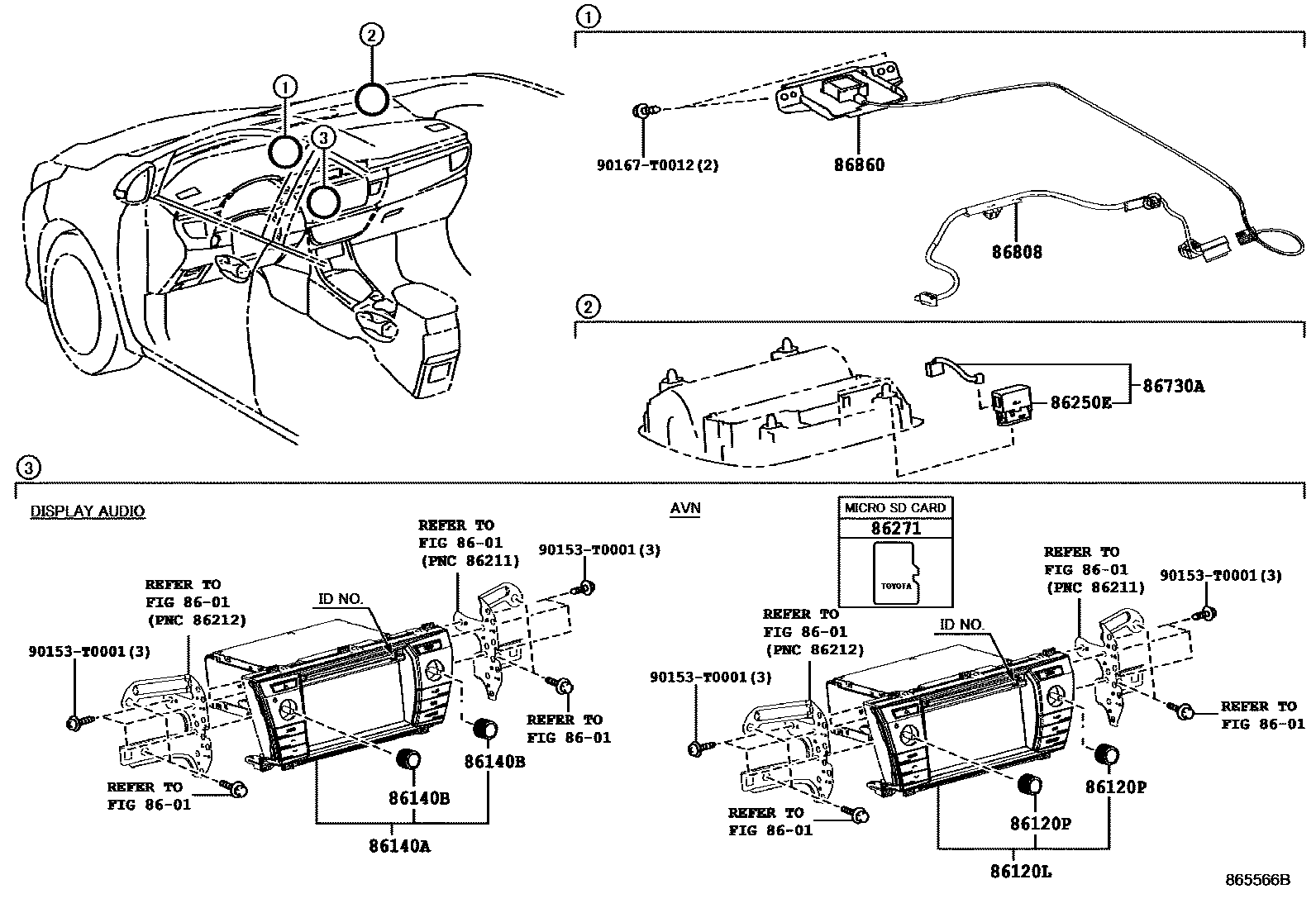

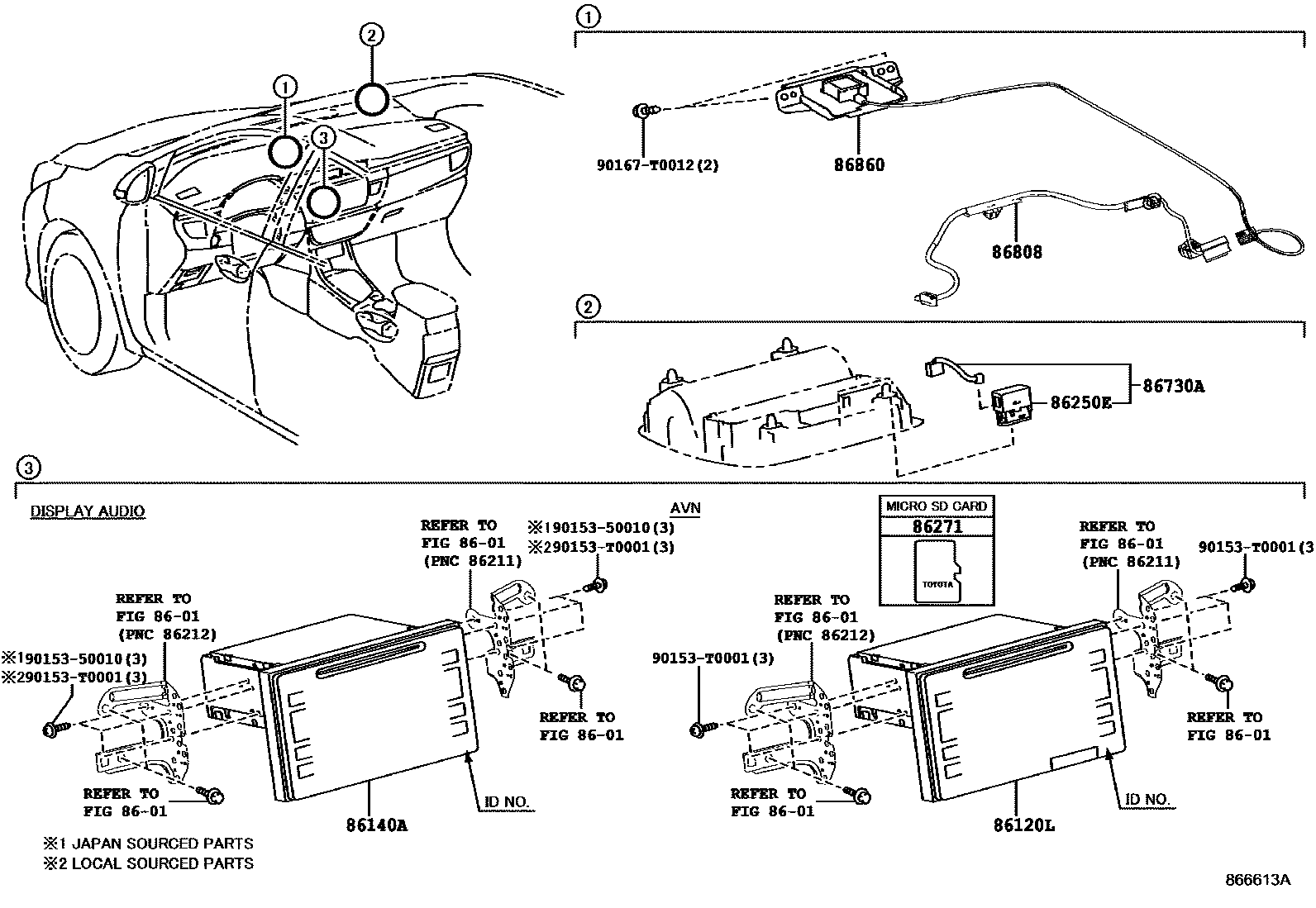

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86804-02040 · 86804-02050 · 86804-02110 · 86804-02120 |
| 86120P | Navigation receiver switch button | 90011-25228 |
| 86140A | Radio and display receiver assembly | 86140-02170 · 86140-02180 · 86140-02550 · 86140-02570 · 86140-02580 · 86140-02590 |
| 86140B | Radio and display receiver switch button | 90011-25228 |
| 86250E | amplifier loudspeaker assembly | 86250-52020 · 86250-52030 |
| 86271 | CD | 86271-0E170 · 86271-0E171 · 86271-0E172 · 86271-0E174 · 86271-0E175 · 86271-60380 · 86271-60381 · 86271-60382 · 86271-60383 · 86271-60384 |
| 86730A | Telephone amplifier assembly | 86730-47030 · 86730-47040 · 86730-52010 · 86730-52020 |
| 86808 | No. 1 navigation antenna wire sub-assembly | 86808-02090 |
| 86860 | Navigation antenna assembly | 86860-02040 |
