Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

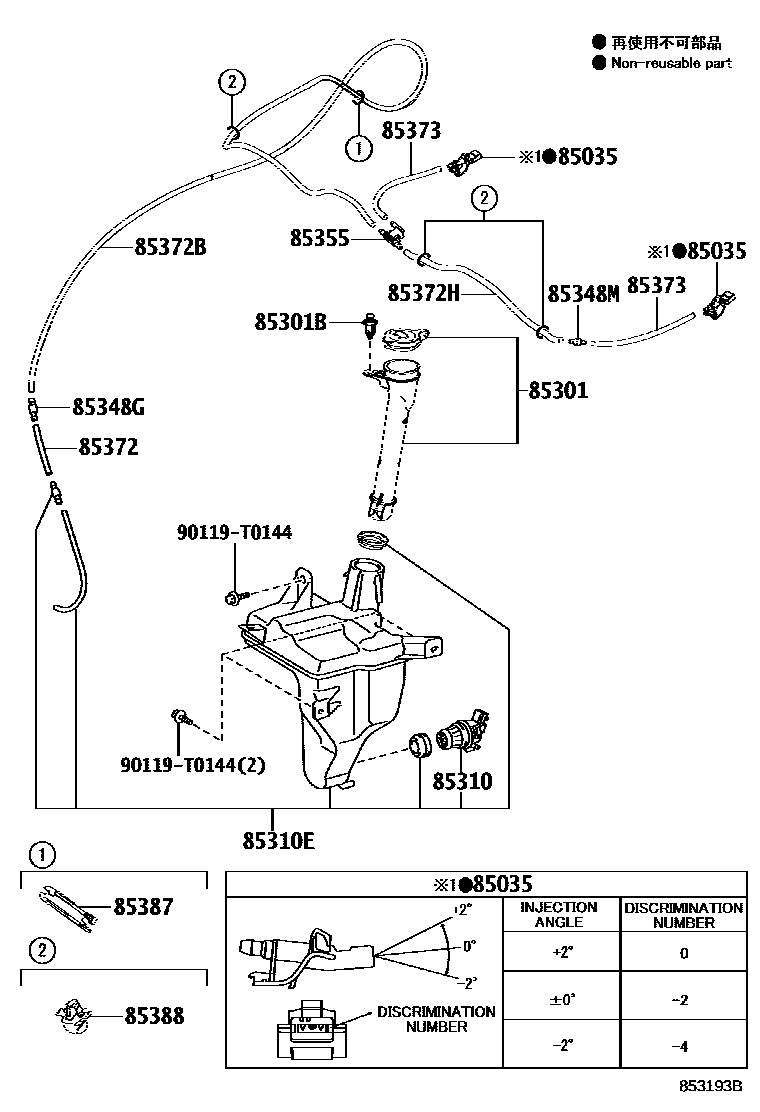

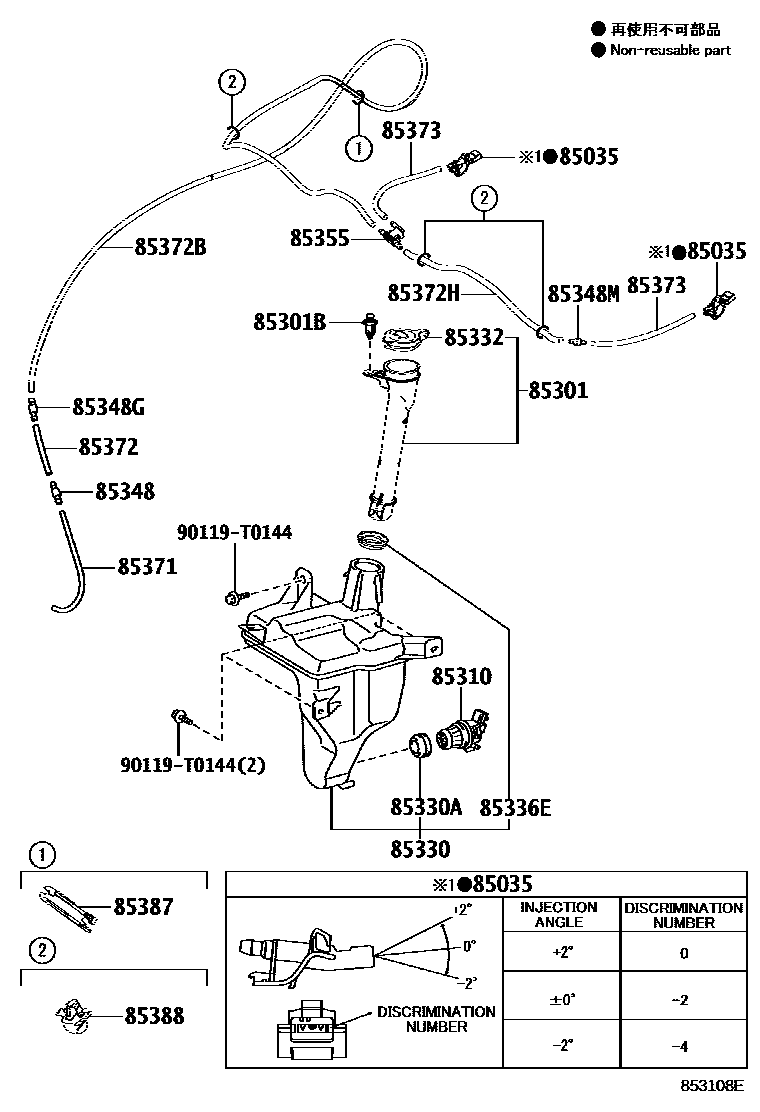

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12400 · 85381-12410 · 85381-12420 |
| 85301 | Cleaner water inlet sub-assembly | 85301-02060 · 85301-02070 · 85301-02080 · 85301-02081 · 85301-02090 |
| 85301B | Cleaner clip | 90467-T0022 |
| 85310 | Windshield washer motor and pump assembly | 85330-71020 |
| 85310E | Cleaning fluid tank and motor assembly | 85310-02620 |
| 85330 | Windshield washer fluid tank assembly | 85315-02600 · 85315-02610 · 85315-02630 |
| 85330A | Windshield washer fluid tank bushing | 85336-0K020 · 85336-60300 |
| 85332 | Windshield washer fluid tank cap | 85316-02600 · 85316-02630 · 85316-16070 · 85316-YE011 |
| 85336E | Windshield washer water inlet hose seal | 85336-30160 |
| 85348 | Windshield washer hose connector No. 1 | 85375-06101 · 85375-10260 |
| 85348G | Windshield washer hose connector No. 2 | 85375-06101 · 85375-10260 |
| 85348M | No. 3 windshield washer hose connector | 85375-06101 · 85375-10260 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85371 | Windshield washer hose (from motor to connector) | 90068-59113 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-33160 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90068-59119 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 90068-59120 · 90099-59148 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-59066 |
| 85387 | Clip No. 1 (for windshield washer) | 85387-02330 · 85387-12840 |
| 85388 | Clip No. 2 (for windshield washer) | 85371-0K020 · 85371-12040 |
