Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 13 PNC and OE references.

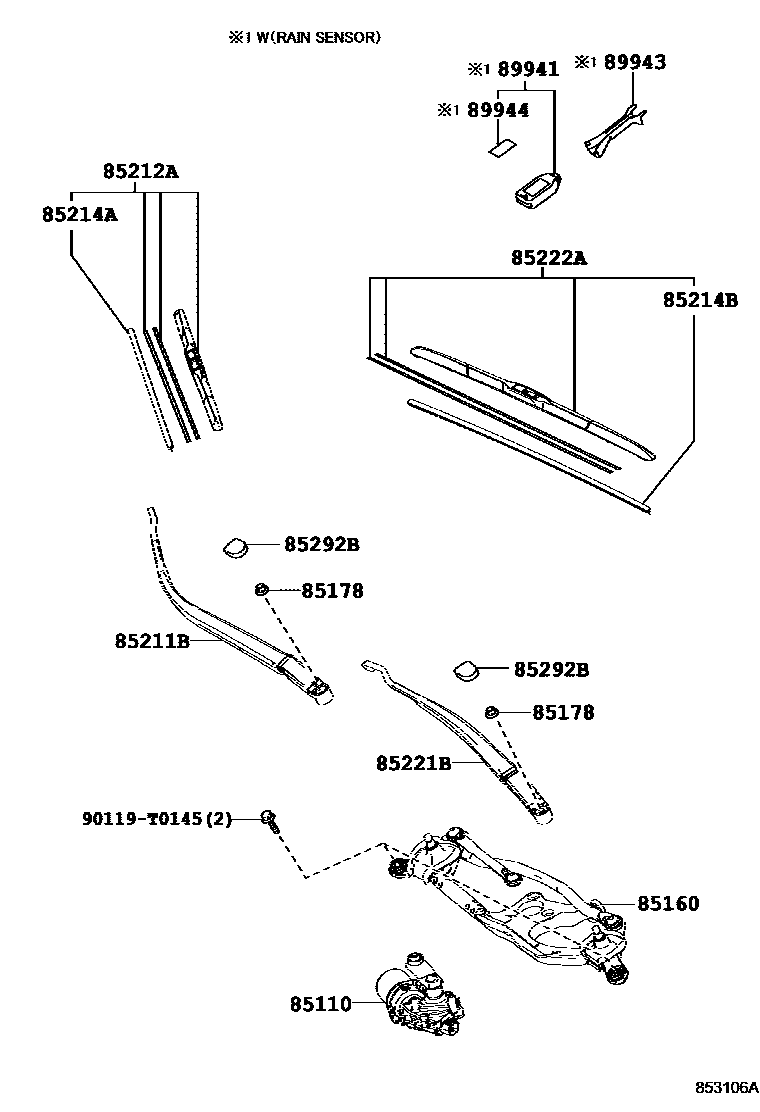

Toyota COROLLA 挡风玻璃刮水器 EPC diagram — 853106A
挡风玻璃刮水器 — 853106A (201310 – 999999)

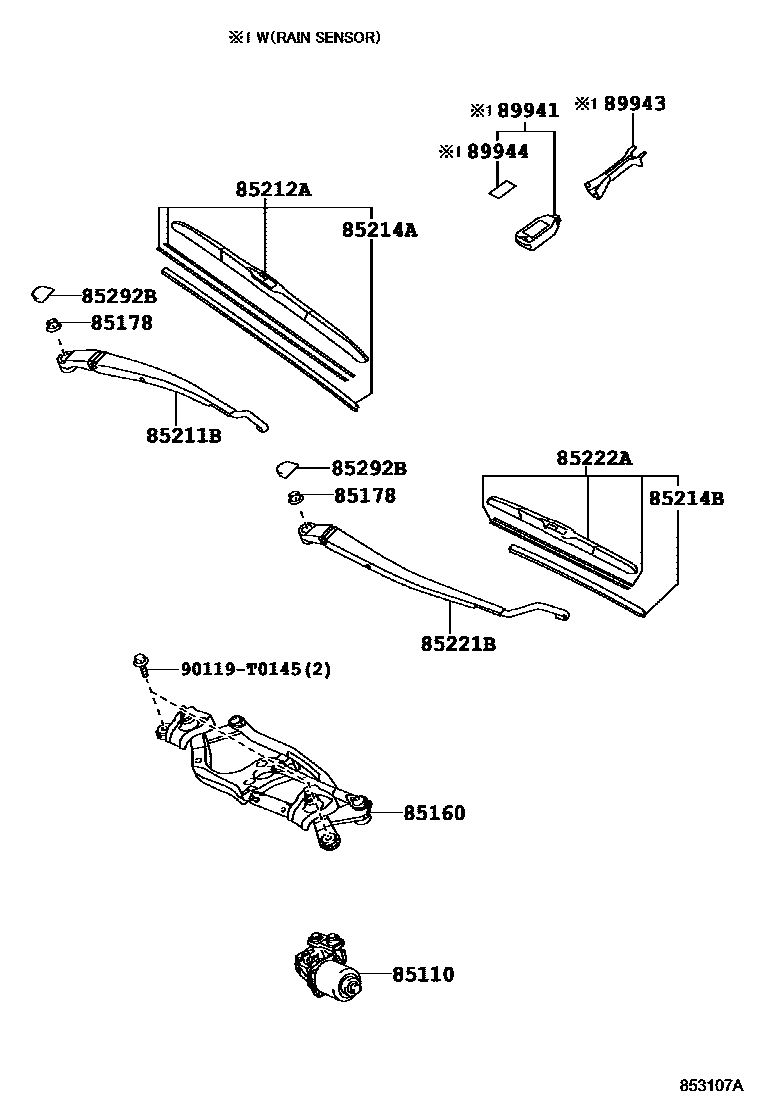

Toyota COROLLA 挡风玻璃刮水器 EPC diagram — 853107A
挡风玻璃刮水器 — 853107A (201312 – 999999)

PNC and OE references

PNCPart nameOE numbers
85110Windshield wiper motor assembly85110-02400 · 85110-02410 · 85110-02420
85160Windshield wiper connecting rod assembly85150-02360 · 85150-02370 · 85150-02380
85178Nut (for securing front wiper arm)90182-T0029
85211BRight front wiper arm85211-02360 · 85211-02370 · 85211-02400
85212ARight front wiper blade85212-02300 · 85212-52220 · 85212-52250
85214ARight wiper rubber strip85214-52110 · 85214-68030
85214BLeft wiper rubber strip85214-52110 · 85214-68030
85221BLeft front wiper arm85221-02380 · 85221-02390 · 85221-02420
85222ALeft front wiper blade85222-02340 · 85222-42120 · 85222-52220
85292BFront wiper arm cap85292-0D030 · 85292-0D050
89941rain sensor89941-52010
89943Rain sensor cover89943-47010
89944Rain sensor tape89944-42010
