Toyota COROLLA 遥控门锁 — Figure 8420

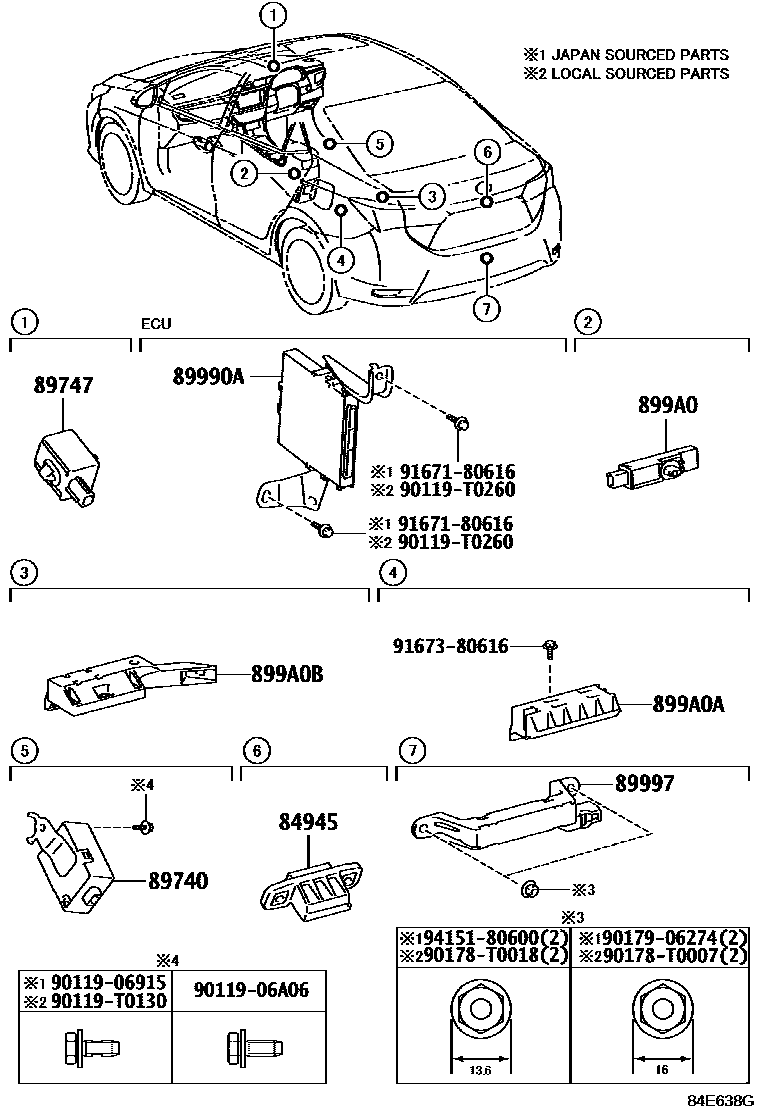

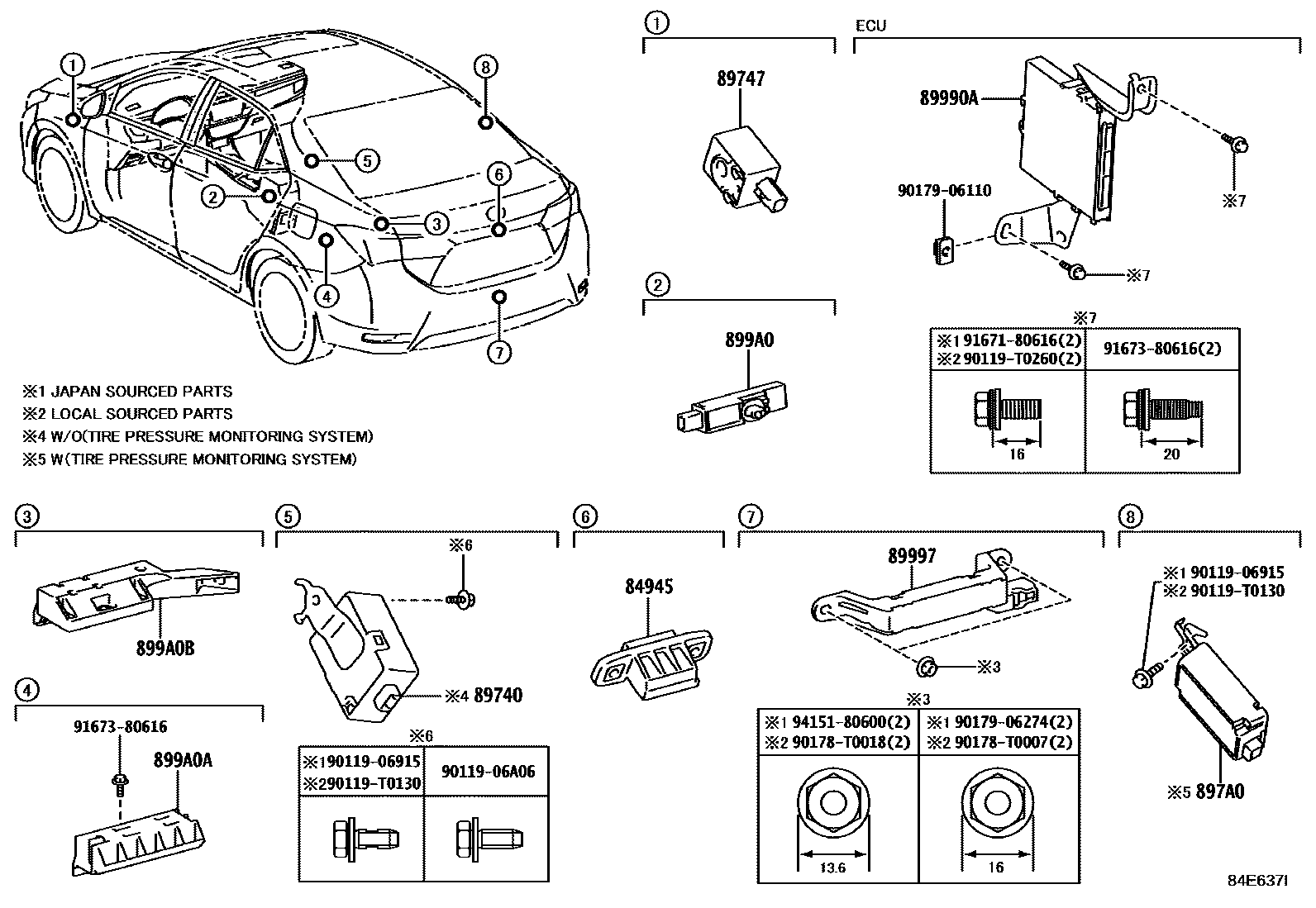

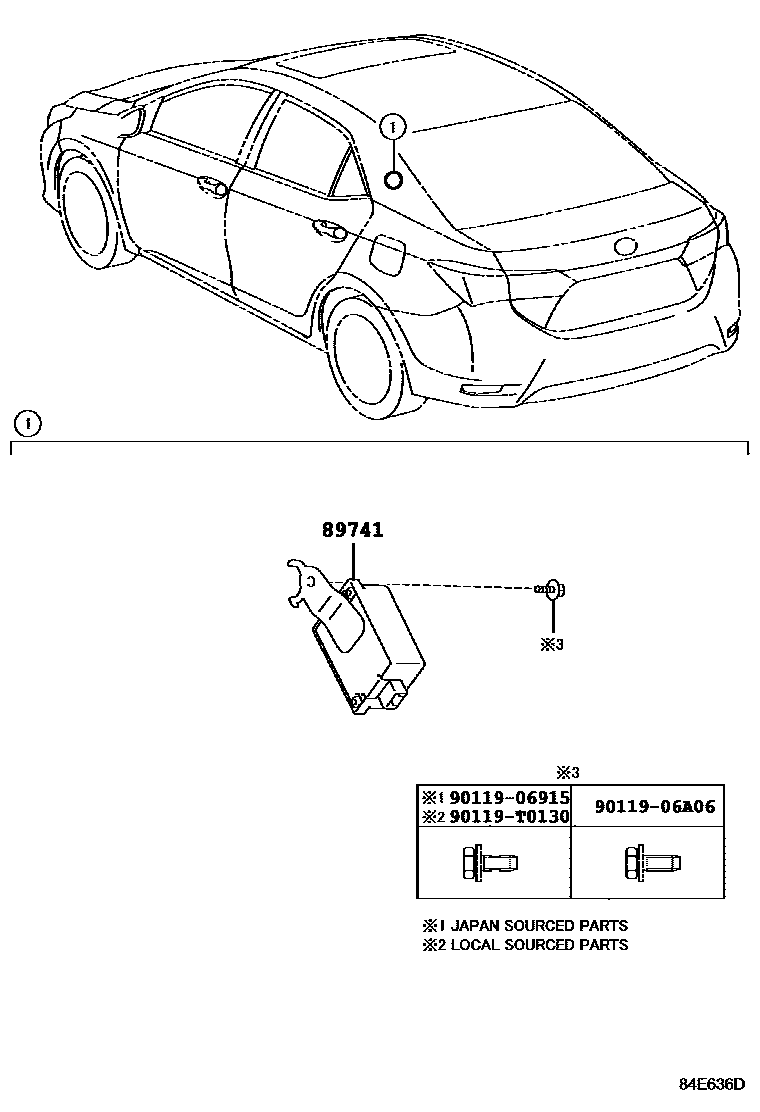

Toyota COROLLA EPC diagram 8420, 遥控门锁, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84945 | Luggage electronic key switch | 84945-12030 |
| 89740 | Door control ECU assembly with receiver | 89740-02090 · 89740-12190 · 89740-12191 · 89740-12192 · 89740-12200 · 89740-12210 · 89740-12220 |
| 89741 | door control receiver | 89741-02300 · 89741-02310 · 89741-02320 · 89741-02330 · 89741-02350 · 89741-02360 · 89741-02390 · 89741-02400 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 897A0 | Door control and tire pressure detection system receiver assembly | 897B0-12010 · 897B0-12020 · 897B0-12030 |
| 89990A | Smart key ECU assembly | 89990-12170 · 89990-12171 · 89990-12172 · 89990-12190 · 89990-12191 · 89990-12192 · 89990-12193 · 89990-12194 |
| 89997 | electronic key antenna | 89997-30070 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-02070 · 899A0-02100 · 899A0-47010 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-02080 · 899A0-02110 · 899A0-12060 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-02090 · 899A0-02120 · 899A0-12070 |
