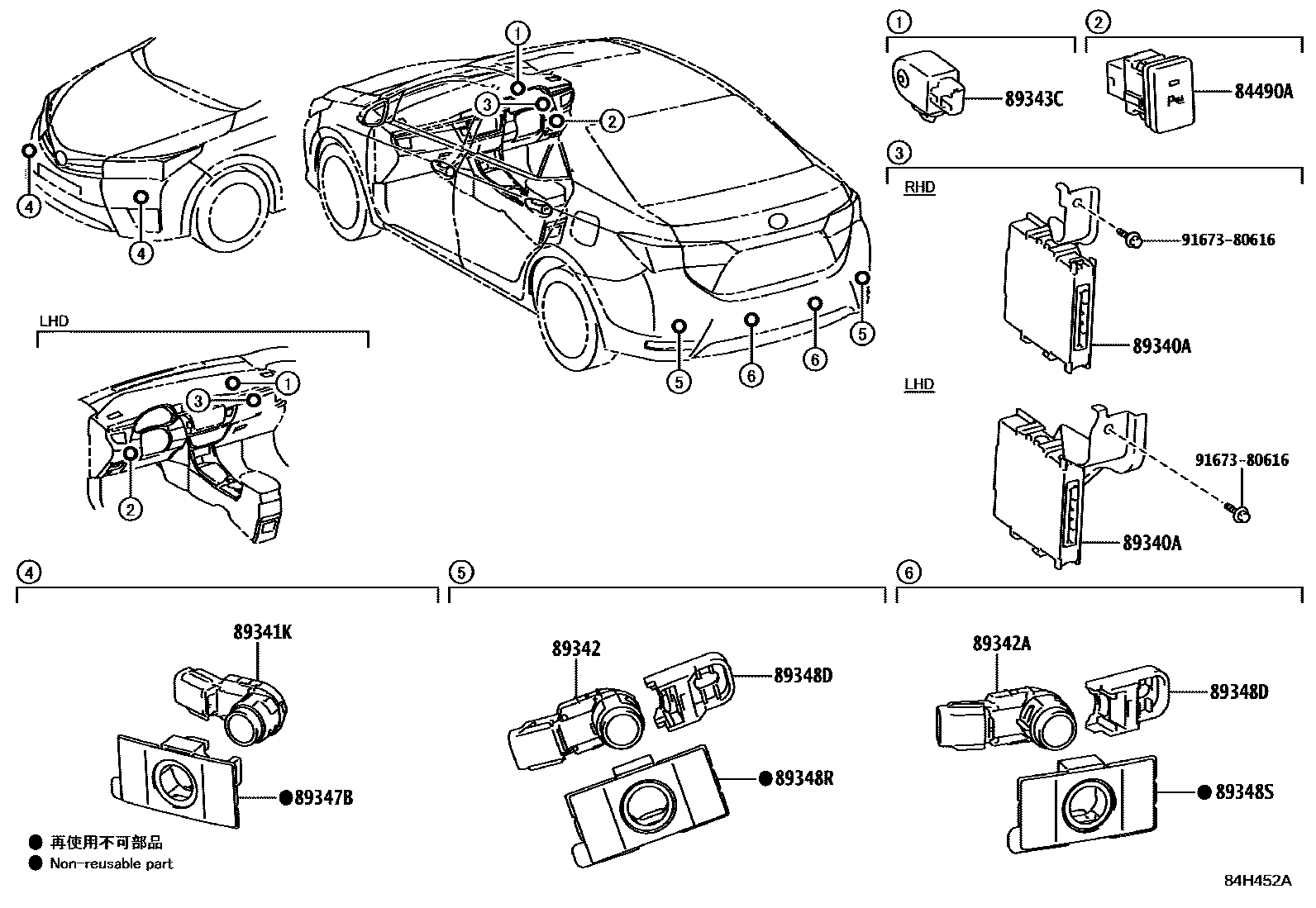

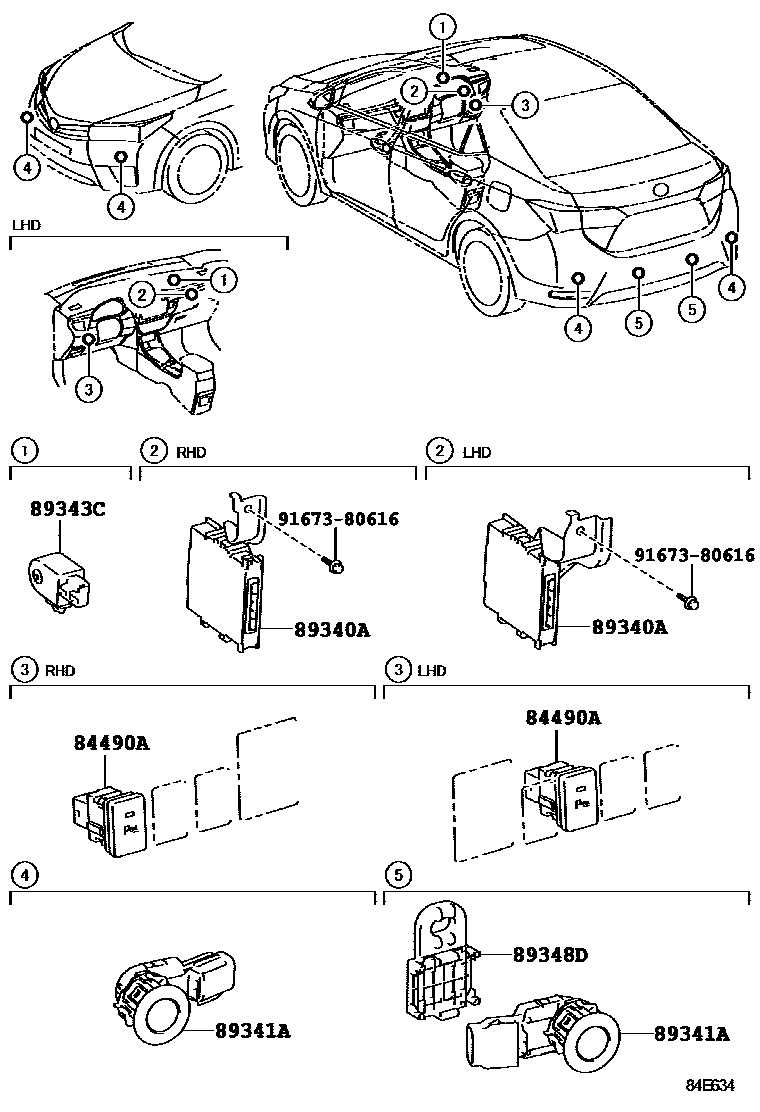

Toyota COROLLA 测距雷达和倒车雷达 — Figure 8417
Toyota COROLLA EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84490A | Reversing radar or ranging radar switch assembly | 84490-02040 · 84490-02041 · 84490-02070 · 84490-02071 · 84490-12020 · 84490-12021 |
| 89340A | Distance warning ECU assembly | 89340-12120 · 89340-12130 · 89340-12140 · 89340-12150 |
| 89343C | No. 1 distance warning buzzer | 89343-72010 |
| 89347B | Front angle ultrasonic sensor holder | 89348-60010 |
| 89348D | Ultrasonic sensor clip | 89348-12020 · 89348-33190 |
| 89348R | Ultrasonic sensor rear corner fixing bracket | 89348-60010 |
| 89348S | Ultrasonic sensor rear central fixing bracket | 89348-60010 |
