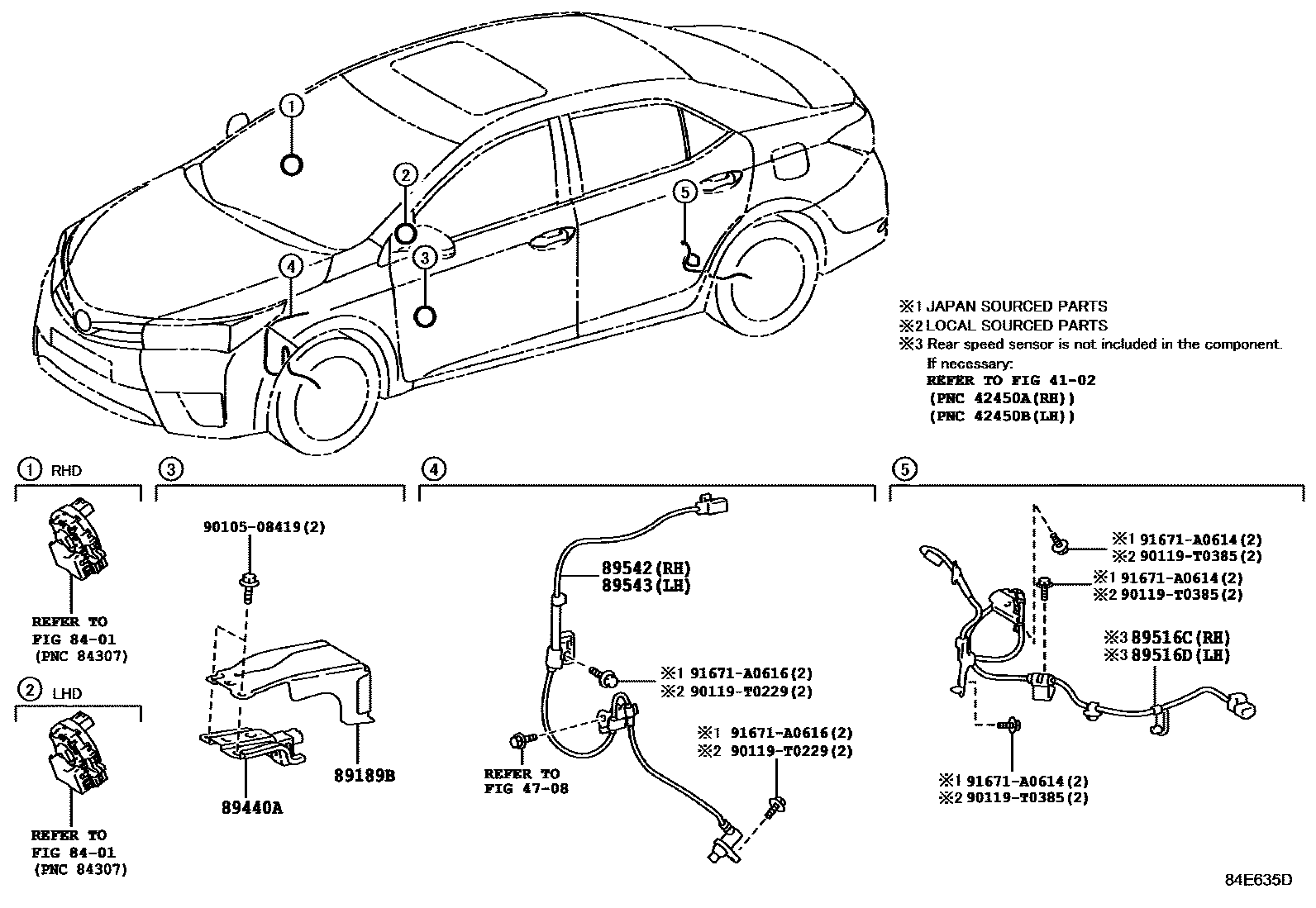

Toyota COROLLA ABS 和 VSC — Figure 8414
Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89189B | Yaw rate sensor bracket | 89189-12130 |
| 89440A | Deceleration sensor assembly | 89440-12110 |
| 89516C | Right anti-skid control sensor harness | 89516-02210 |
| 89516D | Left anti-skid control sensor wiring harness | 89516-02220 |
| 89542 | Right front wheel speed sensor | 89542-02130 · 89542-12100 |
| 89543 | Left front wheel speed sensor | 89543-02130 · 89543-12100 |
