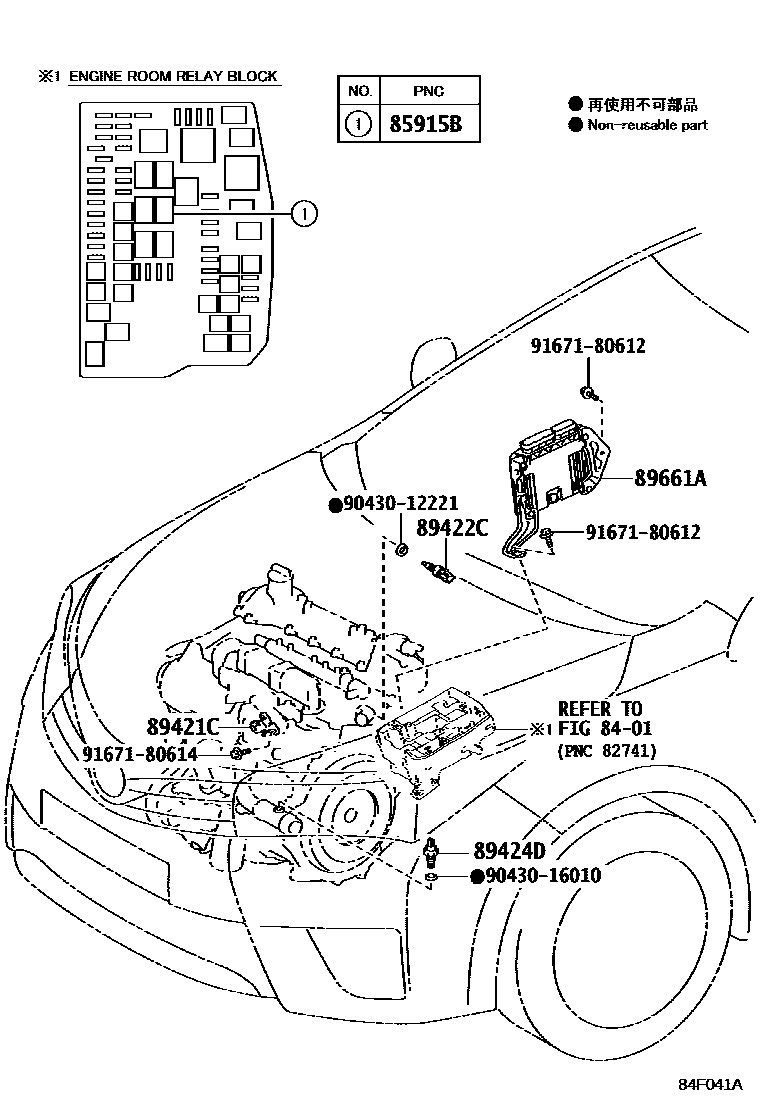

Toyota COROLLA 电子控制柴油机(ECD) — Figure 8405
Toyota COROLLA EPC diagram 8405, 电子控制柴油机(ECD), with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85915B | Main relay (for diesel turbine) | 90987-02027 · 90987-T2001 |
| 89421C | Turbo pressure sensor (for diesel turbines) | 89421-20200 |
| 89422C | Diesel engine water temperature sensor | 89422-33030 |
| 89424D | Intake air temperature sensor | 89424-60010 |
| 89661A | Engine control ECU | 89660-0ZM50 |
