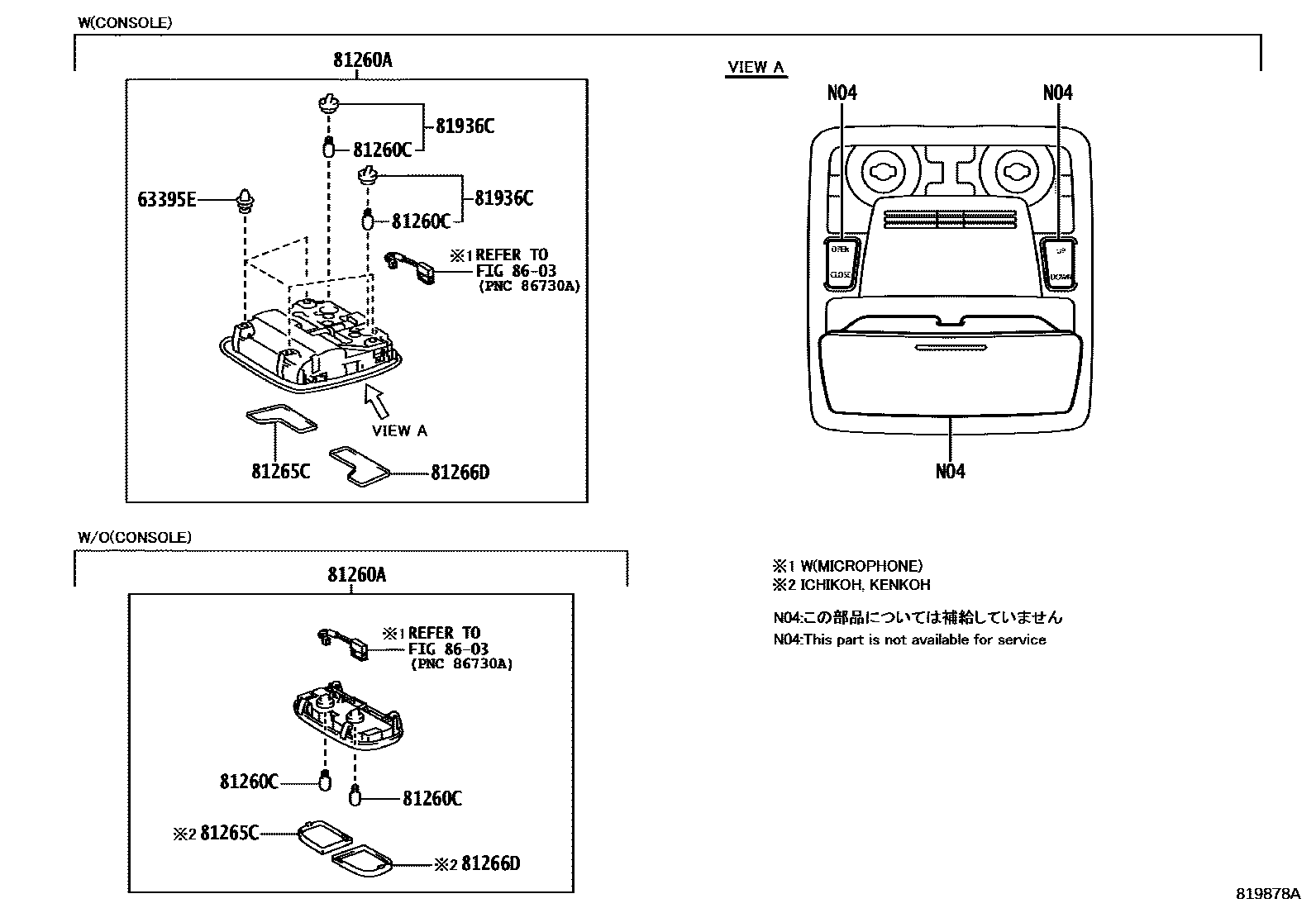

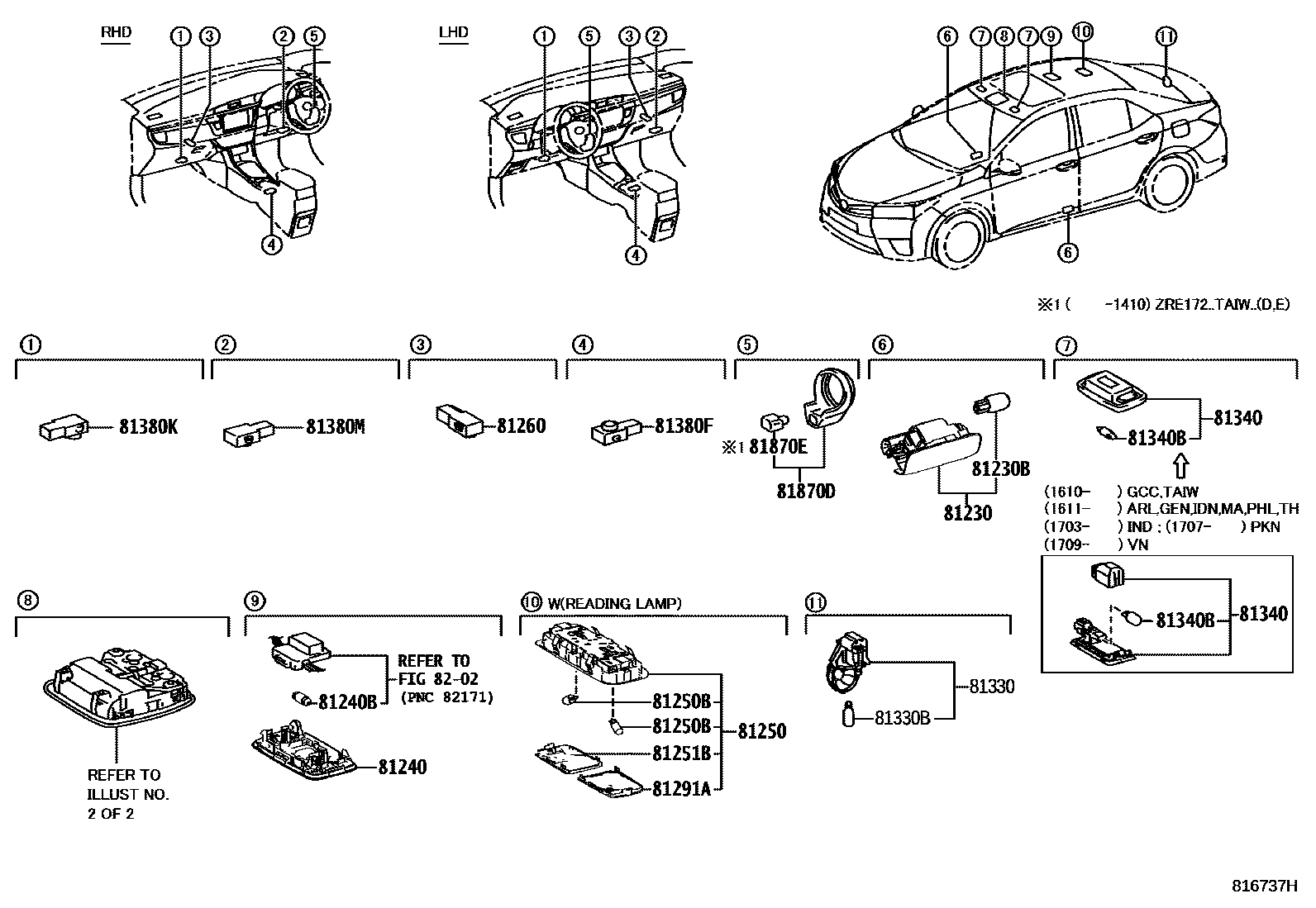

Toyota COROLLA 车内灯 — Figure 8121
Toyota COROLLA EPC diagram 8121, 车内灯, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63395E | Clip (for reading lamp) | 90467-09240 · 90467-A0033 |
| 81230 | Door control light assembly | 81230-30200 |
| 81230B | Bulb (for gated lights) | 90981-12010 |
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81250B | Interior light bulb No. 2 | 90981-11062 |
| 81251B | Right rear interior light cover | 81251-05030 |
| 81260 | Glove box light assembly | 81080-12080 |
| 81260C | Light bulb (for reading lamp) | 90981-11062 · 99132-12050 |
| 81265C | No. 1 reading lamp shade | 81265-52020 · 81265-8C000 · 81391-06020 · 81391-06030 |
| 81266D | Reading lamp shade No. 2 | 81266-52020 · 81266-8C000 · 81392-06010 · 81392-06020 |
| 81291A | Left rear interior light cover | 81291-05030 |
| 81330 | No. 1 trunk light assembly | 81330-0D020 · 81330-12020 |
| 81330B | trunk light bulb | 90981-11020 |
| 81340B | Bulb (for vanity lights) | 99132-12050 · 99132-13050 |
| 81380F | Armrest box light assembly | 81080-12080 |
| 81380K | No. 2 under-dash lighting bulb | 81080-12080 |
| 81380M | No. 1 under-dash lighting bulb | 81080-12080 |
| 81870D | Lock core lighting assembly | 81870-12050 · 81870-22130 · 81870-52020 |
| 81870E | Lock cylinder lighting bulb | 90010-01030 |
| 81936C | Bulb assembly | 81936-28010 |
