Toyota COROLLA 高位刹车灯 — Figure 8117

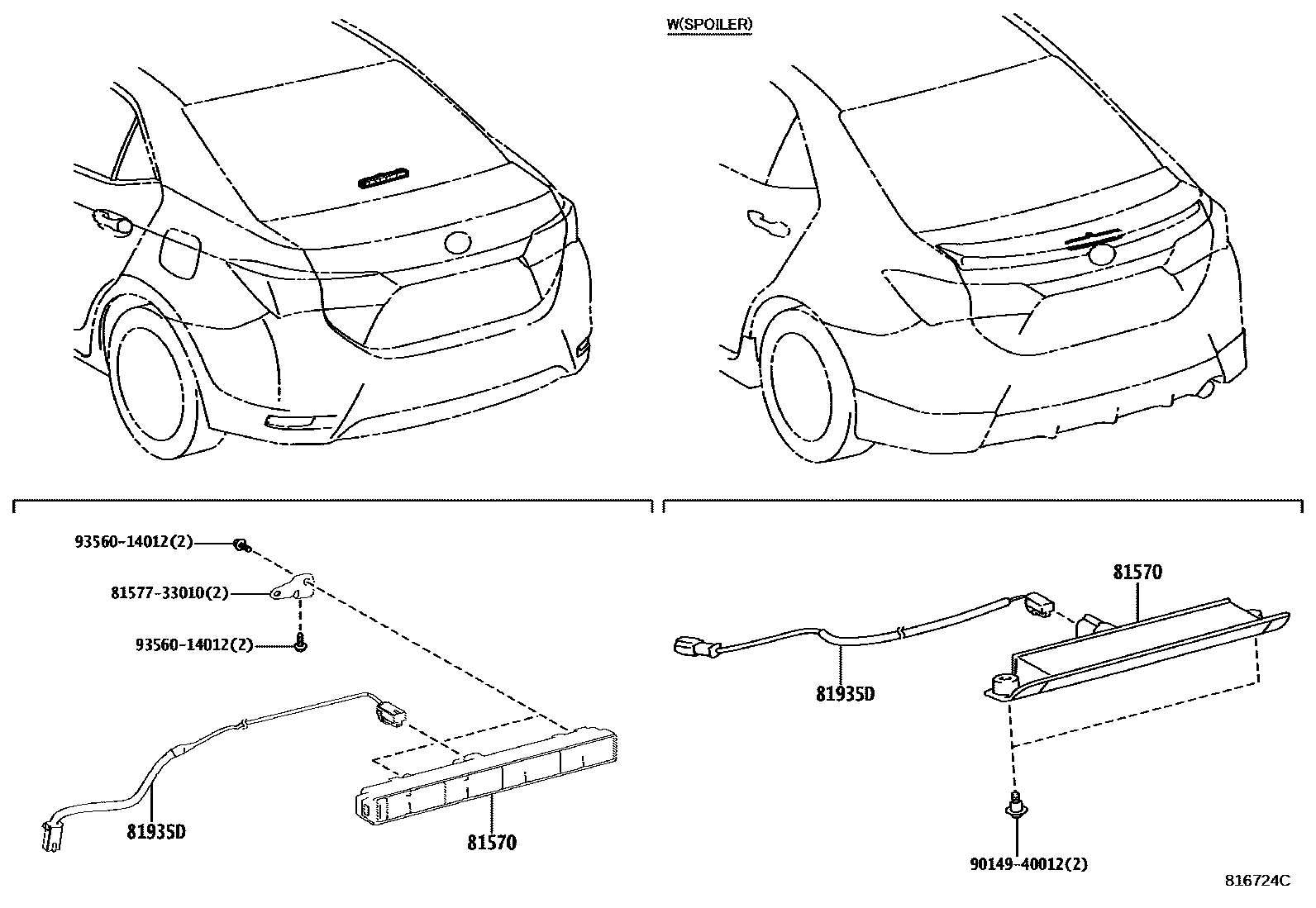

Toyota COROLLA EPC diagram 8117, 高位刹车灯, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81570 | Central brake light assembly | 81570-0D180 · 81570-30250 · 81570-47051 |
| 81935D | Central brake light wire assembly | 81935-02130 · 81935-02190 |
