Toyota COROLLA reflector — Figure 8115

Toyota COROLLA EPC diagram 8115, reflector, with 1 images and 2 PNC and OE references.

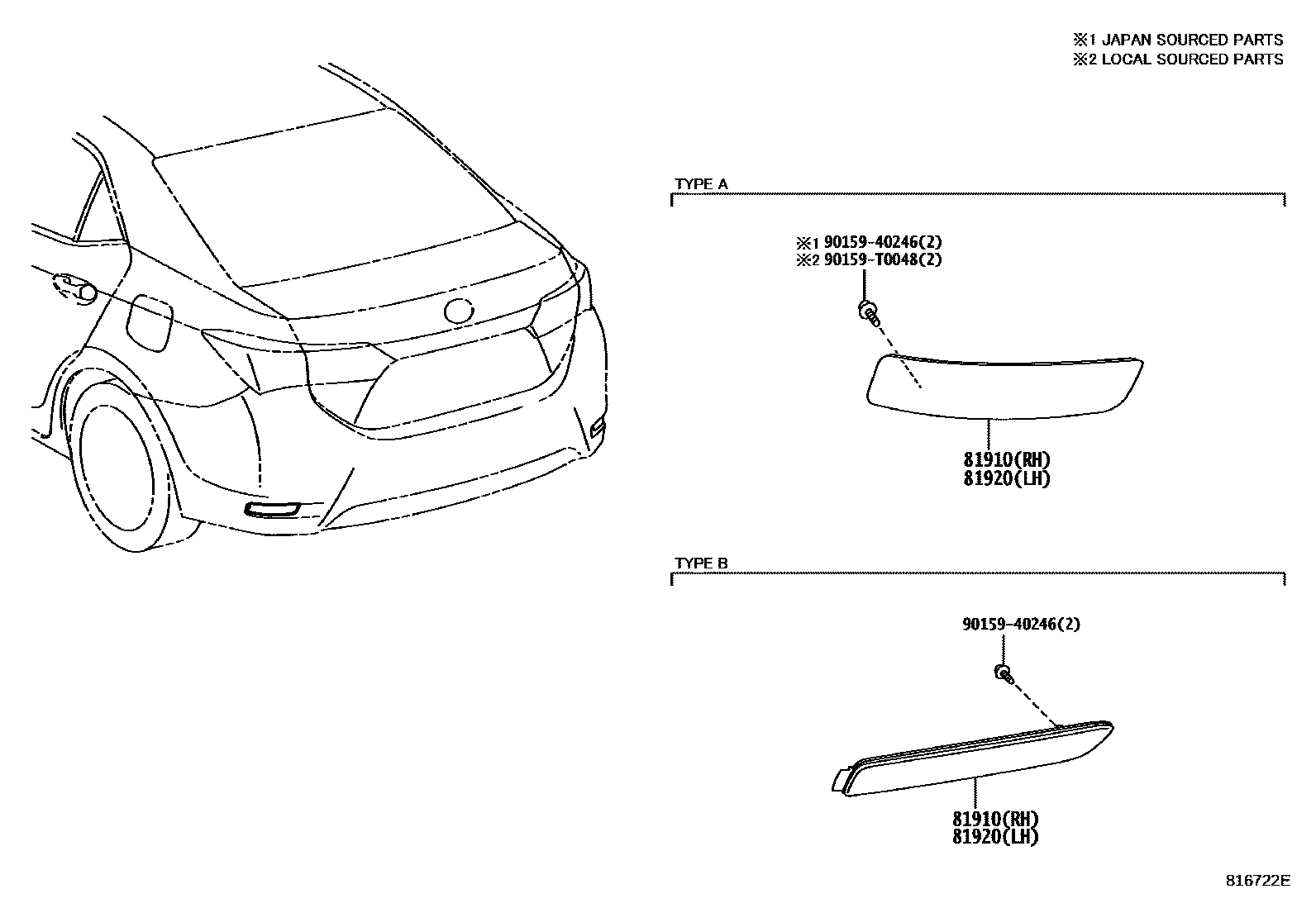

Toyota COROLLA reflector EPC diagram — 816722E
reflector — 816722E (201310 – 999999)

PNC and OE references

PNCPart nameOE numbers
81910Right reflector assembly81910-02090 · 81910-02170 · 81910-02180 · 81910-02190
81920Left reflector assembly81920-02060 · 81920-02110 · 81920-02120 · 81920-02130
